A universal, rigid motor mount plate for RC model airplanes and custom hobby projects. The author states it is optimized to withstand the continuous vibration and torque of high-KV brushless outrunner motors. The center features a standard 4-hole radial mounting configuration with a motor shaft/bearing clearance bore. The plate includes two counterbored assembly mounting holes on one side and a large secondary pass-through hole on the opposite side. The author suggests optimization for high perimeters and zero-support flat printing.
Original text by the author on Printables

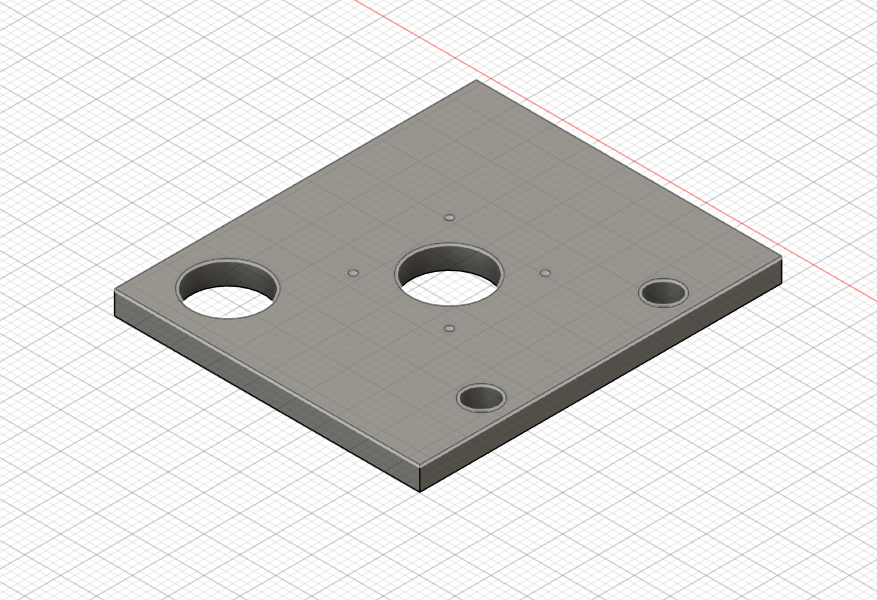

<p>### About This Model </p><p>This is a universal, rigid motor mount plate designed for RC model airplanes and custom hobby projects. Optimized to withstand the continuous vibration and torque of high-KV brushless outrunner motors, it serves as an excellent replacement firewall mount or custom adaptation plate. </p><p>The center features a standard 4-hole radial mounting configuration surrounding a generous motor shaft/bearing clearance bore. Additionally, the plate includes two counterbored assembly mounting holes on one side and a large secondary pass-through hole on the opposite side to reduce overall nose weight and route motor ESC wires cleanly.</p>
AI-assisted English description reviewed against the CC0 source. Original content and author attribution retained; photographs from the author's Printables model gallery.
Download content
Files included
These files are part of the model download.
2 files · 81 KB
3MF
Meshopia-1864431-Component-7789964.3mfIncluded in the package · 17 KB
