Model information
Description

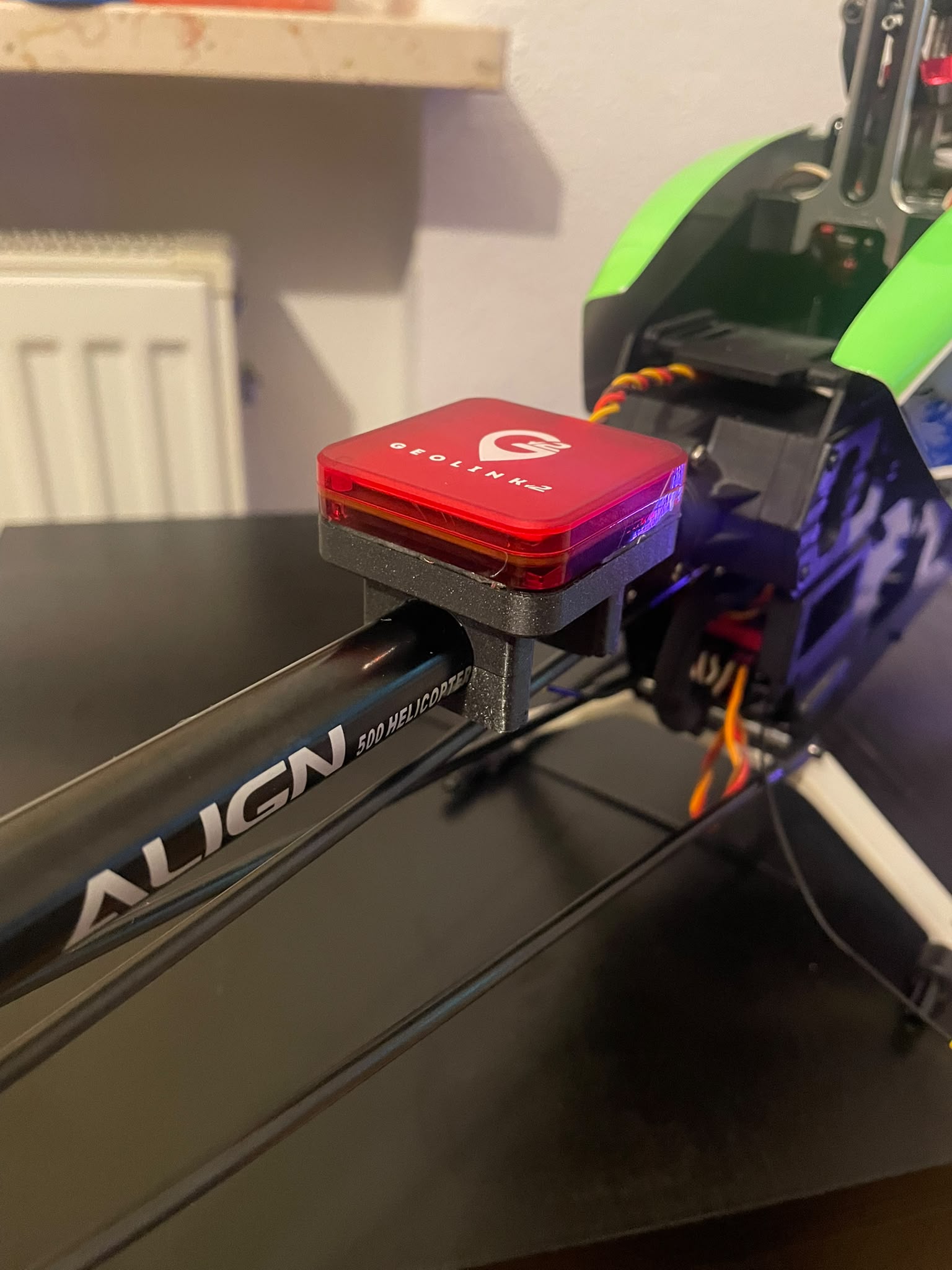

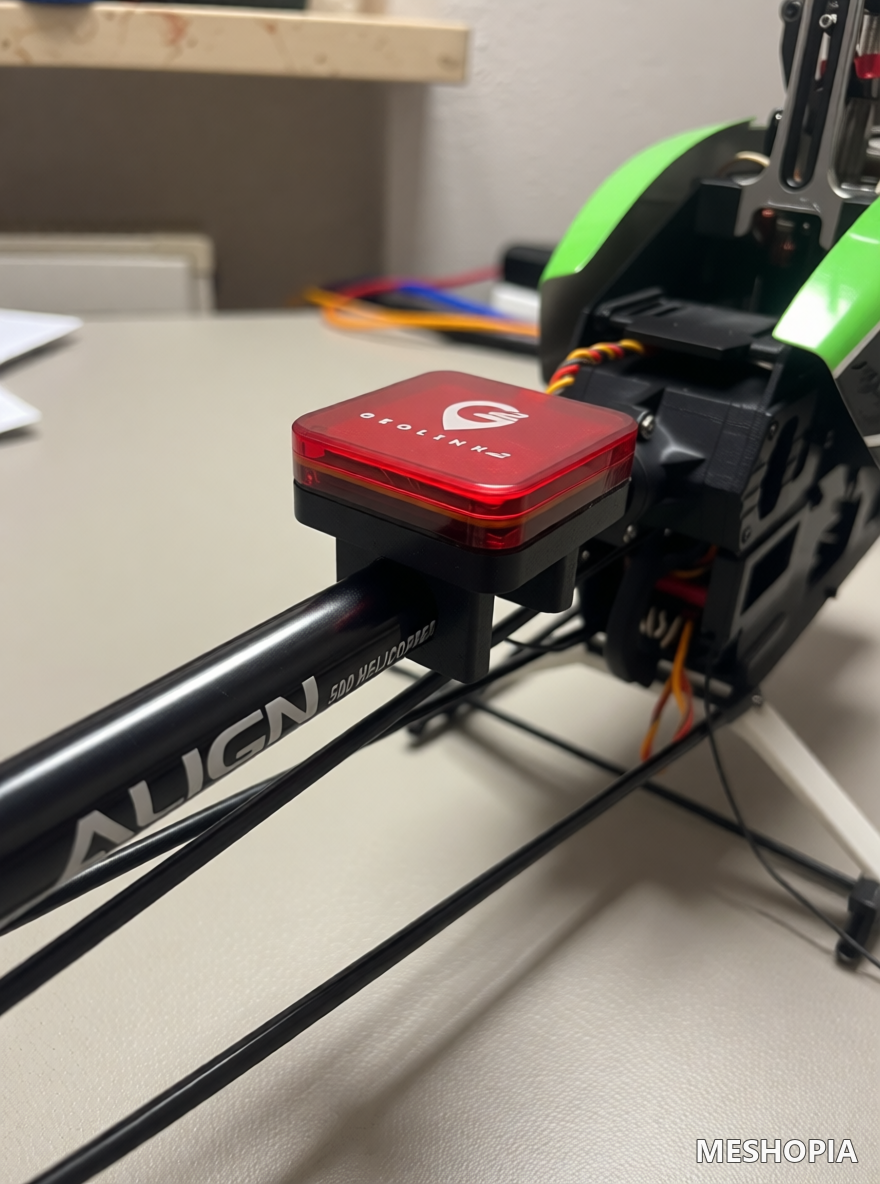

This mounting bracket is designed to hold a Spirit GeoLink on a 16 mm tail boom.
Practical uses include securing a GeoLink device to a helicopter tail boom for stabilized flight or telemetry.

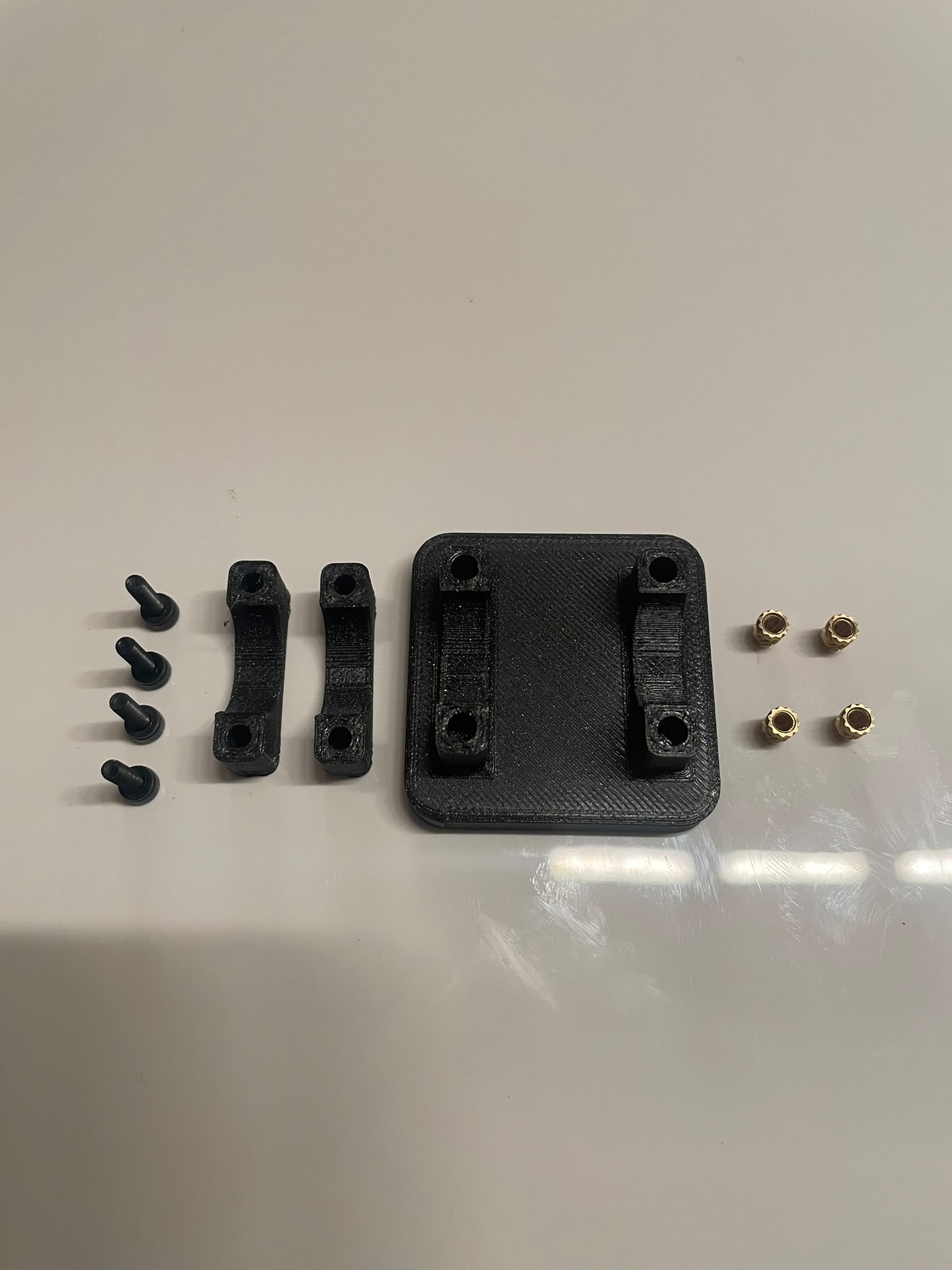

The files include the SPIRIT GEOLINK holder and GEOLINK counterpart.

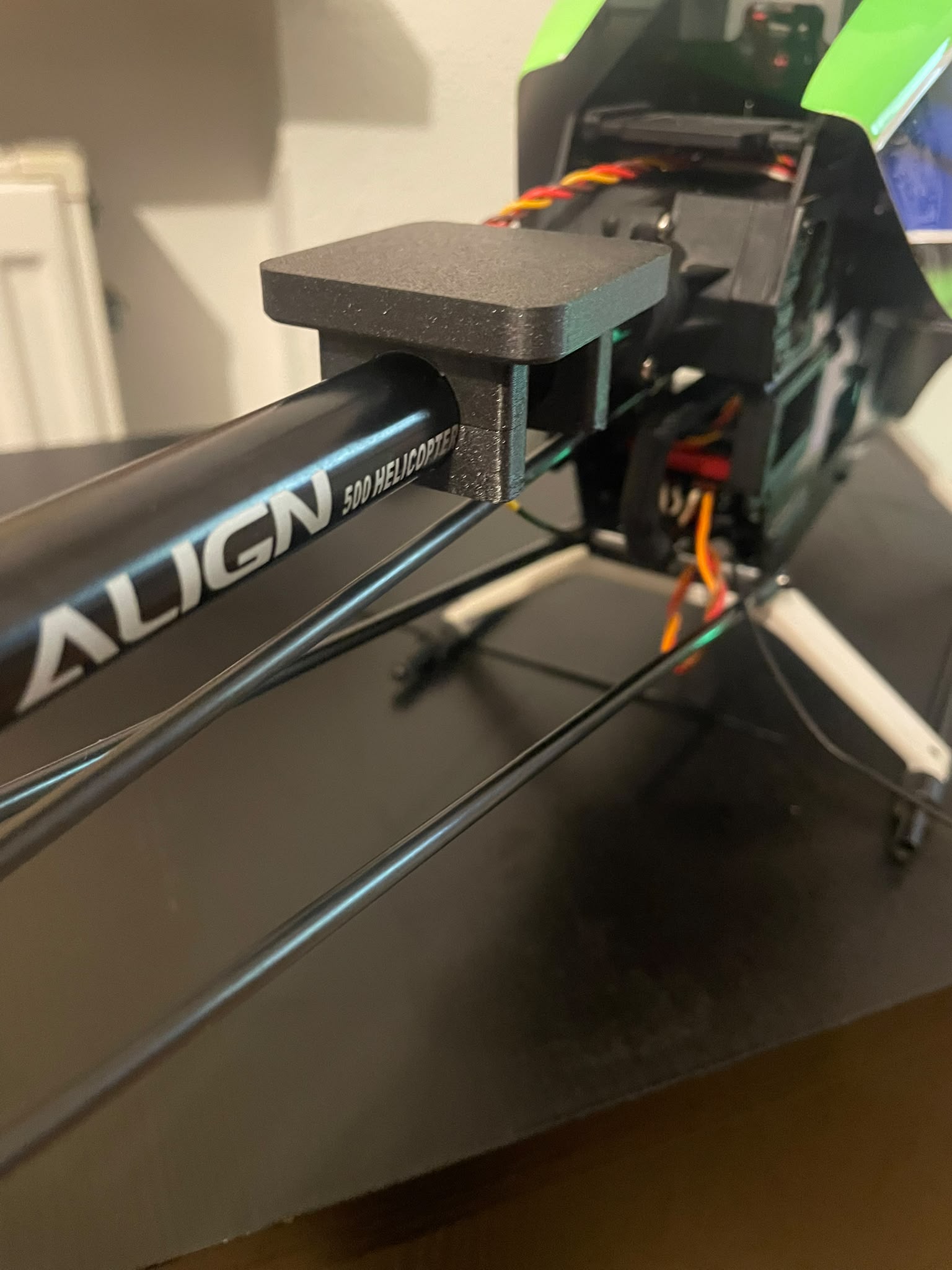

Assembly requires M3 threaded inserts, M3×10 socket head cap screws, and thin double-sided tape (not exceeding 0.25 mm thickness). Apply tape to all shell halves and counterparts. Mount the holder horizontally on the tail boom and secure the counterparts with the screws. Follow manufacturer instructions for mounting the GeoLink.
Original text by the author on Printables

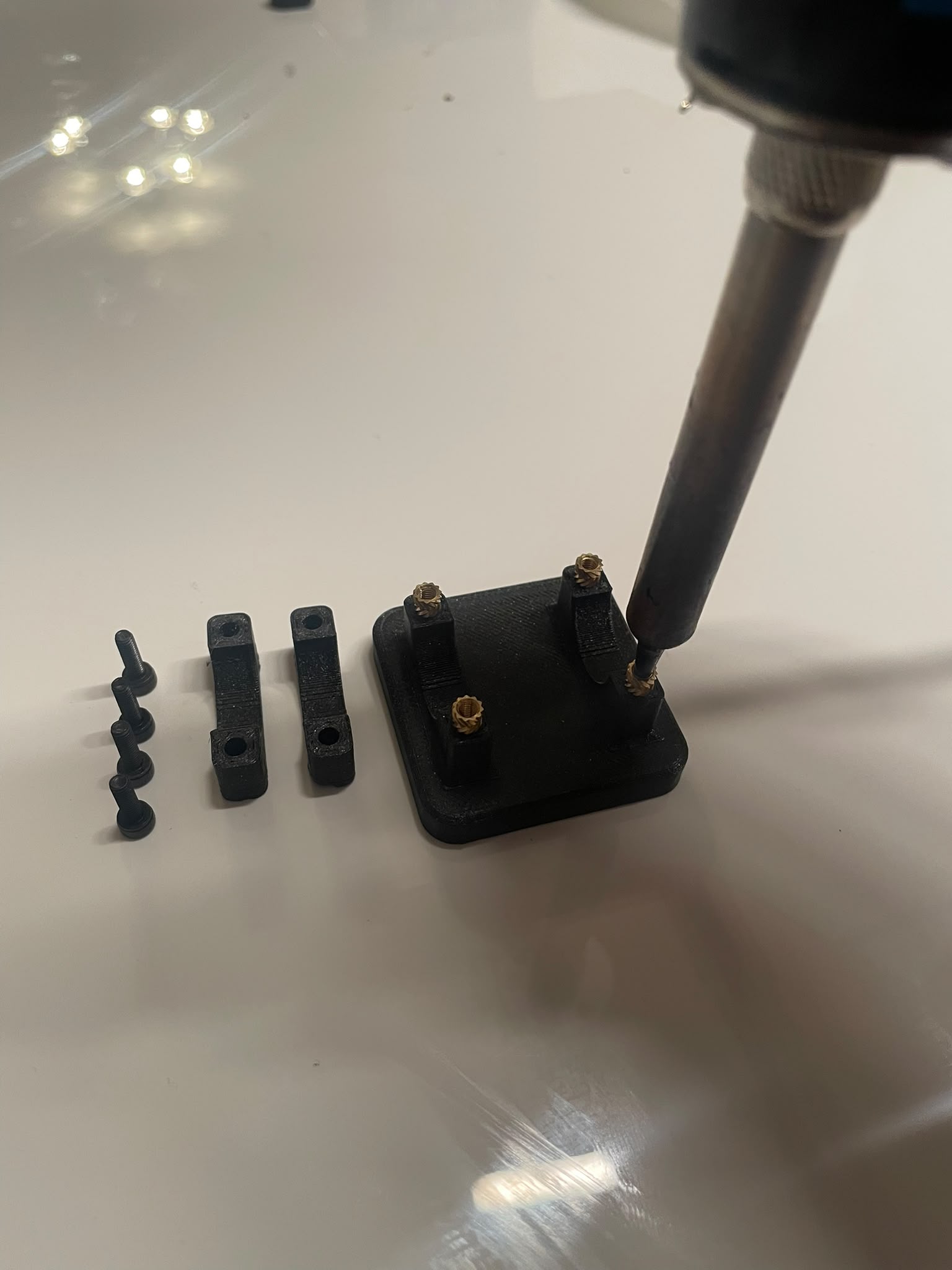

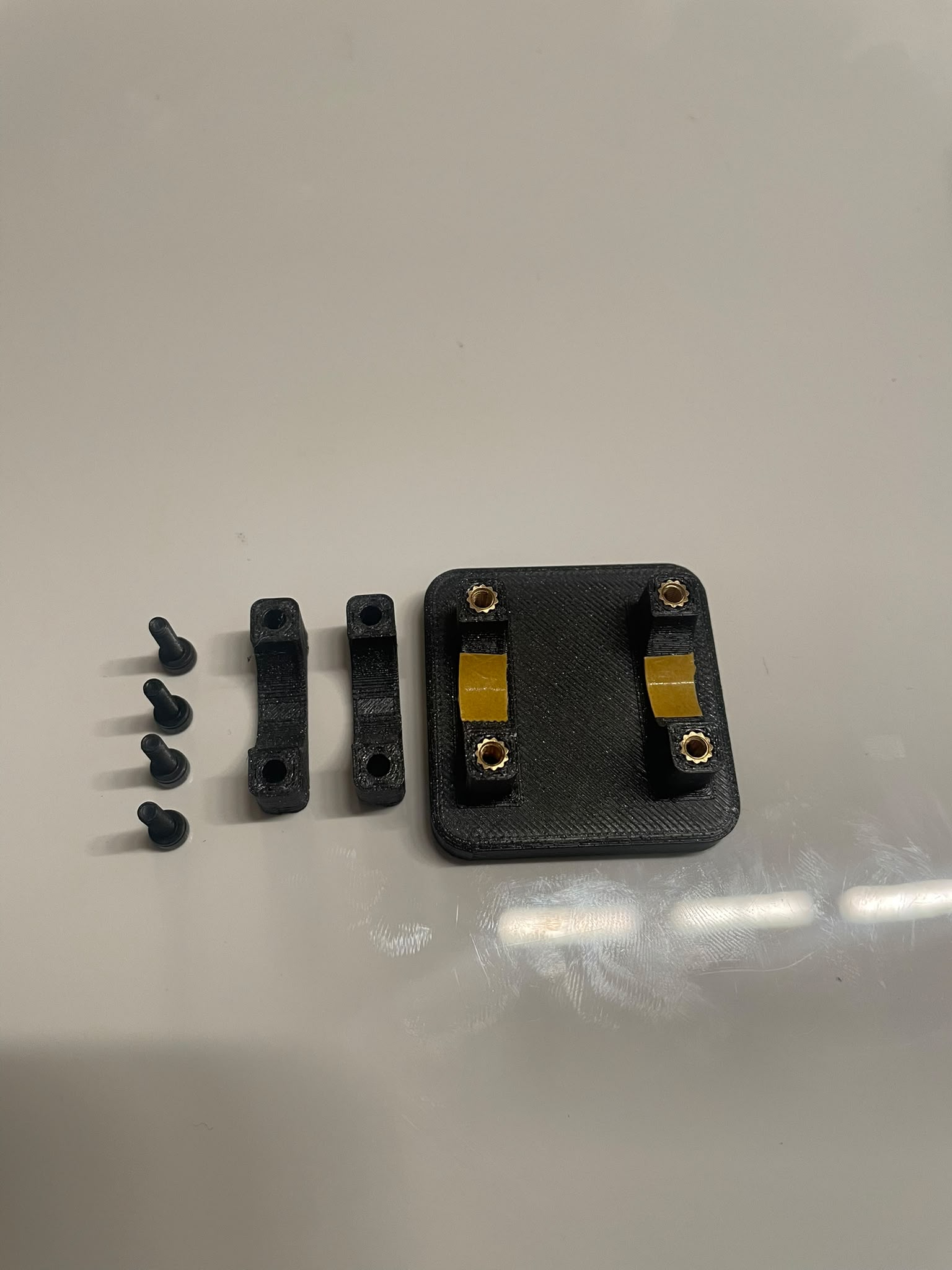

<p>This GeoLink holder was designed for a 16 mm tail boom.</p><p>You will need:</p><ul><li><p>1× SPIRIT GEOLINK holder</p></li><li><p>2× GEOLINK counterpart</p></li><li><p>4× M3 threaded inserts</p></li><li><p>4× M3×10 socket head cap screws</p></li><li><p>A small piece of thin double-sided tape</p></li></ul><p></p><p>Insert the M3 threaded inserts:</p><figure class="image image_resized image-style-align-left" data-clear="none" data-width="50%" style="width: 50%; --image-width: 50%;"><img class="editor-image-resize" src="https://media.printables.com/media/prints/1859109/rich_content/92b7d93d-00d9-488c-a08a-c1d63ac82a63/whatsapp-image-2026-09-28-at-205325-2.jpeg#%7B%22uuid%22%3A%22f75b90dd-850b-423c-83d5-1f1f55de7f21%22%2C%22w%22%3A1536%2C%22h%22%3A2048%7D"></figure><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p>Apply a small piece of double-sided tape to all shell halves, including the counterparts. The tape must not be thicker than 0.25 mm.</p><figure class="image image_resized image-style-align-left" data-clear="none" data-width="50%" style="width: 50%; --image-width: 50%;"><img class="editor-image-resize" src="https://media.printables.com/media/prints/1859109/rich_content/9e08815e-c103-43b3-8a62-cf340802b043/whatsapp-image-2026-09-28-at-205326.jpeg#%7B%22uuid%22%3A%22827d07bd-b2fe-41c7-85a2-7d05e2f30c95%22%2C%22w%22%3A1536%2C%22h%22%3A2048%7D"></figure><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p>Mount the holder exactly horizontally at your preferred position on the tail boom and secure the counterparts using four M3×10 socket head cap screws.</p><figure class="image image_resized image-style-align-left" data-clear="none" data-width="50%" style="width: 50%; --image-width: 50%;"><img class="editor-image-resize" src="https://media.printables.com/media/prints/1859109/rich_content/ba5626d8-60b8-4982-a127-d4d7a2347522/whatsapp-image-2026-09-28-at-205326-1.jpeg#%7B%22uuid%22%3A%22fc973922-d2e5-420f-8d99-e19235f97397%22%2C%22w%22%3A1536%2C%22h%22%3A2048%7D"></figure><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p>Mount your GeoLink on the holder exactly according to the manufacturer's instructions.</p><p></p><figure class="image image_resized image-style-align-left" data-clear="none" data-width="50%" style="width: 50%; --image-width: 50%;"><img class="editor-image-resize" src="https://media.printables.com/media/prints/1859109/rich_content/4b5f7098-e8de-403d-bf7a-7f39fdb93400/whatsapp-image-2026-09-28-at-205326-2.jpeg#%7B%22uuid%22%3A%223b1cf224-cd28-46aa-8975-36bf08a051a4%22%2C%22w%22%3A1536%2C%22h%22%3A2048%7D"></figure><p></p>
