Model information
Description
Purpose

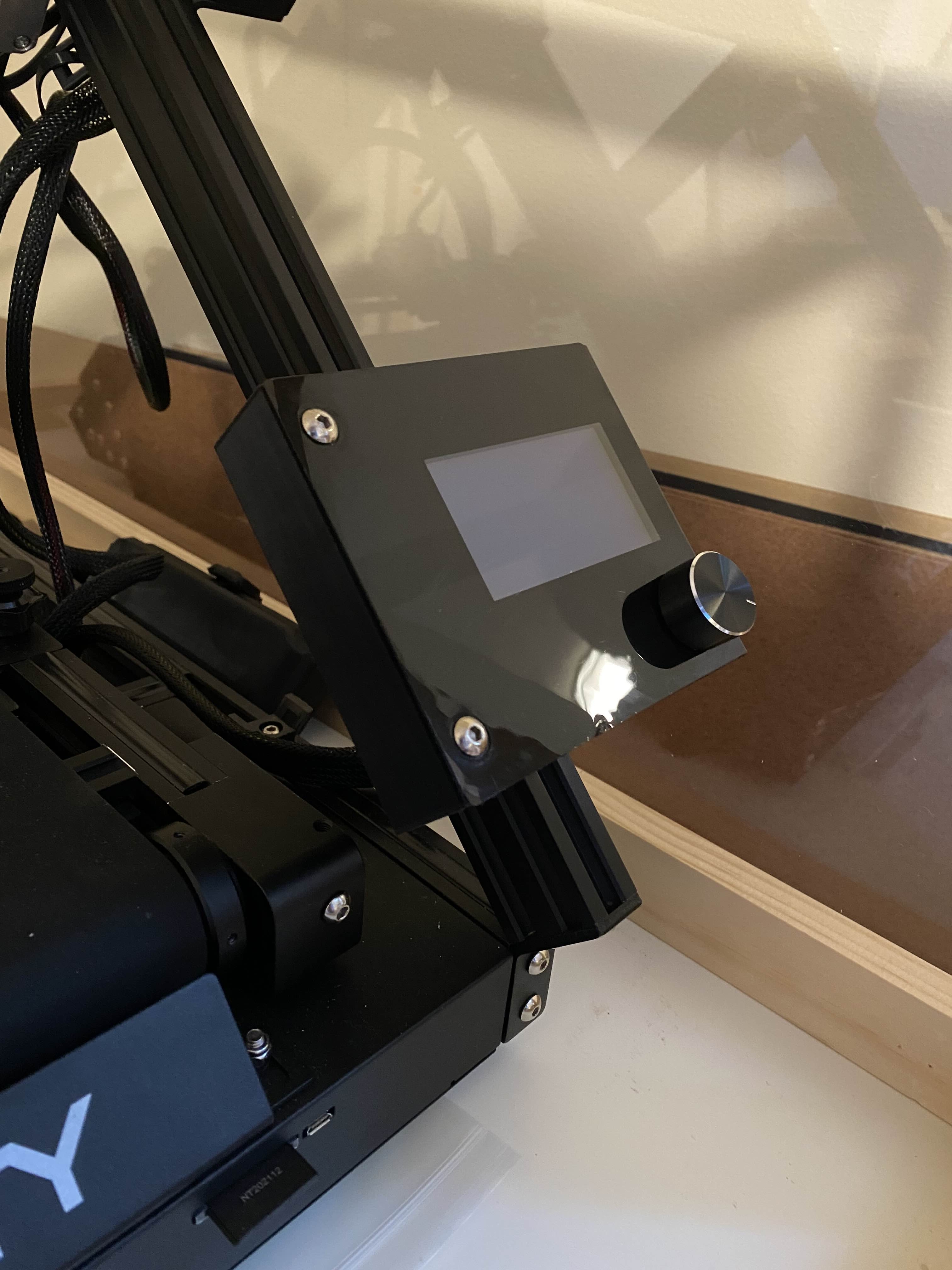

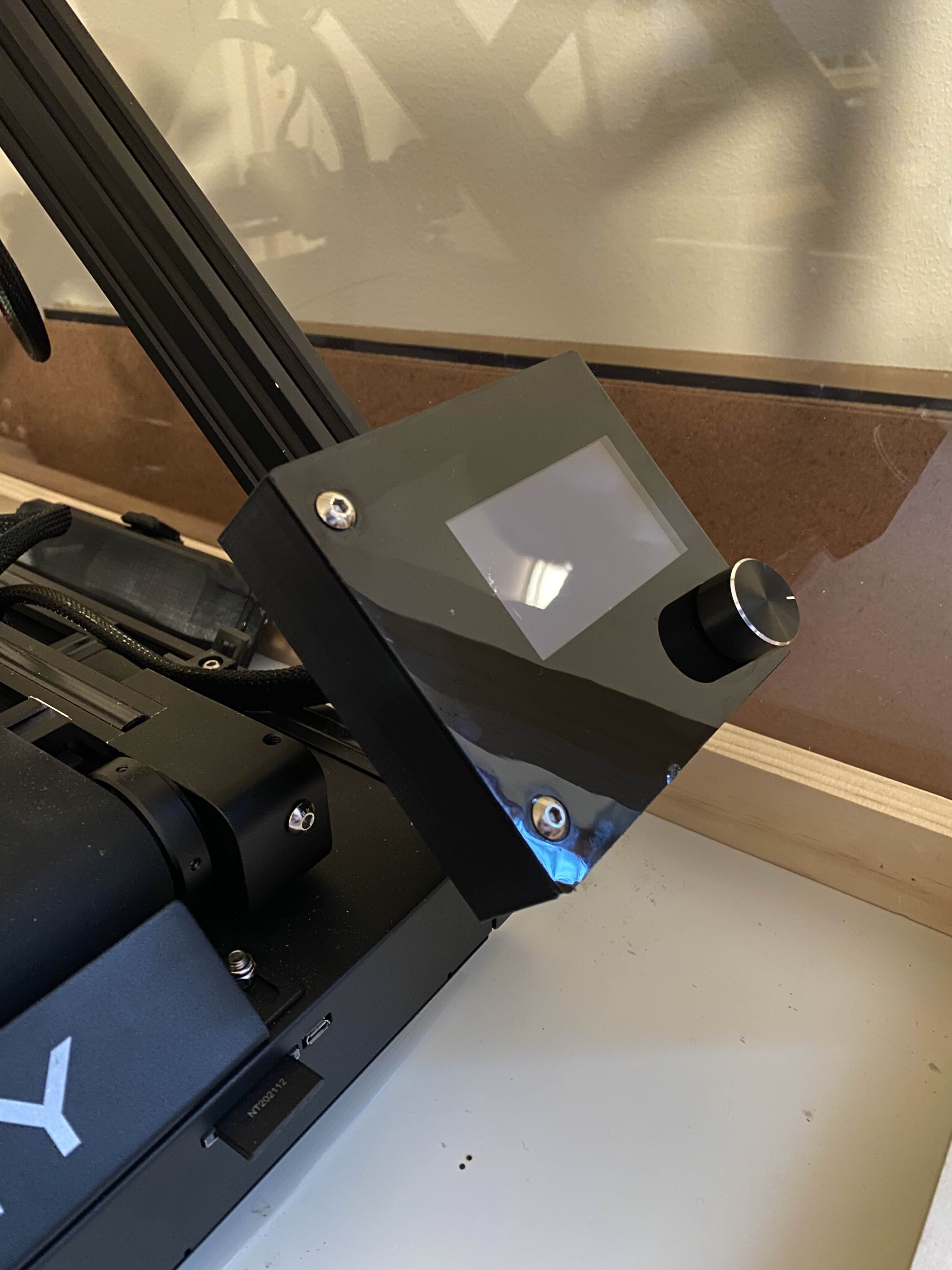

This model provides a solution to move the screen on the CR-30 Creality Print mill closer to the belt edge, which reduces the overall footprint of the machine.
Practical Uses

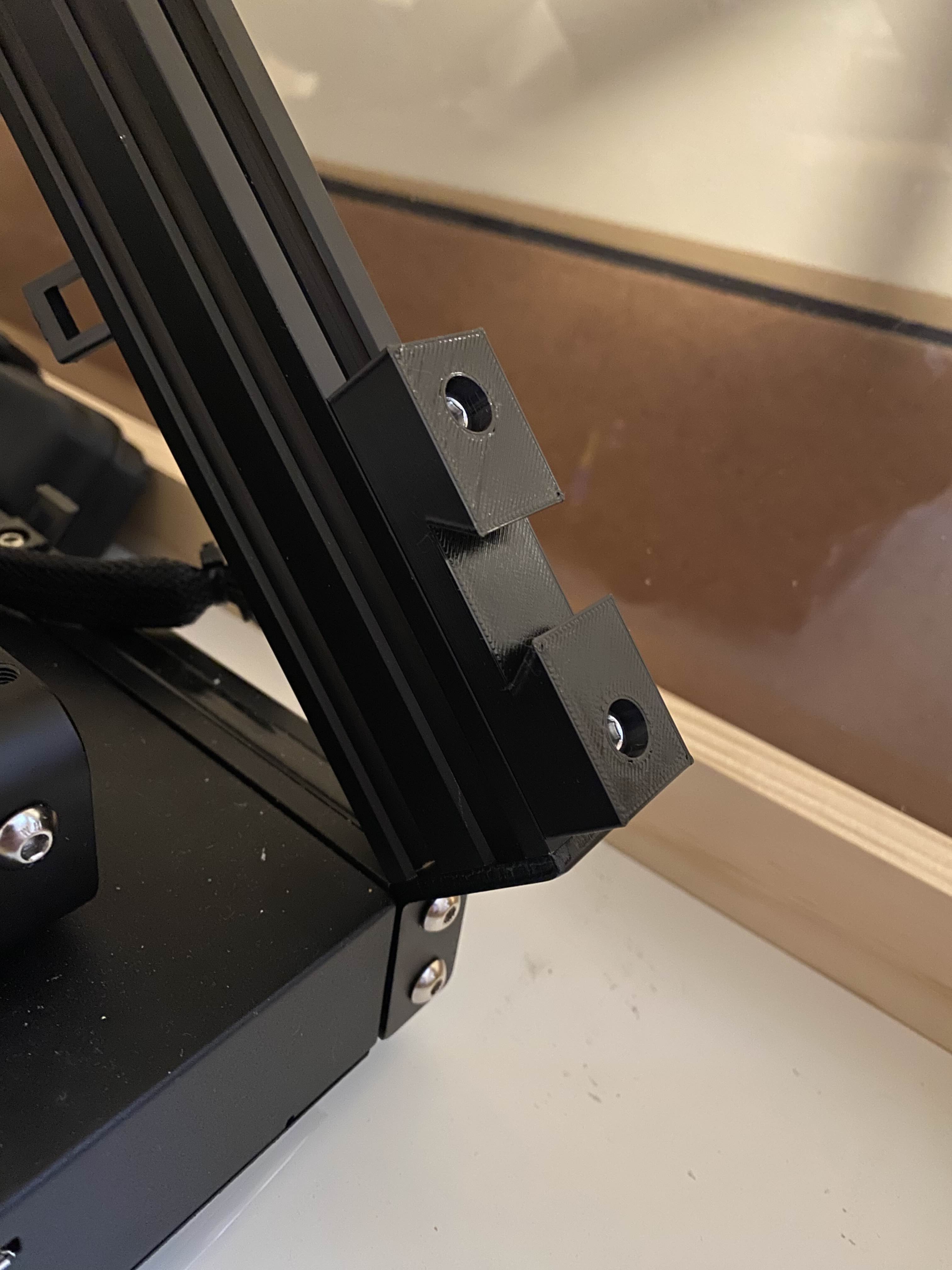

The assembly uses existing t-nuts to secure the base to a 4020 rail. An IDC 10 pin extension cable and a ground cable extension are required because the screen is moved closer to the front of the printer.
Included Parts
- CR-30 Screen Bracket.stl
- CR-30 Screen Base.stl
Printing/Assembly Guidance

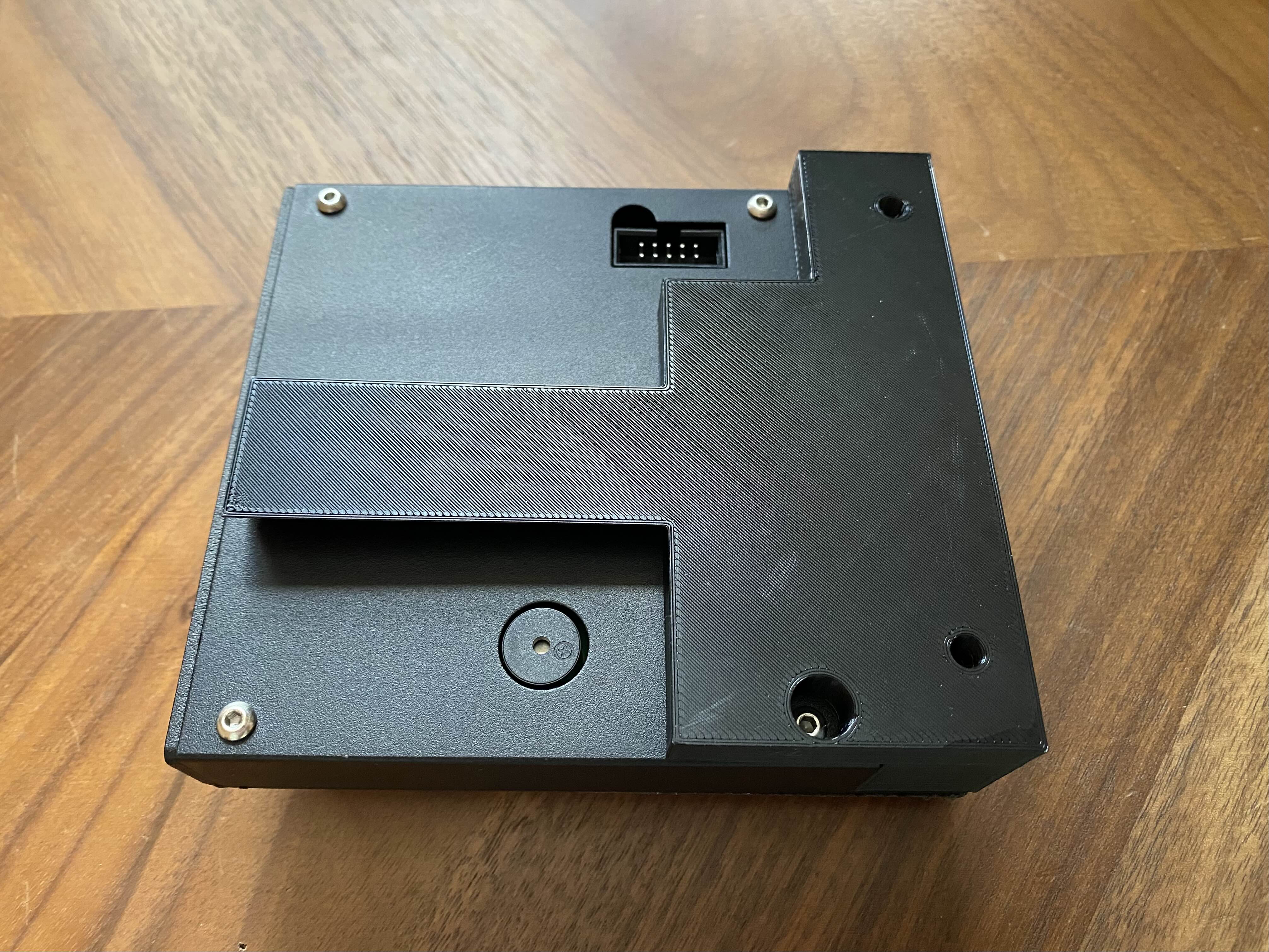

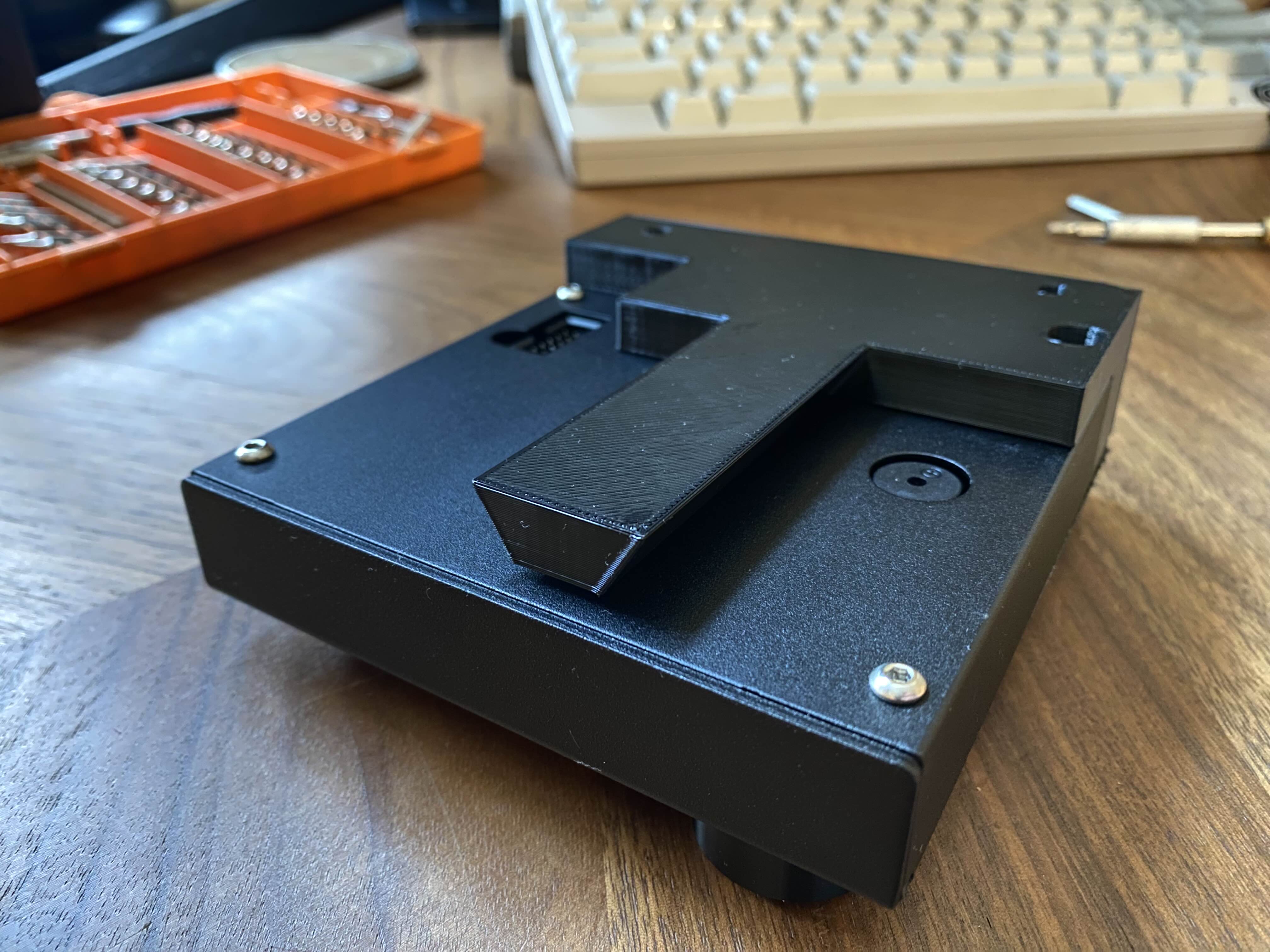

Two additional M5 x 12mm socket head bolts are required for assembly. The author notes that existing M5 cap head bolts may be used to self-tap the bracket holes. The dovetail on the screen bracket slides into the base.
Original text by the author on Printables
<p>Uses existing t-nuts to secure base to 4020 rail. Two additional M5 x 12mm socket head bolts will be required. Existing M5 cap head bolts may be used to self-tap bracket holes. </p><p>An IDC 10 pin extension cable and ground cable extension will be required, as this also moves the screen closer to the front of the printer.</p><p>Dovetail on screen bracket slides into base.</p>
