5 modelos etiquetados

#STEP CAD

Descubre modelos 3D etiquetados como STEP CAD y revisa sus datos de impresión, archivos y condiciones de uso antes de descargarlos.Open all filters →

RC & MecánicaGratis

Supported RC Jump Ramp - Original STEP and Derived STL

Prepare an RC jumping obstacle from this supported ramp design. Inspection of the supplied CAD conversion shows a broad rising deck, three support plates beneath it and small circular openings in the supports. The source collection identifies Arrma Grom or larger vehicles; physical suitability and load capacity for any particular vehicle have not been independently verified. The original editable CAD file is preserved as 01-supported-rc-jump-ramp.step. A matching mesh conversion is included as 02-supported-rc-jump-ramp.stl for slicing and preview. The STL was derived in FreeCAD with linear deflection 0.05 source units and angular deflection 0.15 radians; the original STEP remains available for comparison. The vehicle in the supplied installation photograph is not included. No tested print profile or verified scale was supplied. Inspect the CAD dimensions, deck orientation, support geometry and fastening openings before printing. Establish a stable installation appropriate for your intended vehicle. MESHOPIA has not tested jumping performance, assembly or strength. The new cover uses teal and copper presentation finishes on a pale wooden workshop surface. Its background was generated locally in ComfyUI; the product was rendered from the supplied geometry in Blender and composited without changing its shape.

Technology: Sin probar
material: —
Difficulty: Sin especificar

RC & MecánicaGratis

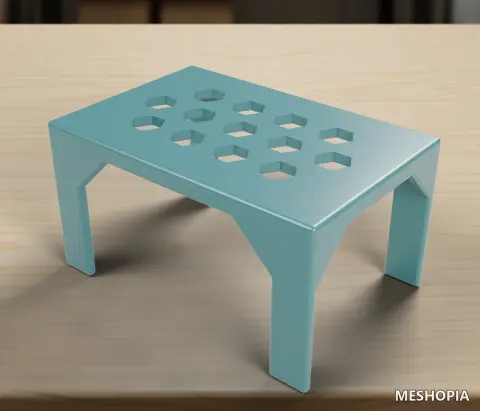

Four-Leg Perforated RC Car Stand - 1:8 Source Project STEP and STL

Support an RC car during display or maintenance with this source CAD stand. The inspected geometry contains a rectangular platform with a grid of hexagonal openings, four extended corner legs, braced transitions and open side clearances. The new cover shows the actual supplied geometry in teal, with a changed angle and a workshop setting. No RC car or extra hardware is added. Two files are included: the unchanged original STEP CAD file and an STL derived locally from that STEP geometry for preview and printing workflows. English filenames distinguish the editable CAD source from the derived mesh. Inspect the STL tessellation and use the STEP file when your workflow supports CAD. The rendering changes presentation orientation and finish without changing the supplied design. Check the platform footprint, chassis contact area, underside clearances, stand height and stability against your vehicle before printing. No verified load rating, rubber contact pads, fasteners or tested printing profile were supplied. MESHOPIA has not tested fit, printing, stability or strength. The source project identifies a 1:8 RC context; that label does not guarantee compatibility with every 1:8 chassis. The cover renders the actual geometry and shadows in Blender, then composites them over a workshop background generated locally in ComfyUI.

Technology: Sin probar
material: —
Difficulty: Sin especificar

RC & MecánicaGratis

Rounded-Platform RC Car Stand with Open Braced Feet - STEP and STL

Support an RC car during display or maintenance with this source CAD stand. The inspected geometry contains a long platform with rounded ends, open braced feet and connecting supports underneath. The new cover shows the actual supplied geometry in teal, with a changed angle and a workshop setting. No RC car or extra hardware is added. Two files are included: the unchanged original STEP CAD file and an STL derived locally from that STEP geometry for preview and printing workflows. English filenames distinguish the editable CAD source from the derived mesh. Inspect the STL tessellation and use the STEP file when your workflow supports CAD. The rendering changes presentation orientation and finish without changing the supplied design. Check the platform footprint, chassis contact area, underside clearances, stand height and stability against your vehicle before printing. No verified load rating, rubber contact pads, fasteners or tested printing profile were supplied. MESHOPIA has not tested fit, printing, stability or strength. No verified vehicle scale was supplied. The cover renders the actual geometry and shadows in Blender, then composites them over a workshop background generated locally in ComfyUI.

Technology: Sin probar
material: —
Difficulty: Sin especificar

RC & MecánicaGratis

Ribbed Storage Case, Lid and Repair Stand for Axial SCX30 Projects - STEP and STL

Organize or store a small RC crawler with this three-part source CAD project. The inspected case has a rectangular open cavity and recessed rib lines on its outside walls and bottom. A separate low-profile lid has a raised inner rim and small edge features. The third design is an open repair stand with a rectangular clearance and raised contact features. The new cover shows the open case, its separate lid and the stand without adding the vehicle from the source photograph. Six files are included: three unchanged original STEP files and three STL meshes derived locally from the corresponding CAD geometry. English filenames distinguish the case, lid and repair stand and identify the derived meshes. The source project refers to the Axial SCX30 crawler, a 1:30 scale context, and Jeep/Bronco variants. These are source compatibility claims rather than fit tests performed by MESHOPIA. The cover presents the actual parts in blue and sand colors, using presentation rotations to show the case opening and stand clearly. Check the internal case dimensions against your crawler, including tire width, accessories and roof clearance. Inspect the lid rim, sliding or seating clearances and stand contact surfaces before use. No crawler, padding, external fasteners, tested print profile or verified transport protection rating is included. Use the STEP source where your CAD workflow supports it, and inspect the derived STL tessellation. MESHOPIA has not tested printing, fit, closure, stability or strength. The cover renders the actual geometry and shadows in Blender, then composites them over a workshop background generated locally in ComfyUI.

Technology: Sin probar
material: —
Difficulty: Sin especificar

RC & MecánicaGratis

Cyberbrick OpenFrame One RC Chassis, Suspension and Flexible Wheel Components - STEP and 3MF

CAD and print-project files from a CyberBrick OpenFrame One RC car source project. Inspection of the STEP finds an open rectangular chassis structure with electronics compartments, four wheel-end suspension/linkage groups, gear and steering components, four flexible spoke-pattern wheel assemblies and six loose ring-like parts. The 3MF contains printable component meshes and repeated instances, including frame pieces, linkages, gears, wheel and hub components, mounts and the loose rings. Its layout differs from the STEP presentation. Two unchanged original files are included with descriptive English filenames: the STEP CAD source delivered inside a losslessly compressed ZIP and the separate 3MF print project. Extract the ZIP to access the unchanged STEP file. The files contain many components, so two files does not mean two printable pieces. CyberBrick identifies the supplied source project rather than a independently verified electronics fit or operating specification. No validated scale, hardware list or tested vehicle performance is supplied. The new cover uses a tessellated copy of the actual STEP geometry. The four supplied wheel assemblies are repositioned at the corresponding chassis ends for an illustrative mounted configuration; six loose source rings are displayed alongside. Blue structure, dark wheels, sand-colored rings, a changed angle and workshop background distinguish it from the source image. The original downloadable CAD and print-project geometry remains unchanged. The cover is a visual arrangement rather than a tested mechanical build. CyberBrick electronics, motor, servo, batteries, wiring, functioning lights and metal fasteners are not included as physical supplies. Check mounting positions, link travel, gear engagement, wheel interfaces and ring requirements against the intended hardware. Inspect the CAD and every print-project component before fabrication. A validated assembly procedure and printing profile are not supplied. MESHOPIA has not tested printing, fit, strength or powered operation. The cover renders the actual source-derived meshes and shadows in Blender over a workshop background generated locally in ComfyUI.

Technology: Sin probar
material: —
Difficulty: Sin especificar
