Model information
Description

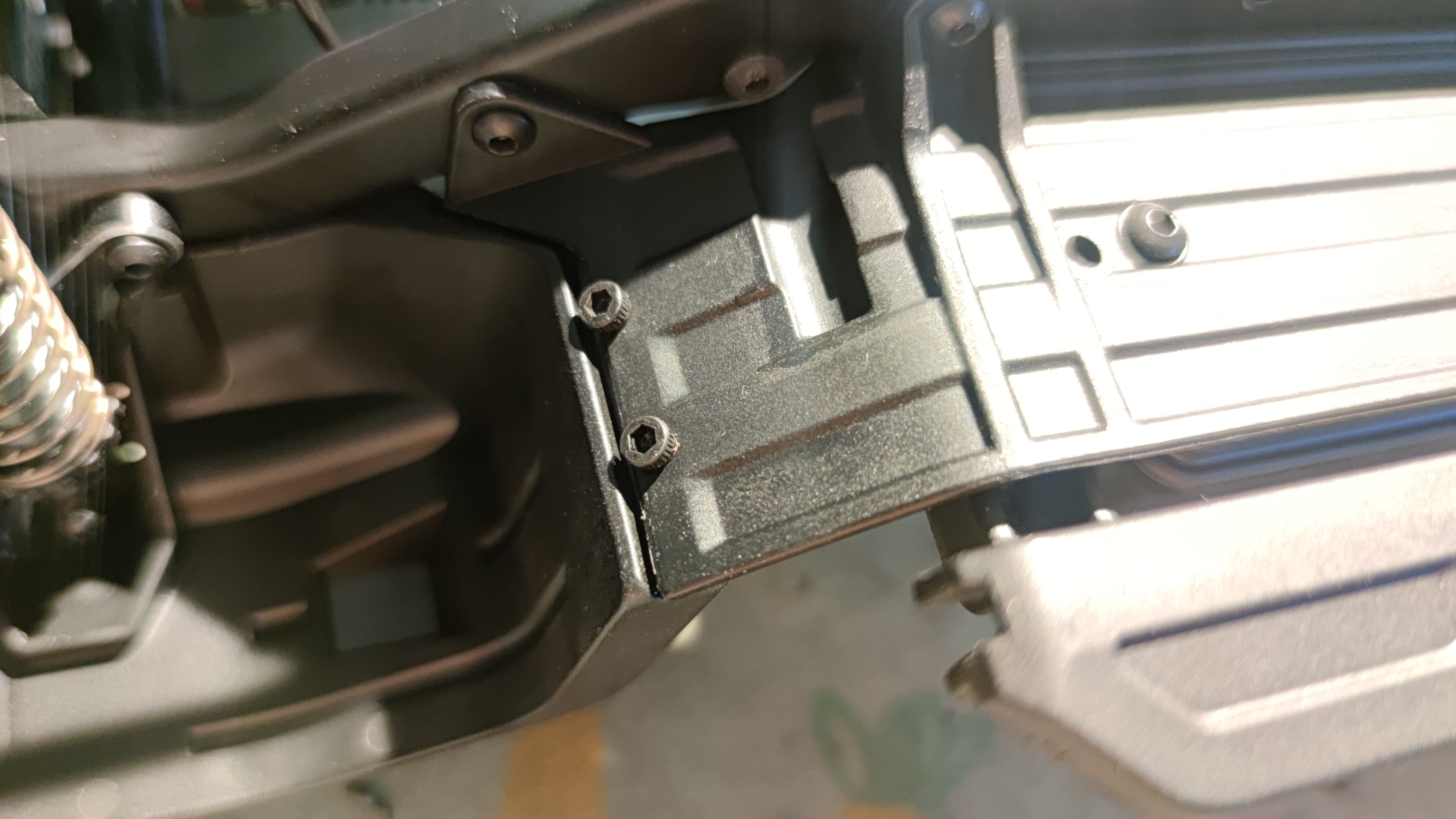

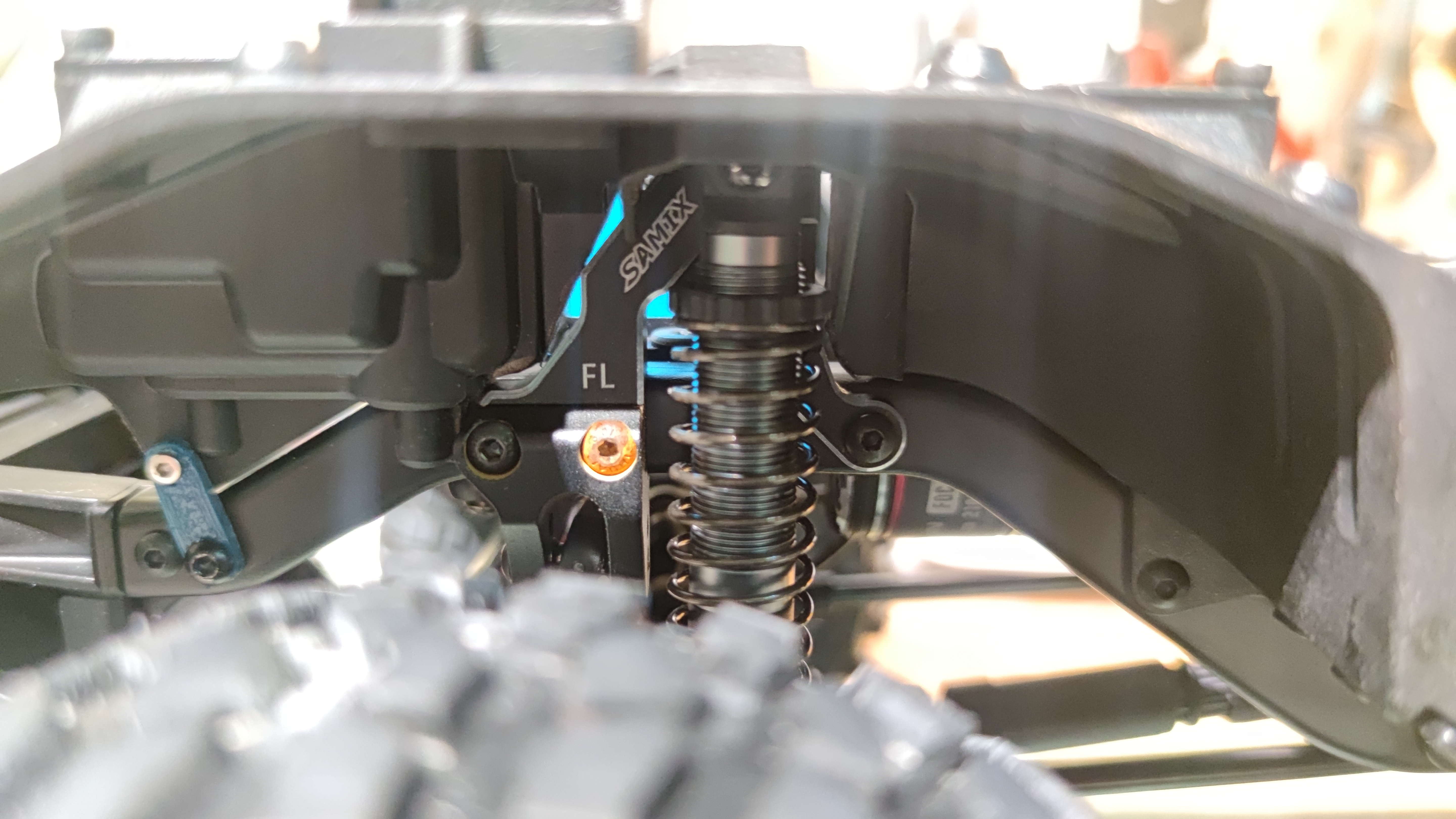

This inner fender mount is intended for use if aluminium front shock towers have been installed, which necessitates cutting the original mounting holes for the inner fender. The mount is positioned under the screw used for mounting the bumper mount. The opposite end of the mount uses an M2 screw to bolt directly into the fender. The author notes that this requires reaming or drilling a 1.5mm or 2.0mm hole on either side of the inner fender. If mounting a battery in the front on the inner fender, the author recommends using an M2 lock nut. To further secure the inner fender, the author highly recommends drilling four 2.0mm holes through the rear part of the front inner fenders into the overlapping side inner fenders, securing them with four M2x10mm screws and M2 lock nuts, using spacers if necessary.
Original text by the author on Printables
<p>If you've installed aluminium front shock towers like in the pictures above, then the original mounting holes for the inner fender have to be cut and that leaves you with no option to mount the inner fender. Which is where this little piece comes in to save the day!</p><p>The inner fender mount goes under the screw used for mounting the bumper mount (see pic). The other end of the mount uses an M2 screw to bolt directly into the fender. This means you will have to ream or drill a 1.5 or 2.0mm hole on either side of the inner fender. Use an M2 lock nut if you plan to mount your battery in the front on the inner fender.</p><p>To further secure the inner fender, it is highly recommended to drill out 4x 2.0mm holes through the rear part of the front inner fenders, into the side inner fenders where they overlap (see pic for better understanding). Secure with 4x M2x10mm screws with M2 lock nuts. Use spacers if necessary.</p><p> </p><p>Interested in our RC crawler bodies and accessories? Feel free to visit ahead RC stores <a href="https://cults3d.com/en/users/ahead_RC/creations">here</a> and <a href="https://www.myminifactory.com/users/Ahead_RC">here</a>!</p><p>Be sure to check us out as we may upload free accessories from time to time!</p>
