Model information
Description

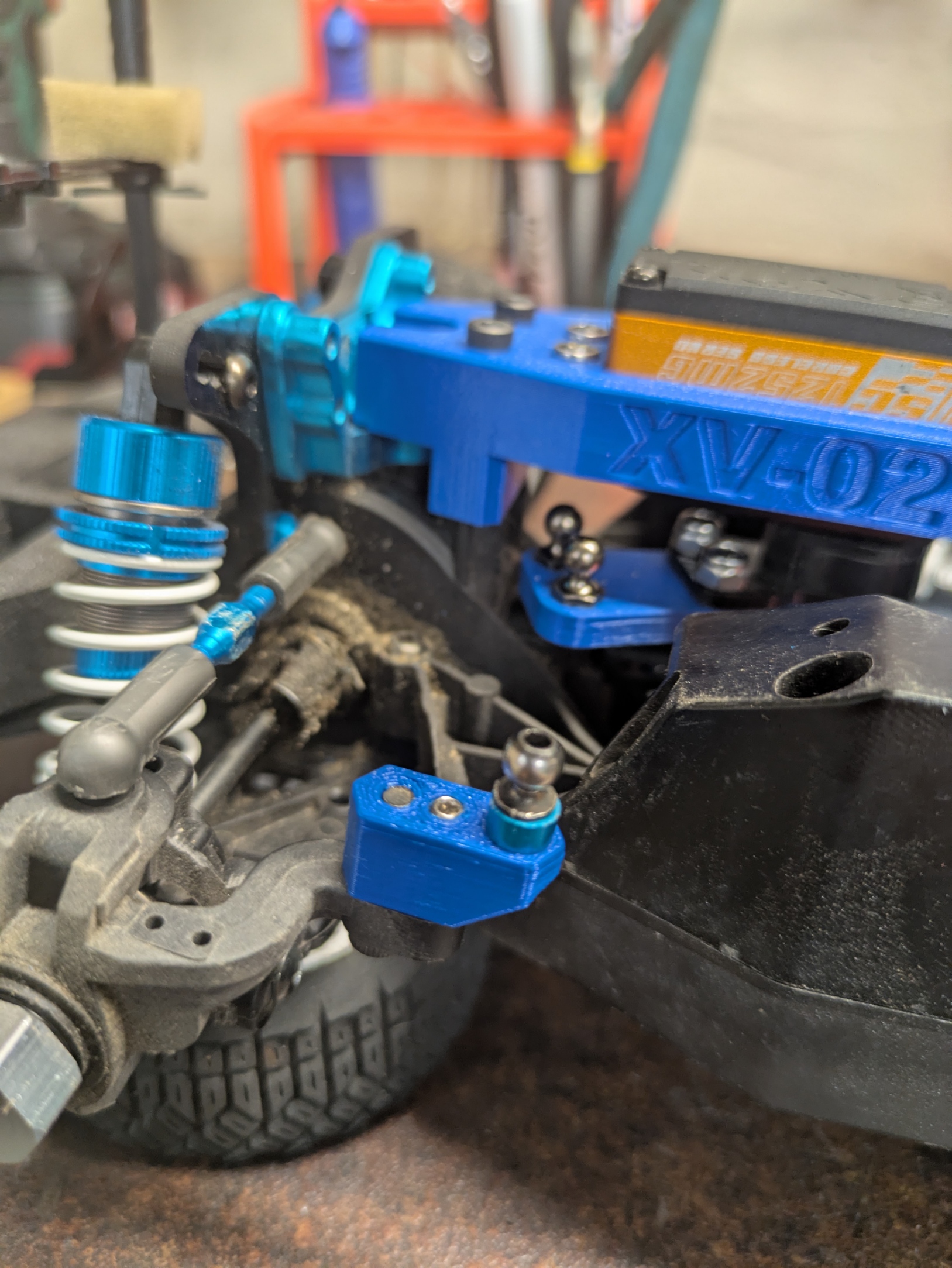

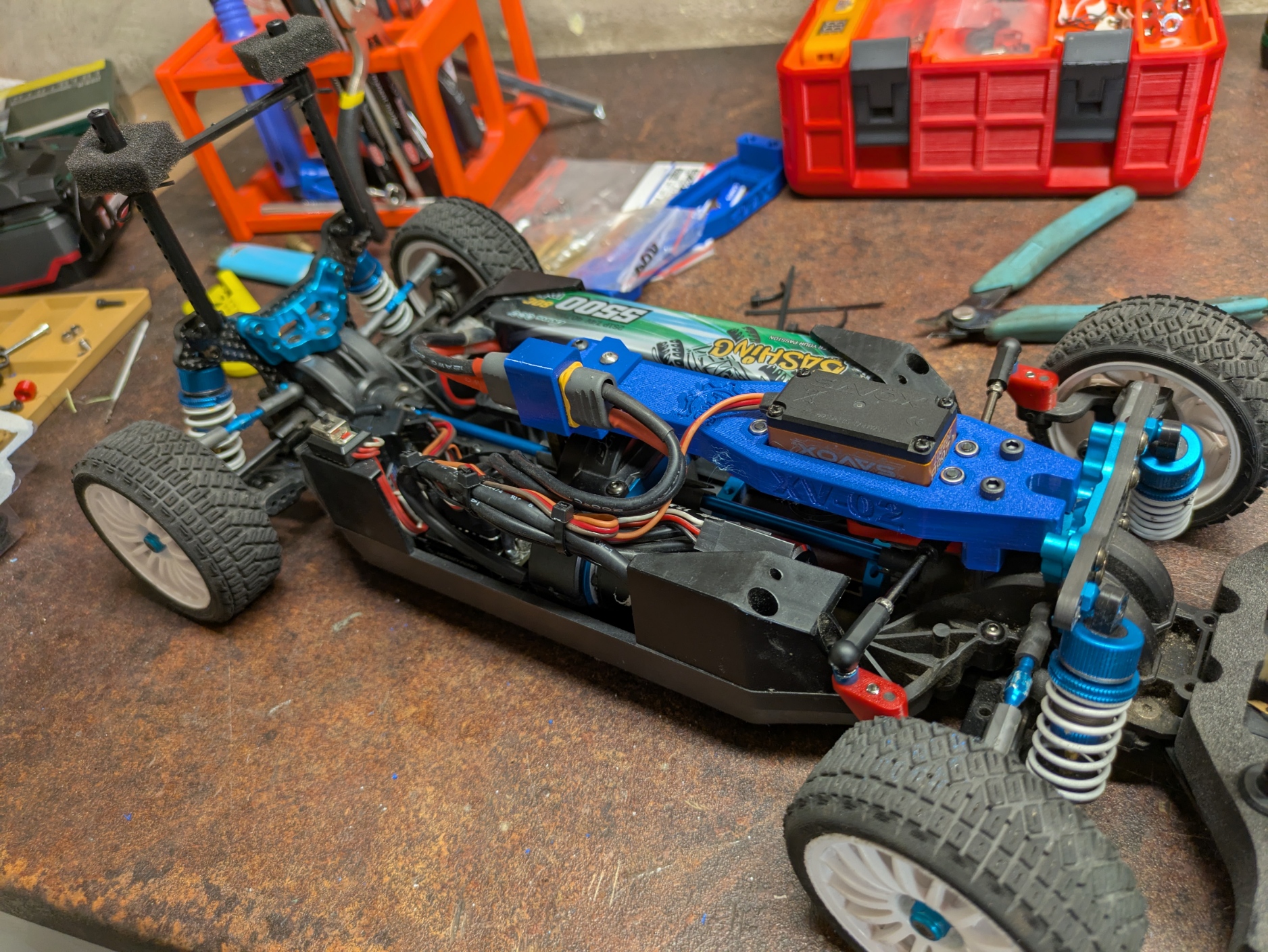

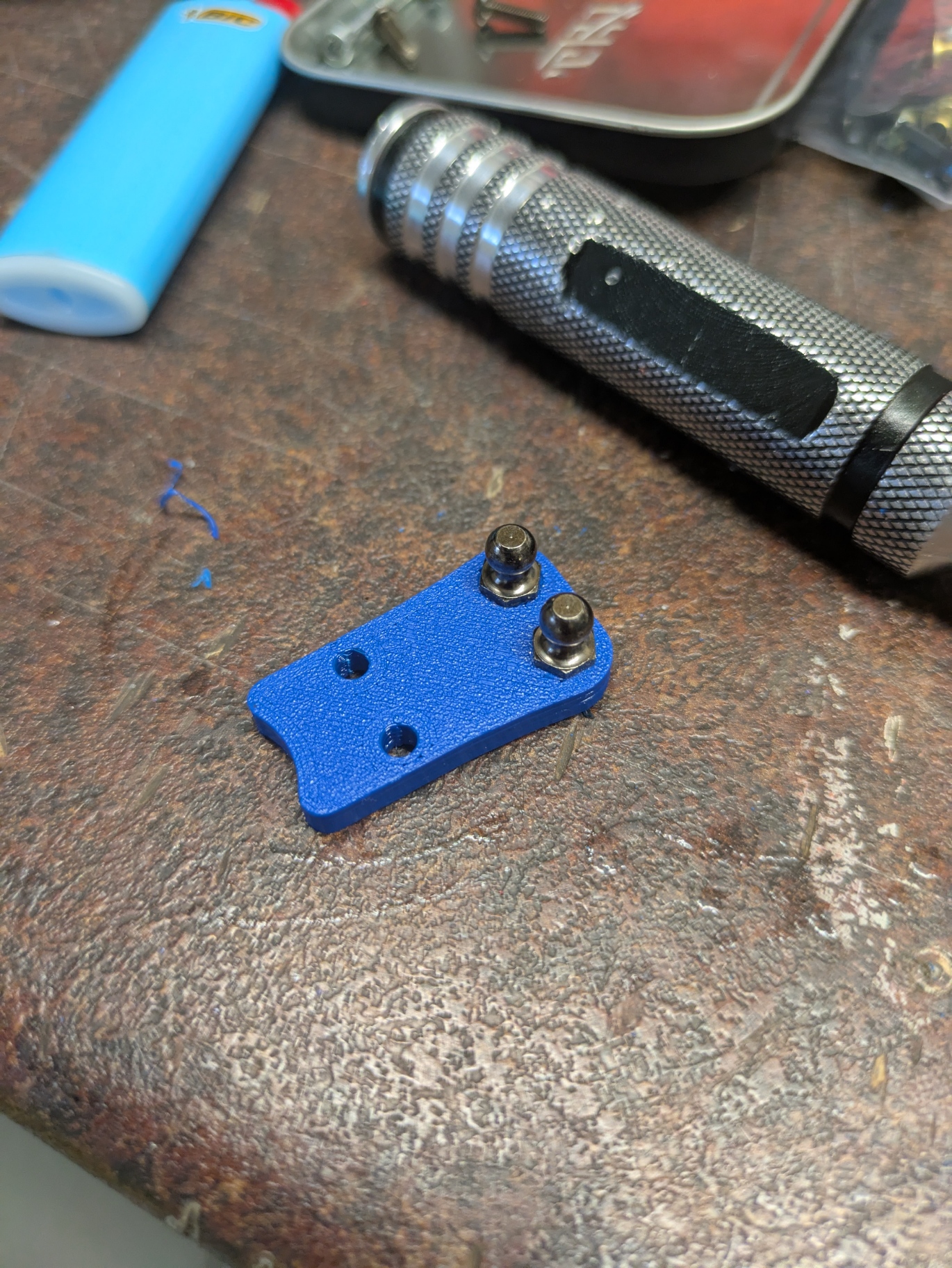

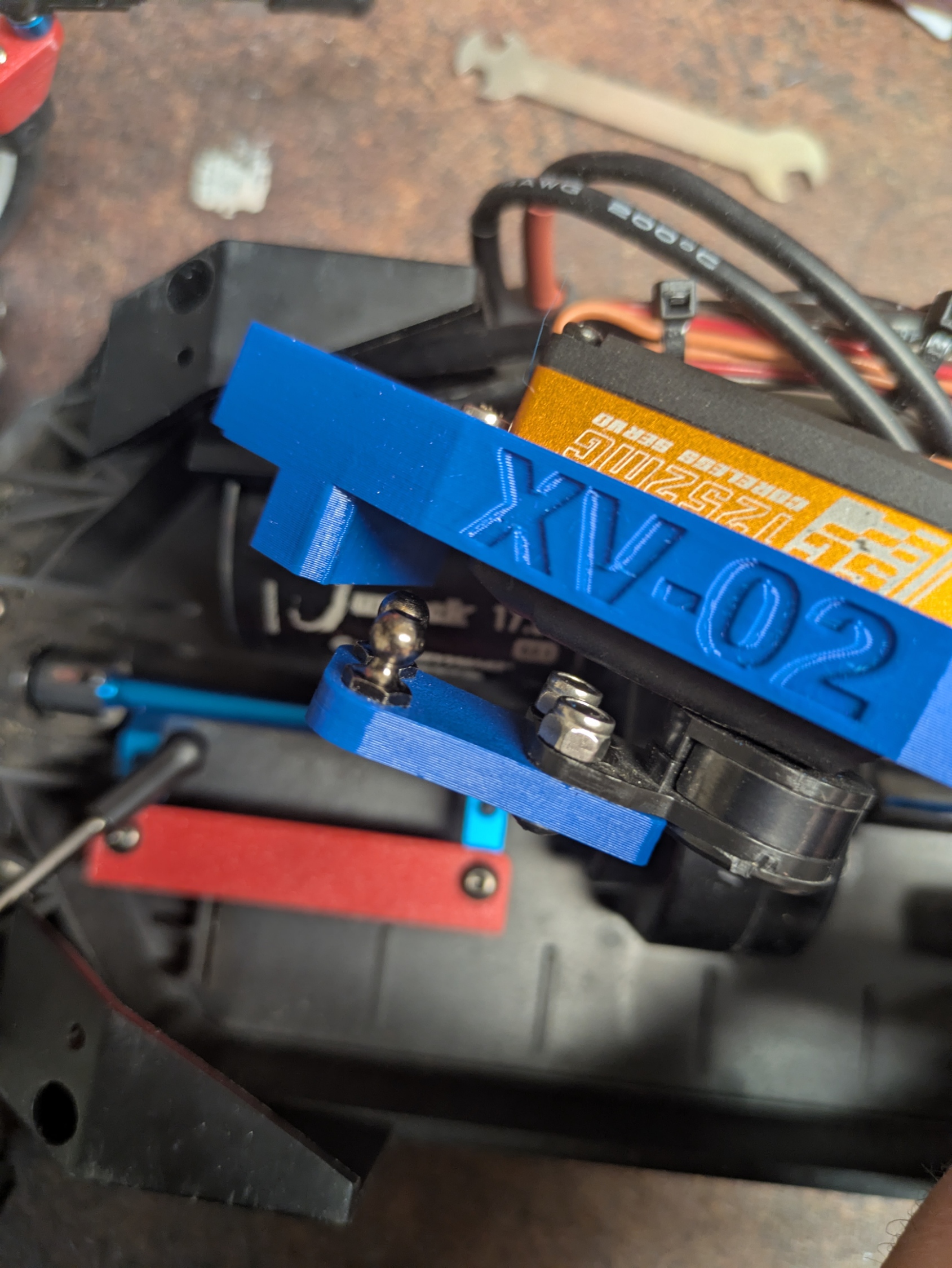

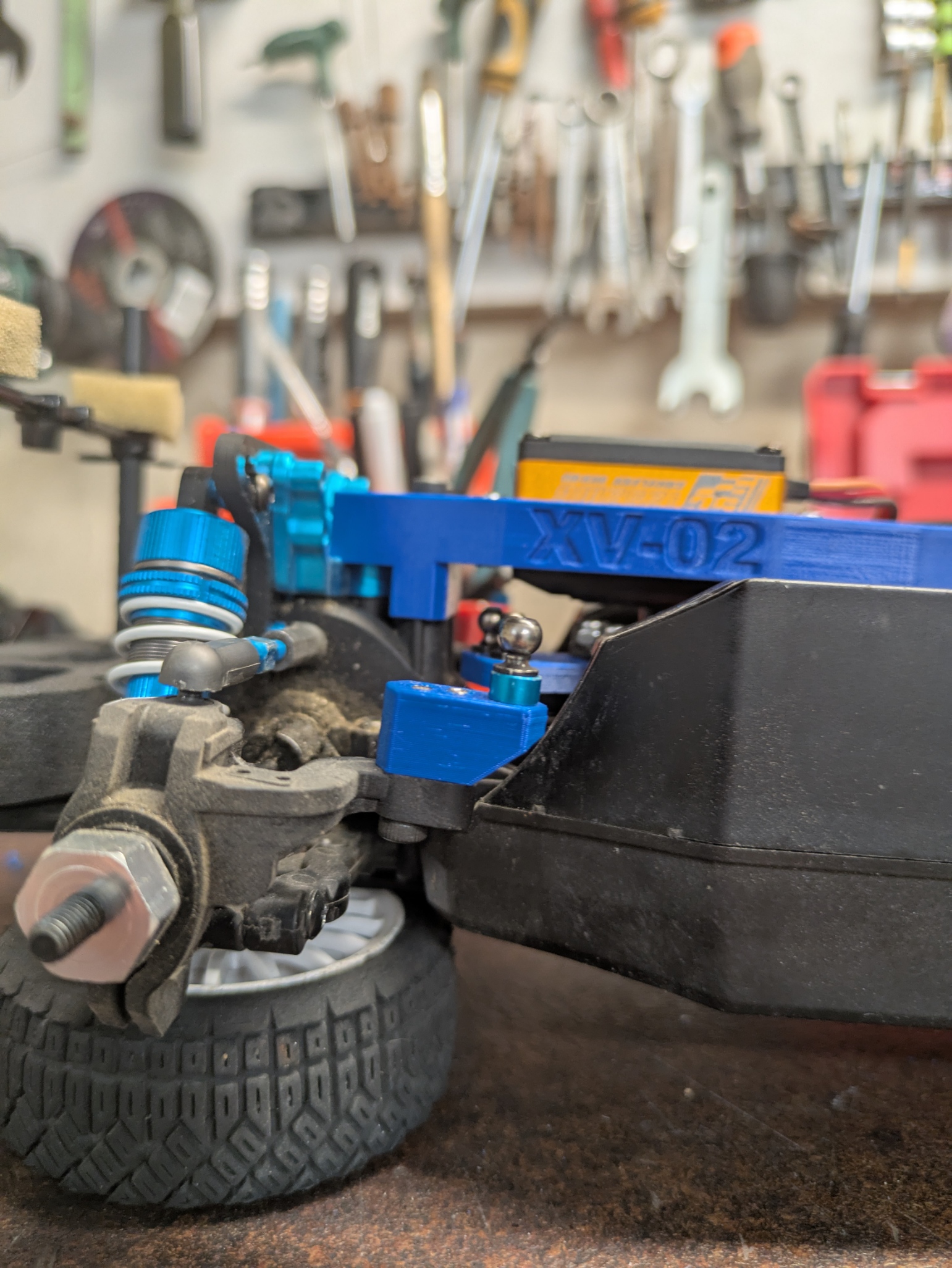

Upgrade for the Tamiya XV-02 direct steering chassis. The author states this upgrade improves the turning radius and eliminates play in the steering system compared to the original.
To complete the project, the following are required:

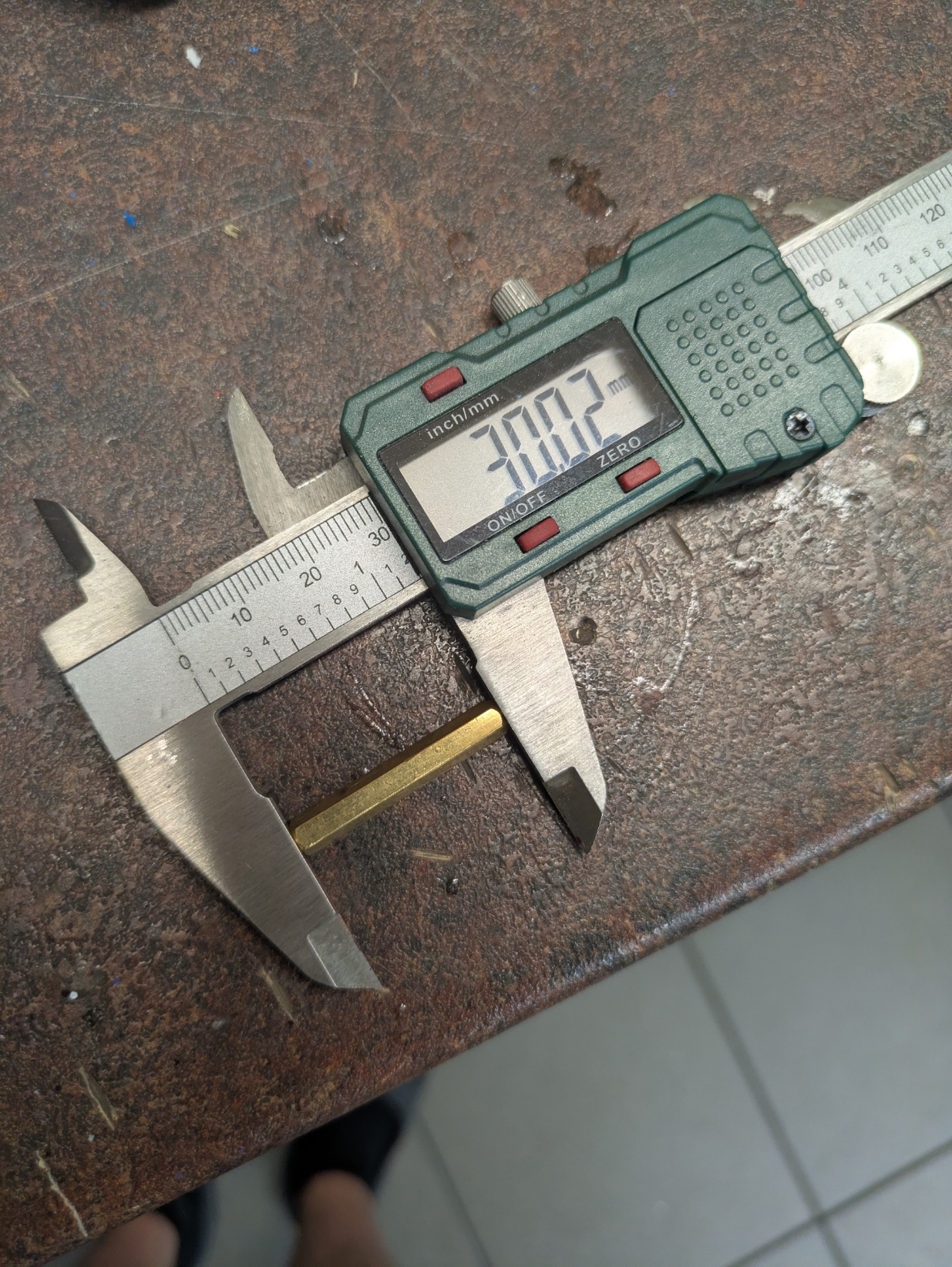

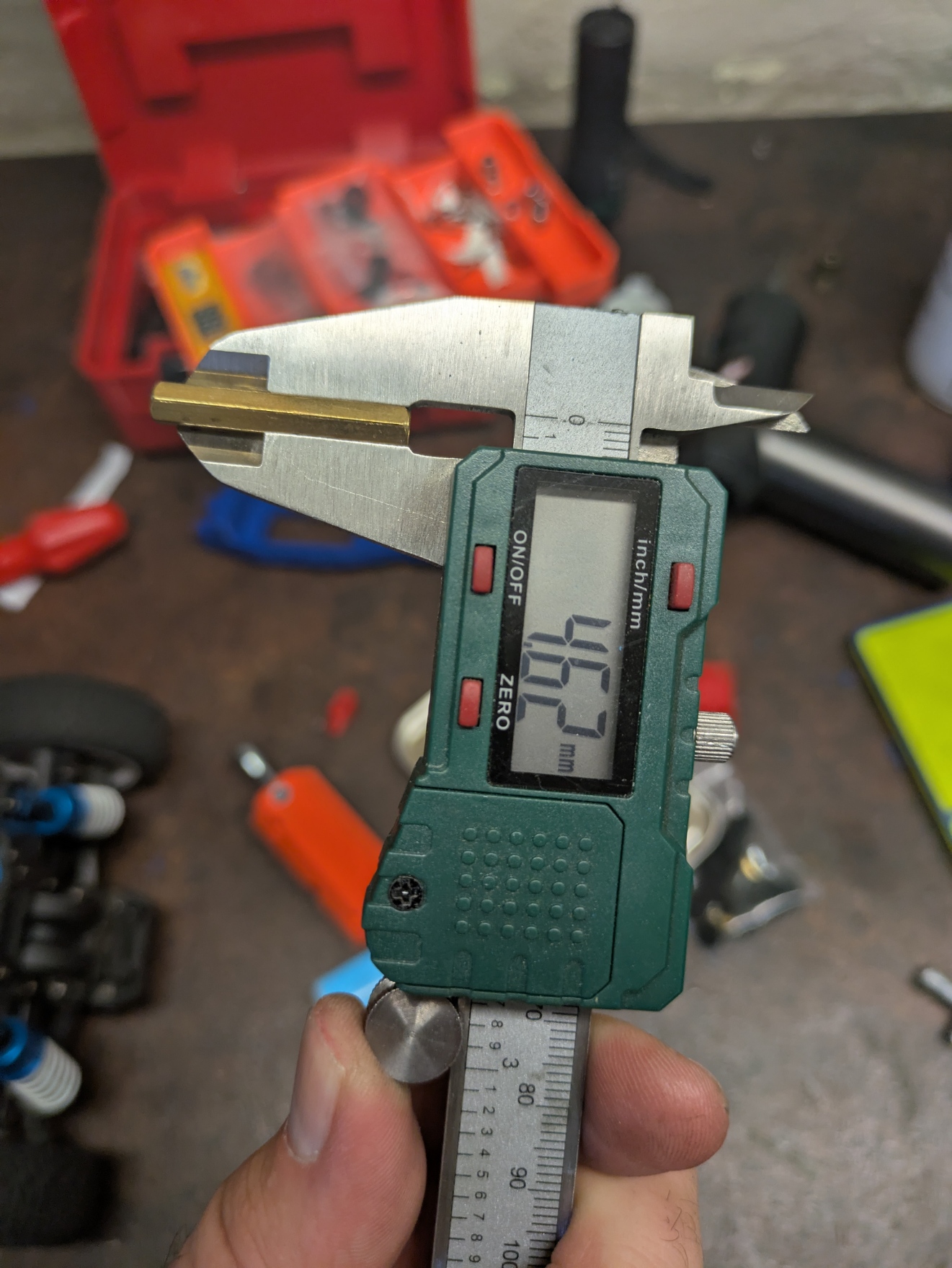

- 2 pieces of 30mm x 4.6mm M3 hex spacers
- M3 nuts
- M3 screws

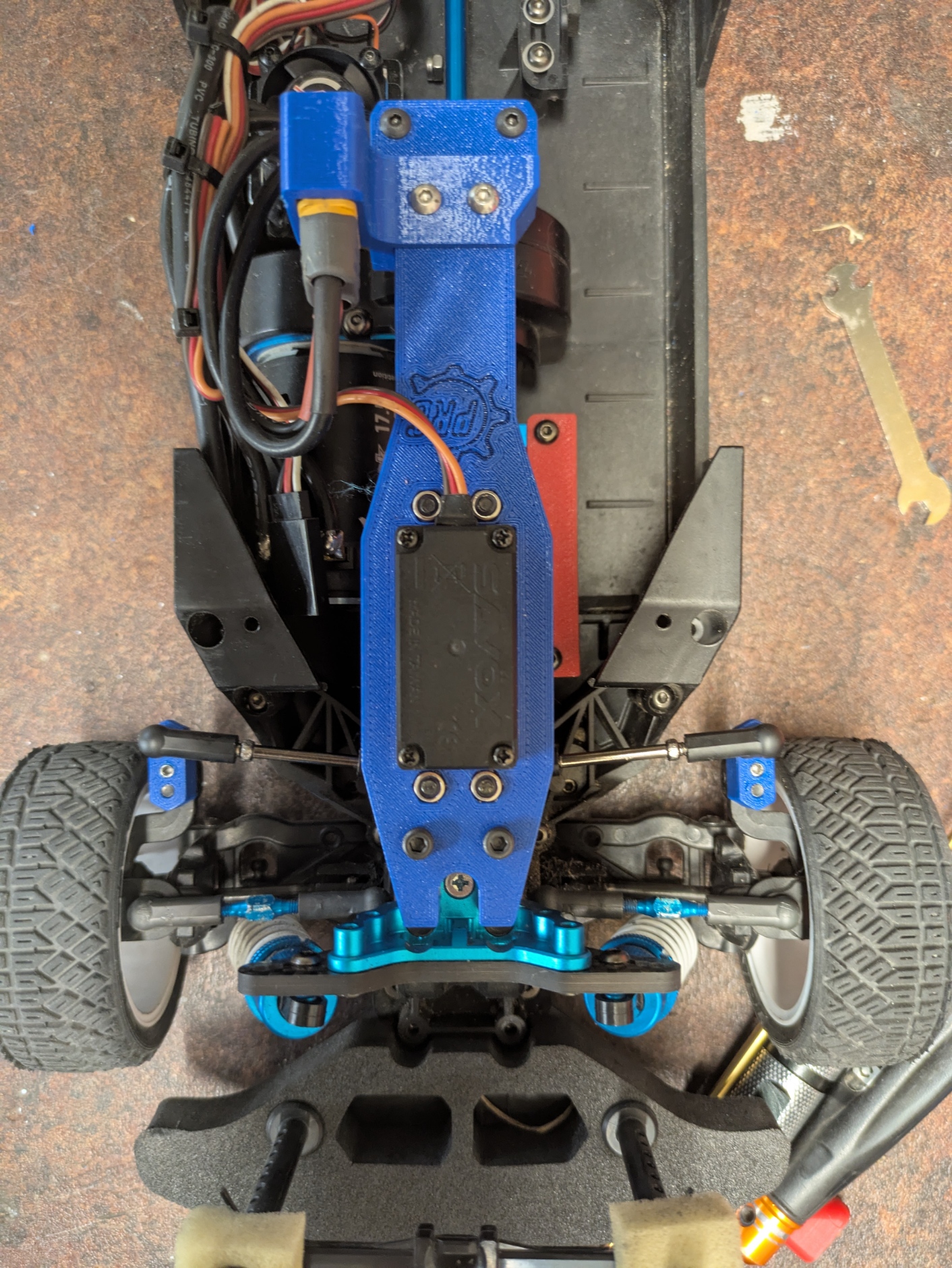

- M3x30mm screws (to screw the handle to the bottom of the chassis near the main gear)
The author recommends using PETG or a stronger material and does not recommend PLA. The author reports using an upgrade printed from PETG with no problems.
Original text by the author on Printables
<p>Upgrade to Tamiya XV-02 direct steering chassis.</p><p>To complete the project you will need 2 pieces of 30mmx4.6mm M3 hex spacers. A few M3 nuts and a few more M3 screws to complete the project. To screw the handle to the bottom of the chassis near the main gear, use M3x30mm screws.</p><p>I recommend using PET G or a stronger material. I do not recommend PLA. I use an upgrade printed from PET G and have no problems with it.</p><p> </p><p>distance m3x30</p><p>https://pl.aliexpress.com/item/1005008130321633.html?spm=a2g0o.detail.pcDetailBottomMoreOtherSeller.7.686c93f293f2WO&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.40196.439370.0&scm_id=1007.40196.439370.0&scm-url=1007.40196.439370.0&pvid=04979714-3c2d-4afb-94e9-2f002766cb85&_t=gps-id:pcDetailBottomMoreOtherSeller,scm-url:1007.40196.439370.0,pvid:04979714-3c2d-4afb-94e9-2f002766cb85,tpp_buckets:668%232846%238110%231995&pdp_ext_f=%7B%22order%22%3A%22156%22%2C%22eval%22%3A%221%22%2C%22sceneId%22%3A%2230050%22%7D&pdp_npi=4%40dis%21PLN%218.14%213.66%21%21%212.20%210.99%21%40211b80e117517420678127913e2b5f%2112000043908896307%21rec%21PL%21%21ABXZ&utparam-url=scene%3ApcDetailBottomMoreOtherSeller%7Cquery_from%3A</p>
