Model information
Description

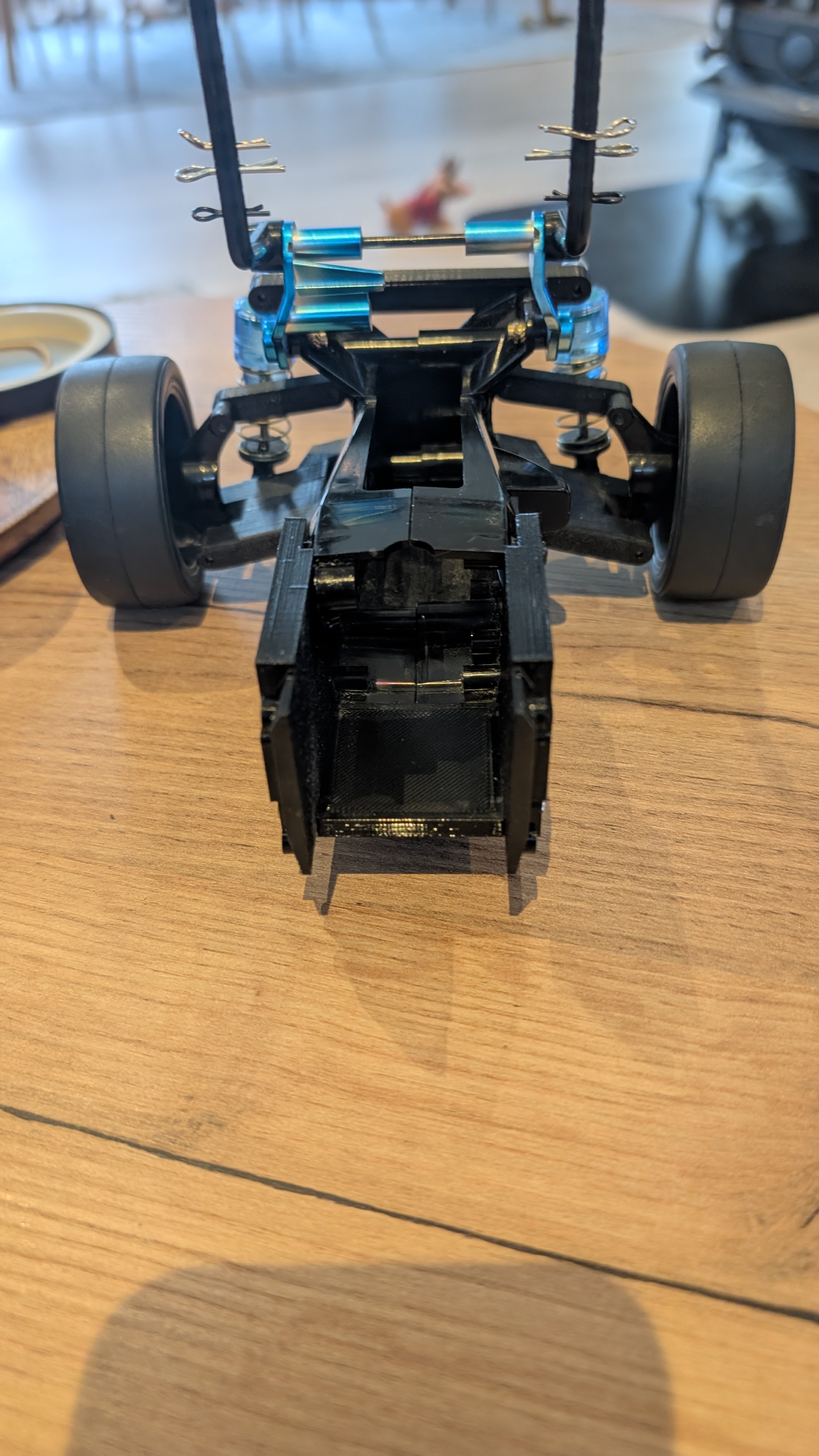

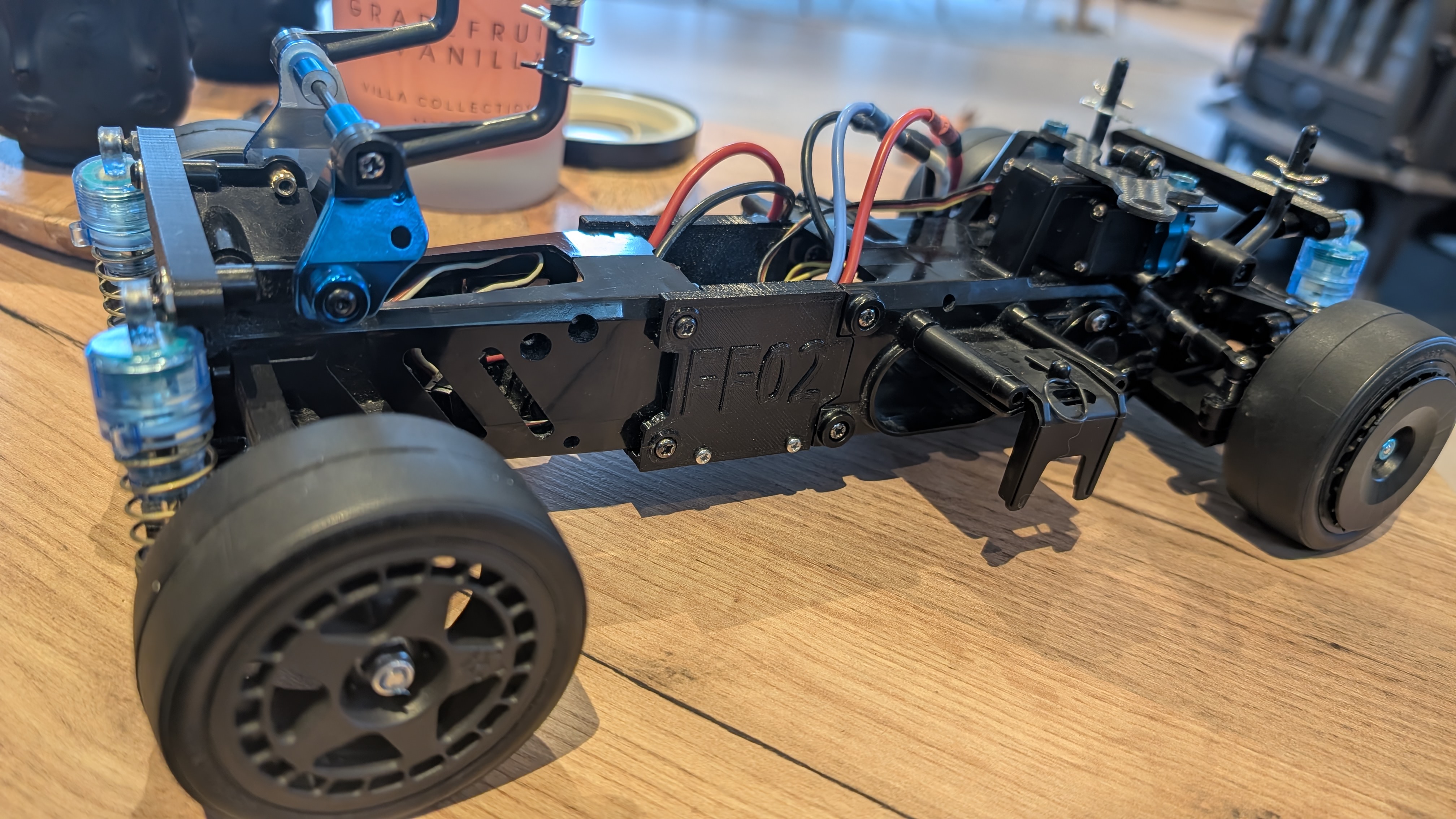

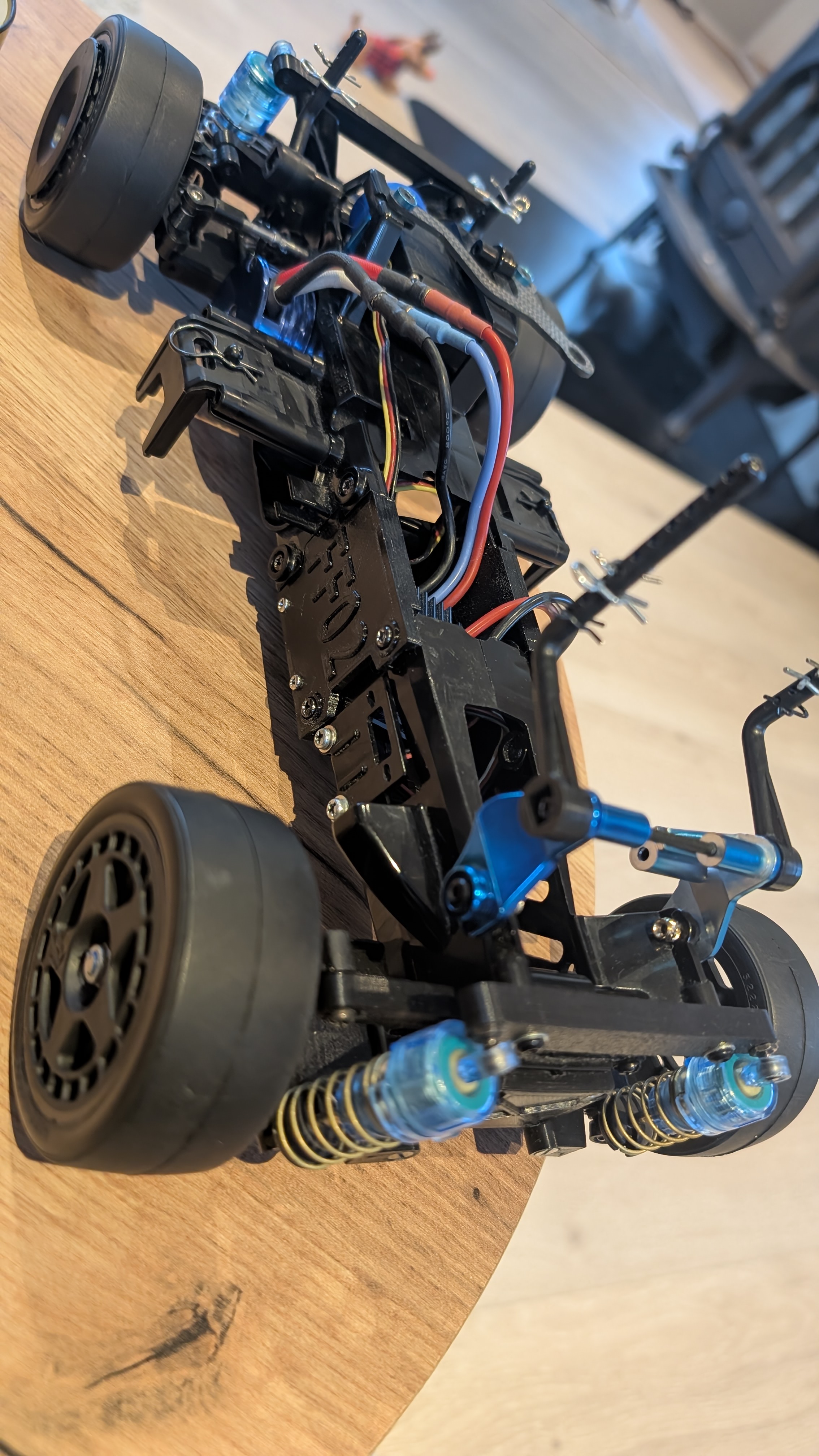

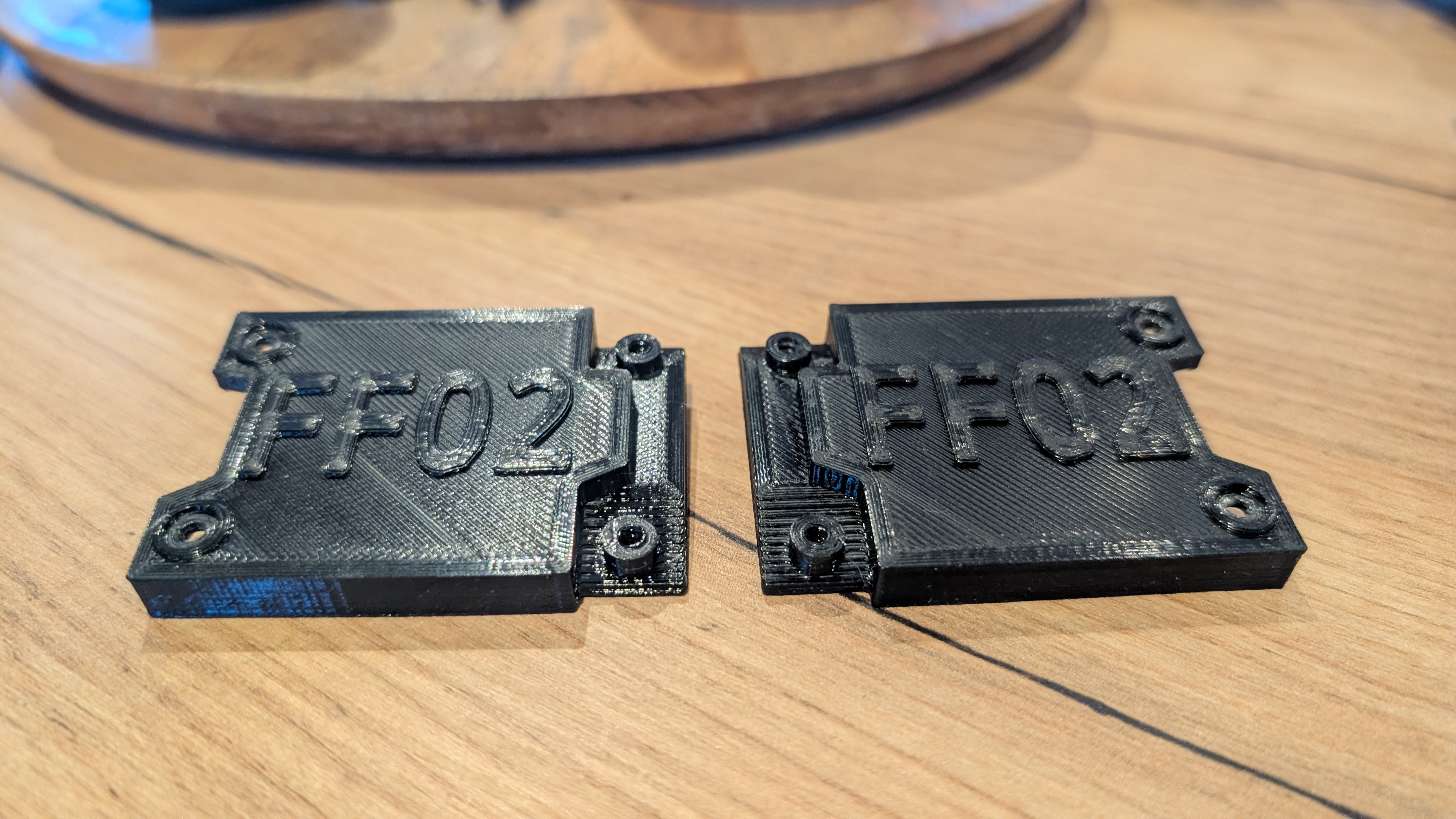

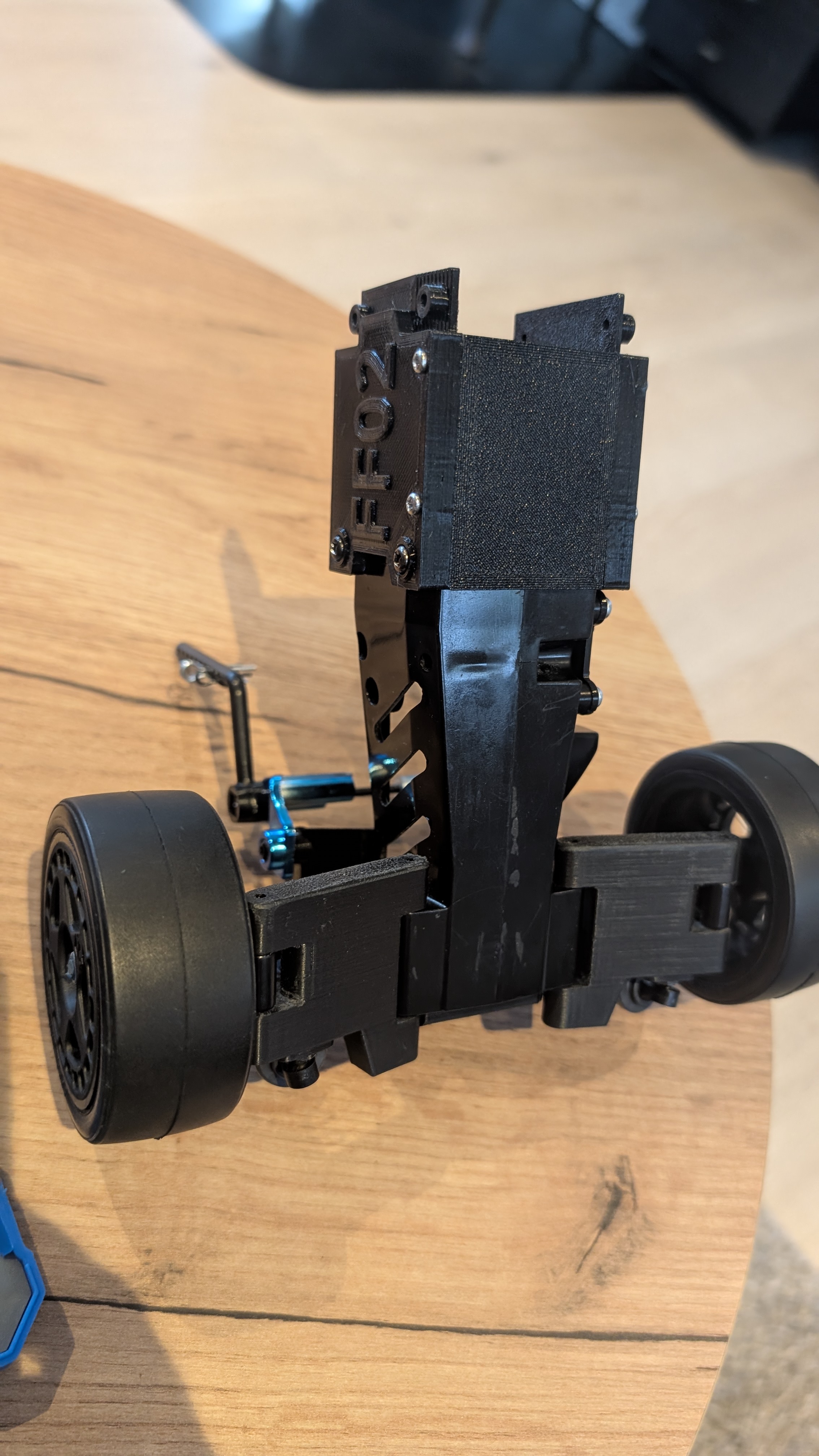

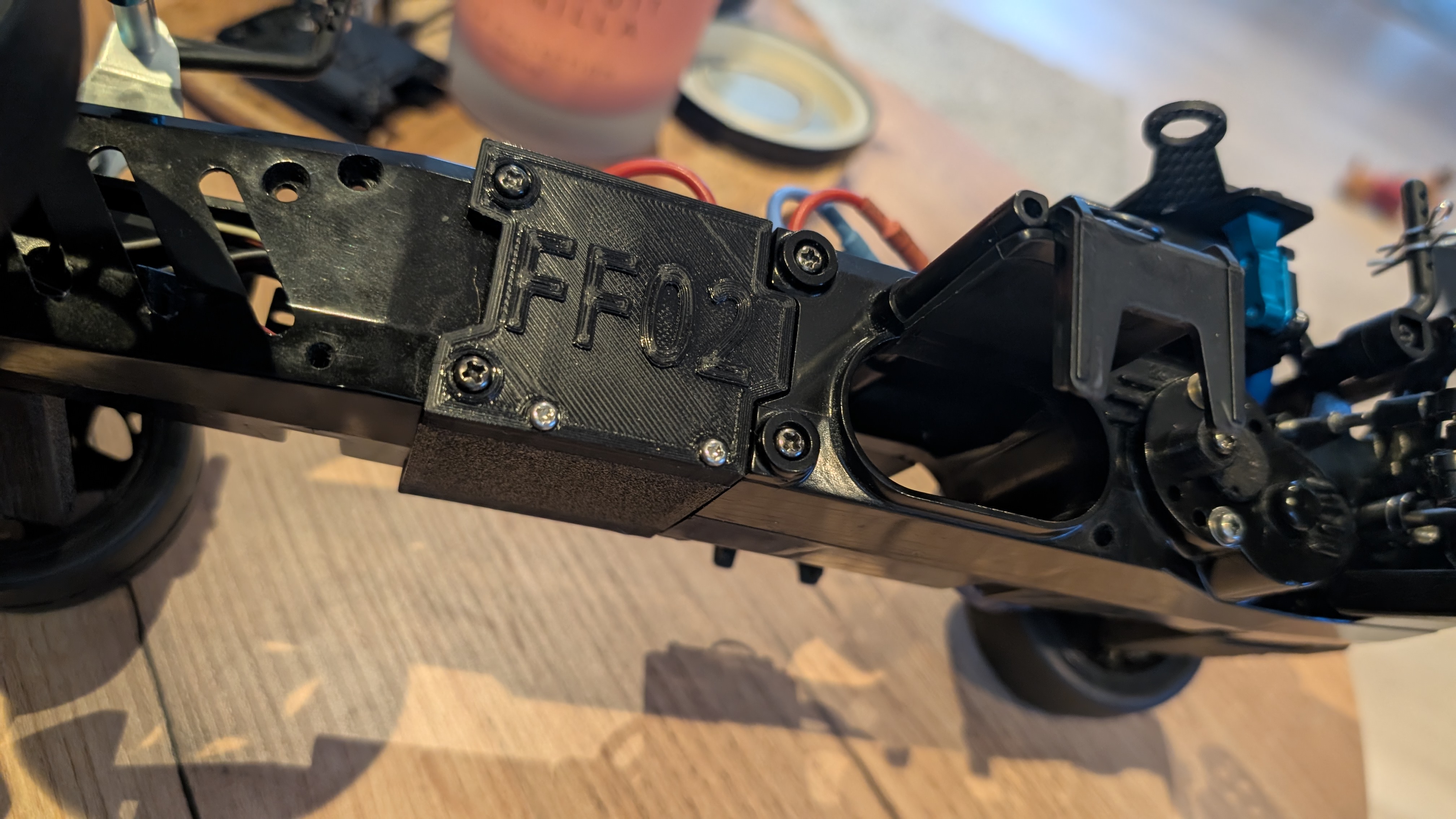

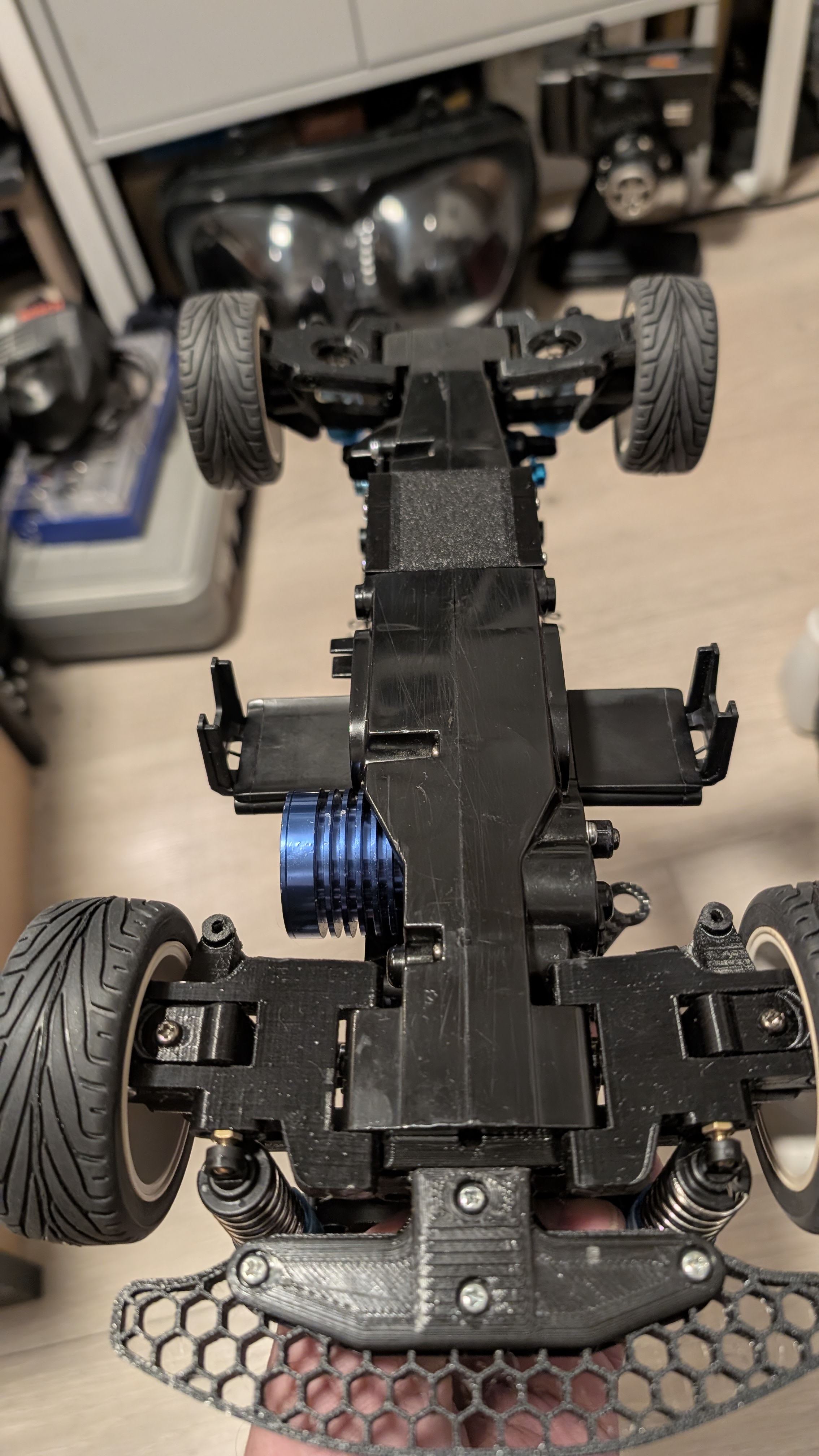

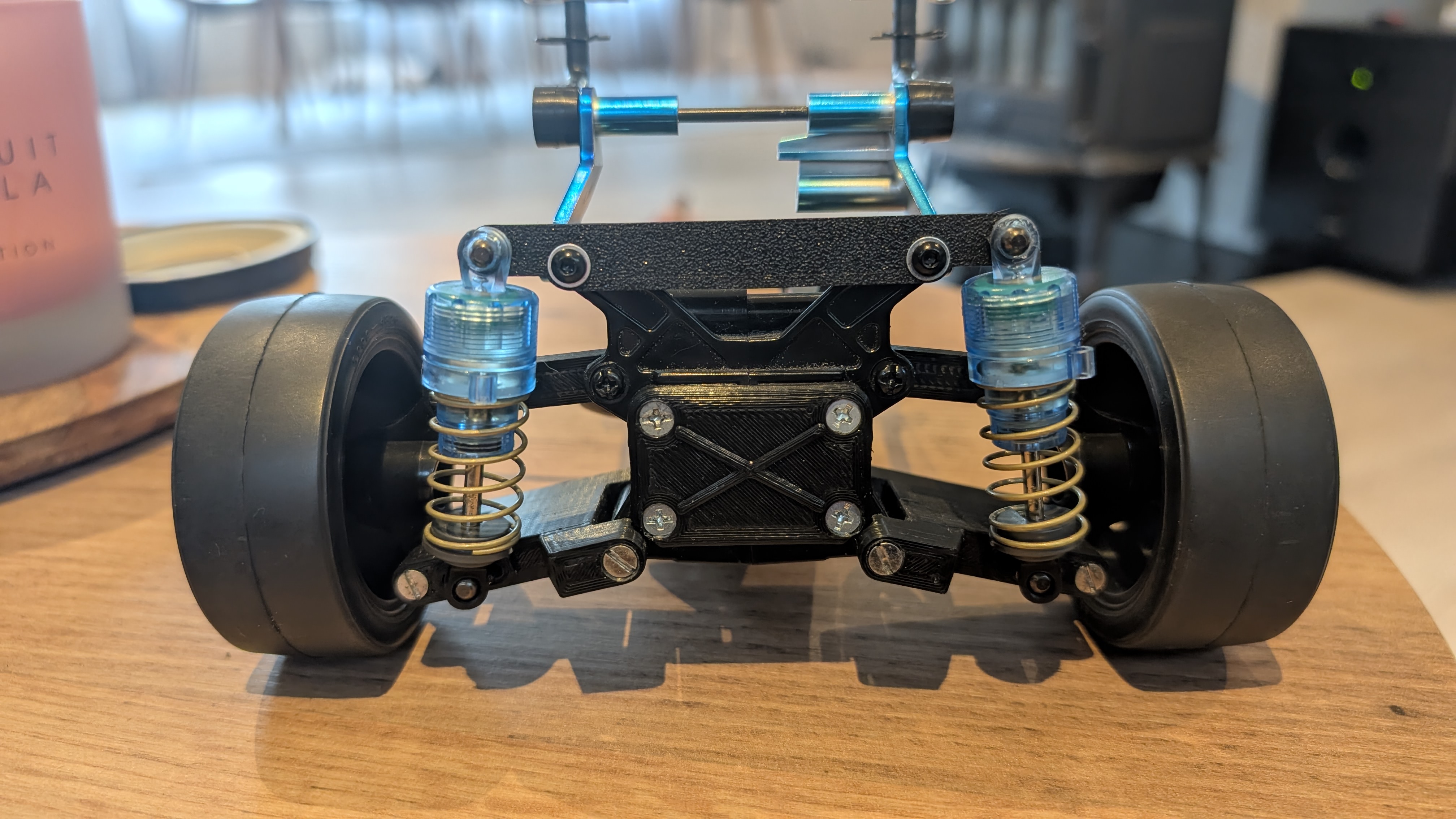

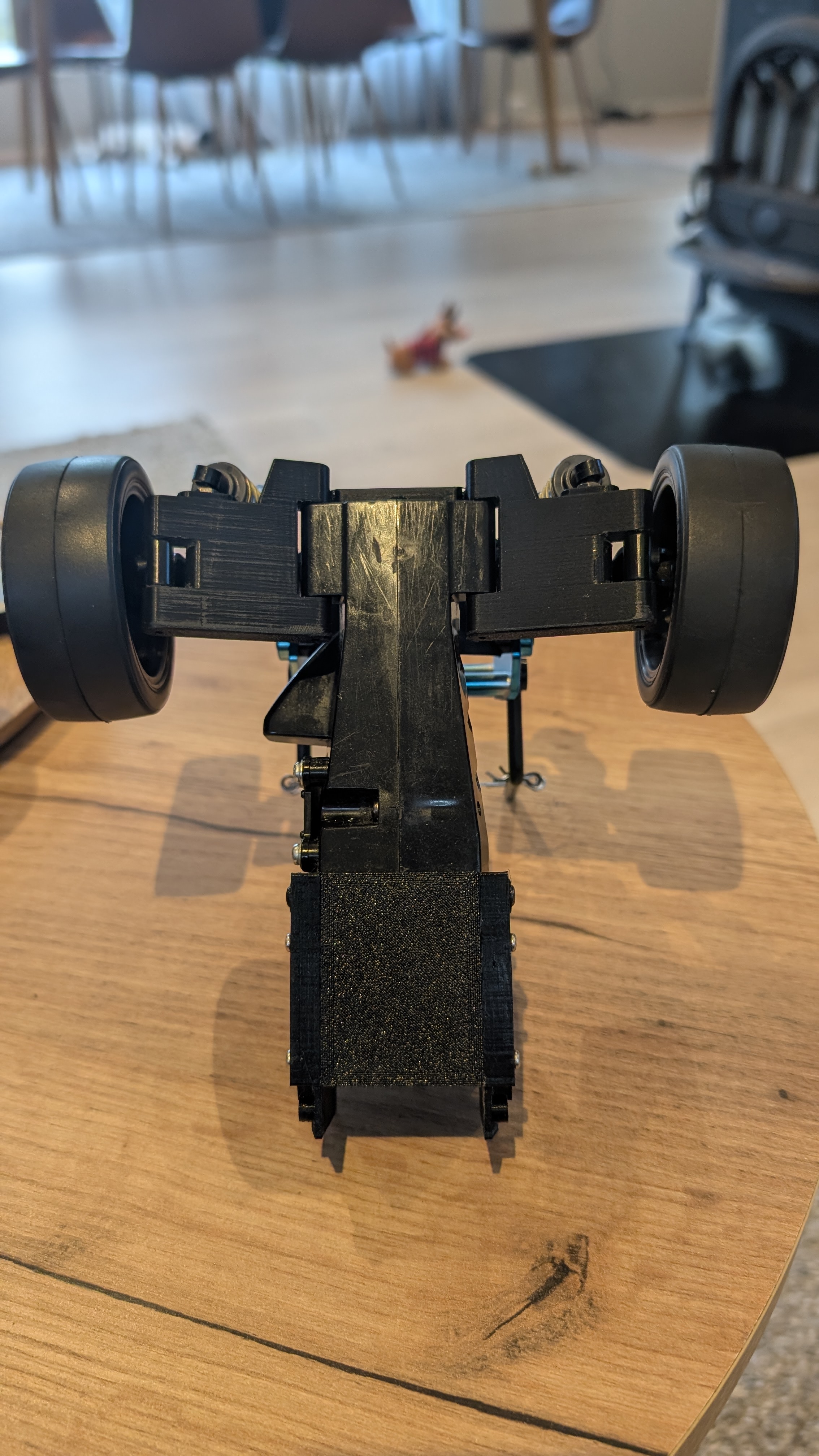

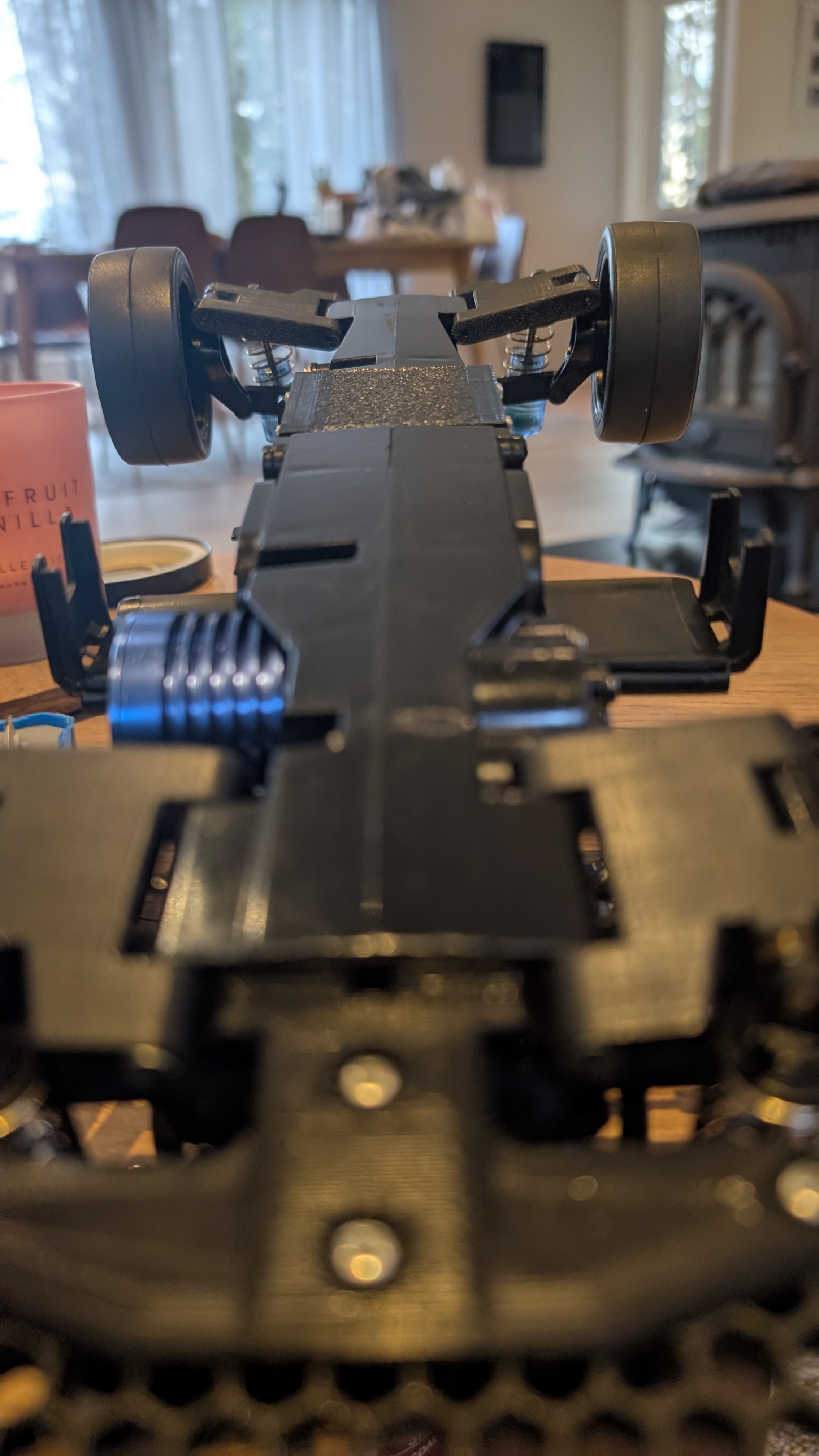

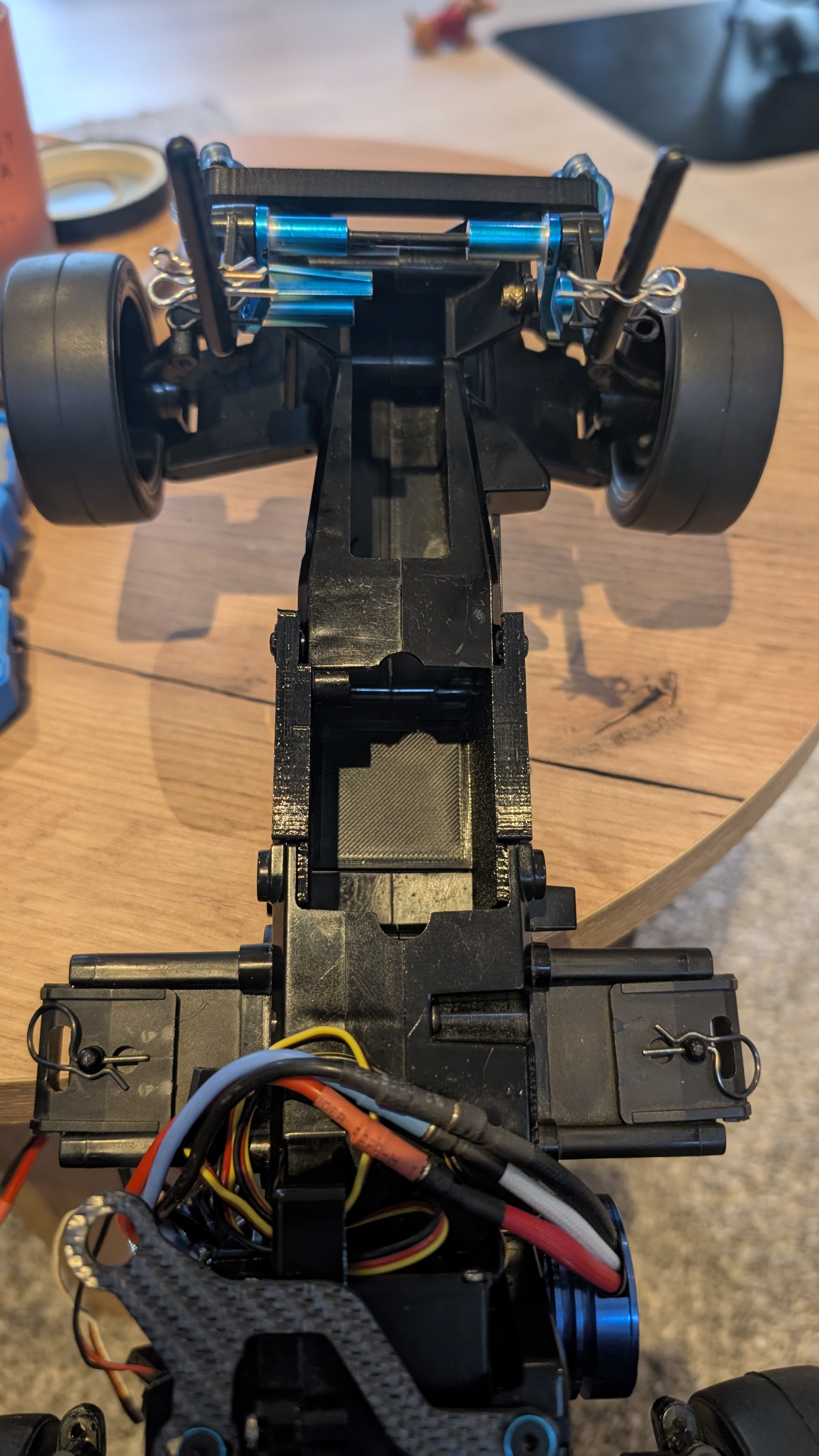

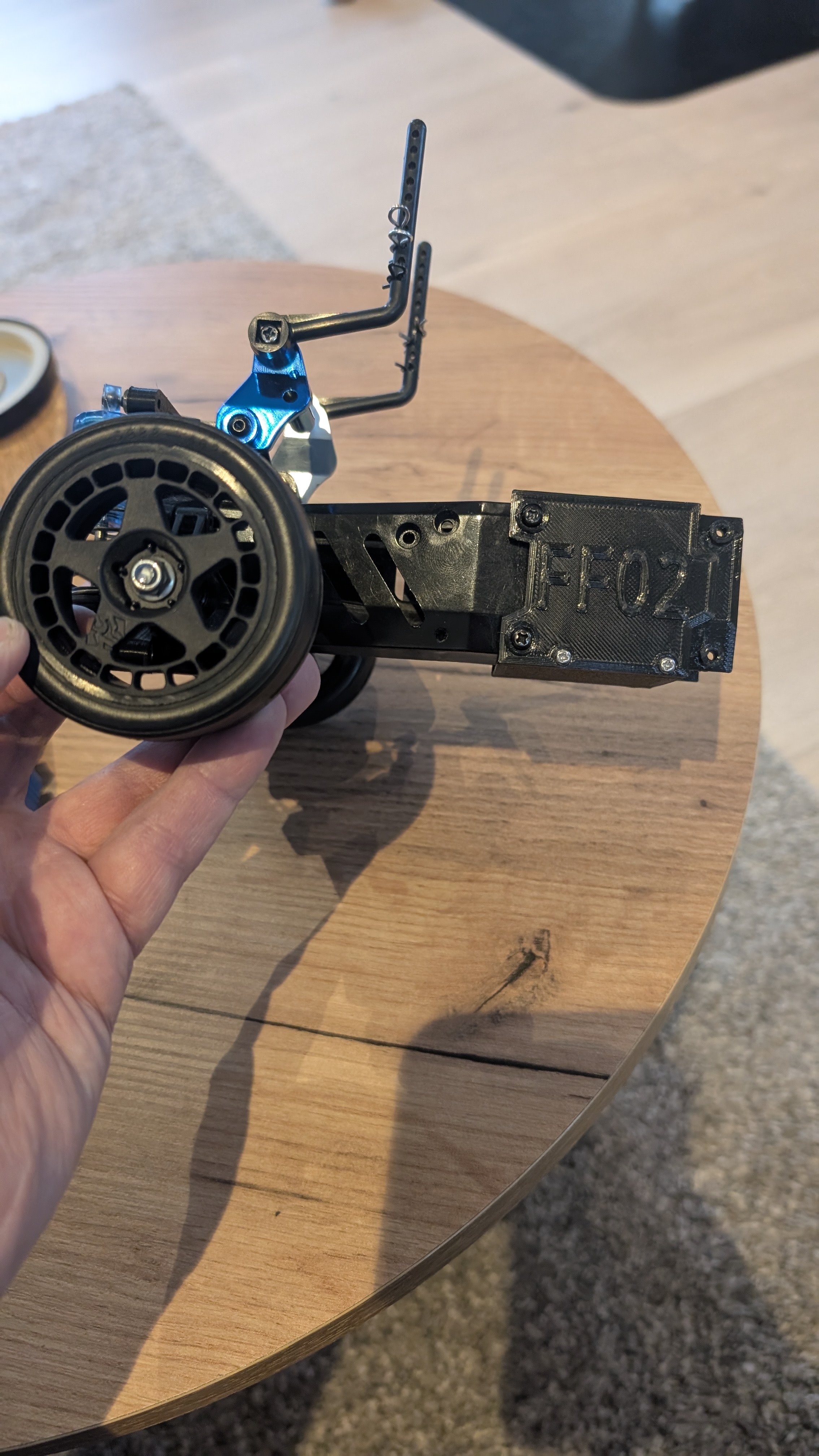

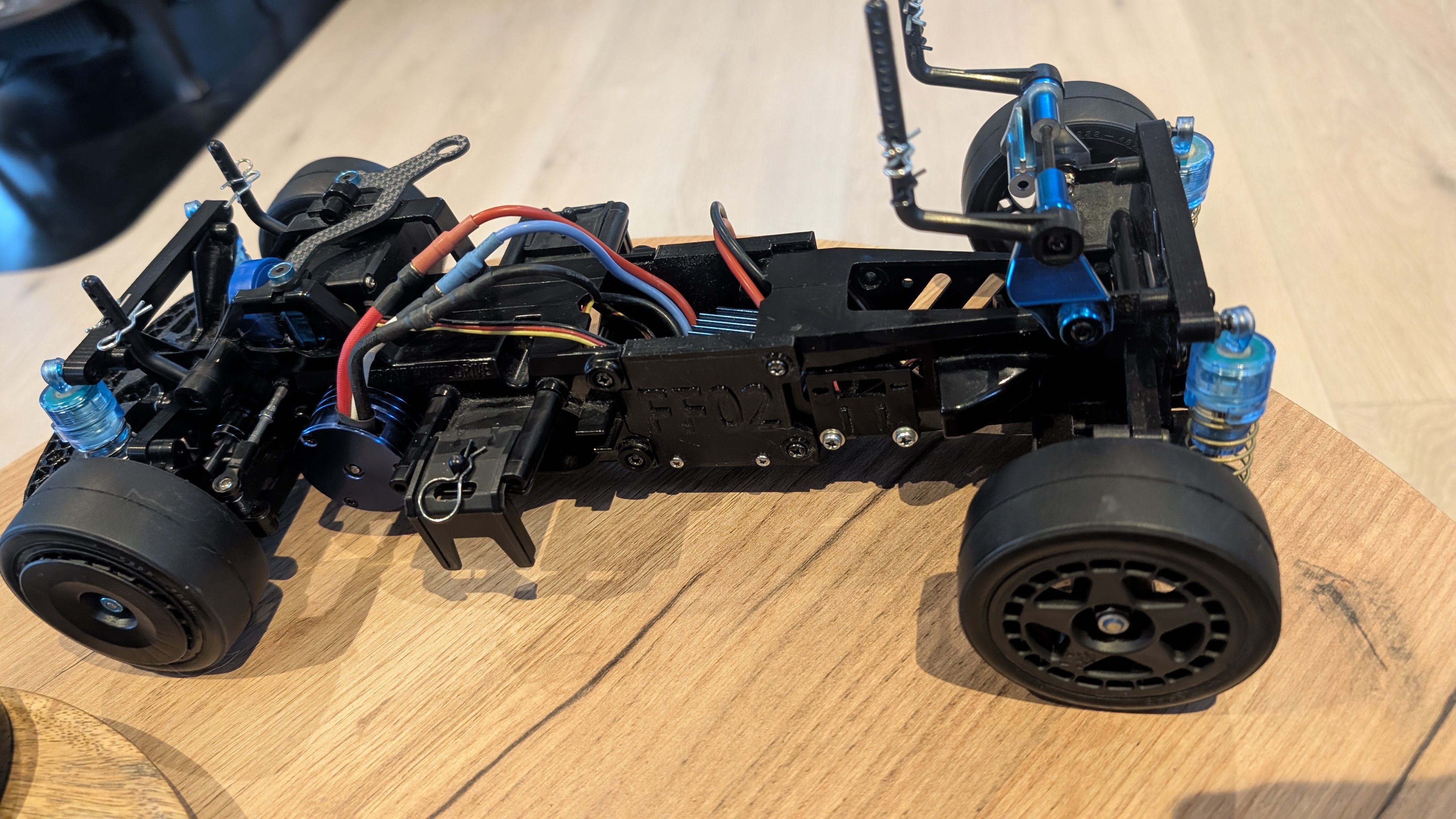

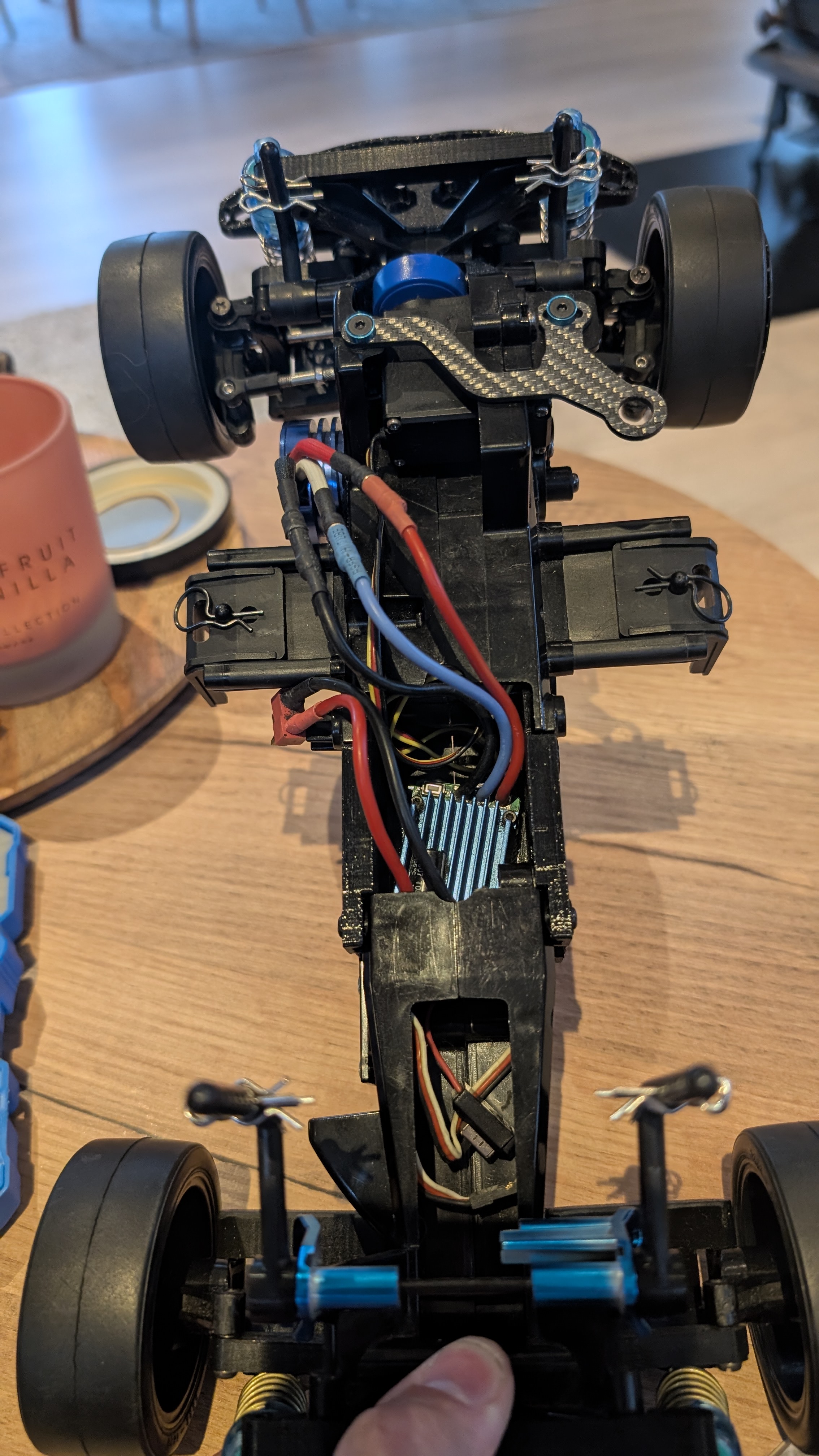

A center section designed to convert a Tamiya M03 chassis into a Tamiya FF02. The author states these parts should be used with Tamiya TL01 suspension arms. The center section is designed to provide space for an ESC and receiver. The author reports using PETG with 5 walls, 5 top/bottom layers, and 40% cubic infill for race-use. The kit includes shock towers and upper arms. The author used M2.5x16mm bolts on the plate under the extension (holes are predrilled in the sides), M3x8mm bolts for the front, and M3x16mm bolts for the rear. Files included: Tamiya_FF02_extension.stl, Tamiya_FF02_Extension_Left.stl, Tamiya_FF02_Extension_Right.3mf, Tamiya_FF02_Extension_Bottom.stl, Tamiya_FF02_Extension_Complete.3mf, Tamiya_FF02_Extension_Bottom.3mf, Tamiya_FF02_Extension_Right.stl, Tamiya_FF02_Extension_Left.3mf, Tamiya_FF02_Extension_Complete.stl, Tamiya_FF02_TL01_Upper_Front.stl, Tamiya_FF02_TL01_Upper_Front.3mf, Tamiya_FF02_TL01_Upper_Rear.stl, Tamiya_FF02_Shock_Front.stl, Tamiya_FF02_Shock_Rear.stl, Tamiya_FF02_TL01_Upper_Rear.3mf.
Original text by the author on Printables

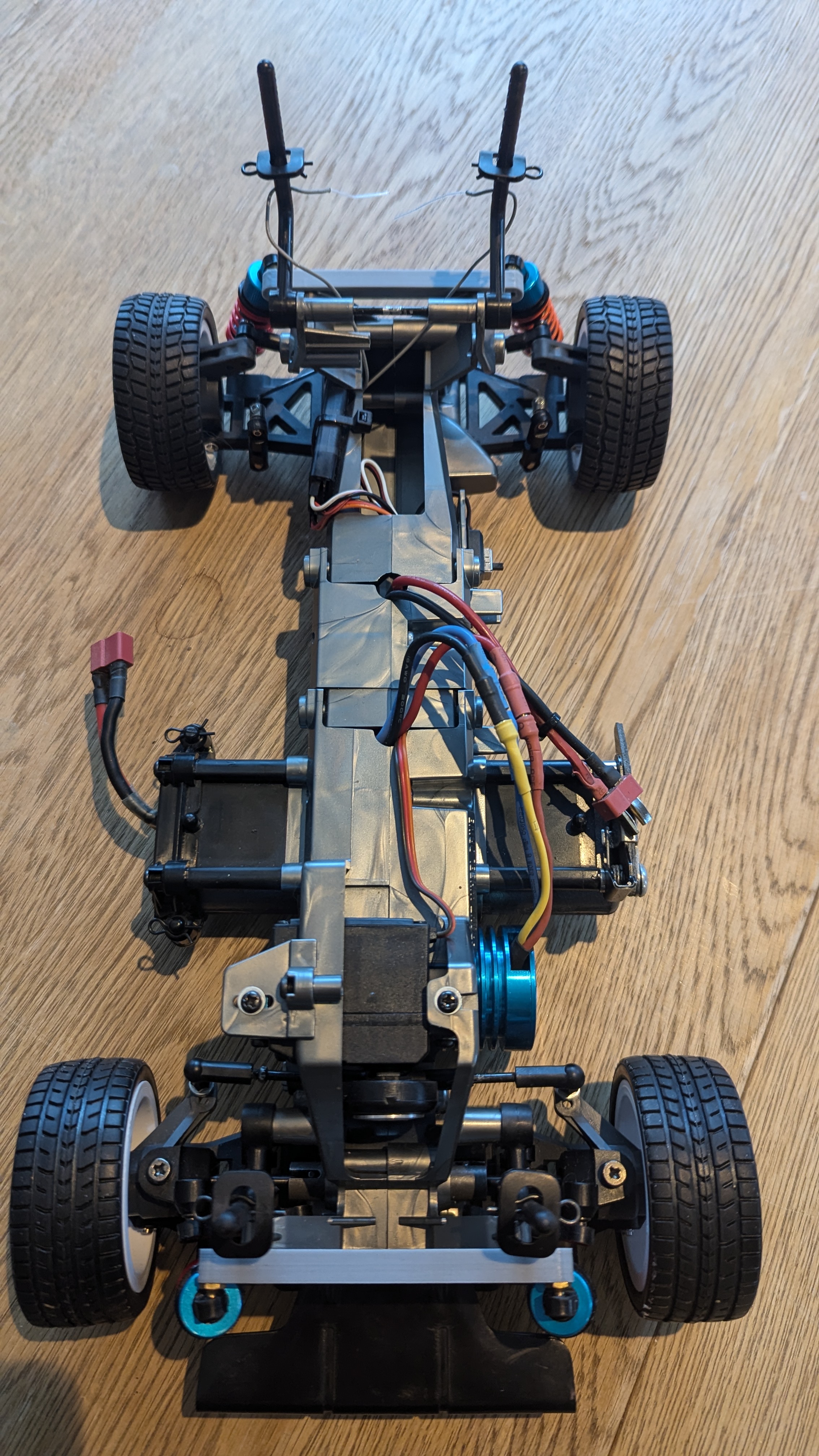

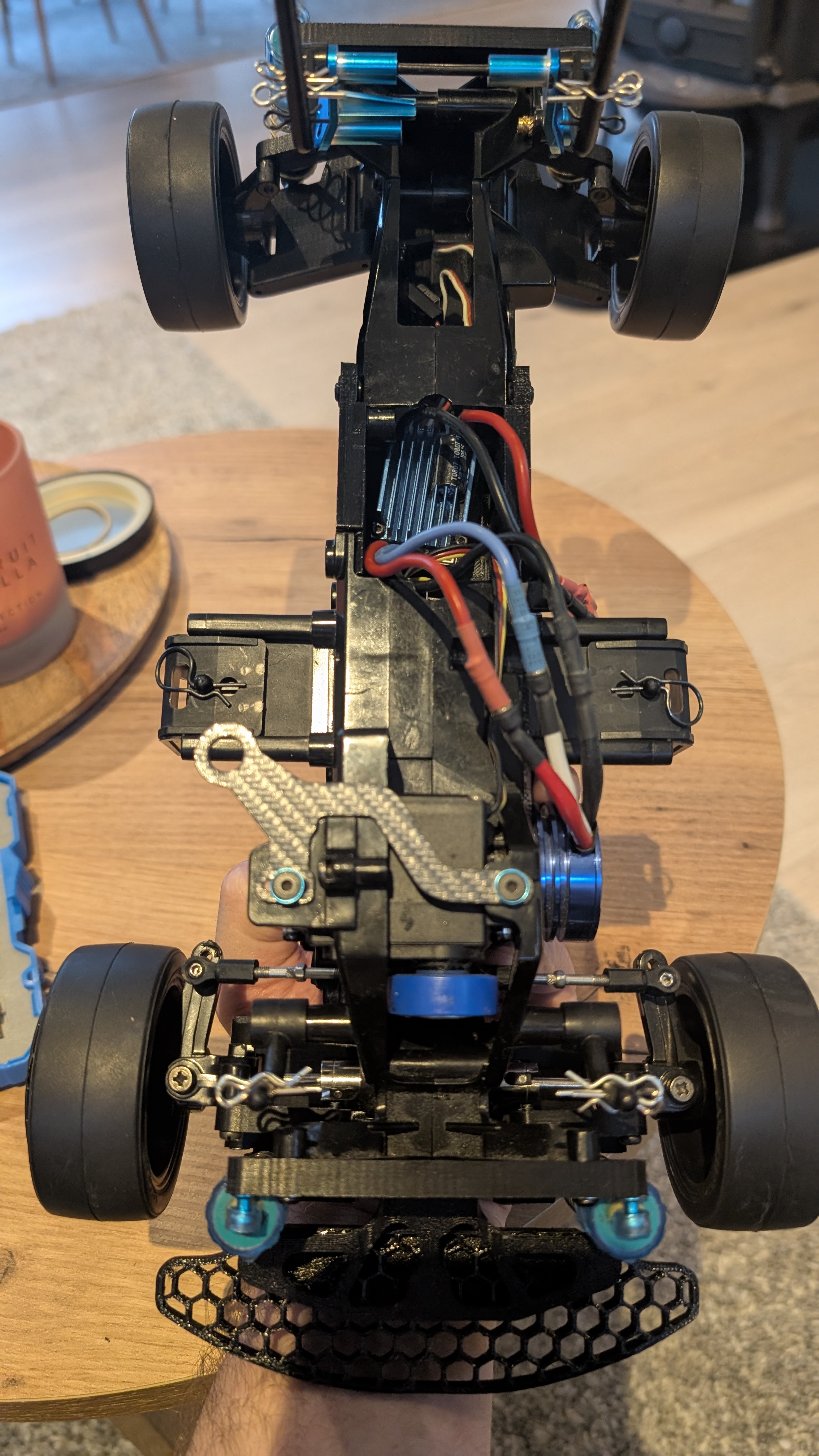

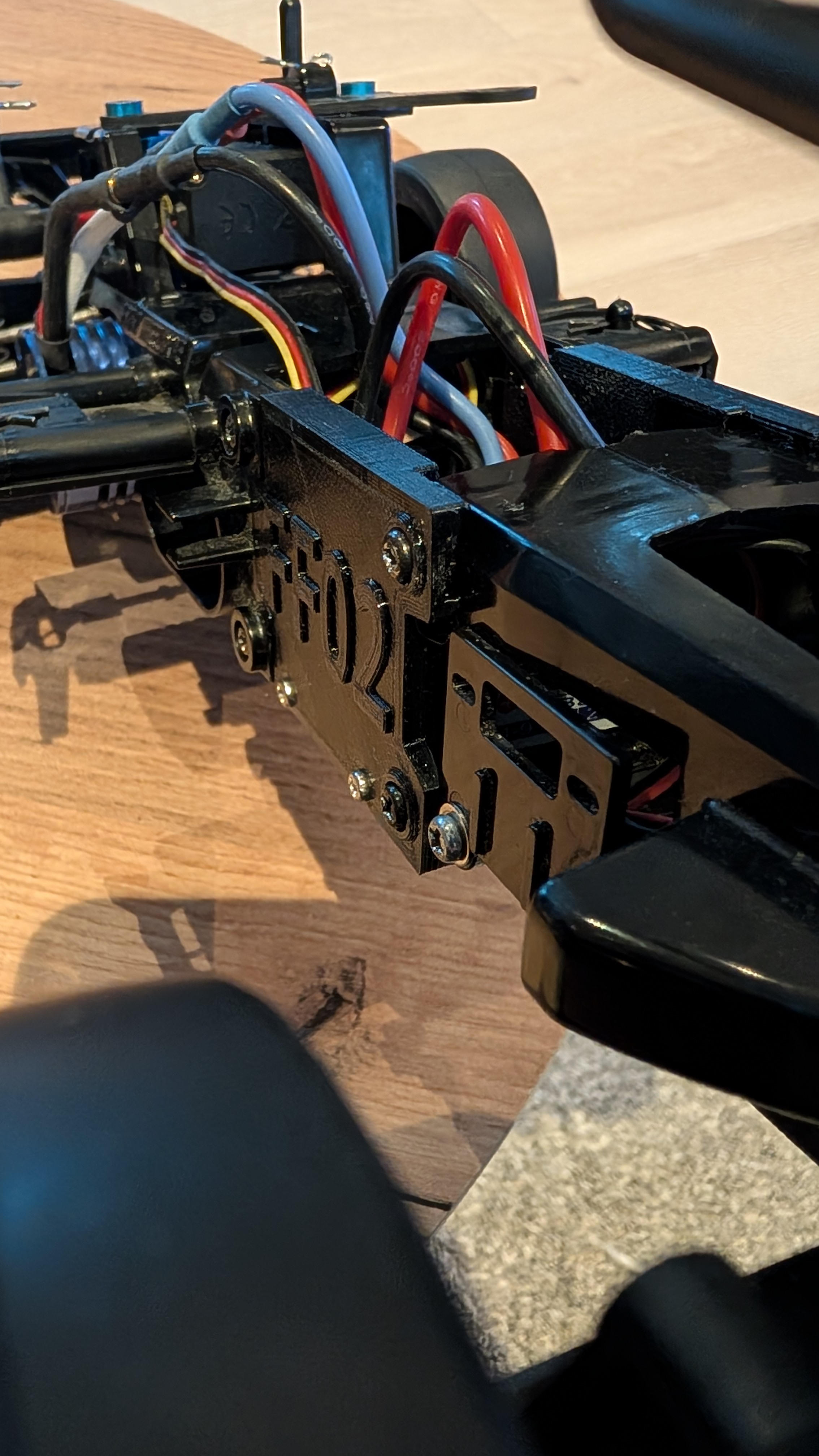

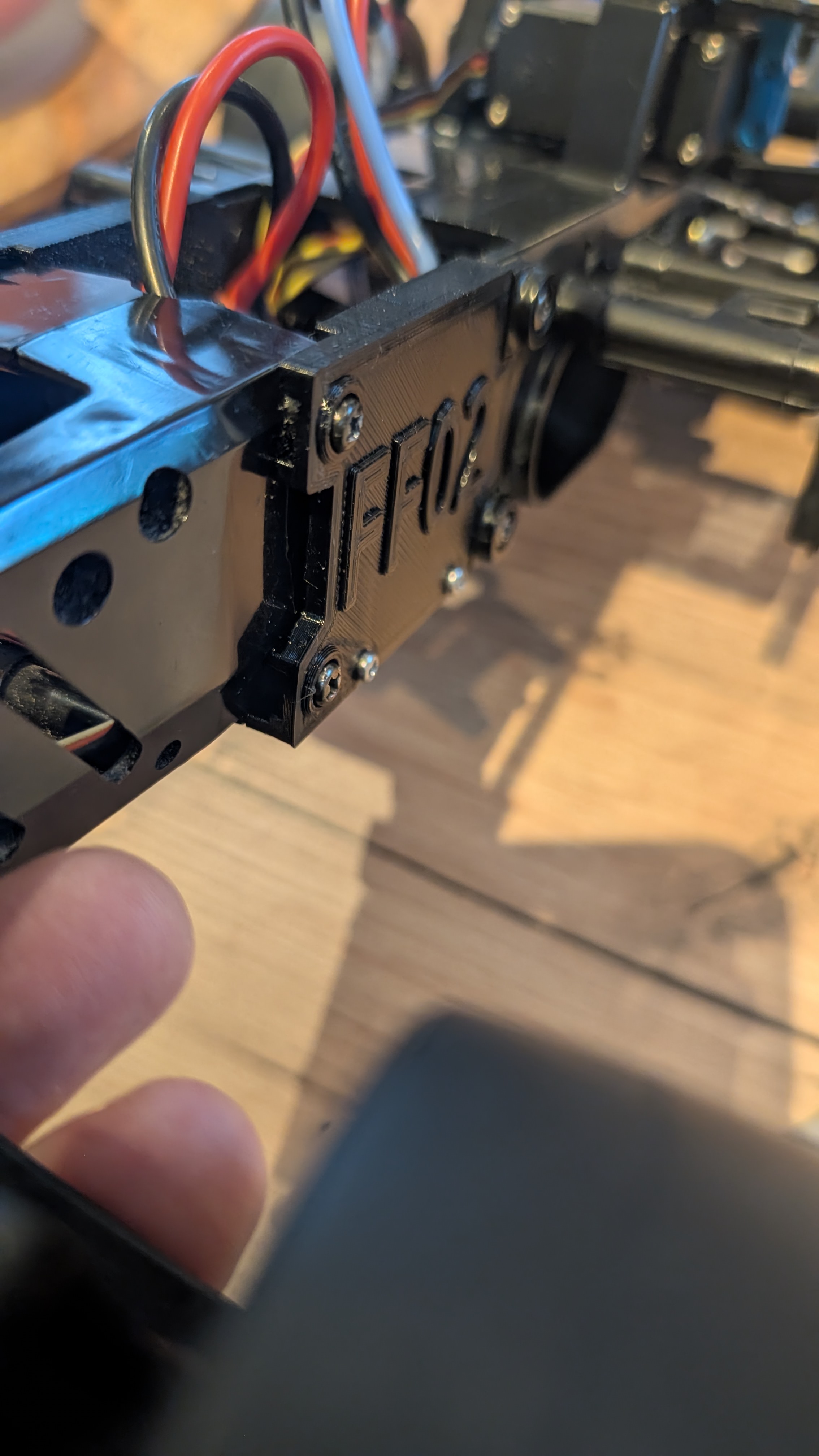

<p>Want to make your old or extra Tamiya M03 into a Tamiya FF02?</p><p>This is the way, use these parts with Tamiya TL01 suspension arms to do it.</p><p>Copied part from a original Tamiya FF02, center section is made so it provide good place to put ESC and receiver. I used this for a long time, so it's tested and can withstand race-use printed in PETG with 5 walls and 5 top/bottom and 40 % cubic infill. Also included shock towers and upper arms. Suspension arms is found on several 3D print sites if needed.</p><p>Used M2.5x16mm bolts on plate under extension, predrilled holes in sides.</p><p>Front I used M3x8mm and rear M3x16mm.</p><p>If there are other 3D printed parts from this Tamiya FF02 you want, then tell me and I will share them.</p><p>I used a old race-worn chassi that I was about to throw out to build this, cut some 5mm carbon tubes I used in gearbox and added a old bevelgear diff. Was pretty successful, if you ask me!</p><p>Do what you want with files, use them, print them, sell them, anything. I don't care!</p>
