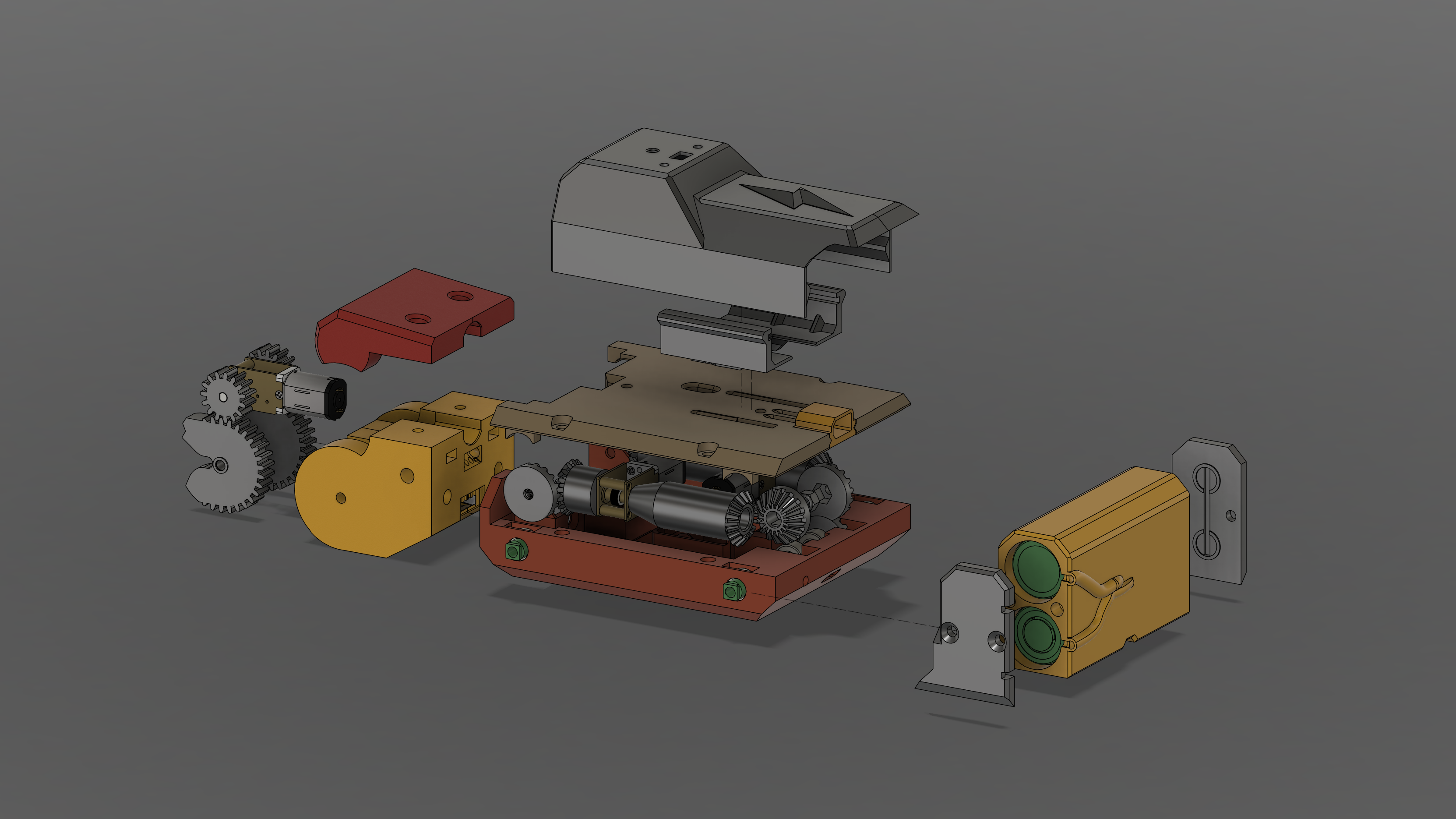

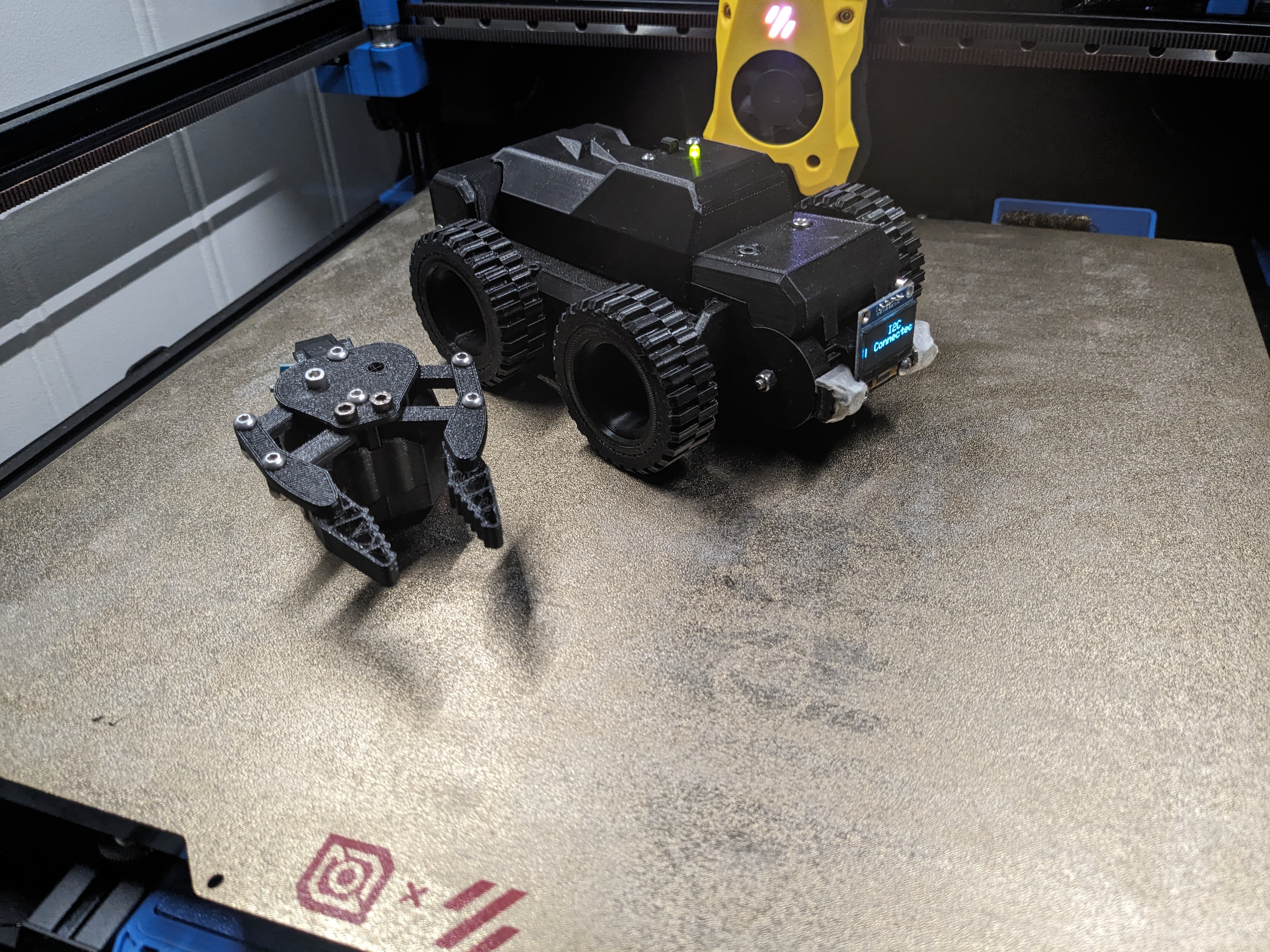

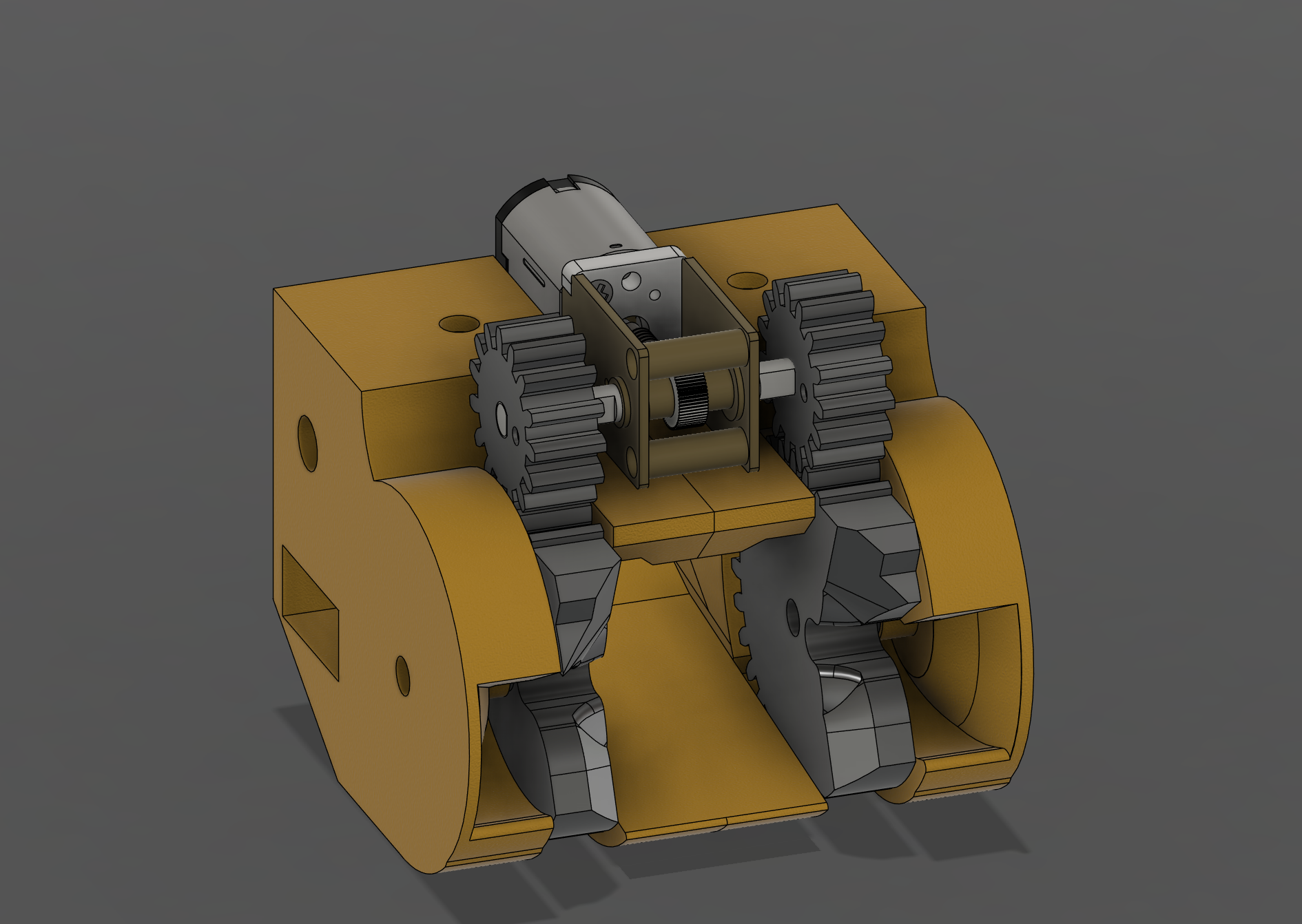

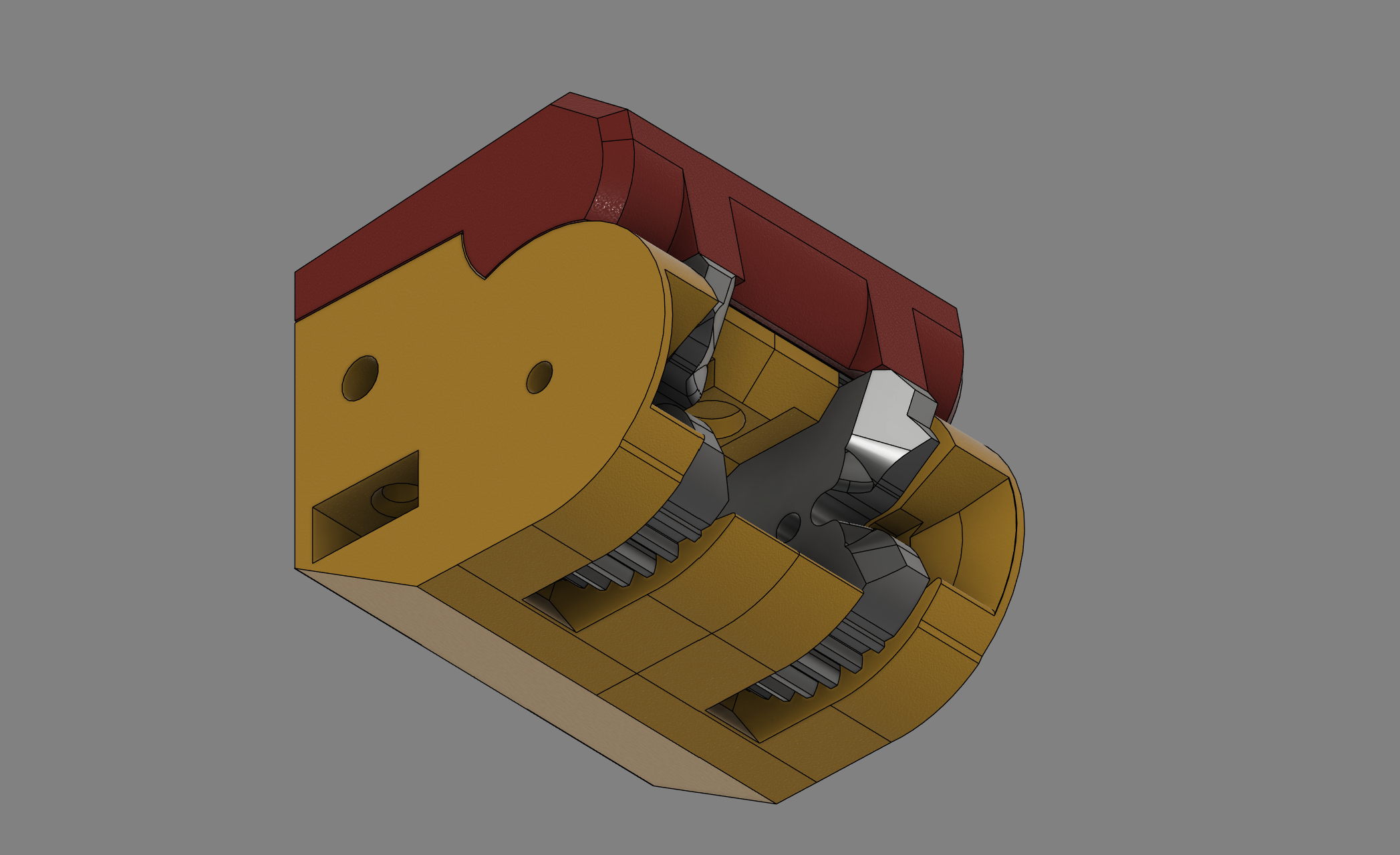

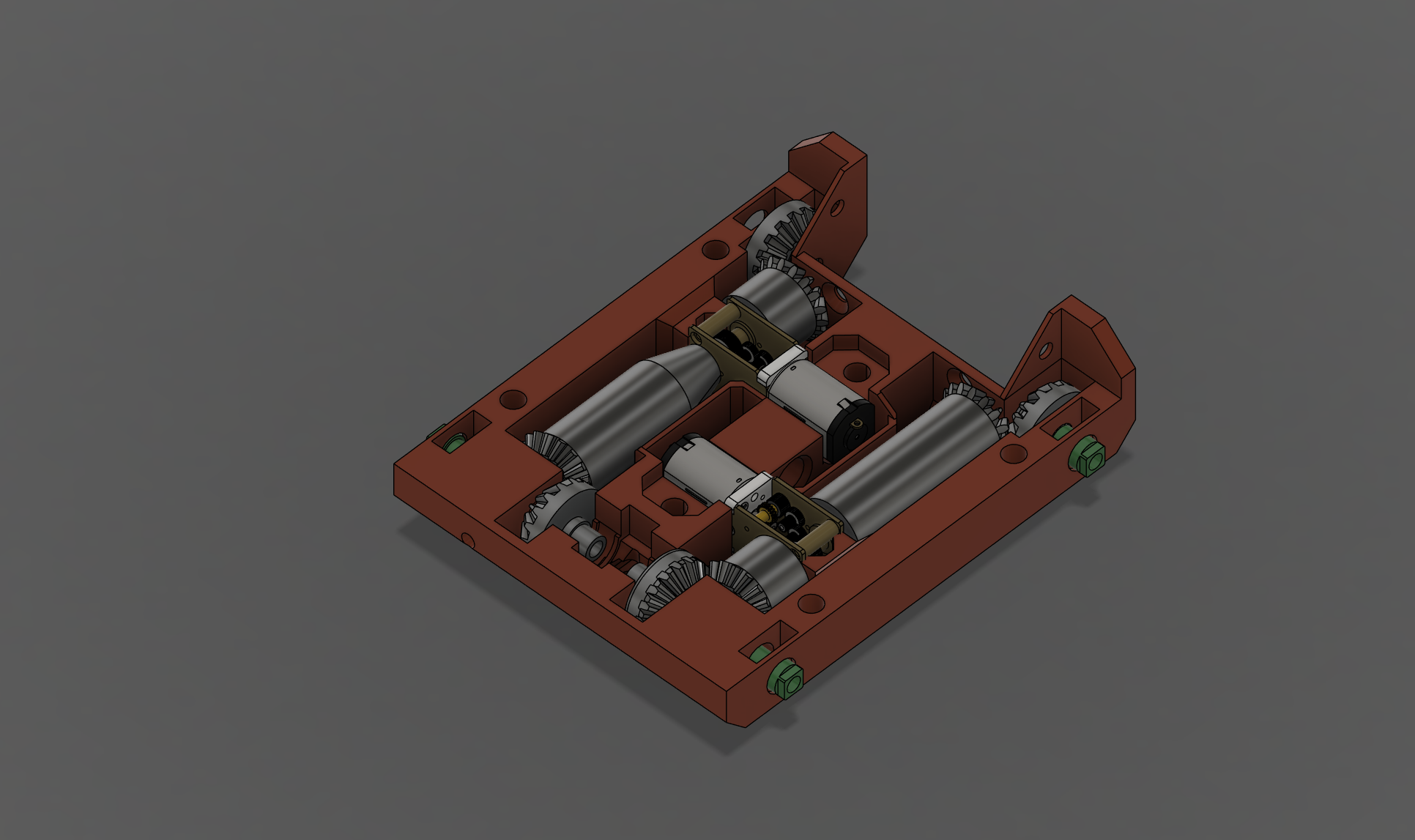

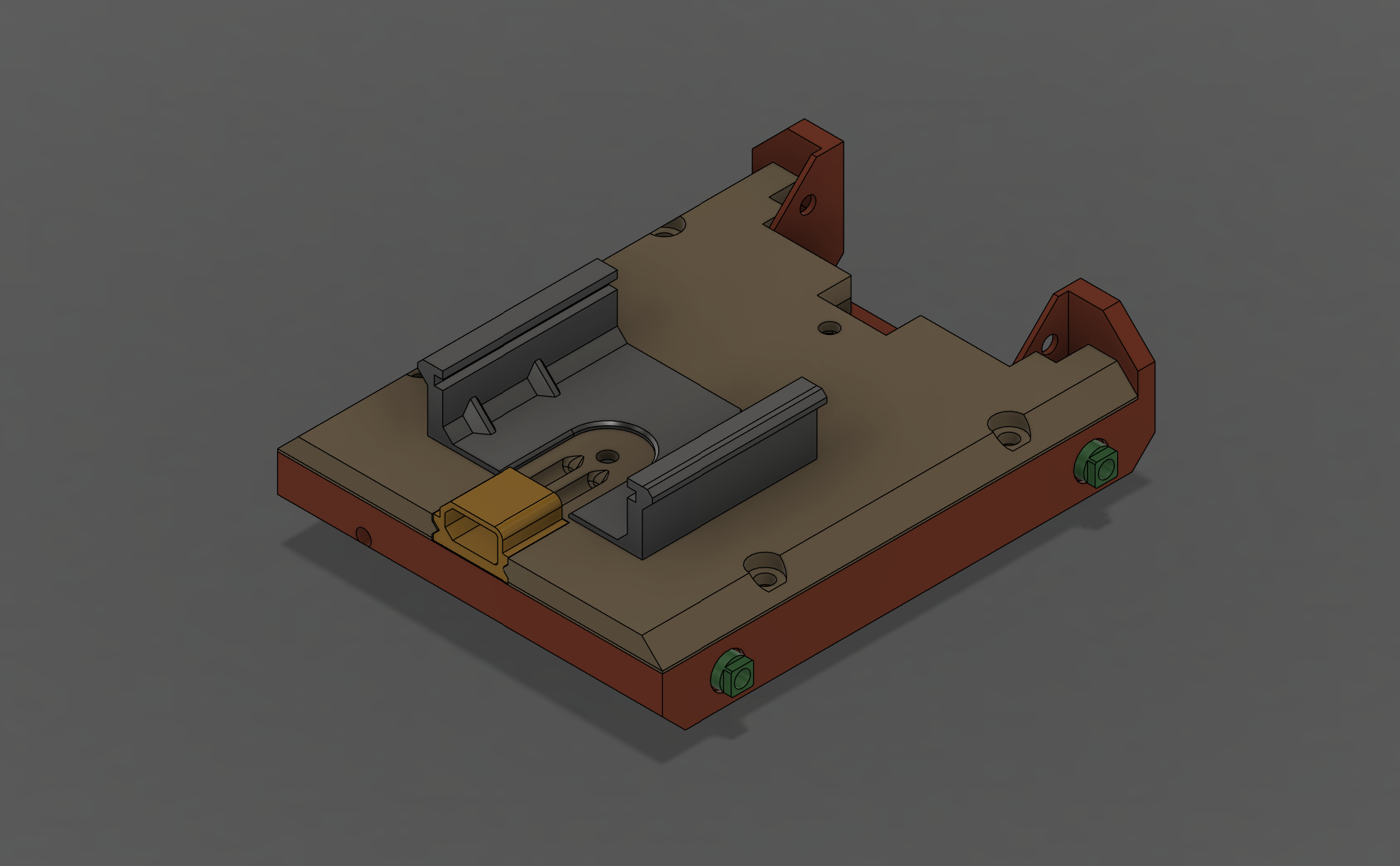

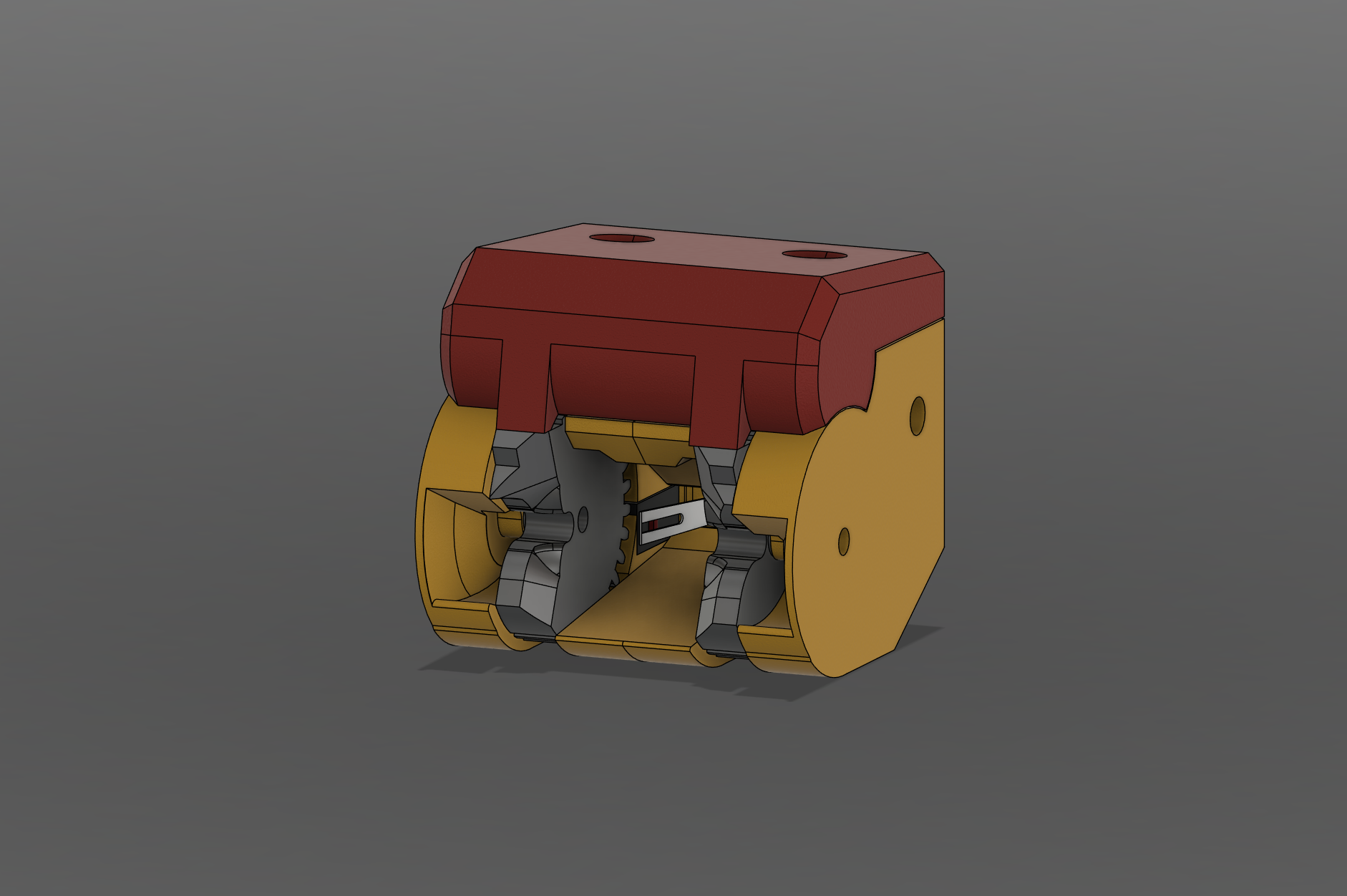

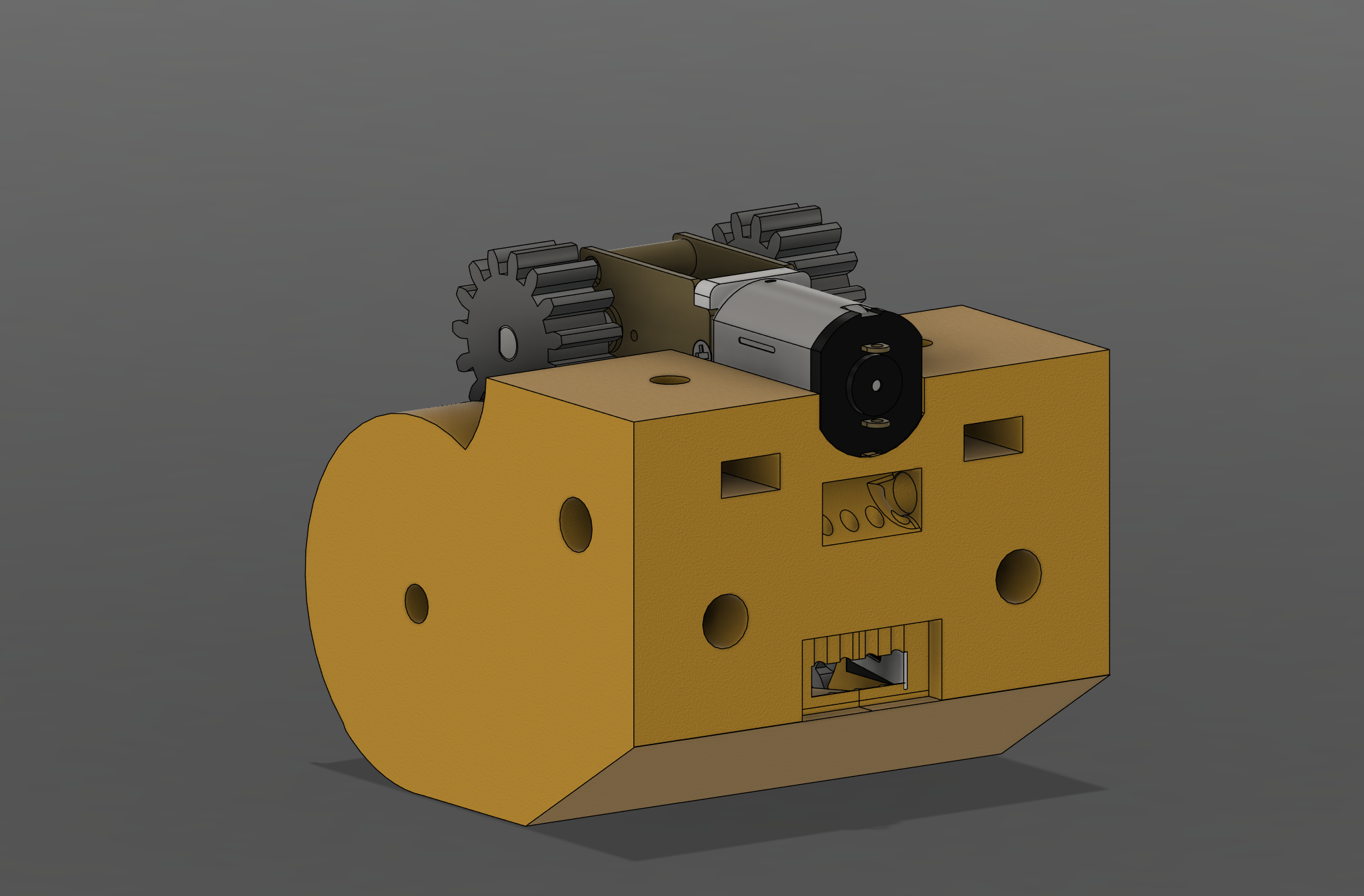

The author presents the SwapBot, a tool-changing rover capable of self-tooling and equipped with interchangeable batteries. The rover recognizes tools via I2C addresses. Currently, it is controlled via WiFi through a broadcasted website. Included in this release are the Oled Screen "tool" and the Claw tool. The author notes this is a work in progress and provides the following assembly instruction: https://www.instructables.com/SwapBot-Rover-With-Tool-Changer/.
Printing instruction: Update all stl to right print orientation.
BOM:
- Motor: N20 Gear Motor
- BEC Motor driver: Esp32 wemos mini
- Battery x2 18650
- Arduino Pro Mini 328p 3,3v for all tools
- Limit Switch
- Panel Slide Switch
- Hardware Screws: All M3 screw
- Heat inserts: M3x5mm

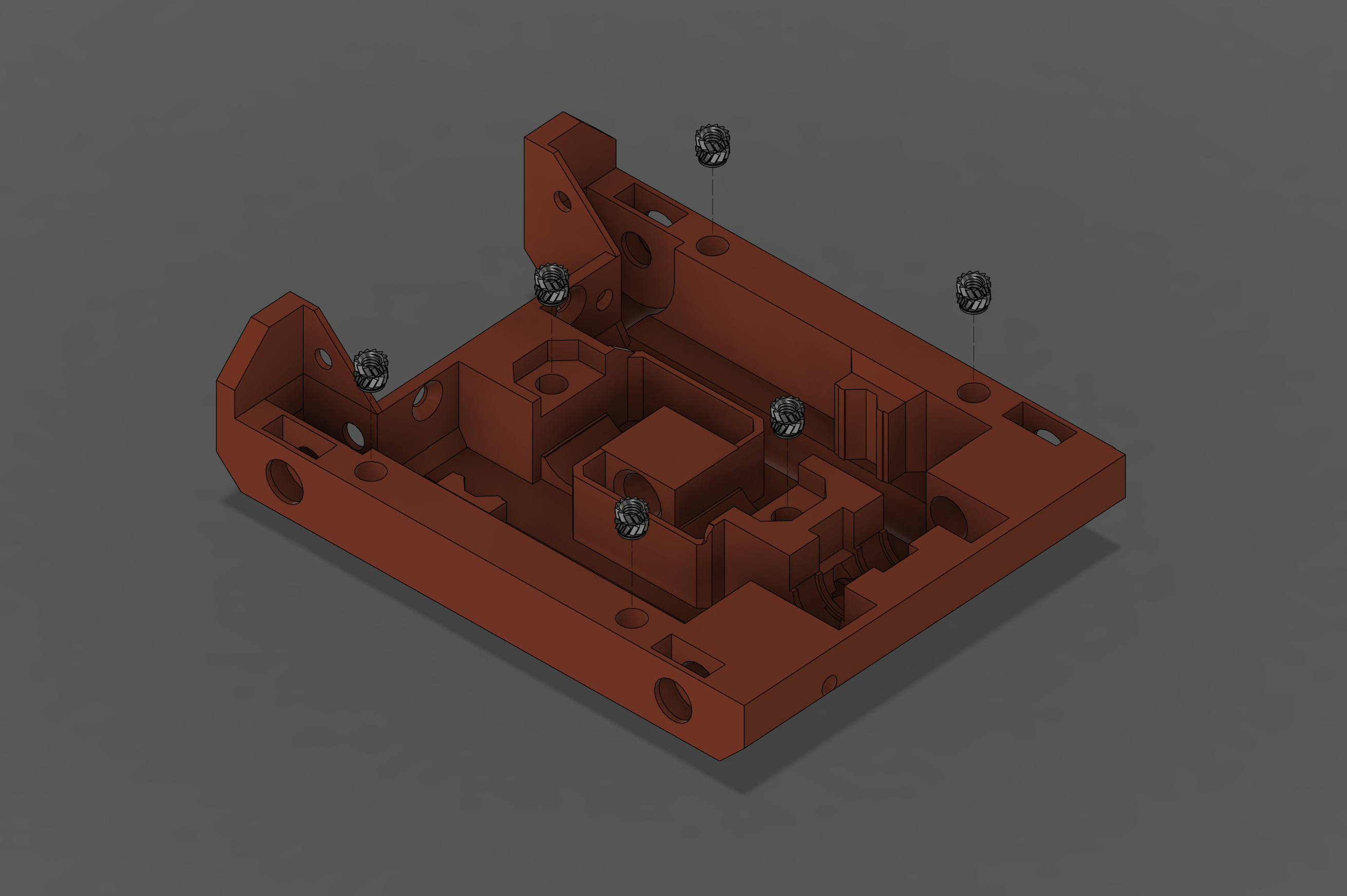

- 2 Bearing small 6x3x2.5
- 6 Bearing big 5X10X4 MR105ZZ
Original text by the author on Printables
