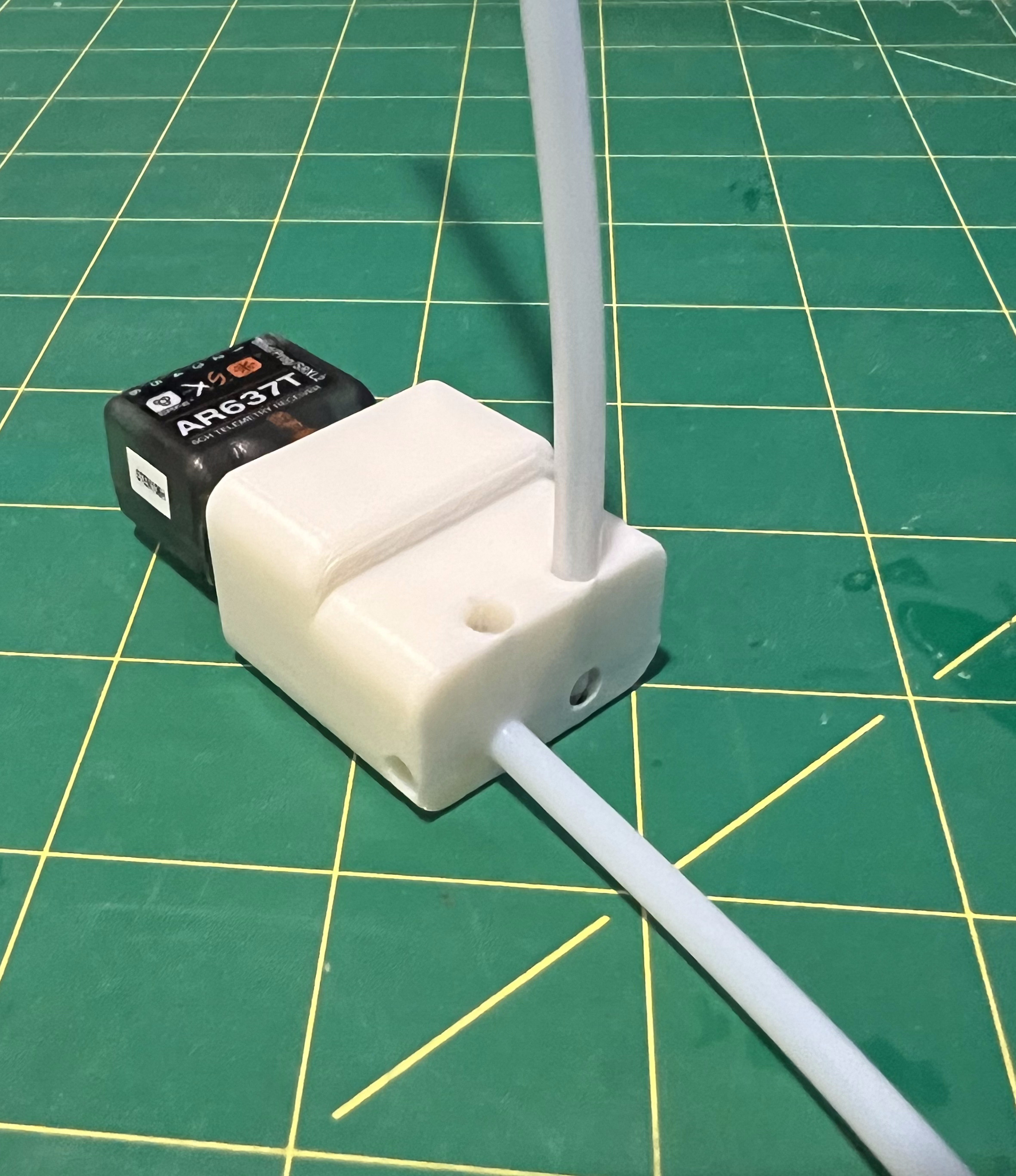

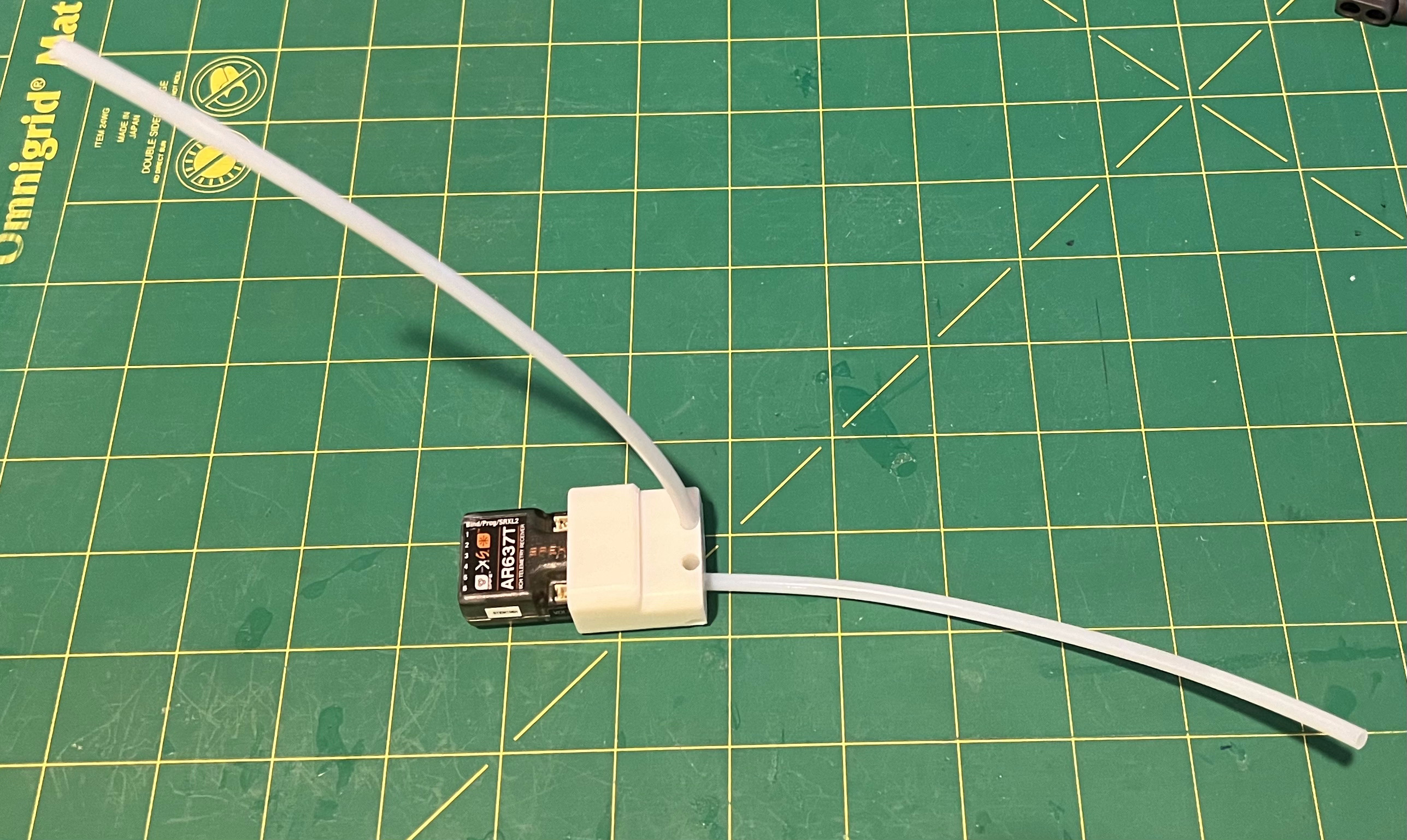

A slip-in mount for the AR637T. The dual antenna can be routed to one of 4 holes each, allowing for the required 90-degree angle between antennae. The holes are sized for PTFE tubing. The author includes the FreeCAD 0.21.1 model file to allow for changing hole sizes. The author reports that adding 0.2 mm to the tubing diameter for the holes provides a nice fit. The author printed this on a Bambu X1C using white ASA with BambuStudio's 0.16 Optimal setting, using normal support, and placing the hole end down on the build plate. The author notes that it took a few minutes to clean out the support from the holes.
Original text by the author on Printables
<p>Slip in mount for the AR637T. The dual antenna can be routed to one of 4 holes each allowing you to easily achieve the require 90 degree between antennae requirement. The holes are sized for PTFE tubing.</p><p>The FreeCAD 0.21.1 model file is included so you can easily change hole size. I've found adding 0.2 mm to the tubing diameter for the holes provides a nice fit.</p><p>Printed on Bambu X1C using white ASA and BambuStudio's 0.16 Optimal setting with normal support and hole end down on build plate. Yes took a few minutes to clean out the support from the holes… ;-)</p>
