Mount for a servomotor that incorporates a zone intended for a female servo cable connector. The design aims to house the servo and organize the cable output. The source does not identify a specific servo model or its dimensions, so compatibility must be verified in the file and with the physical component.
Preparation, compatibility, and printing
The hardware is described as "832" and "832 × 1 3/4"; this notation needs confirmation before purchasing or forcing screws into the part. Compare the position of the lugs and the cable path, and ensure the connector remains accessible. No material or profile is documented. Perform a fit test without powering the servo and keep the arm's range of motion clear.
Original text by the author on Printables

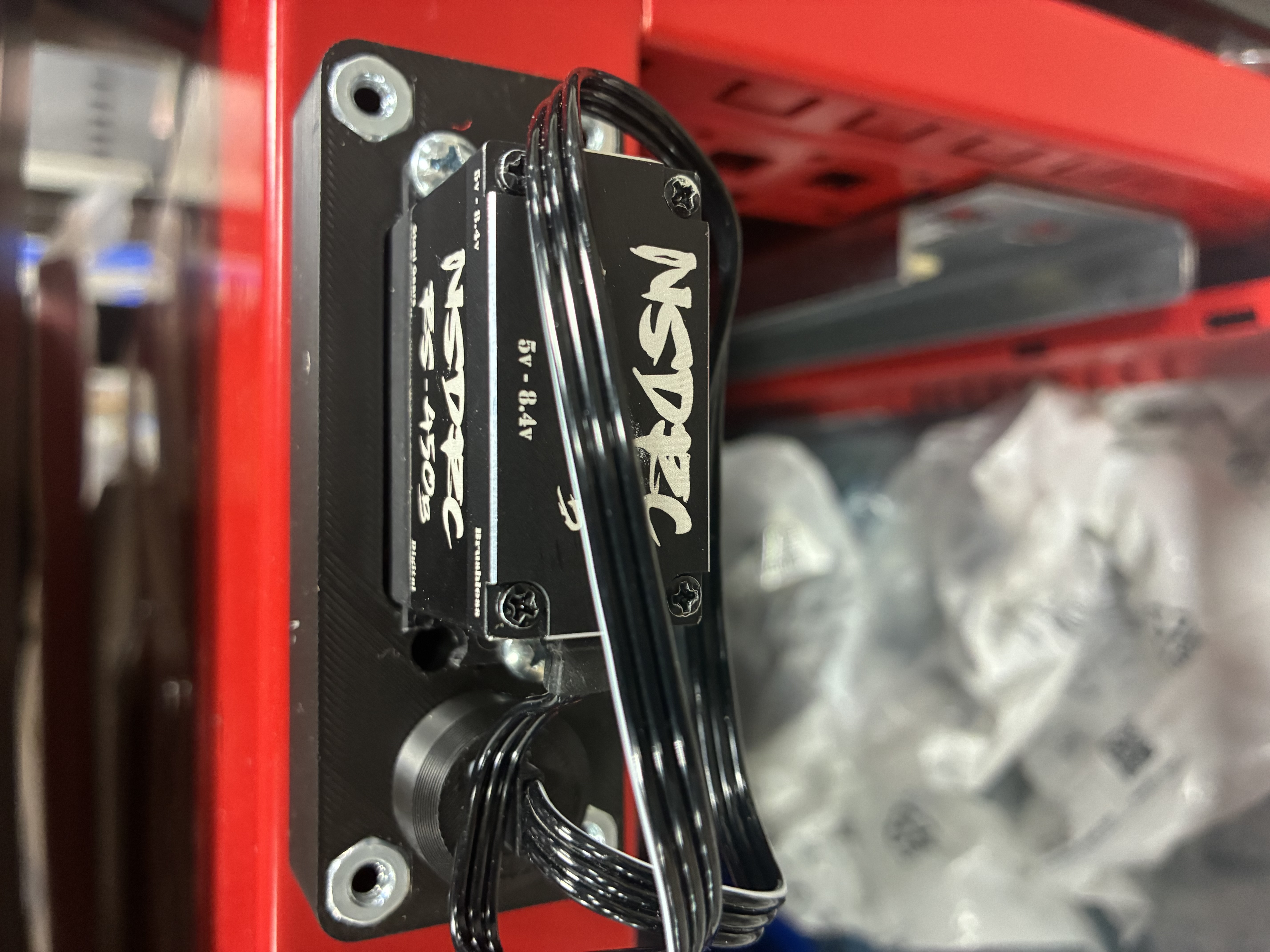

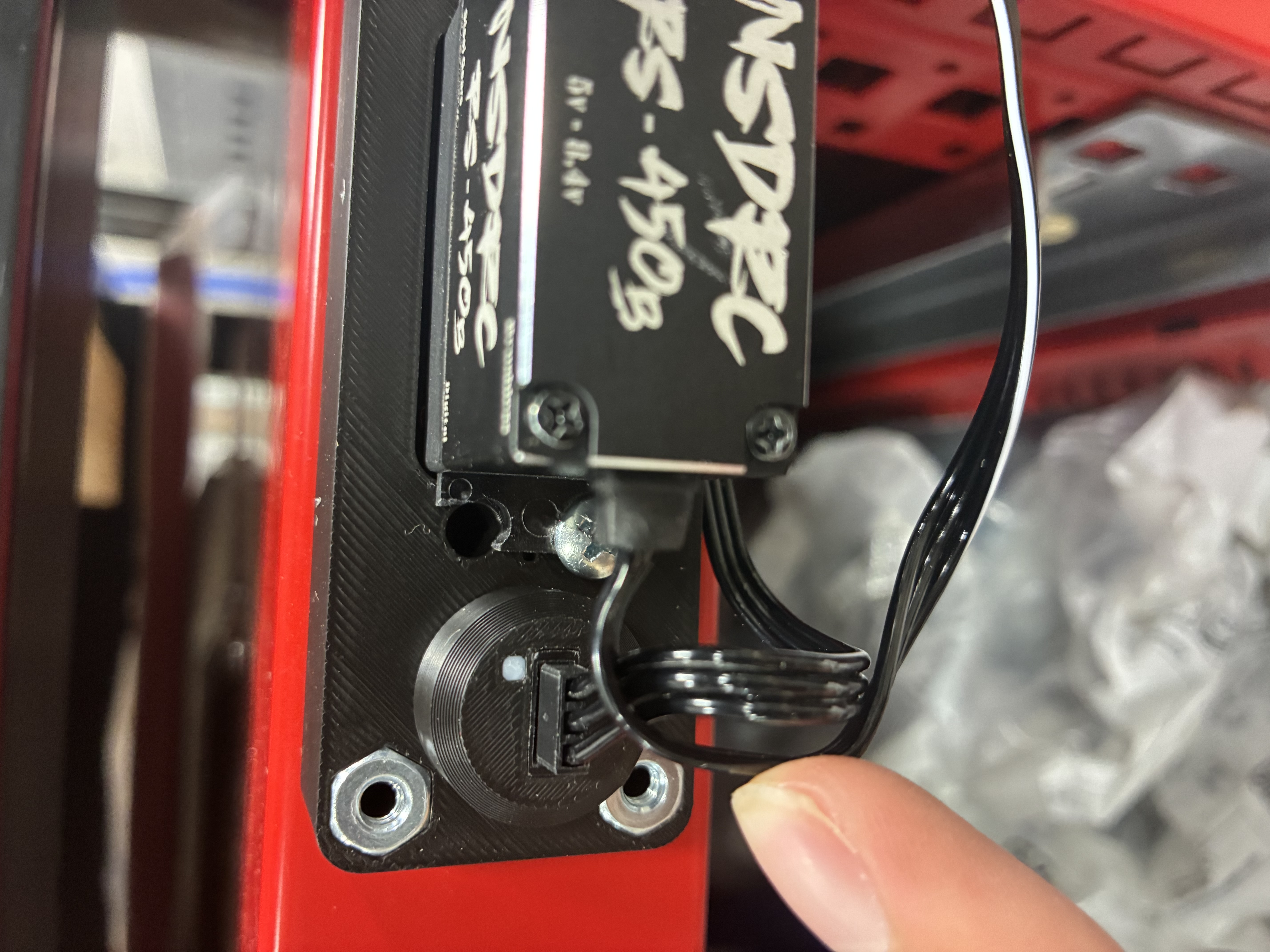

A servo mount with a spot for a female servo wire

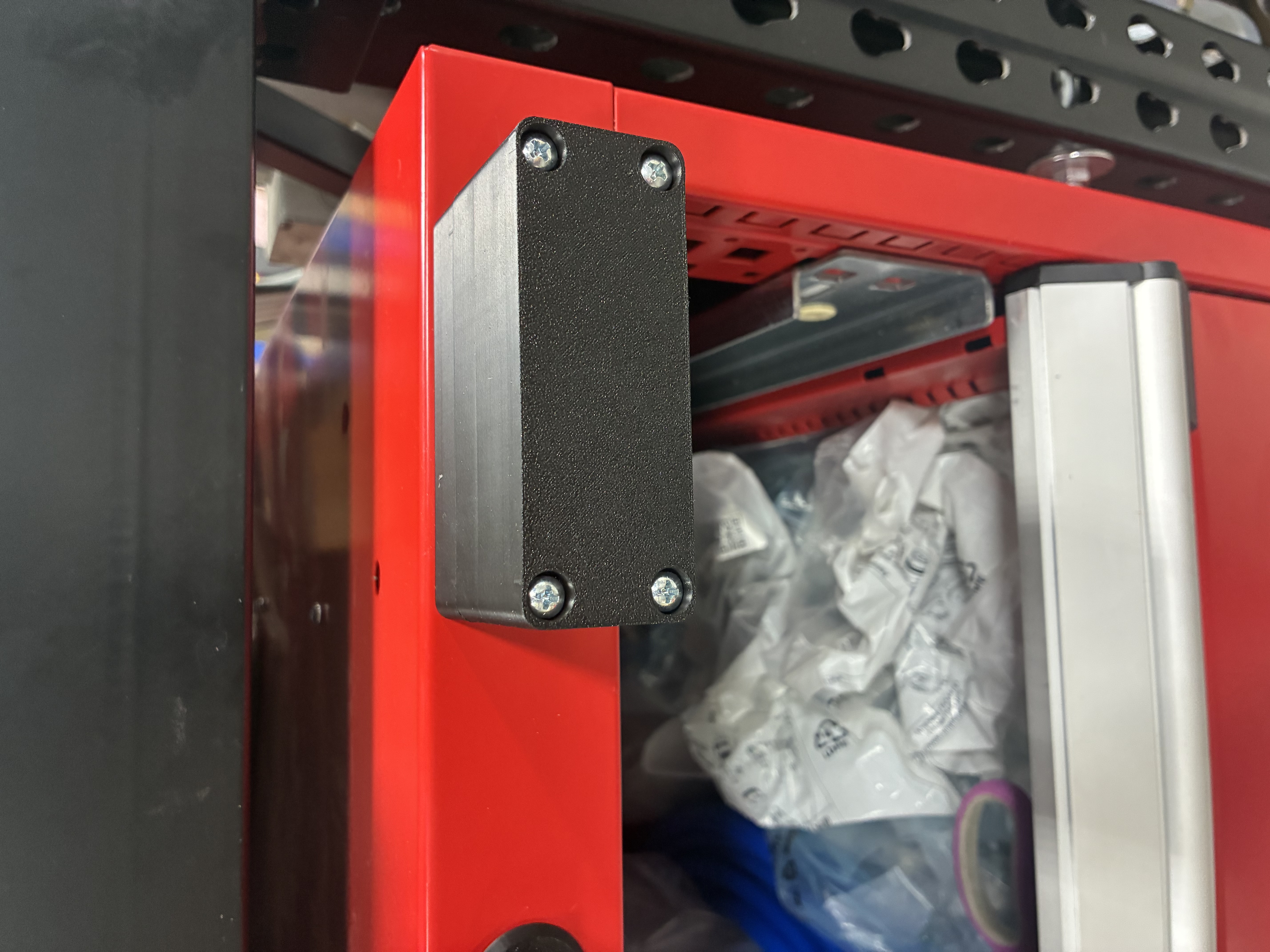

A mount to protect the servo and hide the wires. Use 4 832 bolts to attach the mount to your surface and 4 832 x1 3/4 to screw on the top.
The publishing account has not yet confirmed any print settings. Material, supports, difficulty, temperatures and times remain as "Not verified" until verifiable data is available.
