Model information
Description

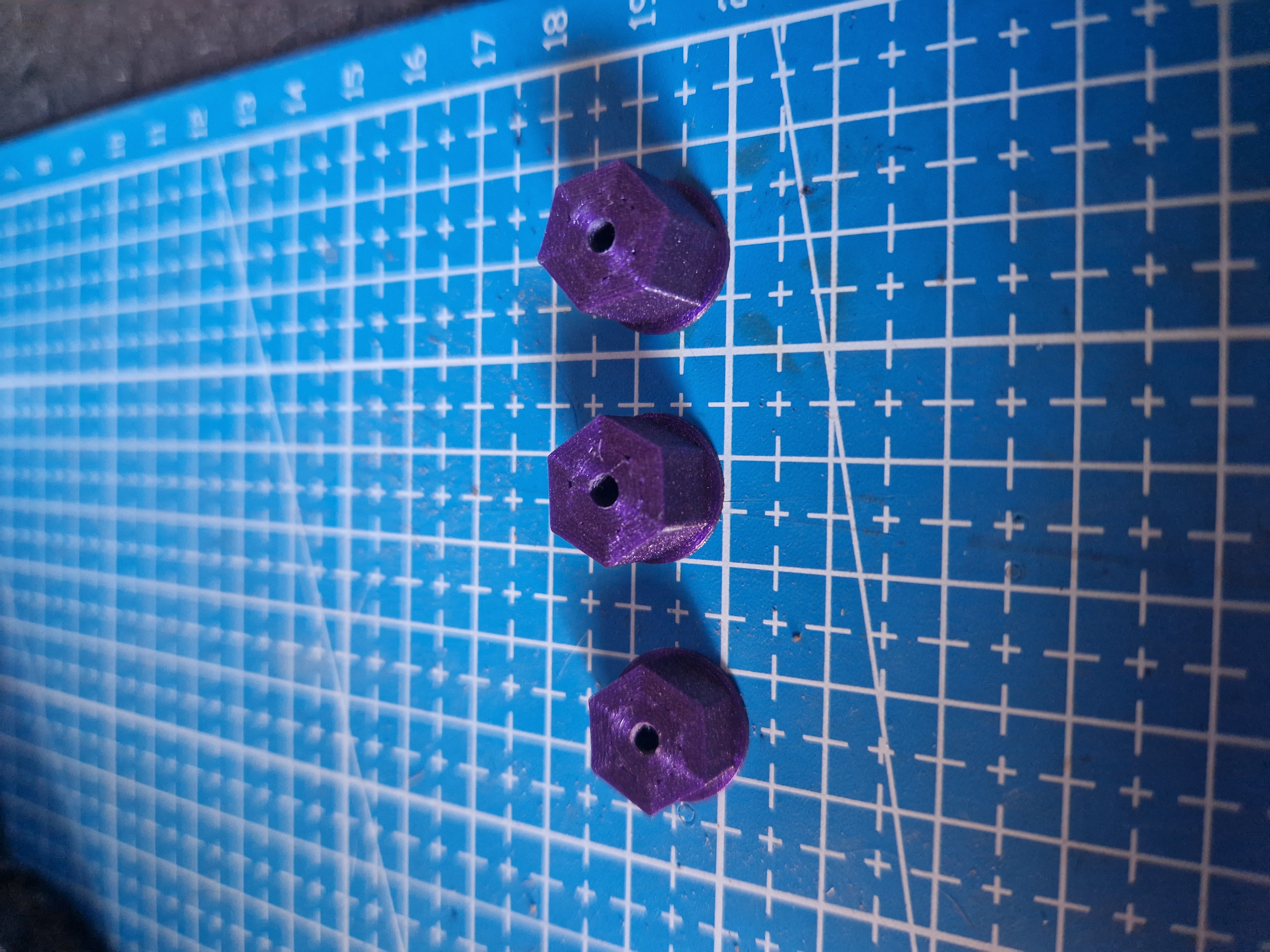

Spacers designed to prevent certain commercial wheels from rubbing against the suspension arms of the DukeDoks DKS Pro. The source offers thicknesses of 1, 2, 3, 4, and 5.5 mm. The fit depends on the wheel, the tire, and the actual configuration; adding spacing also modifies the wheel's position relative to the axle.
Preparation, compatibility, and printing
The author relates 1 mm to M3 × 16 screw, 2 and 3 mm to M3 × 18, 4 mm to M3 × 20, and 5.5 mm to M3 × 25. Check that the chosen length reaches the nut without bottoming out. Use PLA and perimeters until the section is filled. Before riding, rotate and articulate each wheel to confirm that the rubbing disappears without creating another point of contact.
Original text by the author on Printables
Separadores de llantas para un ajuste de llantas comerciales para el coche DKS Pro de @DukeDoks
He creado estos separadores de llanta para el DKS PRO de (https://www.printables.com/@DukeDoks) Dukedoks
Queria probar unos neumaticos tamilla y al ponerlos los brazos de la suspension me pegaban con la llanta, al igual que con neumaticos comerciales con diferentes dimensiones así que he creado estos separadores de rueda. Los he impreso en PLA con al 100% de perimetros y por ahora no he tenido problemas de partir alguno.

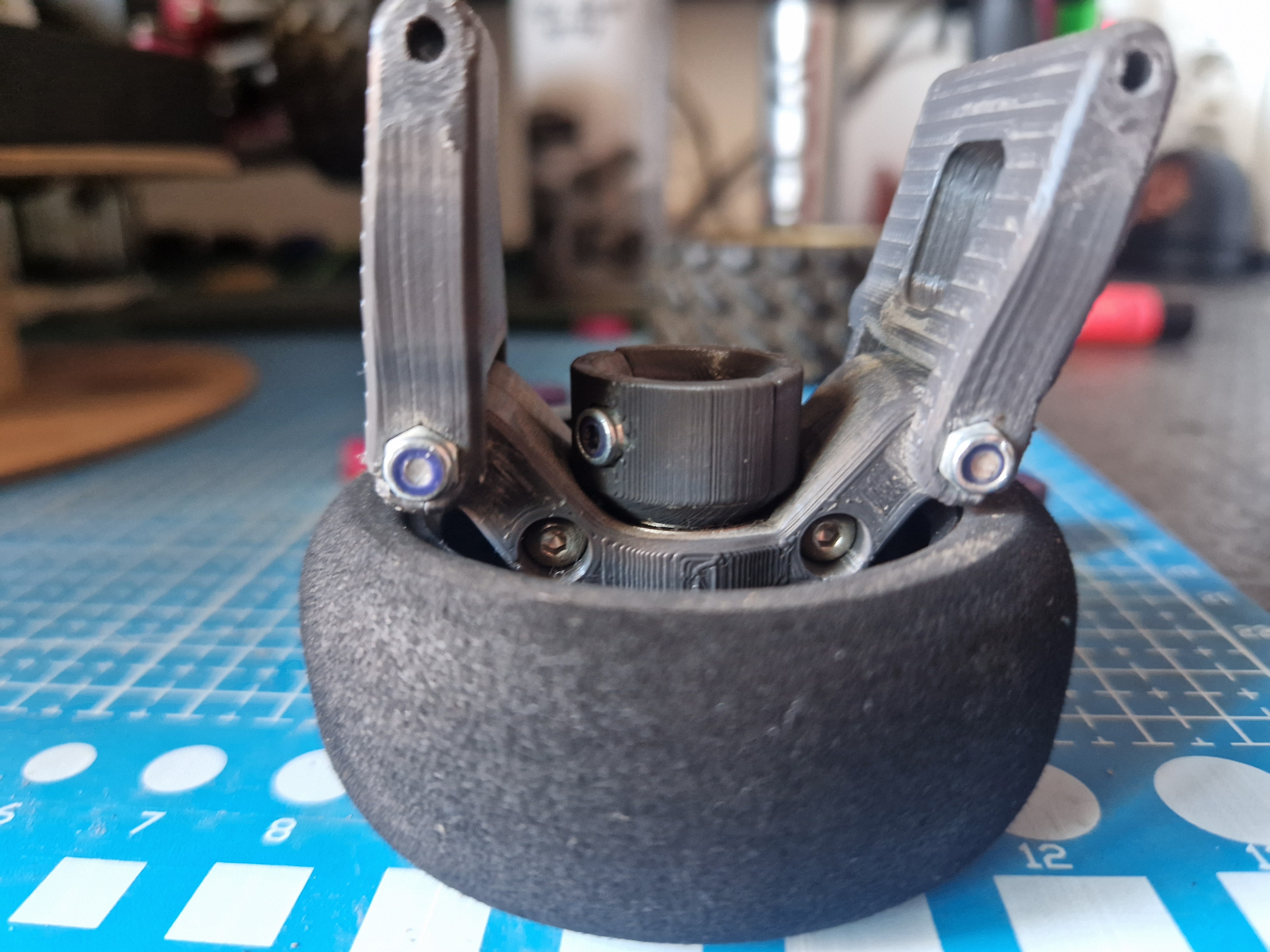

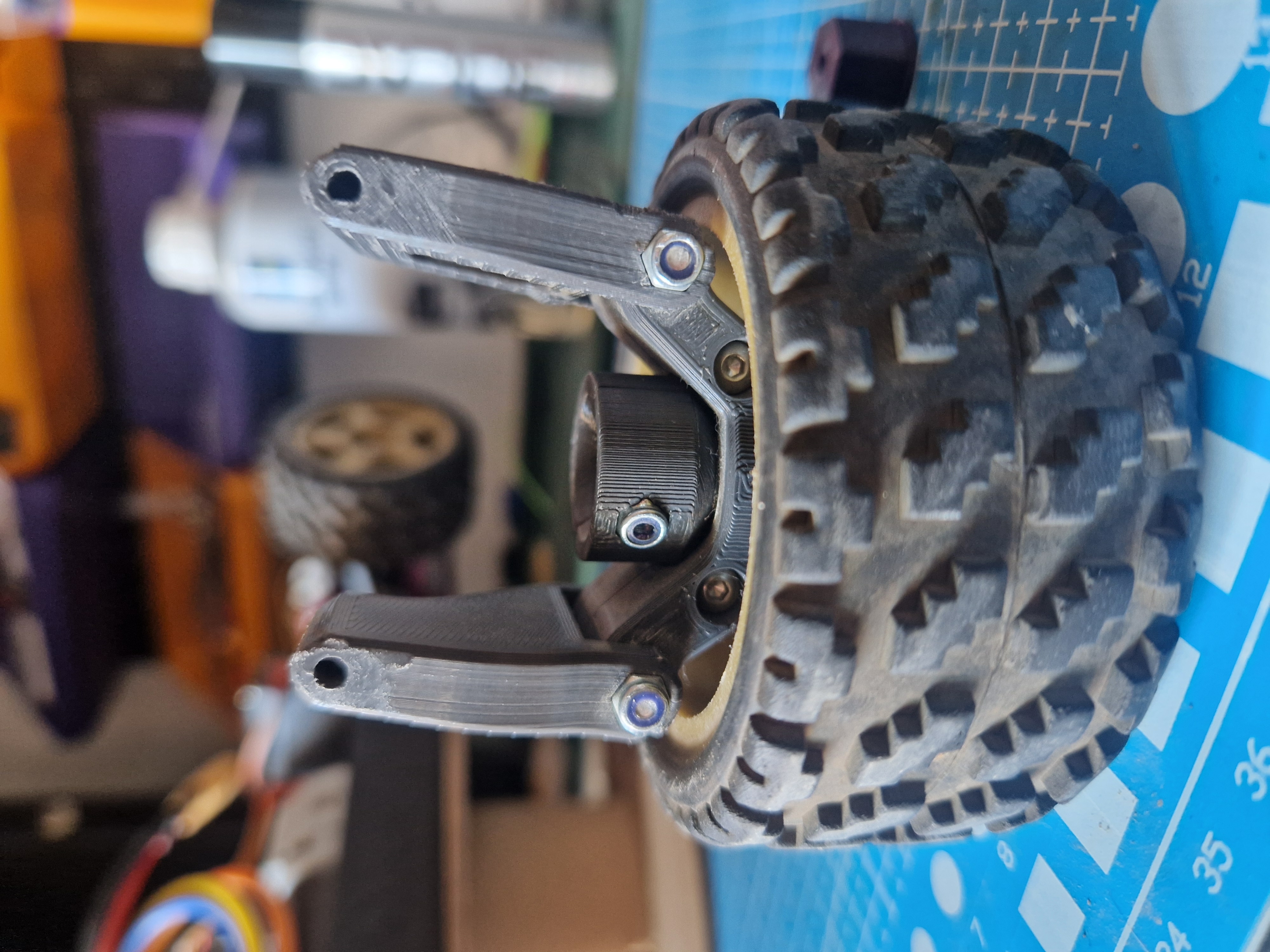

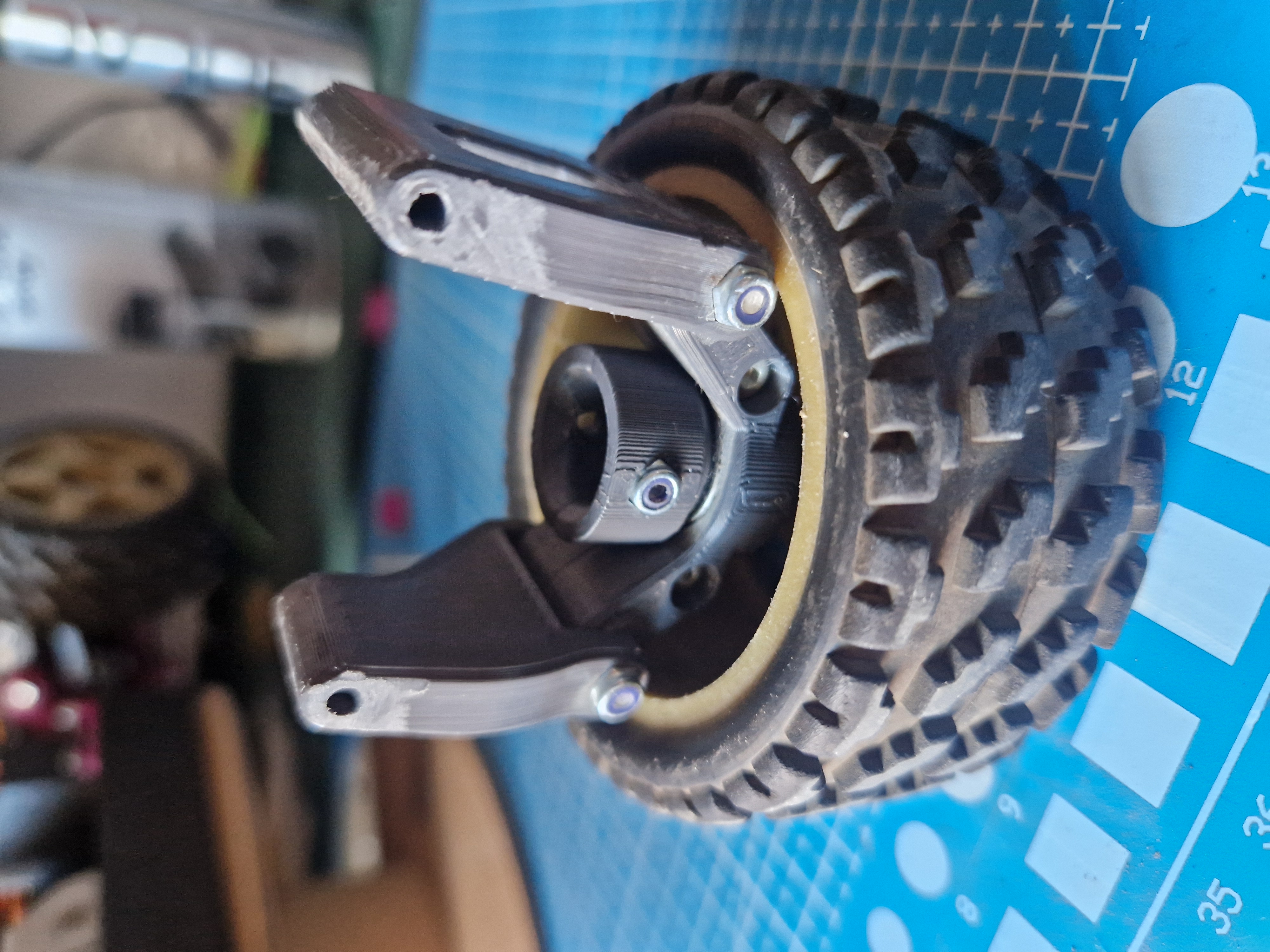

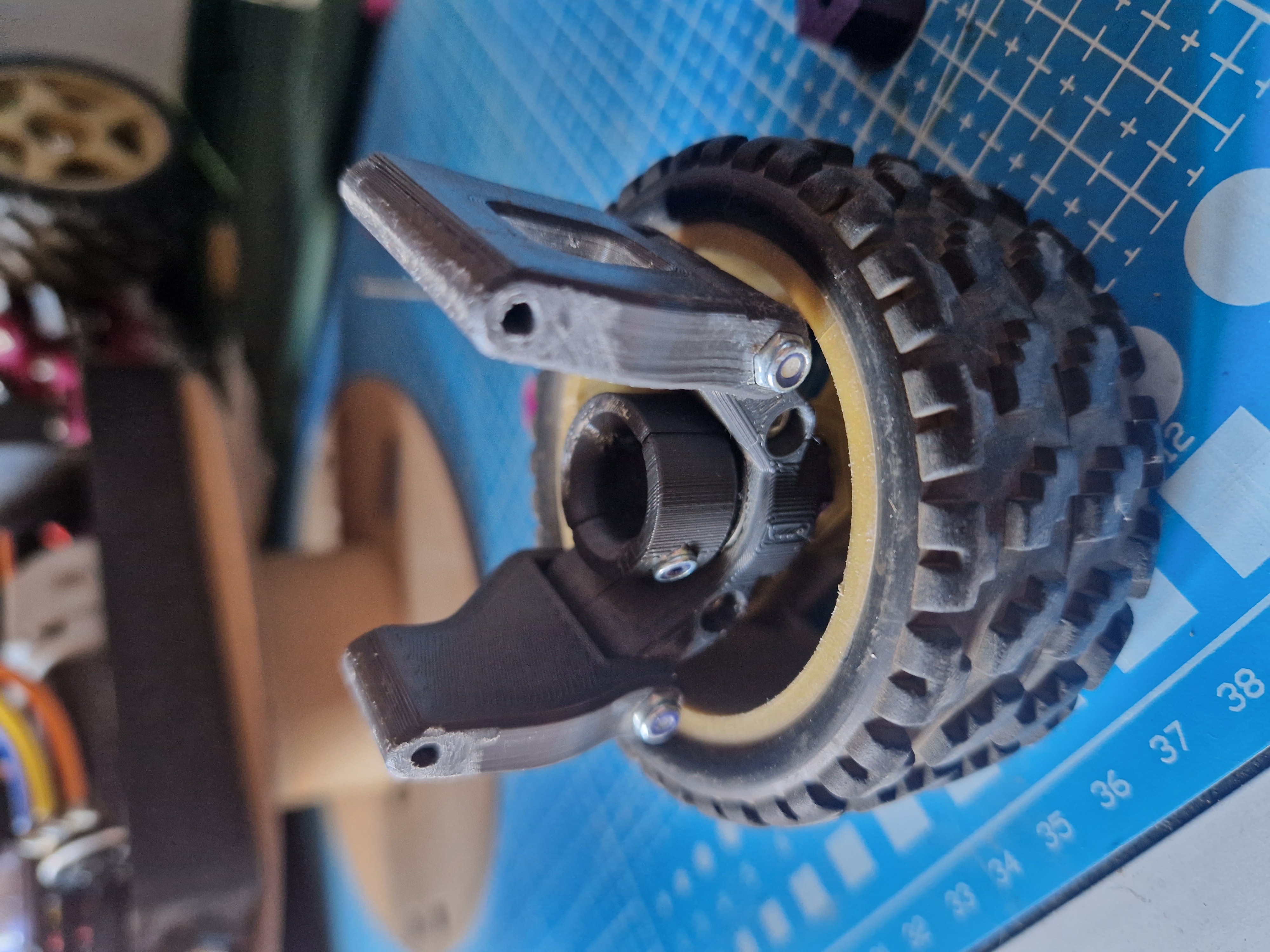

En una de las fotos se ve como con originalmente la rueda choca con los brazos y tras colocar el separador gira libremente.
Hay varios tamaños diponibles, para los cuales deberas ir cambiando el tronillo para que te llegue a la tuerca dentro del buje:
1mm - M3x16mm
2mm - M3x18mm
3mm - M3x18mm
4mm - M3x20mm
5,5mm - M3x25mm
