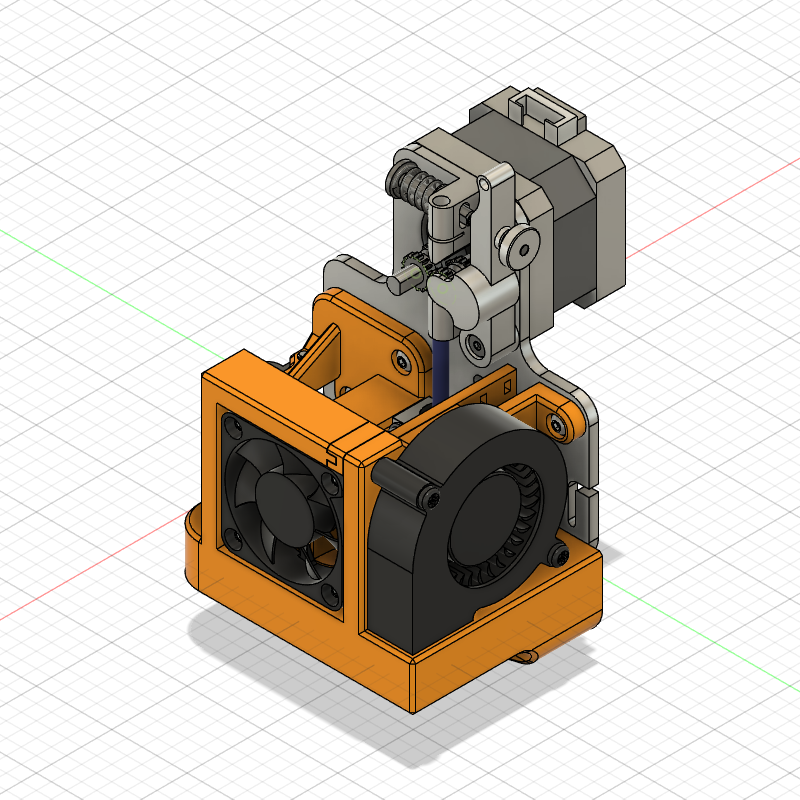

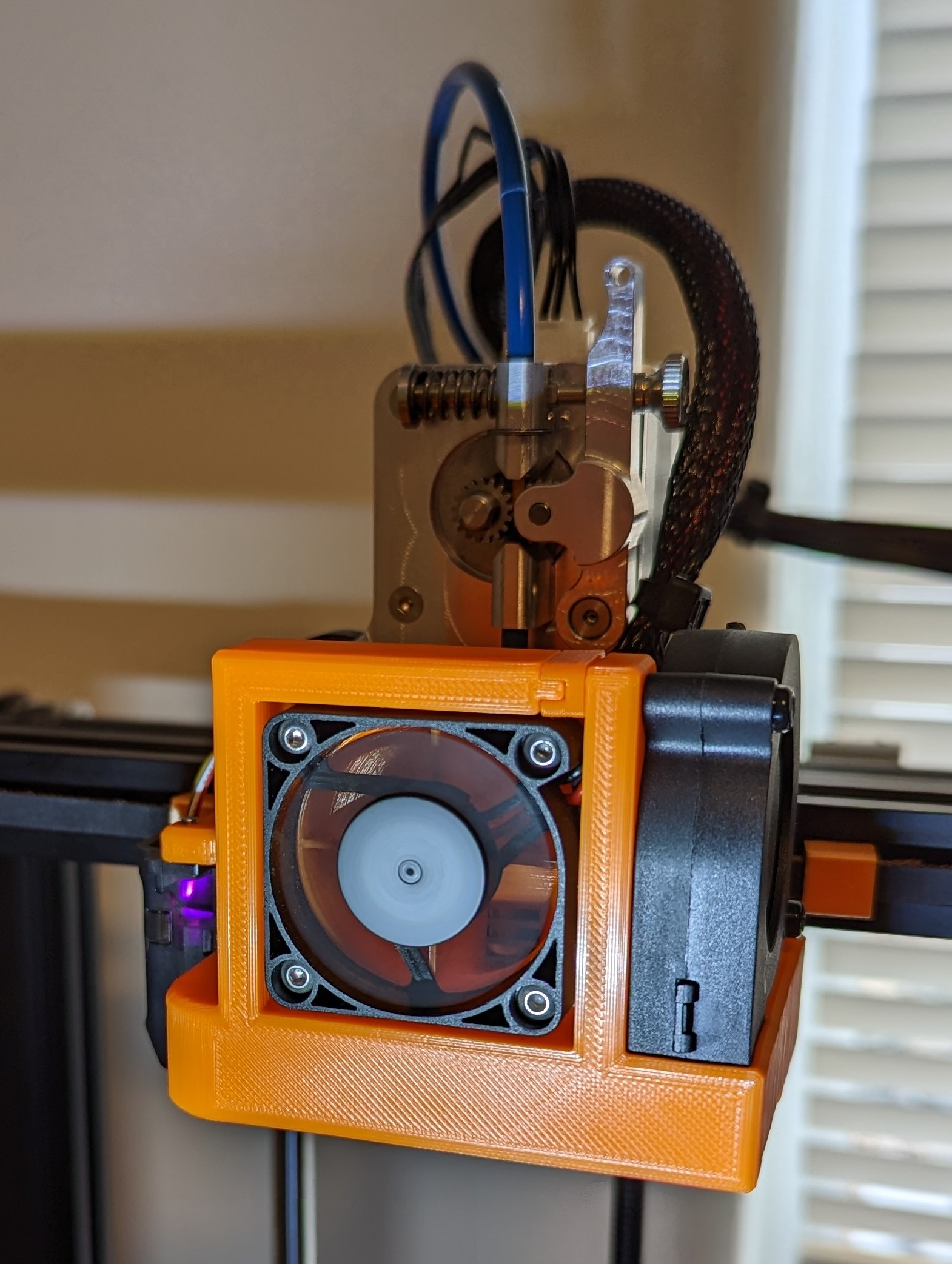

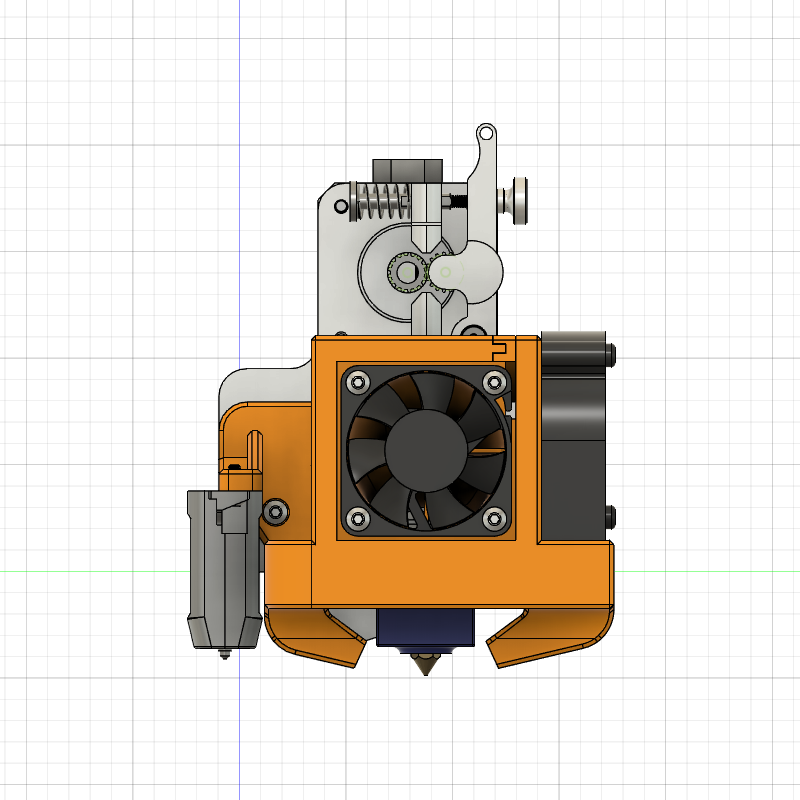

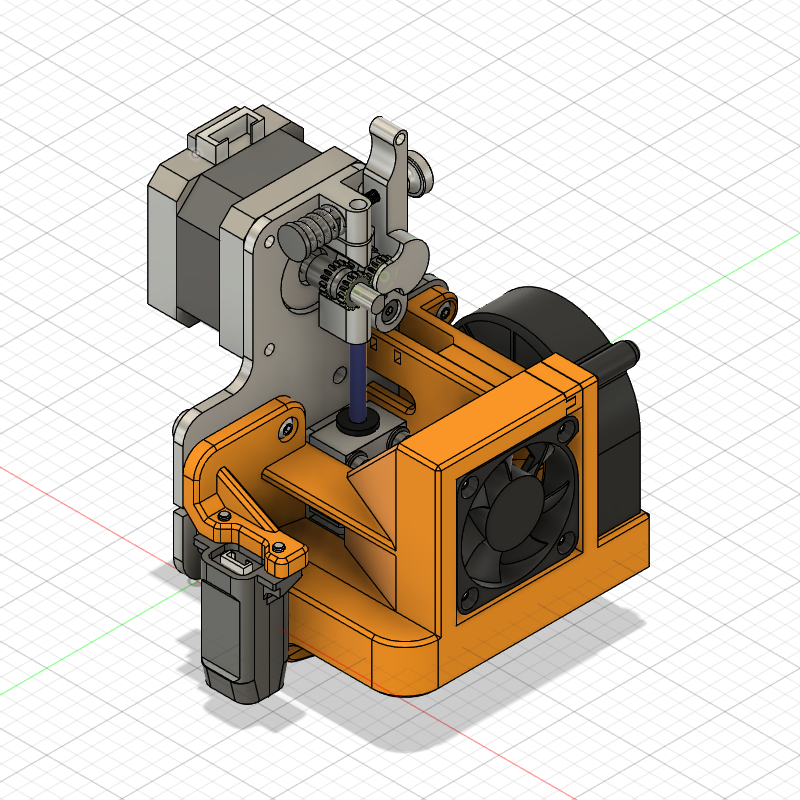

A remix of the Satsana duct. The author states this version is for an Ender 5 equipped with a Micro Swiss direct drive and a CR Touch ABL sensor. The design places the ducts 1.5mm from the print surface. The CR Touch mount features an x offset of -47 and a y offset of -9.5. The author notes that printing recommendations are the same as the original Satsana duct.
Original text by the author on Printables
<p>This is yet another remix of the Satsana duct. </p><p>This one is designed for an Ender 5 with the Micro Swiss direct drive and a CR Touch ABL sensor. I designed it so the ducts sit 1.5mm from the surface of the print for optimal cooling. The CR Touch mount is at the optimal height, with an x offset of -47 and y offset of -9.5.</p><p>Printing recommendations are the same as the original Satsana duct.</p><p> </p>
AI-assisted English description reviewed against the CC0 source. Original content and author attribution retained; photographs from the author's Printables model gallery.
The publishing account has not yet confirmed any print settings. Material, supports, difficulty, temperatures and times remain as "Not verified" until verifiable data is available.
