Model information
Description

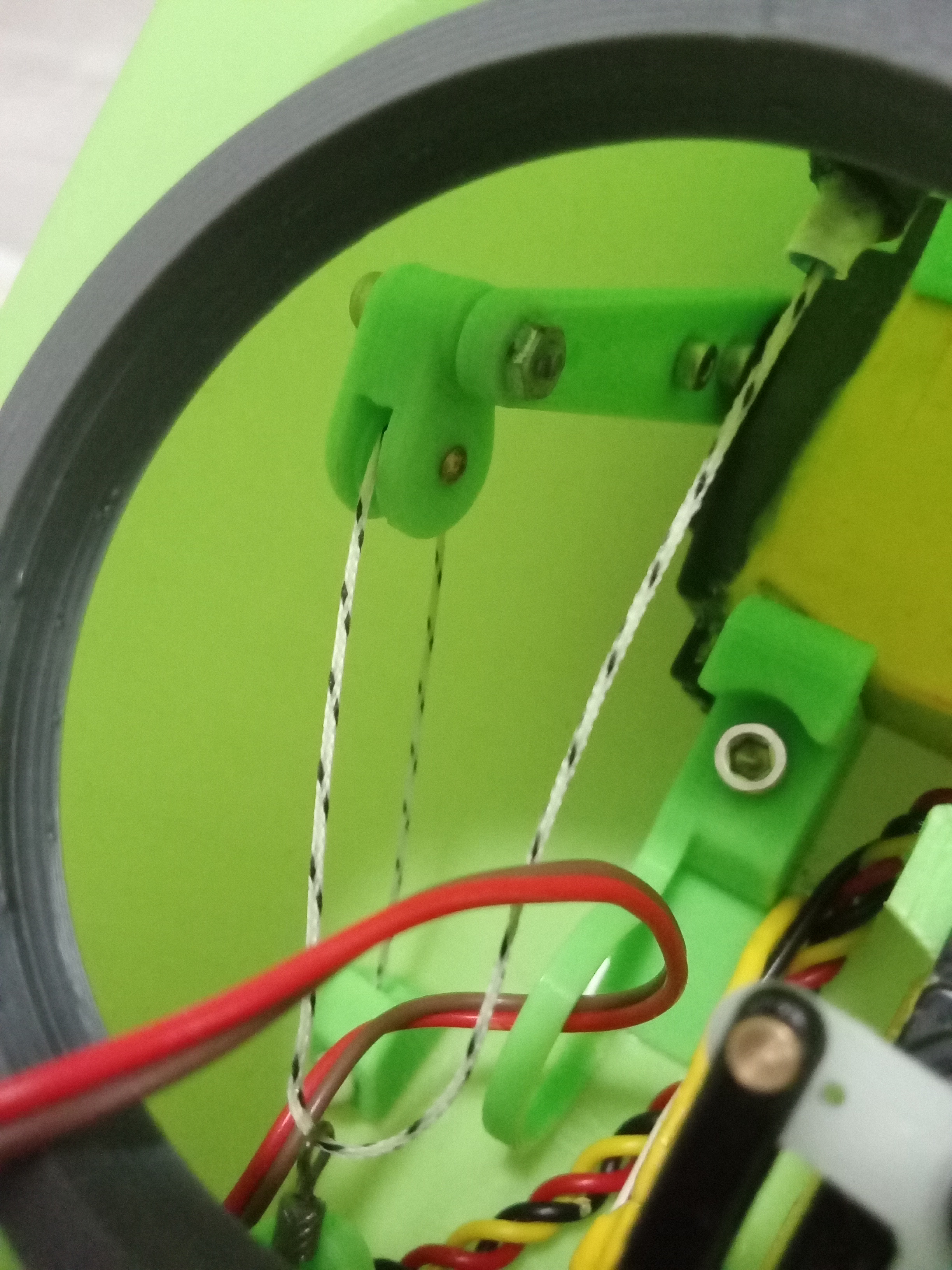

A sheet pulley for RC sailboats. The author states it fits Footy, Micro Magic, and RG65/DF65 class RC sailboats. The pulley diameter is approximately 8mm. The pulley block is designed to accommodate an M2 threaded screw to fix to the servo arm while allowing free rotation, provided it is not overtightened. The author notes it works fine without ball bearings.
Two versions are provided:
- A single shot version (the author notes this requires support which may be difficult to remove).
- A two-part version (the author notes this requires superglue but may print nicer).
For the pulley axle, the author used a copper metal rod from a bead store, noting that stainless steel or hard aluminium rod may be better. The author reports printing from eSun PLA+ for strength and abrasion resistance.
Files: Pulley part 1.stl, Pulley part 1_top.stl, Pulley part 1_bottom.stl, Pulley part 2.stl
Original text by the author on Printables
<p>To fit Footy, Micro Magic, RG65/DF65 class RC sailboats.</p><p>Works fine even without ball bearing (They may get rusty and just make trouble anyway).</p><p>The diameter of the pulley is around 8mm, a bit bigger than the original DF or MM pulleys, but that size did not worked for me if I tried to print.</p><p>The pulley block is designed to accomodate M2 threaded screw to fix to the servo arm but can still rotate freely (assuming it's not overtighten).</p><p>The pulley block is included in a single shot version (requires support which is not easy to remove), and a two part version (requires a bit of superglue, but may print nicer).</p><p>For the pullex axle I used a piece of metal rod from the “bead store” which is made out of some kind of copper, the proper size of stainless steel or hard aluminium rod may be better.</p><p>Printed from eSun PLA+ for good abrasion resistance and strength. </p><p> </p><p>Bon voyage!</p>
