Model information
Description

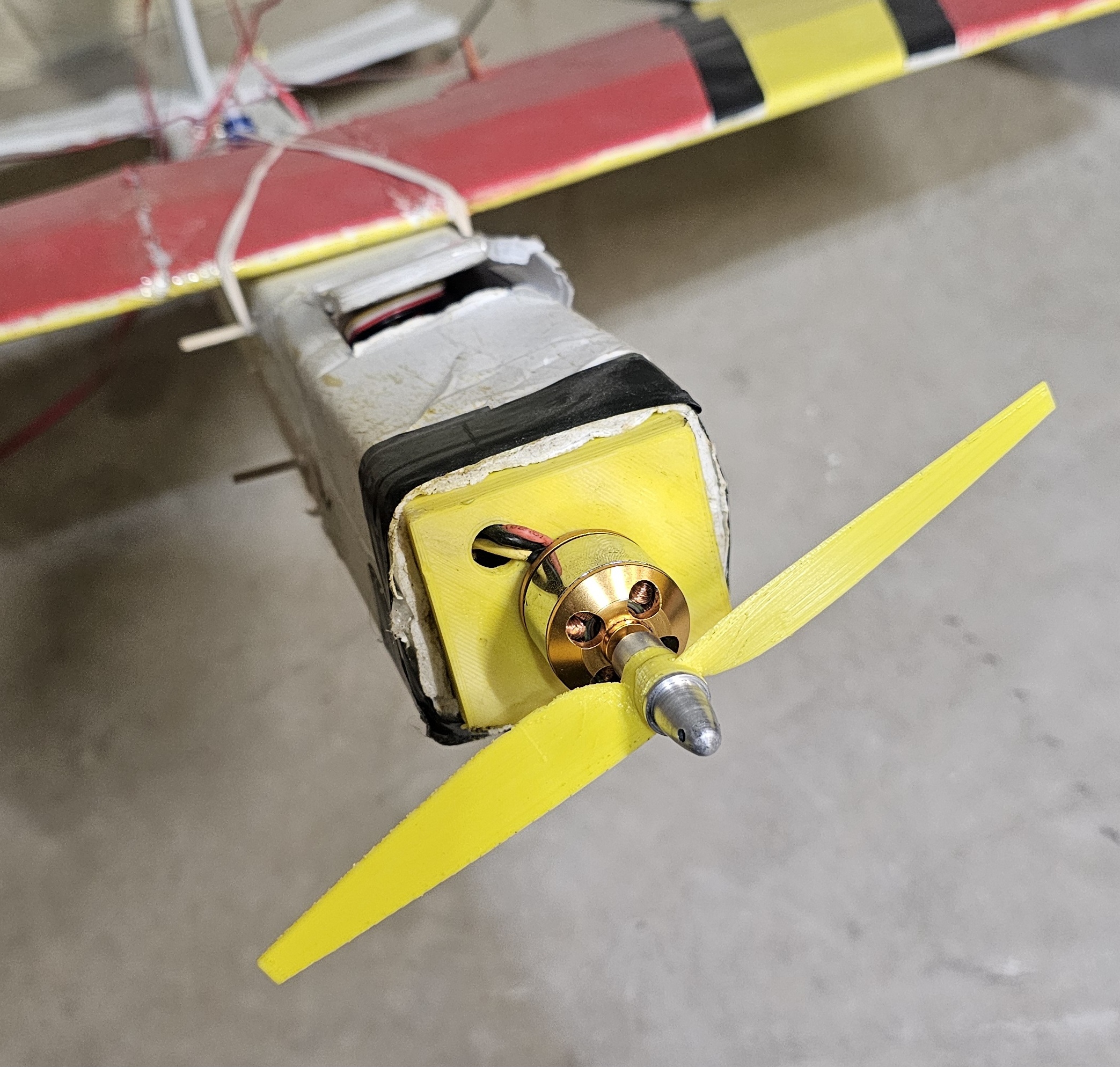

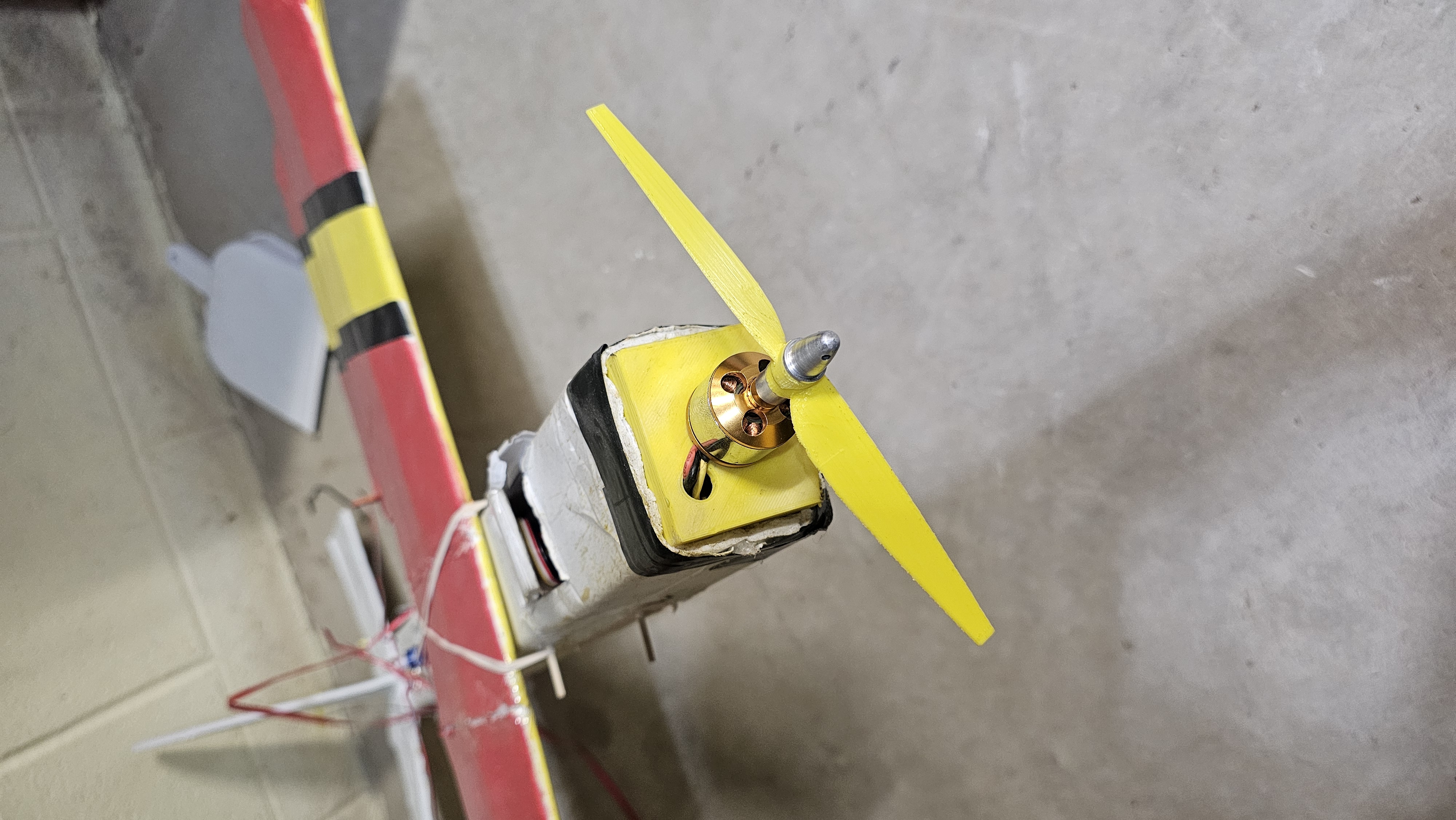

RC Plane Propeller
Purpose
This model is a propeller designed for use with a fixed-wing RC plane. It is intended for aircraft with a weight of up to approximately 500g.
Practical Uses
It serves as a replacement or custom propeller for small-scale RC fixed-wing aircraft. The design features a 6.5-inch diameter. While the summary lists a pitch of 3.5 inches, the author notes that measurements yielded a 2.76-inch pitch, stating that pitch measurements can be confusing.
Included Parts
The propeller is provided as a two-part print. These two parts are designed to lock together when tightened onto a hub.
Printing and Assembly Guidance
The model must be printed in two separate parts. Assembly is achieved by tightening the components together on a hub to ensure they lock into place.
Original text by the author on Printables
<p>This propeller prints in 2 parts that lock together when tightened on a hub. It works well for a fixed wing RC plane with a weight up to about 500g.<br>Diameter 6.5in pitch is close to 3.5in. <br>I tried to measure it and got 2.76in pitch but pitch is confusing.</p>
