Model information
Description

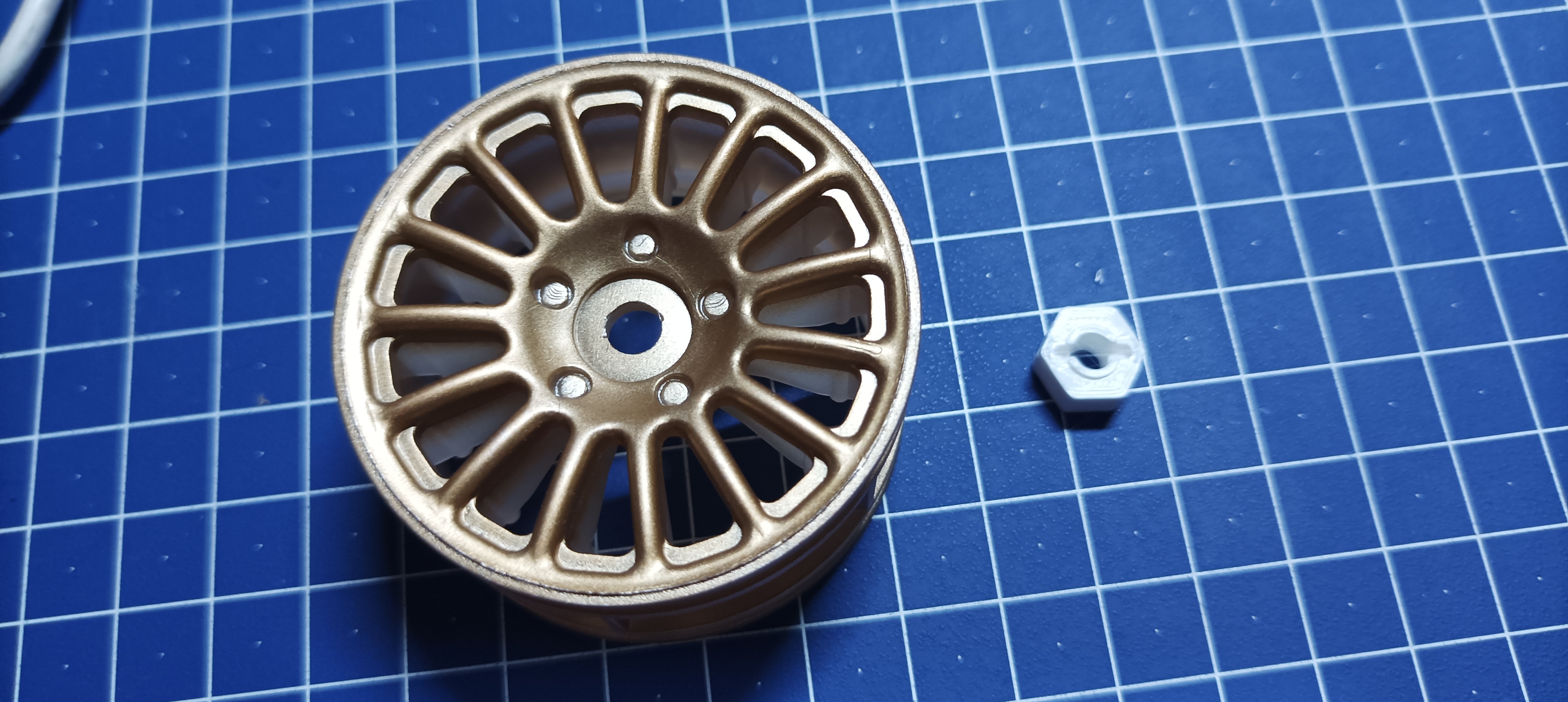

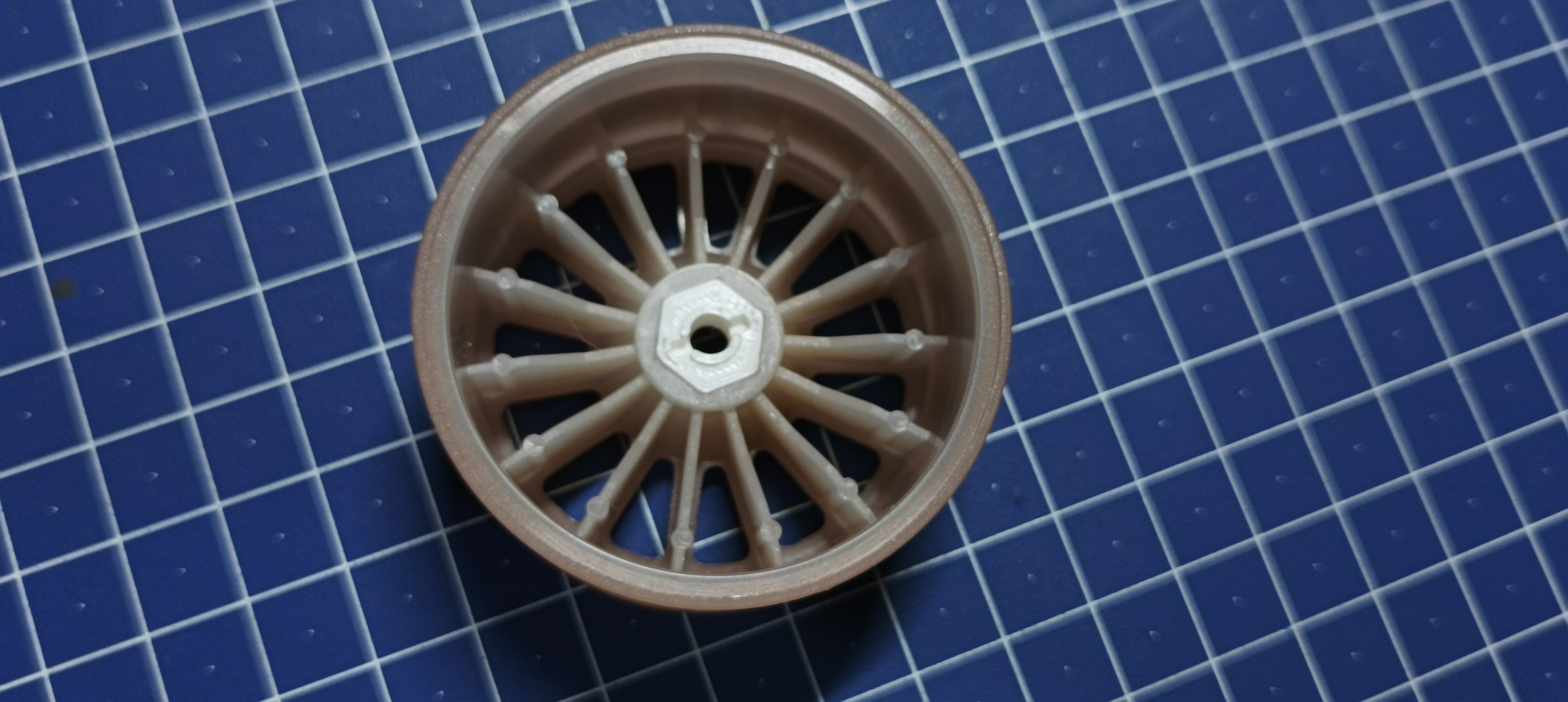

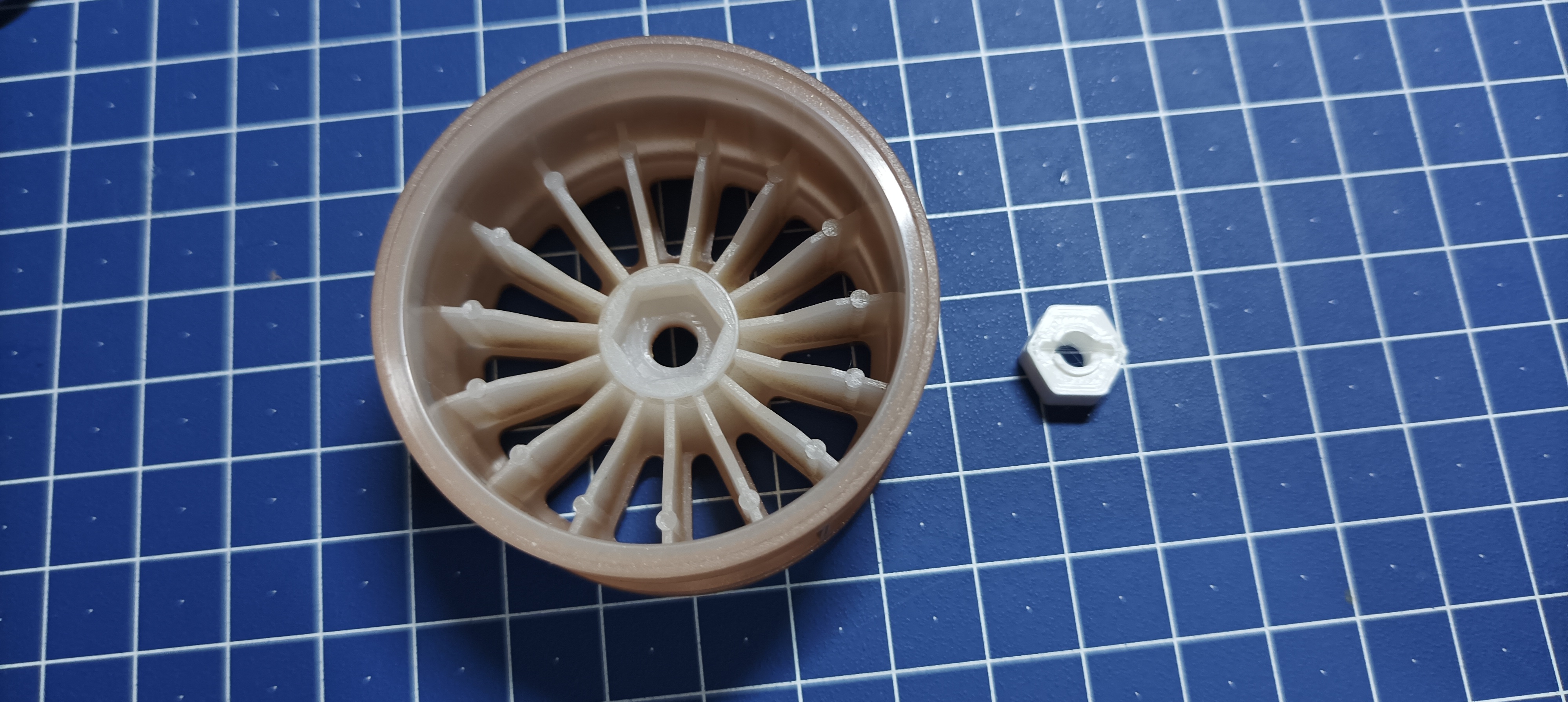

10mm HEX adapters for use with RC wheels. The author states these were created because 10mm HEX wheels from the Spanish company Bycmo were unavailable for other models. These are intended for LC-racing or WLtoys vehicles in 1/14 and 1/12 scales. For 1/10 scale models, the author notes the HEX is the same 10mm size.

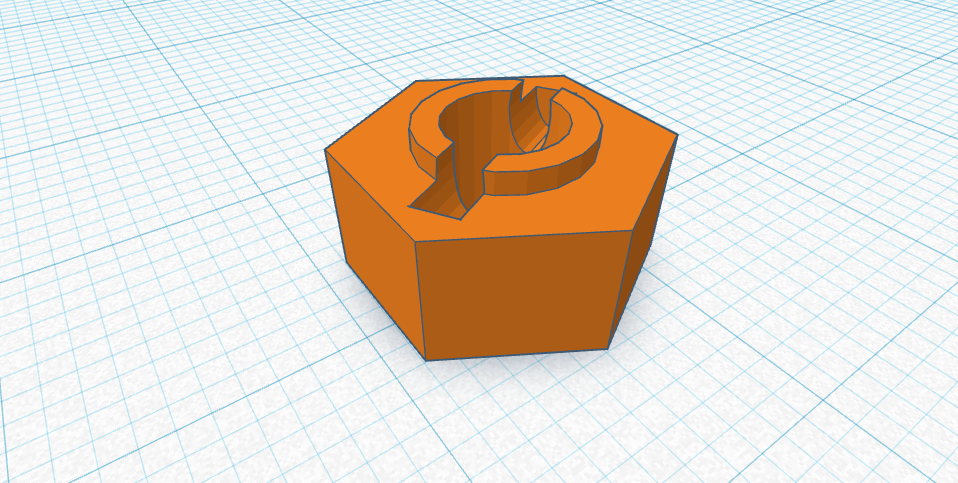

Dimensions: 10mm hex, 5mm height, 4mm semi-axis diameter, 0.5mm bearing seating surface.
Printing instructions provided by the author:
- Software: Tinkercad
- Nozzle: 0.4mm
- Filament: PLA
- Nozzle temperature: 210
- Bed temperature: 45
- Layer height: 0.2mm
- First layer height: 0.3mm
- Printed on: Prusa mini+
Original text by the author on Printables
<p>HEX ke kolům v 10mm nebyl nikde k sehnání a přitom mám hromadu disků s tímto rozměrem od španělské firmy Bycmo, která má HEX v úpravě pouze pro své stavebnice. Upravil jsem a nakreslil HEX pro auta od LC-racing a nebo WLtoys v měřítku 1/14 a 1/12</p><p>Pro modely v měřítku 1/10 je stejný HEX v 10mm zde <a href="https://www.printables.com/cs/model/650980-rc-hex10-pro-meritko-modelu-110">https://www.printables.com/cs/model/650980-rc-hex10-pro-meritko-modelu-110</a></p><p>Vytvořeno v Tinkercad</p><p>Tryska 0,4</p><p>Filament PLA</p><p>teplota jehly 210 - podložky 45</p><p>Výška vrstvy 0,2mm</p><p>Výška první vrstvy 0,3mm</p><p>rozměr - hex 10mm, výška 5mm, průměr na poloosu 4mm, dosedací plocha na ložisko 0,5mm</p><p>tisknuto na Průša mini+ </p>
