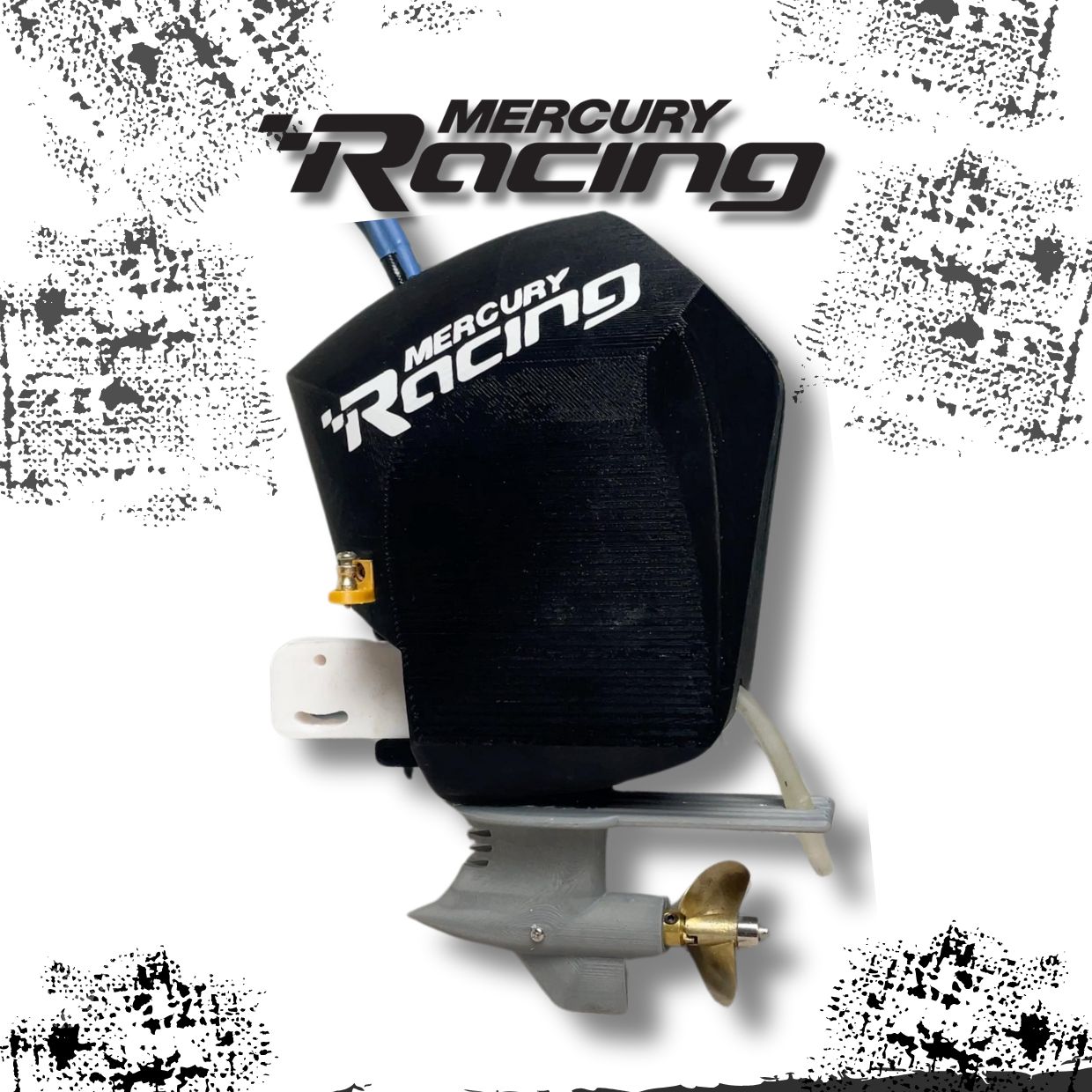

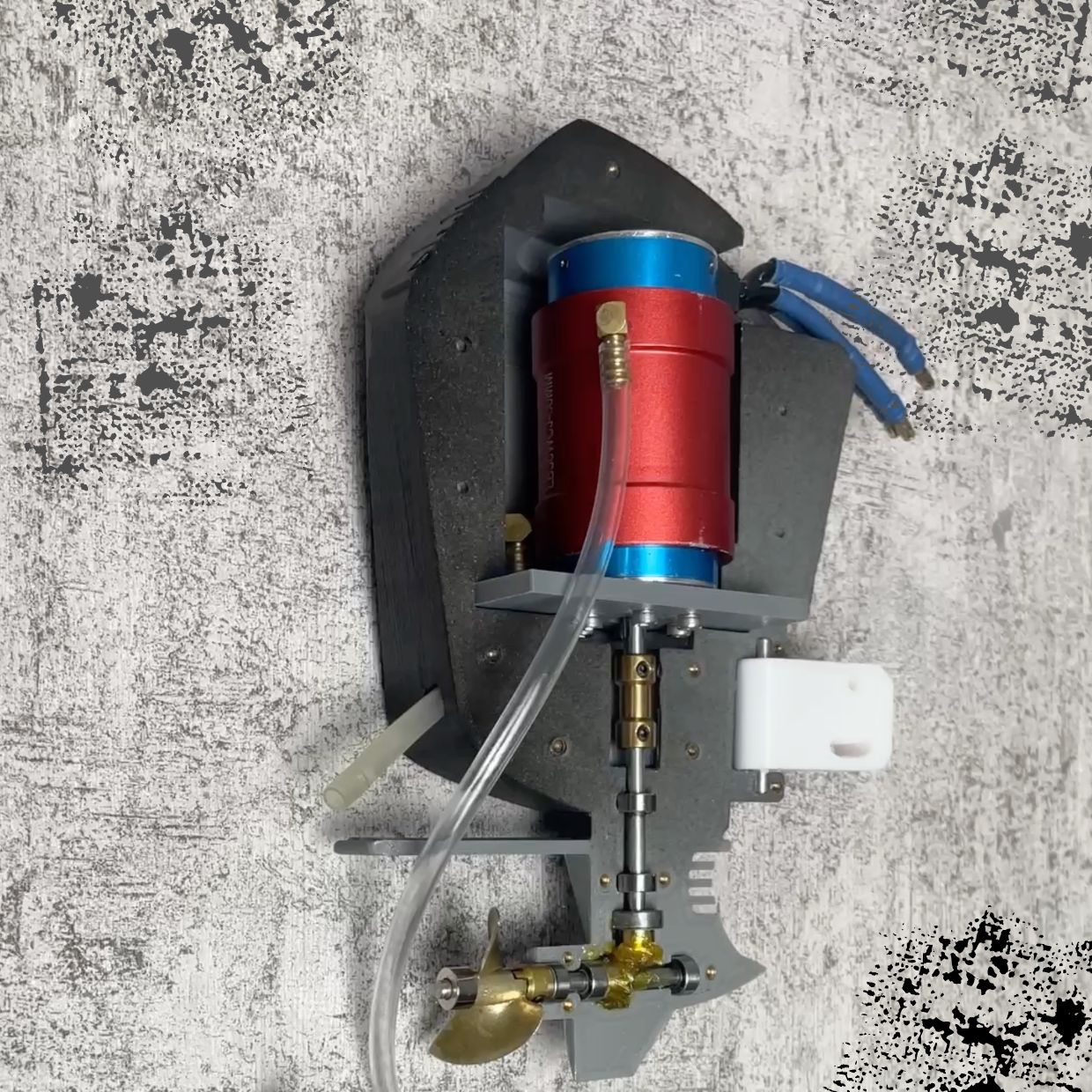

A complete RC F1 Powerboat kit including a 70cm F1 hull and a Mercury Racing 360 style outboard engine. The outboard engine is 20cm in height, suitable for hulls above 70cm, and features adjustable trim and height mounting, a gear lubricant hole, and a watercooling system. The author used PLA for the main body and ABS for the motor mounting. The outboard can use a 3670 motor (as used by the author) or motors up to 4076.
Outboard Engine Print Settings:
- Min print area: 200x140x50mm
- Nozzle: 0.4mm
- Layer height: 0.15mm (lower is better for high quality)
- Perimeters: 5 wall lines
- Top/Bottom: 5
- Infill: 30%
- Support: No support required; pre-oriented
- Material: Author used PLA, and ABS for motor mounting
F1 Hull Print Settings:
- Min print area: 235x235x230mm
- Nozzle: 0.4mm
- Layer height: 0.2mm (lower is better for high quality)
- Perimeters: 2/3 wall lines
- Top/Bottom: 4
- Infill: 15%
- Support: Only required for the servo mount
General 3D Printing Settings (FDM):
- Nozzle: 0.4mm
- Layer height: 0.2mm (lower is better for high quality)
- Perimeters: 4 wall lines
- Top/Bottom: 4
- Infill: 30%
- Support: No support
BOM (Outboard):
- 2x bevel gear shaft 4mm 15t 0.8
- 1x bearing 604zz
- 5x bearing 684zz
- 4mm 30cm shaft
- Rigid couple joint 4x5 (depending on motor)
- 4mm drive dog
- Propeller up to 50mm (author used 40mm)
- Brushless motor up to 4076 (author used 3670 2150kv)
- 18x M2.5 heat inserts (2.5IDx3Lx3.5OD)
- 18x M2.5x5 screws
- 2x M3 x35/40 with nuts (for adjustable trim)
- M2x3 self tapping screw (for gear lubricant hole)
- 2x push rod connectors for servo rod
BOM (Hull):
- 16x M3x8mm (battery tray, ESC tray, servo mount, and servo)
- 4x M3x25mm with nuts (outboard mount)
- 3x M3x40mm with nuts (cover)
- Push rod or stainless steel leader fishing wire for servo rod
- Electronics used by author: 2x LiPo 2S 5000mAh, Flycolor 150A ESC, 25kg waterproof servo, Dumborc 6ch transmitter
