QIDI X-Max 3 X-Plus 3 CR Touch Bracket
Purpose

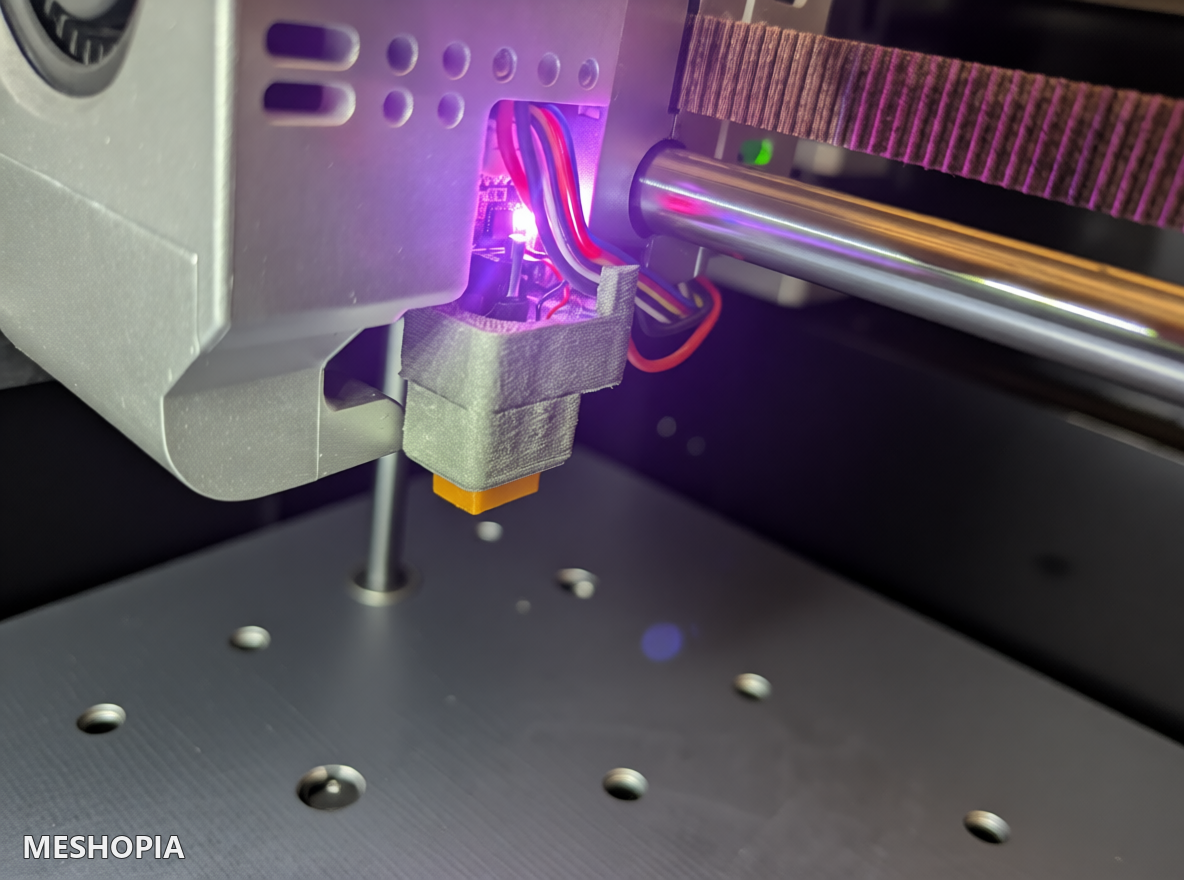

This model is a mounting bracket designed to house a CR Touch probe on the QIDI X-Max 3 and X-Plus 3 printers. It serves as a replacement or modification housing for the probe and its associated electronics.
Practical Uses
It is used to integrate a CR Touch sensor into the printer setup. Users may need to modify the board layout or configuration settings in Klipper (printer.cfg) to accommodate the sensor. Note that the CR Touch wiring differs from a BL Touch; the extruder board typically utilizes a 2-pin plug (Red/Ground, Blue/Signal) and a 3-pin plug (Black/5V, White/Ground, Yellow/Pin control).
Included Parts
- CR Touch Bracket.stl
Printing and Assembly Guidance

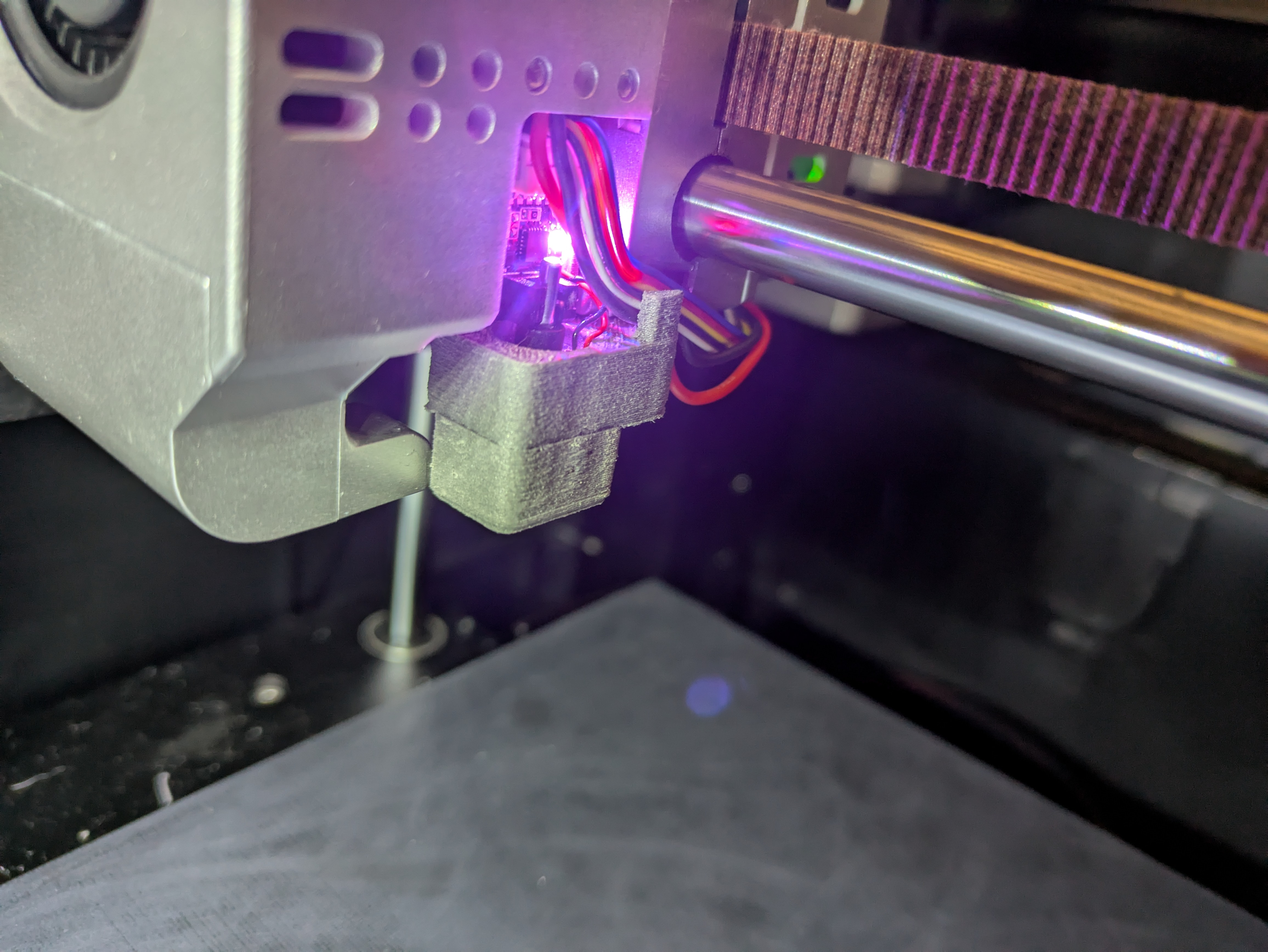

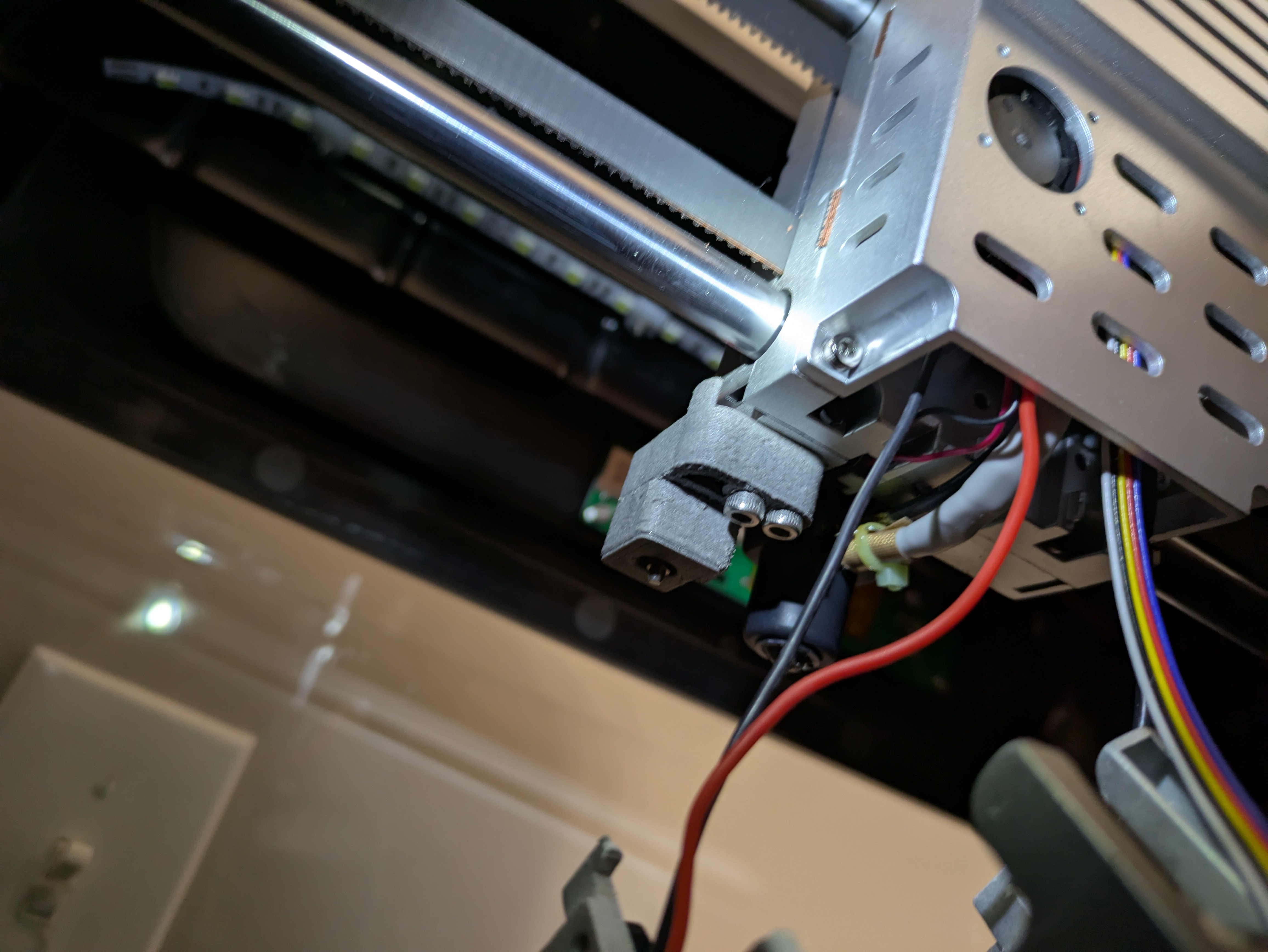

Assembly requires removing the CR Touch components from the original cover. The case halves are held together by two clips on each side, and the board is held by one clip on each side. Users should be careful with the small internal wires. It is suggested to use a very small drop of epoxy on the board and probe case to secure them, ensuring the pin is aligned with the sensor's U-shape. Due to potential fitment issues with certain materials, the user reported needing to manually bore out the hole with a 13/32 drill bit and remove some material for the board to fit. While glass-filled nylon was used, PETG may provide more accurate dimensions due to less surface roughness.
Texto original del autor en Printables
<p>Any reference to board layout or config settings might differ on other models. I only have the X-Max 3.</p><p>I had to use a 13/32 drill bit (by hand) to bore out the hole slightly, and had to remove a bit of material for the board to fit. I used glass filled nylon though which prints a bit rough, so petg or something might print more accurate. I'd suggest using a very small drop of epoxy on the board and probe case to hold them in place, and make sure the pin is aligned with the U of the sensor</p><p>You have to remove the CR Touch components from the cover to put them in here. There are 2 clips on each side holding the case halves together, and one clip on each side holding the board in. Be careful with the small wires inside.</p><p>Took me a bit to figure out the wiring so I'll put it here. The CR Touch (at least the one I got) isn't wired like a BL Touch. </p><p>On the extruder board, there are two plugs for the probe. Pins labeled left to right below…</p><p>2 pin plug - Red (ground), Blue (signal)</p><p>3 pin plug - Black (5V), White (Ground), Yellow (Pin up/down control).</p><p>You can remove the pins from the plug housings on the cables. That will allow you to re-use the plugs from the old probe with the new CR Touch cable. They can be crushed so google if unsure how to do it.</p><p> </p><p>Edit printer.cfg in Klipper</p><p>Comment out (leading # on each line) [Probe] and everything else in the probe section, then paste the following in.</p><p>[bltouch]</p><p>sensor_pin: ^MKS_THR:gpio21</p><p>control_pin: MKS_THR:gpio11</p><p>x_offset: 28</p><p>y_offset: 4.4</p><p>z_offset: 0.0</p><p>speed: 5</p><p>samples: 2</p><p>samples_result: average</p><p>sample_retract_dist: 3.0</p><p>samples_tolerance: 0.08</p>
