Description

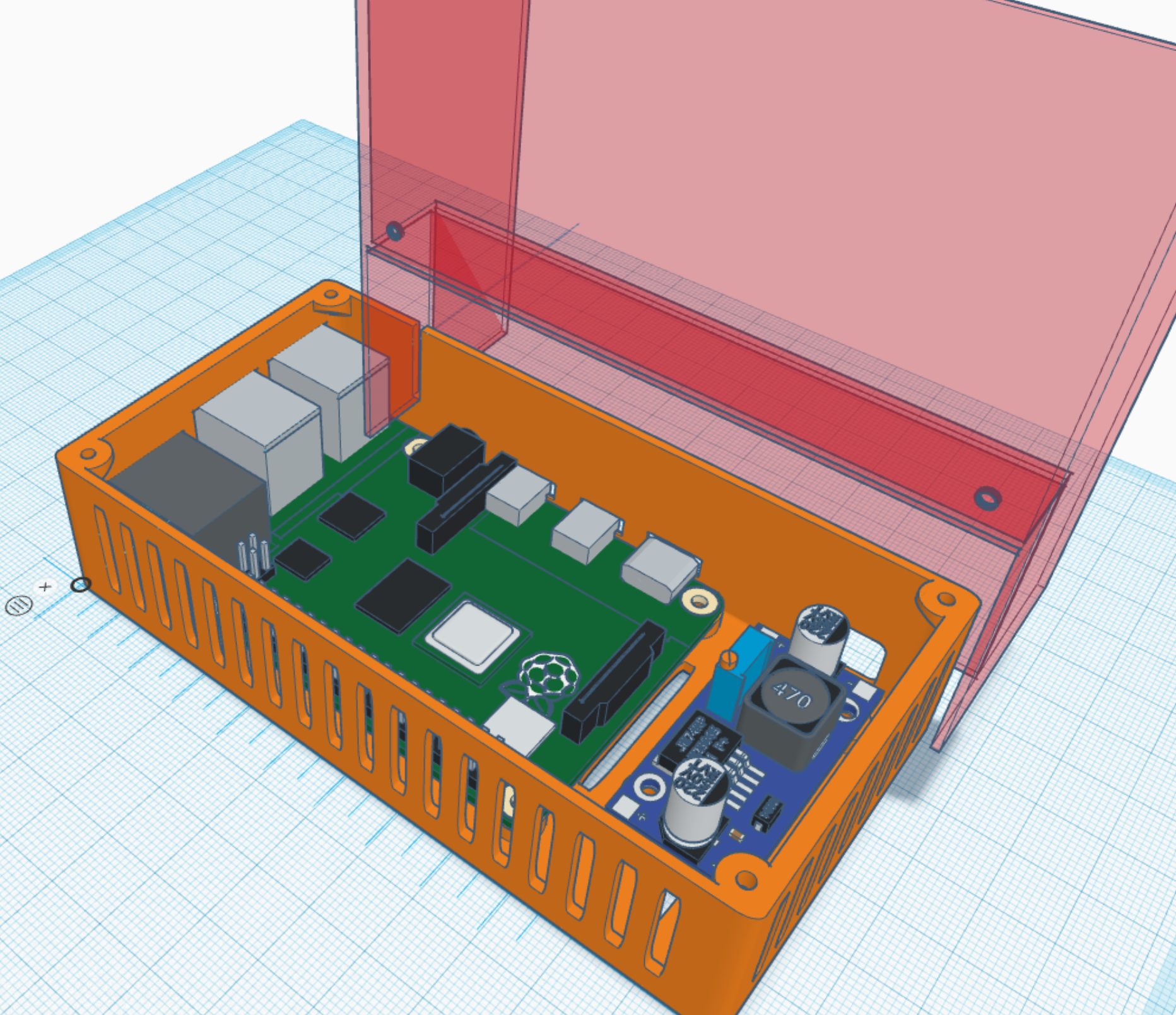

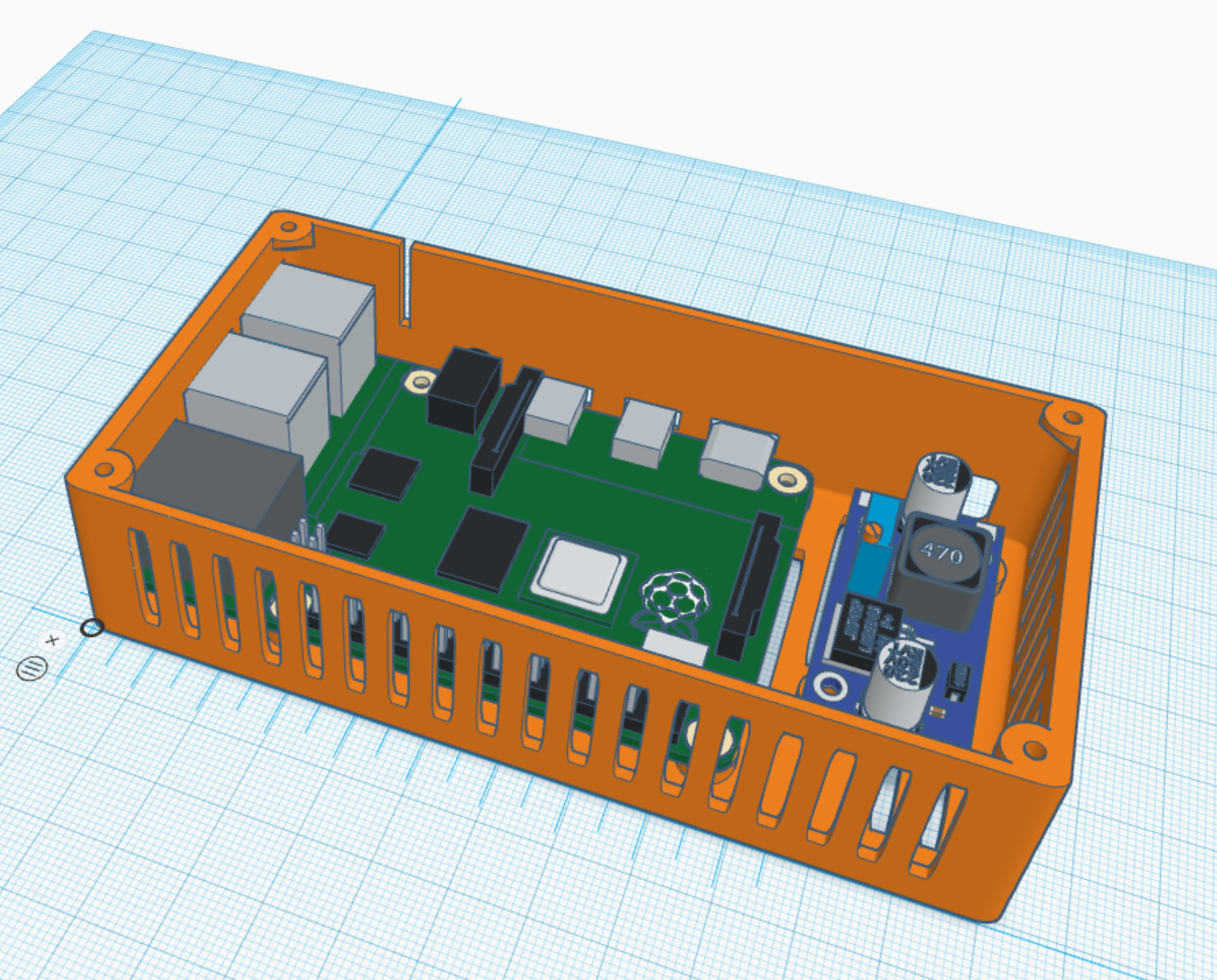

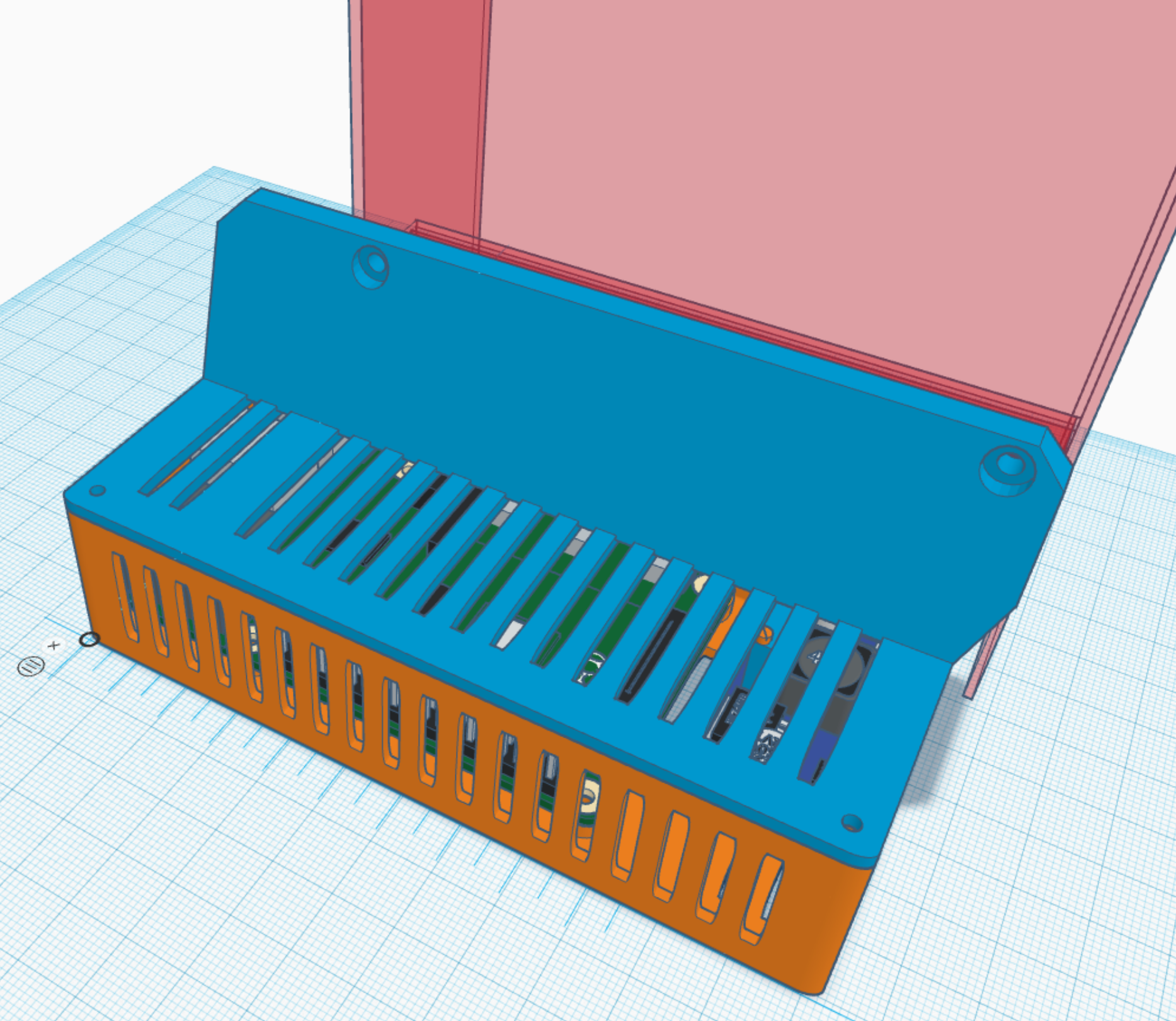

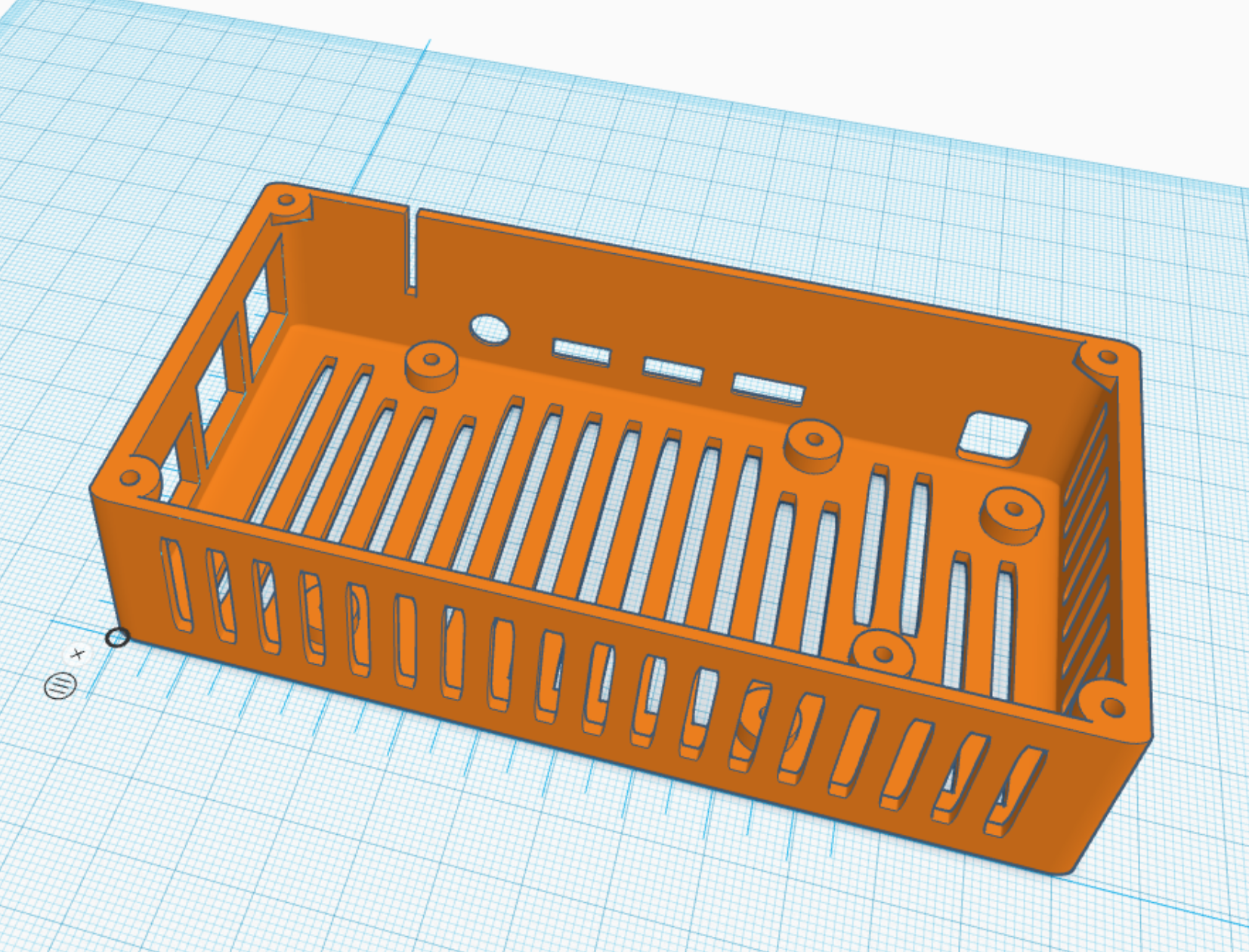

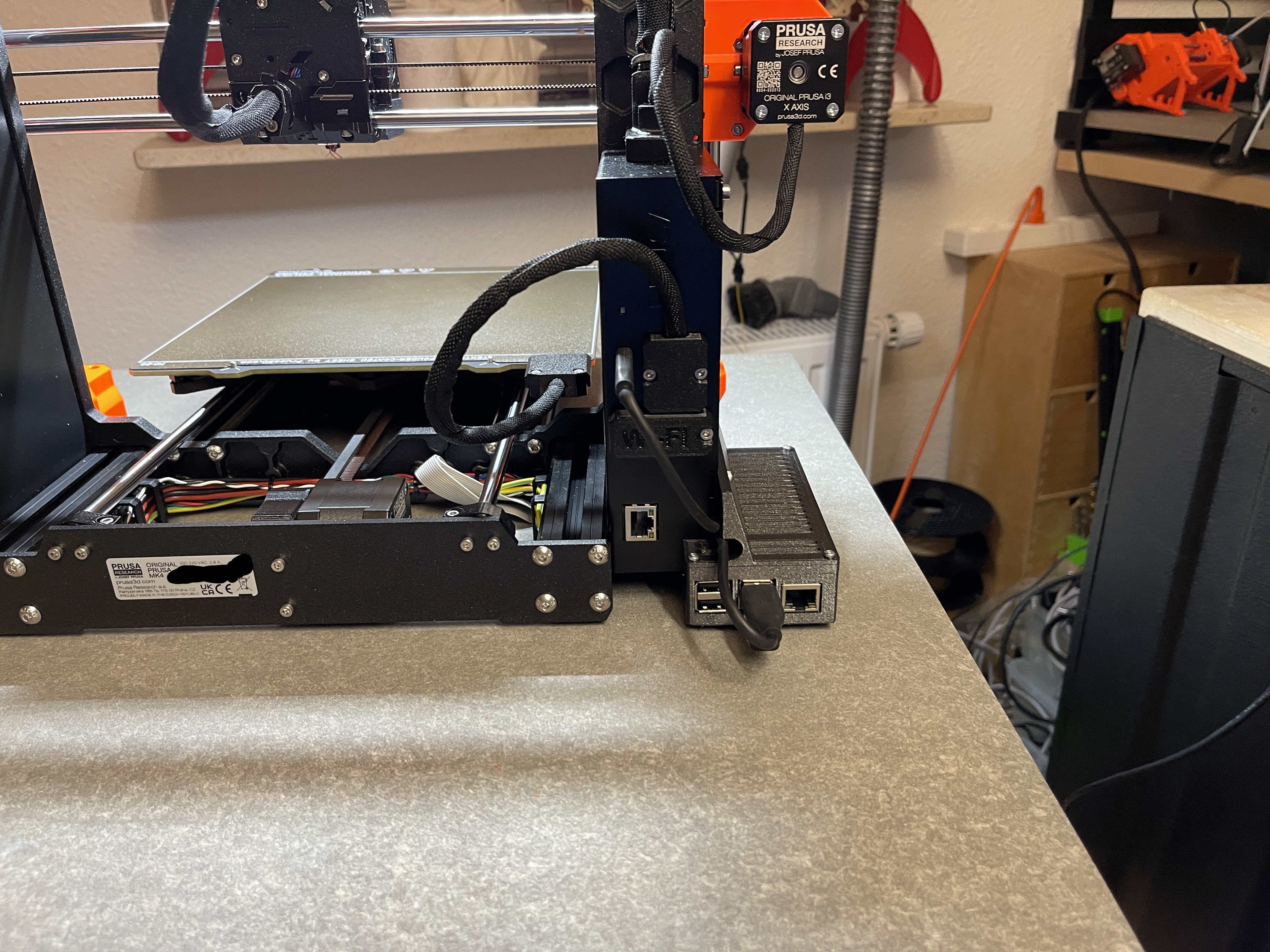

A Raspberry Pi cabinet for the Prusa MK4 that includes a DC converter. The cabinet is designed to be mounted under the Prusa cabinet, with a cavity behind it to store excess USB cable. The author reports taking 24V power from the Prusa motherboard to the DC converter, throttling it down to 5.1V for the Raspberry Pi computer running OctoPrint.
Printing instructions provided by the author:
- Filament: Prusament PLA Prusa Galaxy Black
- Bed: 85-90
- Hotend: 240-245
- Layer: 0.20
- Nozzle: 0.4
- Infill: 20%

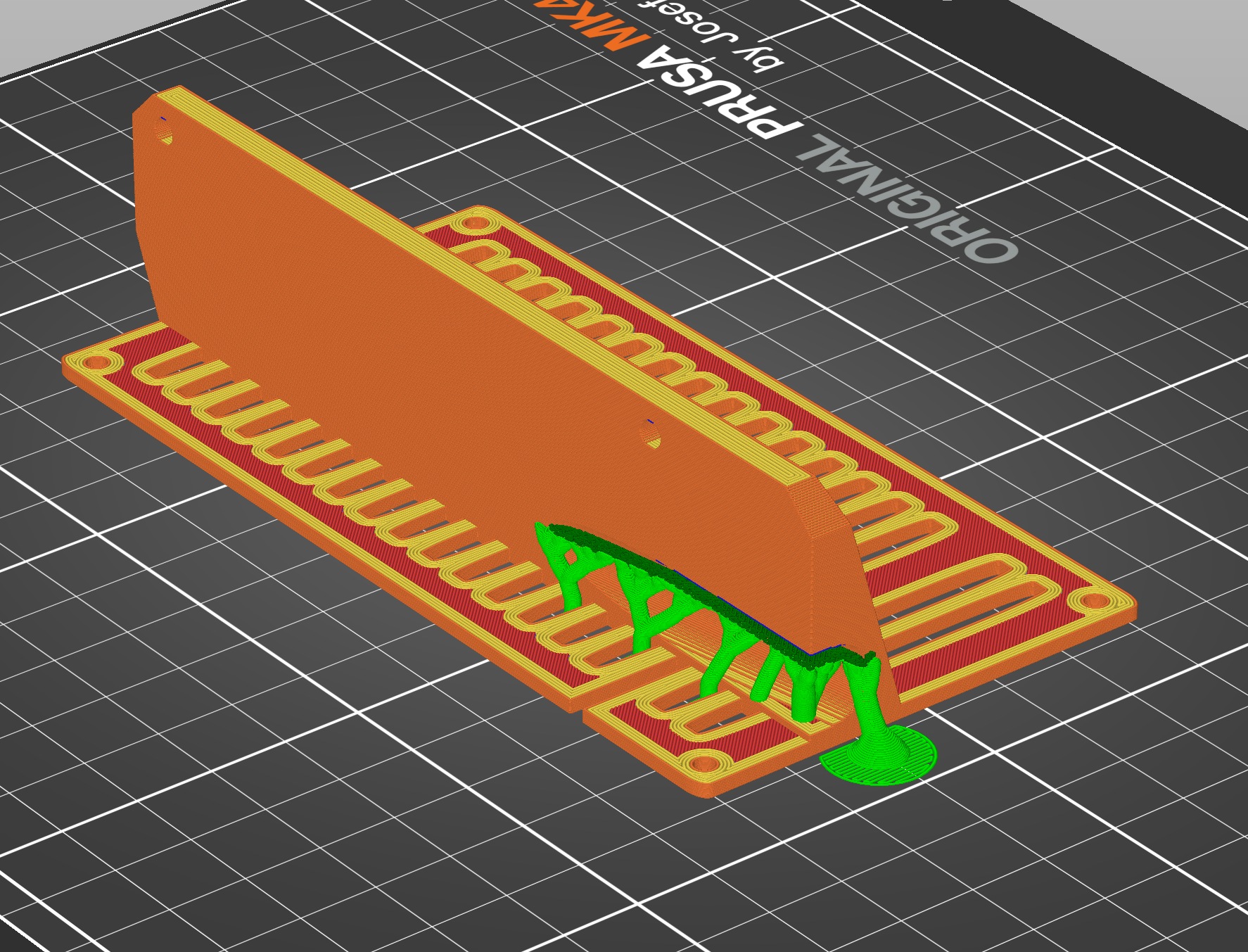

- Support: Organic
Original text by the author on Printables

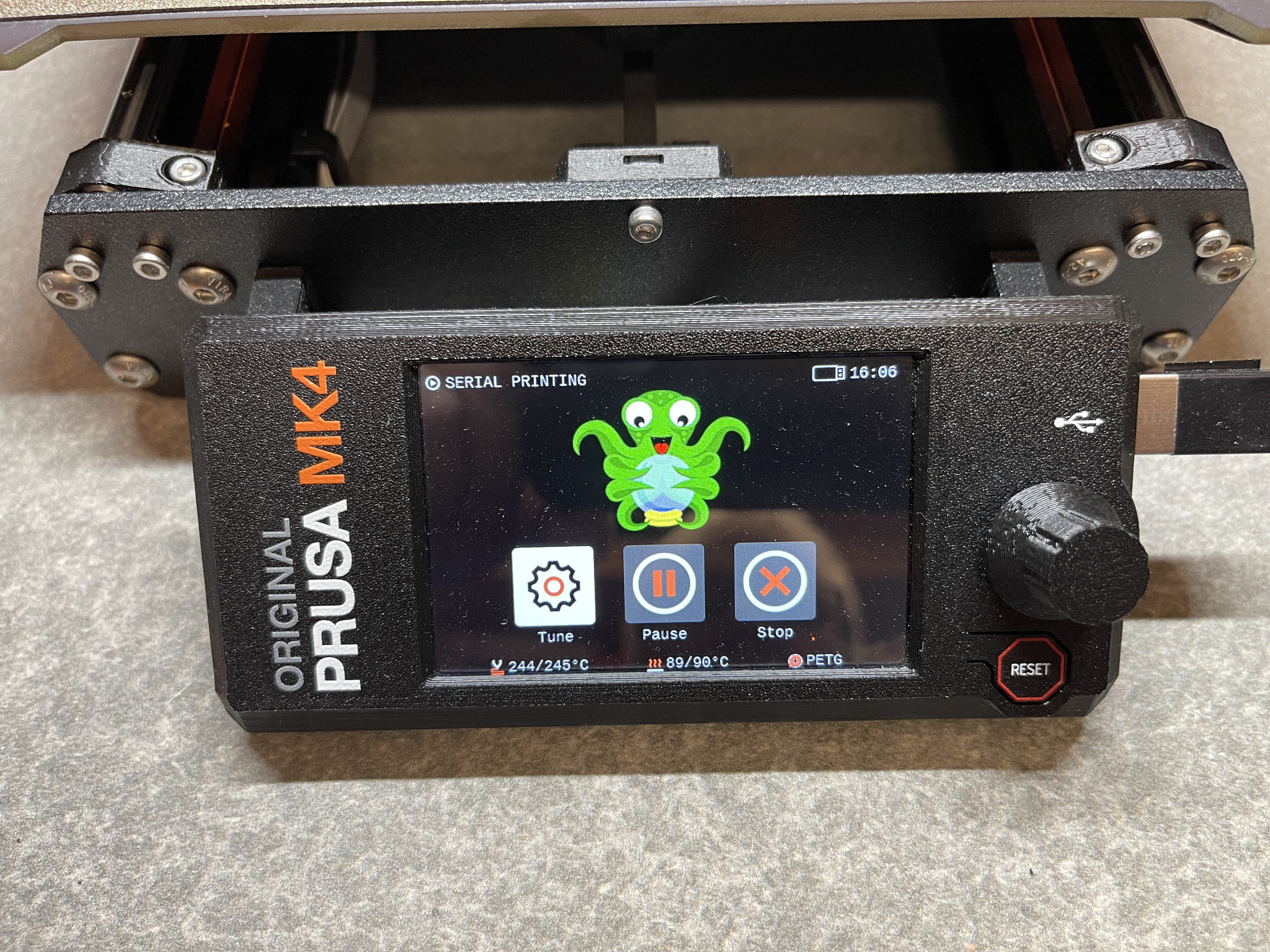

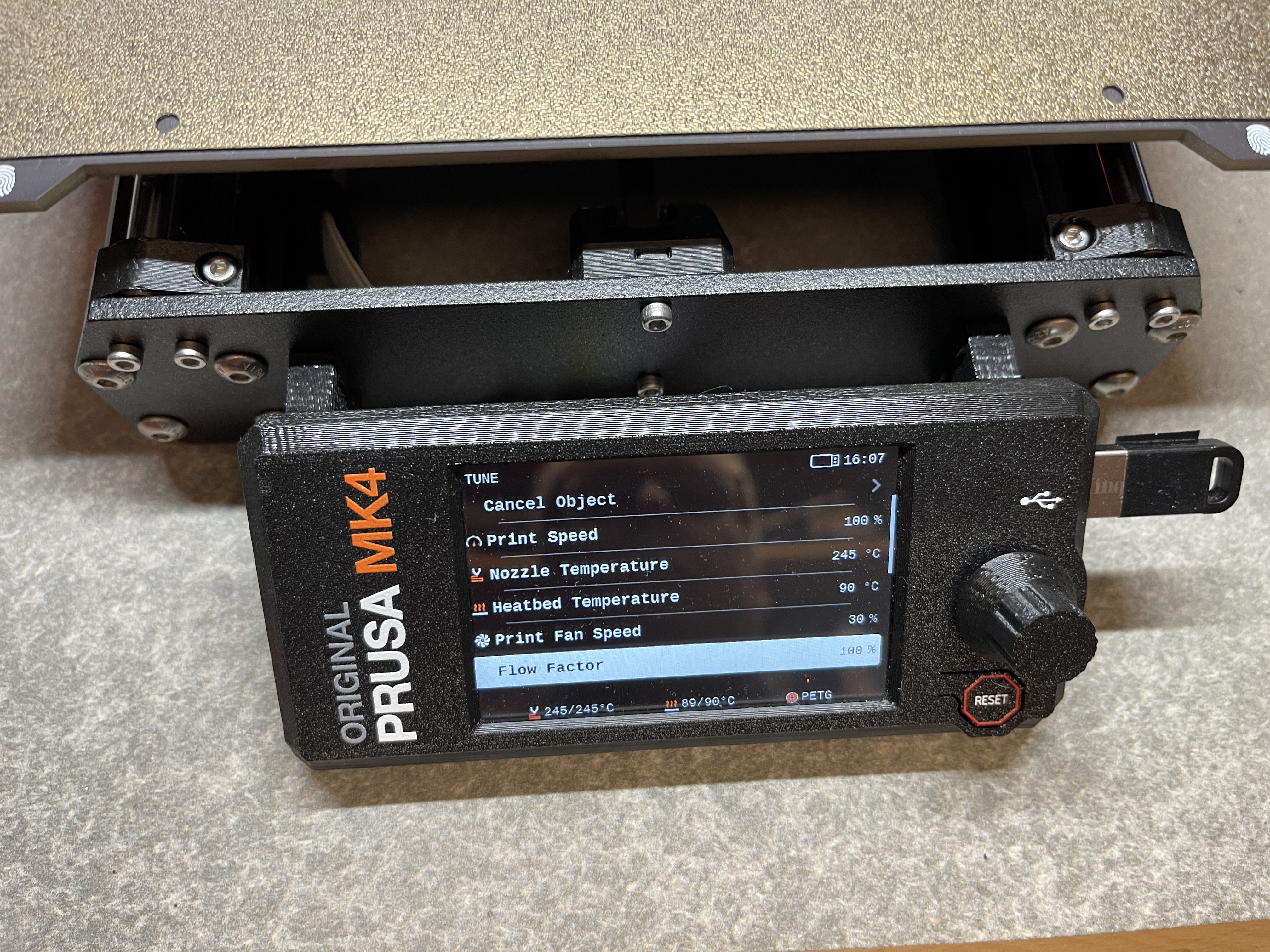

<p><strong>UK: ”Google translation”</strong><br><i><strong>Prusa MK4 Raspberry PI Cabinet with DC Converter.</strong></i></p><p>The Raspberry Cabinet is mounted under the Prusa Cabinet and space has been made so that you can store the rest of the USB cable in the cavity behind the Raspberry cabinet.</p><p>I take power from the Prusa motherboard 24V to the DC converter and throttle the 24 Volts down to 5.1 Volts which is connected to the Raspberry PI computer which has OctoPrinter installed on it so that I can control the printer via the network via the USB cable to the 3D printer.</p><p>I use a USB stick 64GB for OctoPrinter, it works perfectly.</p><p>And with the newest Firmware 5.1.0 which has the new boot loader from Prusa included and the TURN menu works on the display on the Prusa MK4 see photo...</p><p>Filament: Prusament PLA Prusa Galaxy Black<br>Bed 85-90 Hotend 240-245<br>Layer: 0.20<br>Nozzle: 0.4<br>Infill: 20%<br>Support: Organic</p><p>Regards, Leif Lumby Henriksen<br>Odense3D: https://www.facebook.com/groups/2911561982402973</p><p><strong>DK:</strong><br><i><strong>Prusa MK4 Raspberry PI Kabinet med DC Converter.</strong></i></p><p>Raspberry Kabinettet monteres under Prusa Kabinettet og der er lavet plads til at man i hulrummet bag Raspberry kabinettet kan gemme resten af USB kablet.</p><p>Jeg tager strøm fra Prusa bundkortet 24V til DC-converteren og drosler de 24 Volt ned til 5,1 Volt som tilsluttes Raspberry PI computeren som har installeret OctoPrinter på så jeg kan styre printer via netværket via USB kablet til 3D printeren.</p><p>Jeg bruger en USB stik 64GB til OctoPrinter det virker perfekt.</p><p>Og med den nyest Firmware 5.1.0 som har den nye boot loader fra Prusa med og så virker TURN menu på displayet på Prusa MK4 se foto...</p><p>Filament: Prusament PLA Prusa Galaxy Black<br>Bed 85-90 Hotend 240-245 <br>Layer: 0.20<br>Nozel: 0.4<br>Infill: 20% <br>Support: Organic</p><p> </p><p>Hilsen / bedst Regards</p><p>Leif Lumby Henriksen<br>Odense3D: <br>https://www.facebook.com/groups/2911561982402973<br> </p>
