Description

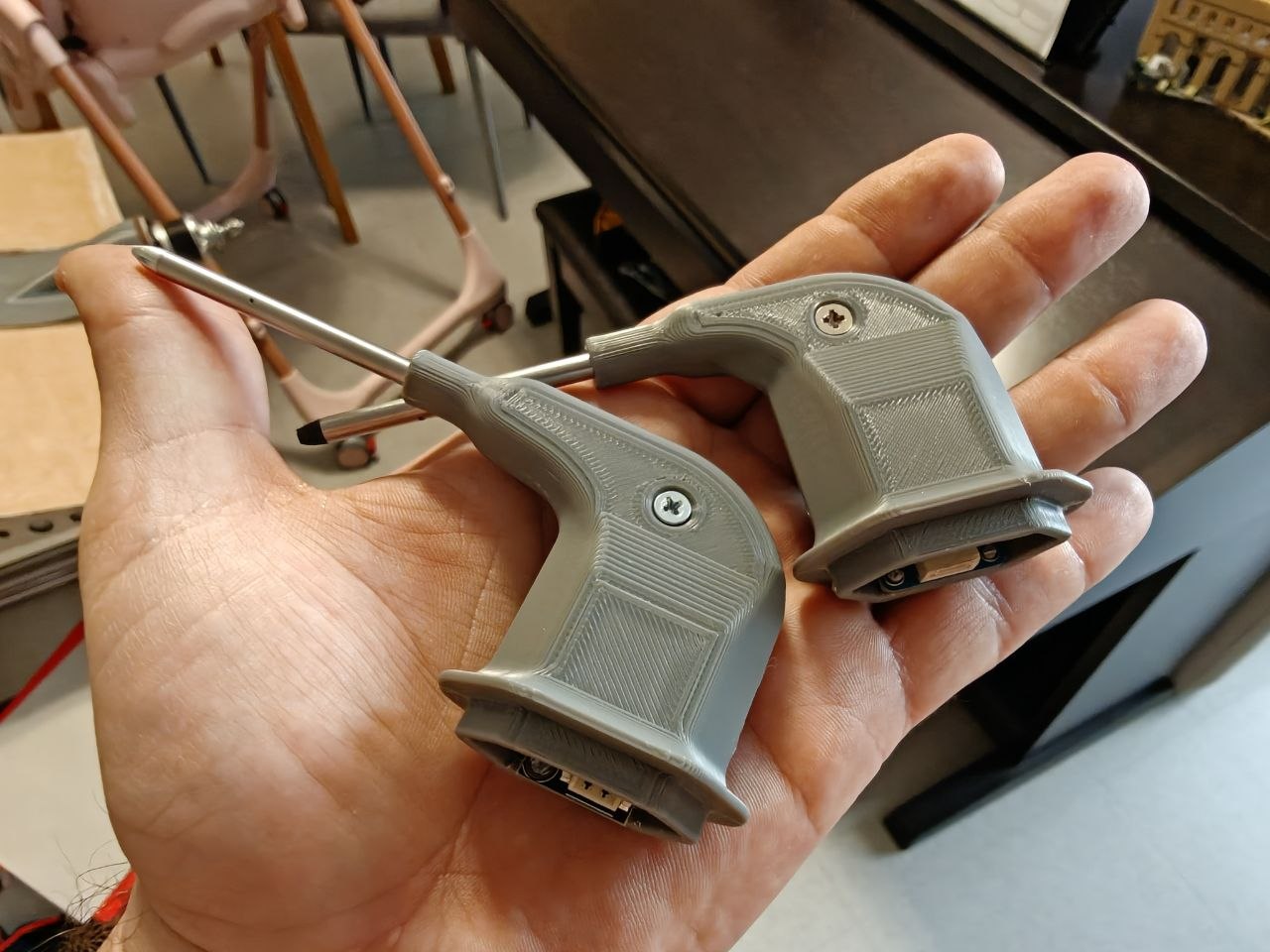

A compact pitot tube mount featuring an integrated sensor. This model is available in two variants: one for a rectangular case and one for a round case.
Assembly and printing instructions provided by the author:

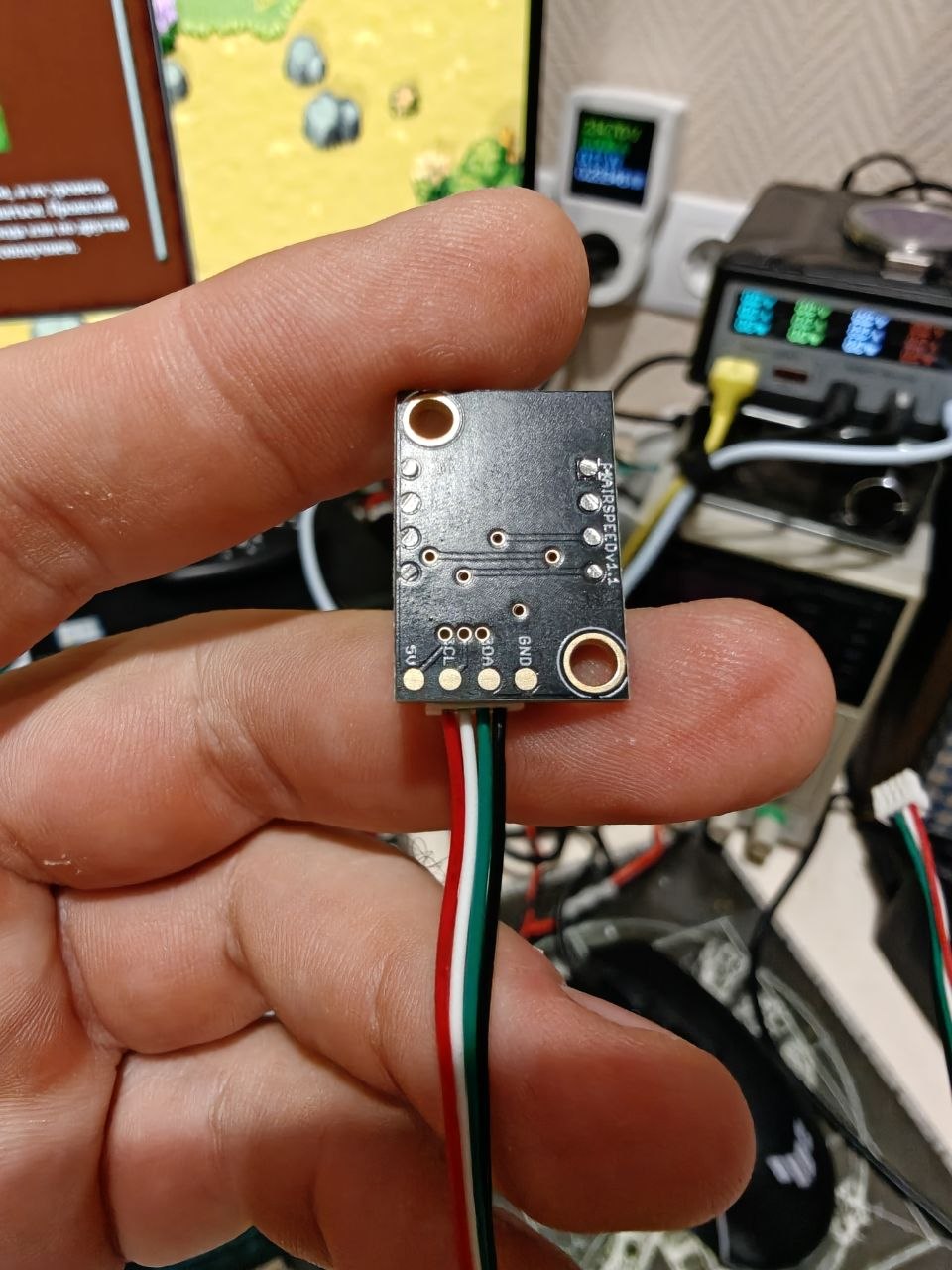

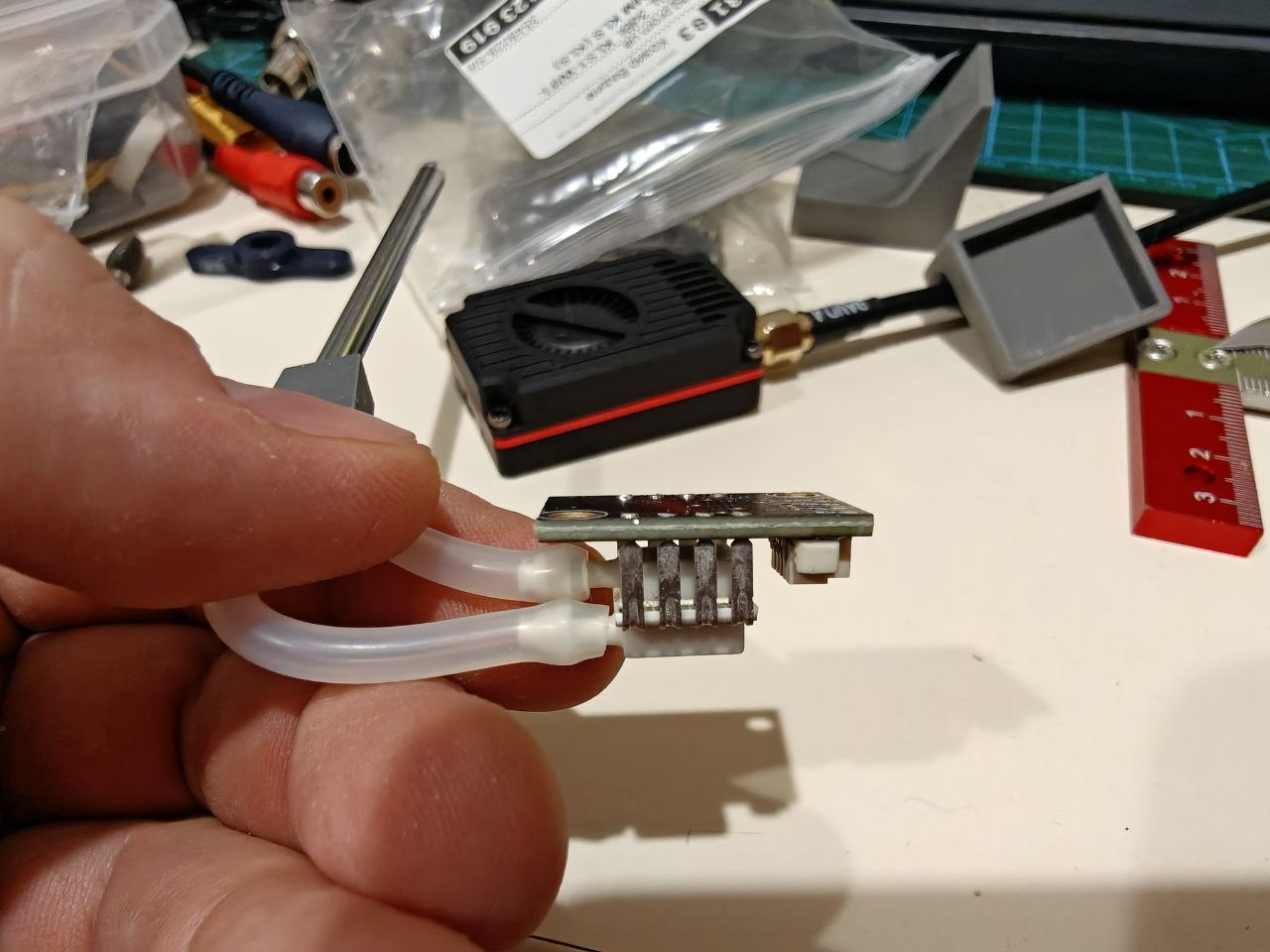

- Cut excess wires from the back side of the PCB to save vertical space.
- Cut stainless pipes, leaving approximately 5mm for both tubes.
- Print both sides with supports.
- Sand planes slightly for better connection.

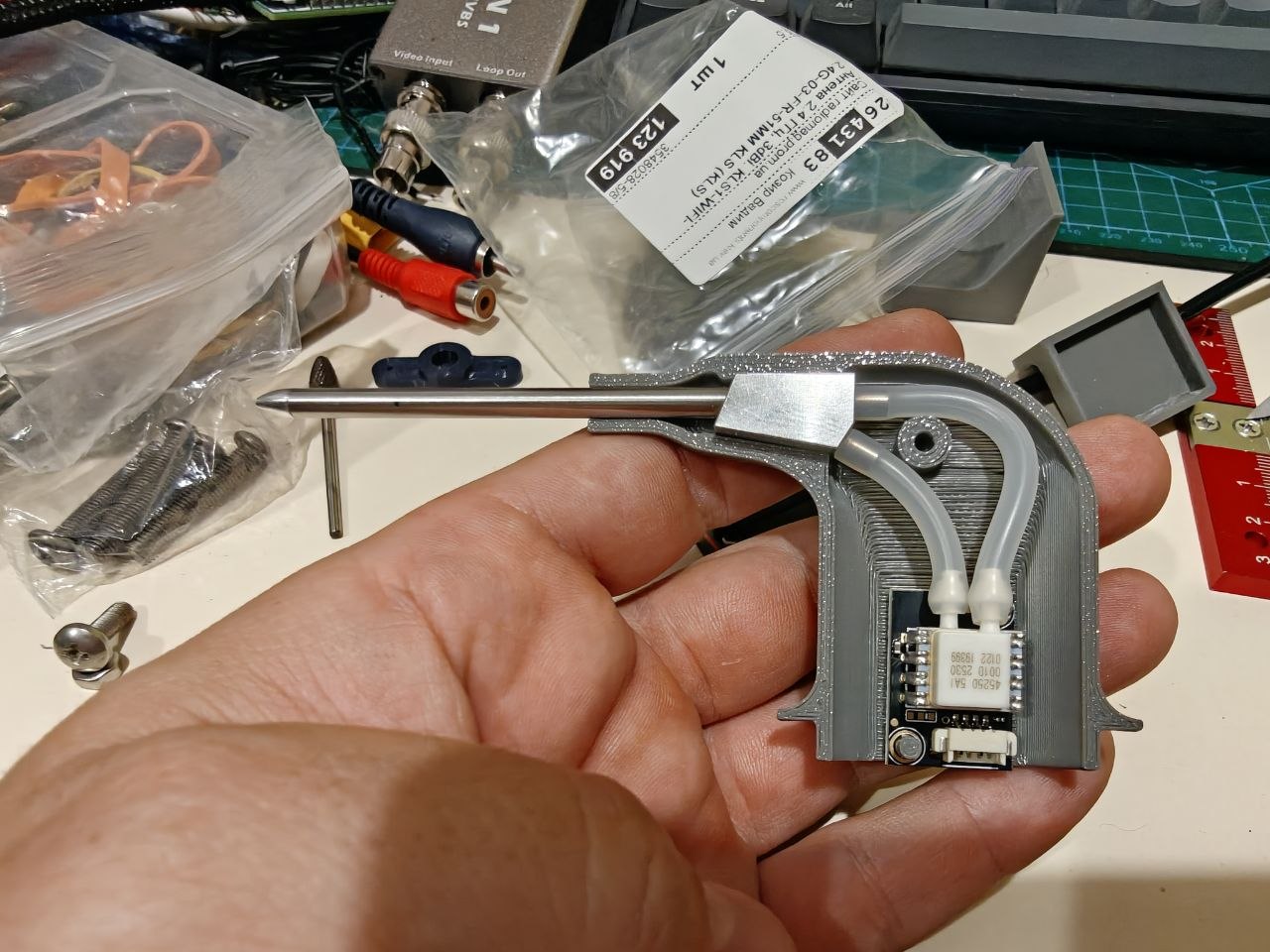

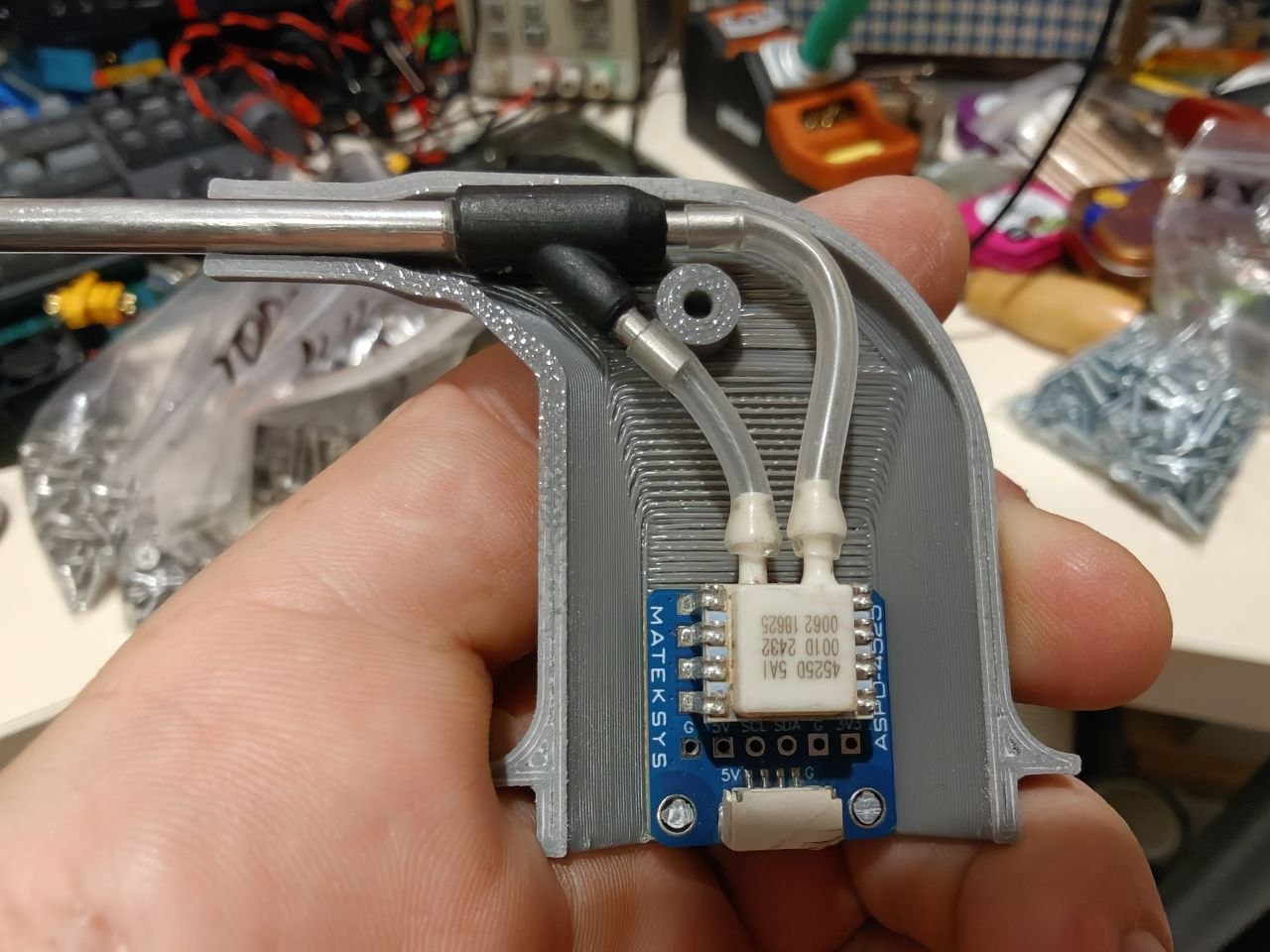

- Assemble as shown in the reference photo.

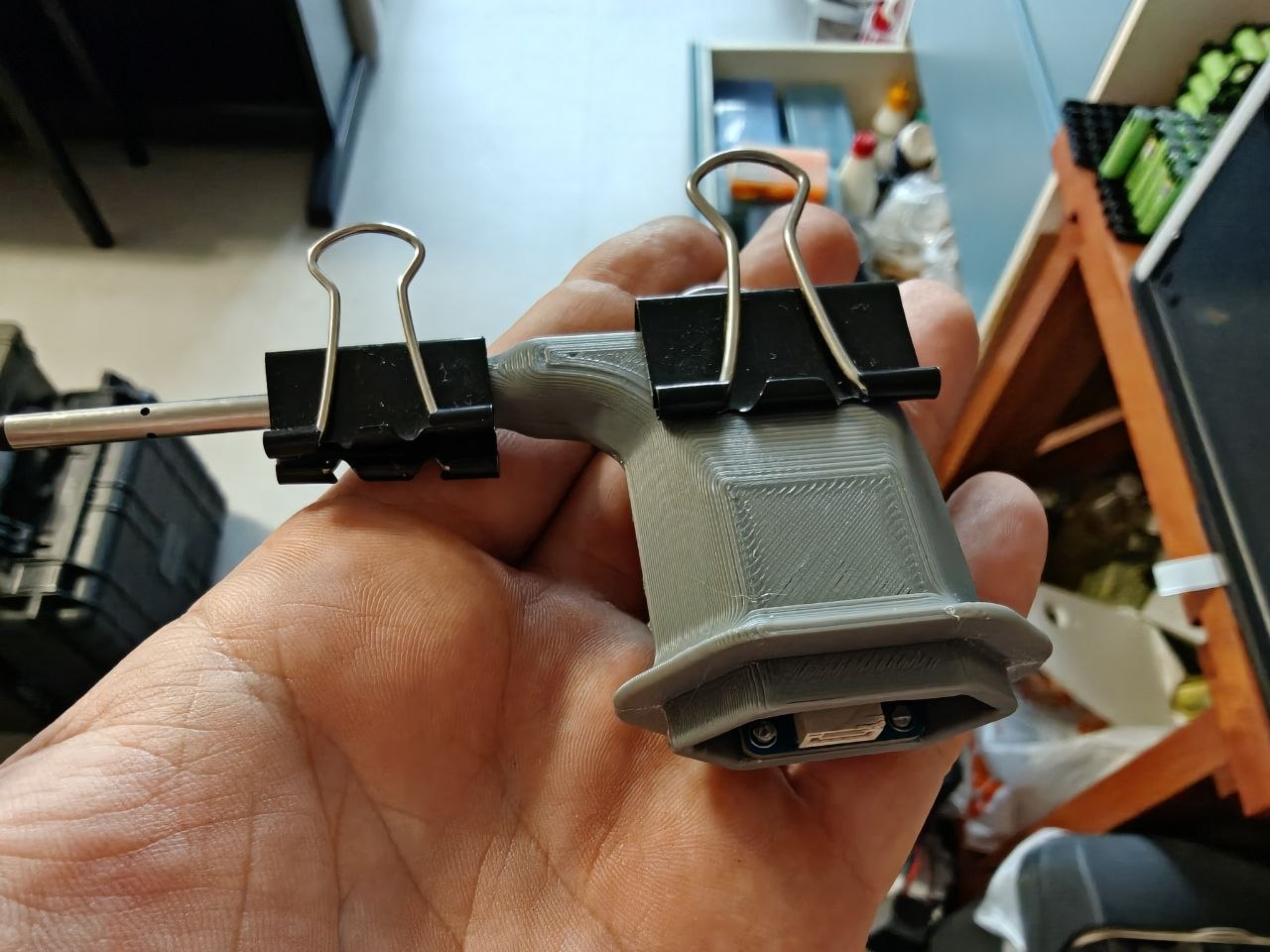

- Apply a small amount of glue to one side, press firmly, and secure it with a clamp for drying.
Original text by the author on Printables
<ol><li><p>Cut excess wires from back side of pcb to save vertical space</p></li><li><p>Cut stainless pipes, leaving approximately 5mm for both tubes</p></li><li><p>Print both sides with supports</p></li><li><p>Sand plane slightly for better connection</p></li><li><p>Assemble like on photo </p></li><li><p>Apply small amount of glue for one side, press firmly and secure it with any clamp for drying</p></li></ol><p></p>
