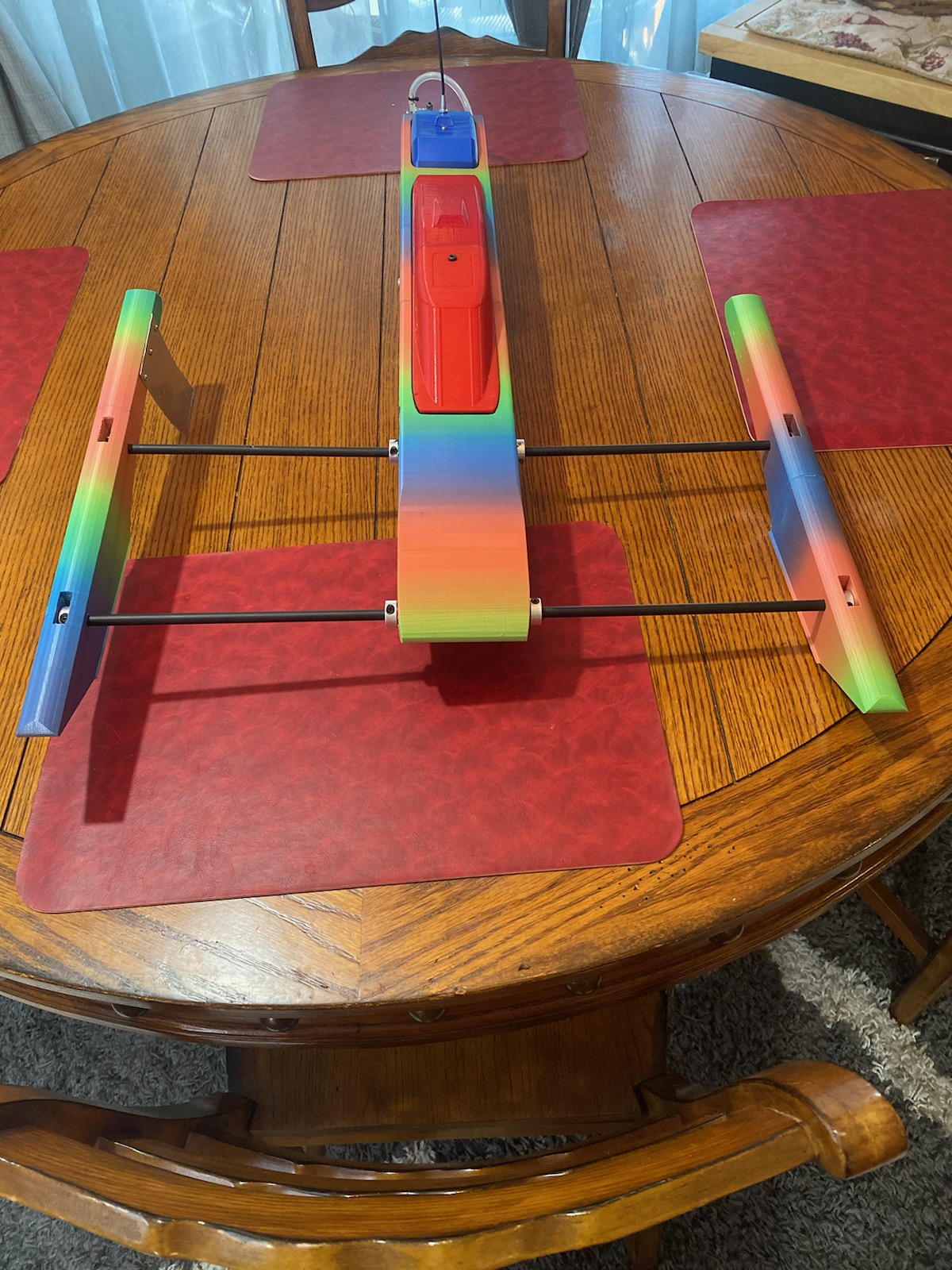

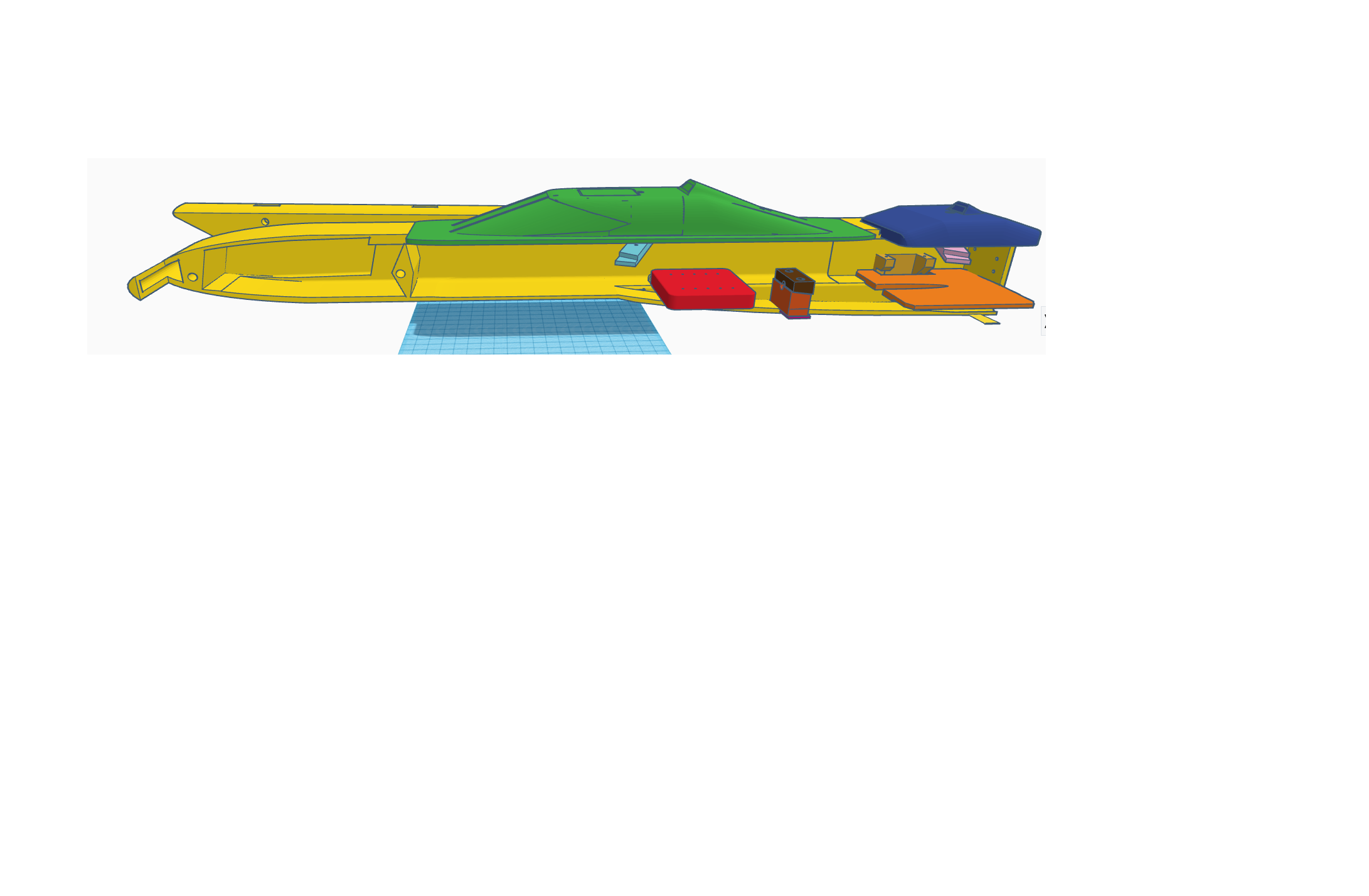

A model of a P9 Rigger (Outrigger) Racing Boat. The design features a front compartment to keep air in and water out. The author has tested this model with a 4-cell 4000Ma battery; it remains buoyant even when filled with water, with the outrigger and the first 6 inches of the nose staying above the waterline.
Assembly and Technical Notes:
- Maximum battery is 4-cell unless the 6-cell body is used. The 6-cell body is heavier and takes longer to get on plane.
- The 6-cell body must be printed using PETG or a similar strong filament.

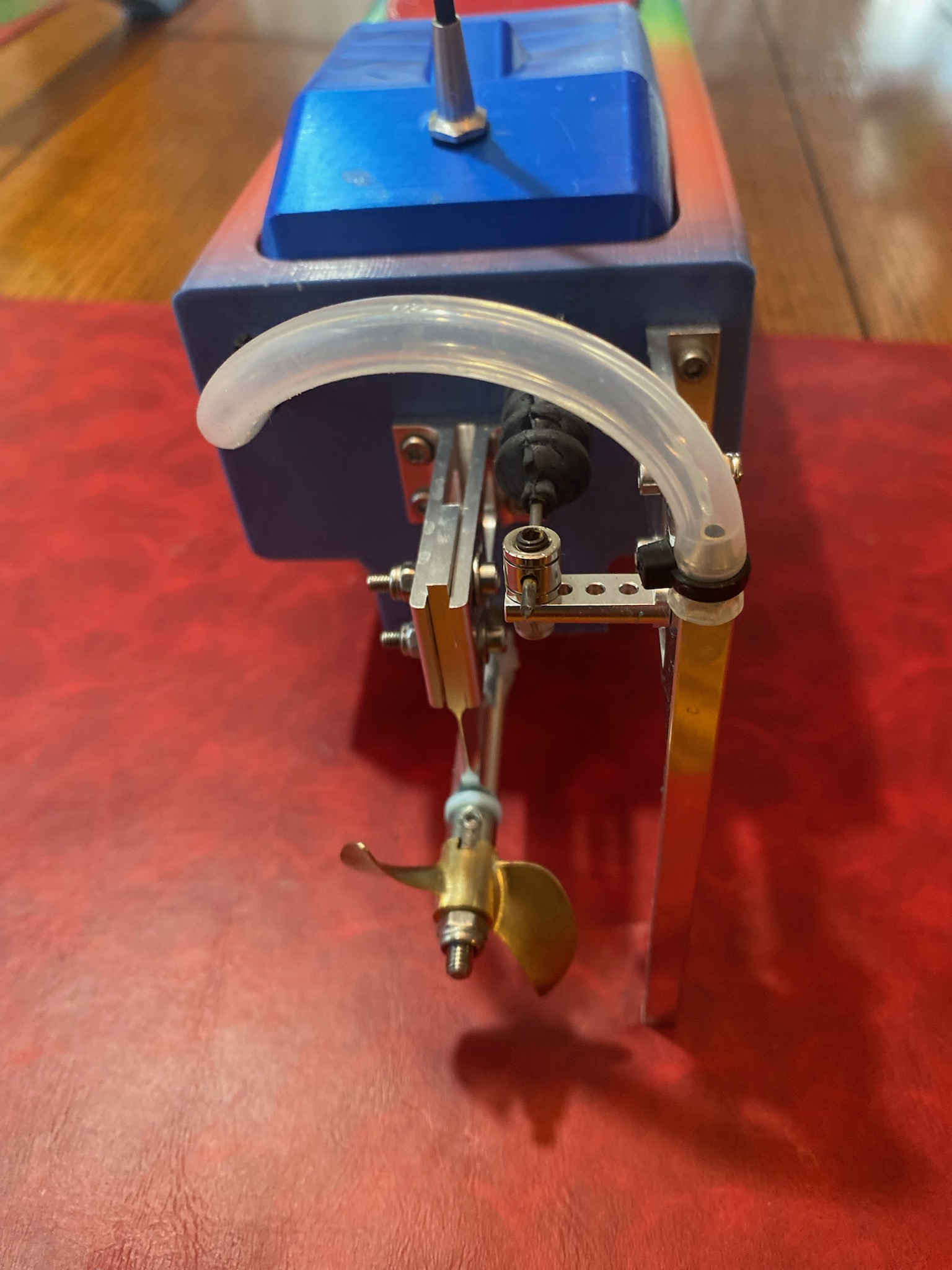

- The turn fin is critical; templates are provided for fabricating one from 0.8mm aluminum or metal.
- Assemble the boat using medium or thick CA glue.
- The body and canopy include 2mm alignment holes for easier assembly.
- The design uses carbon fiber, piano wire, or wood as a dowel.

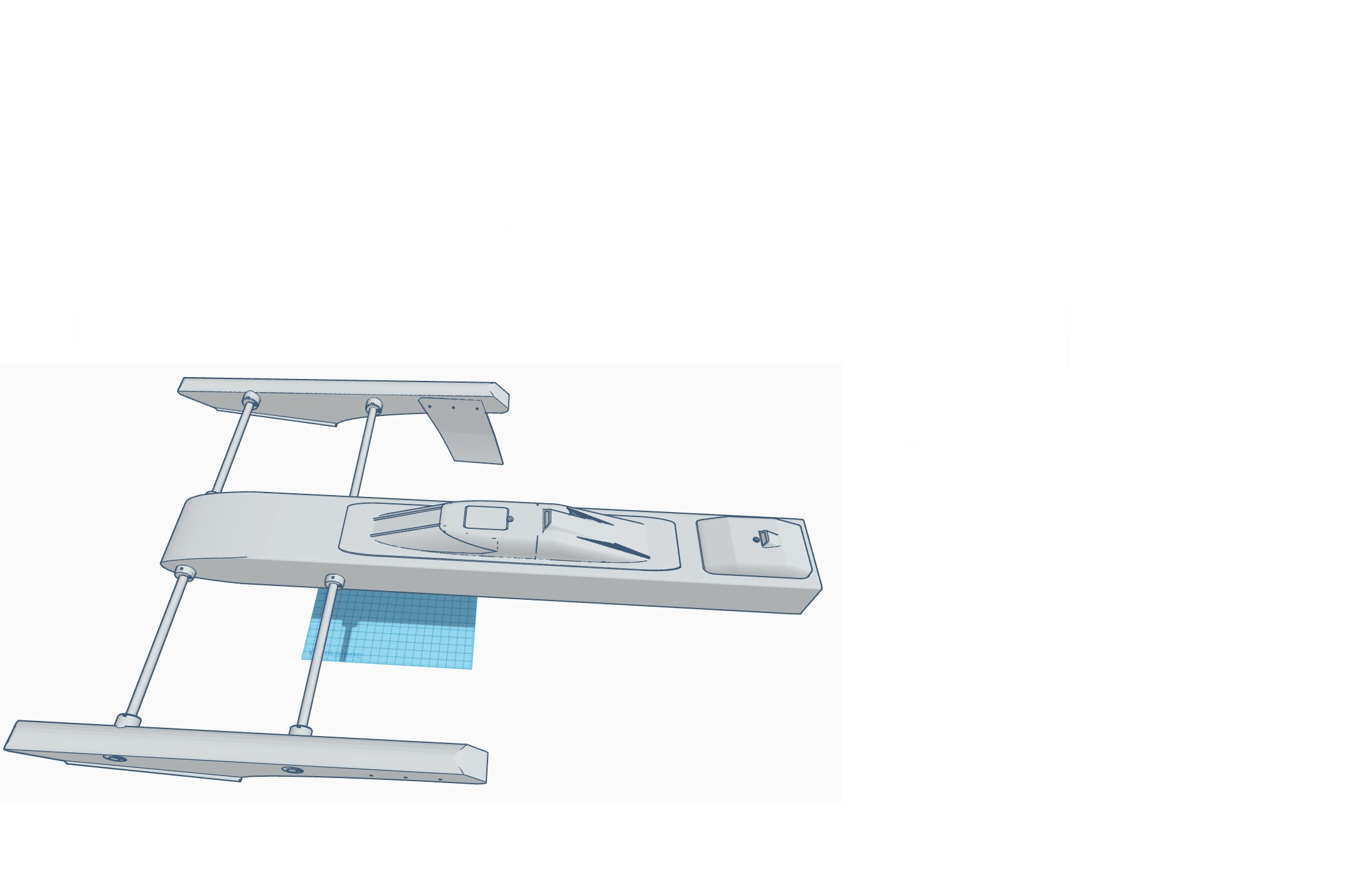

- Outriggers feature two 5mm alignment holes (47mm and 200mm in length). A 5mm x 127mm hole is included for strengthening.

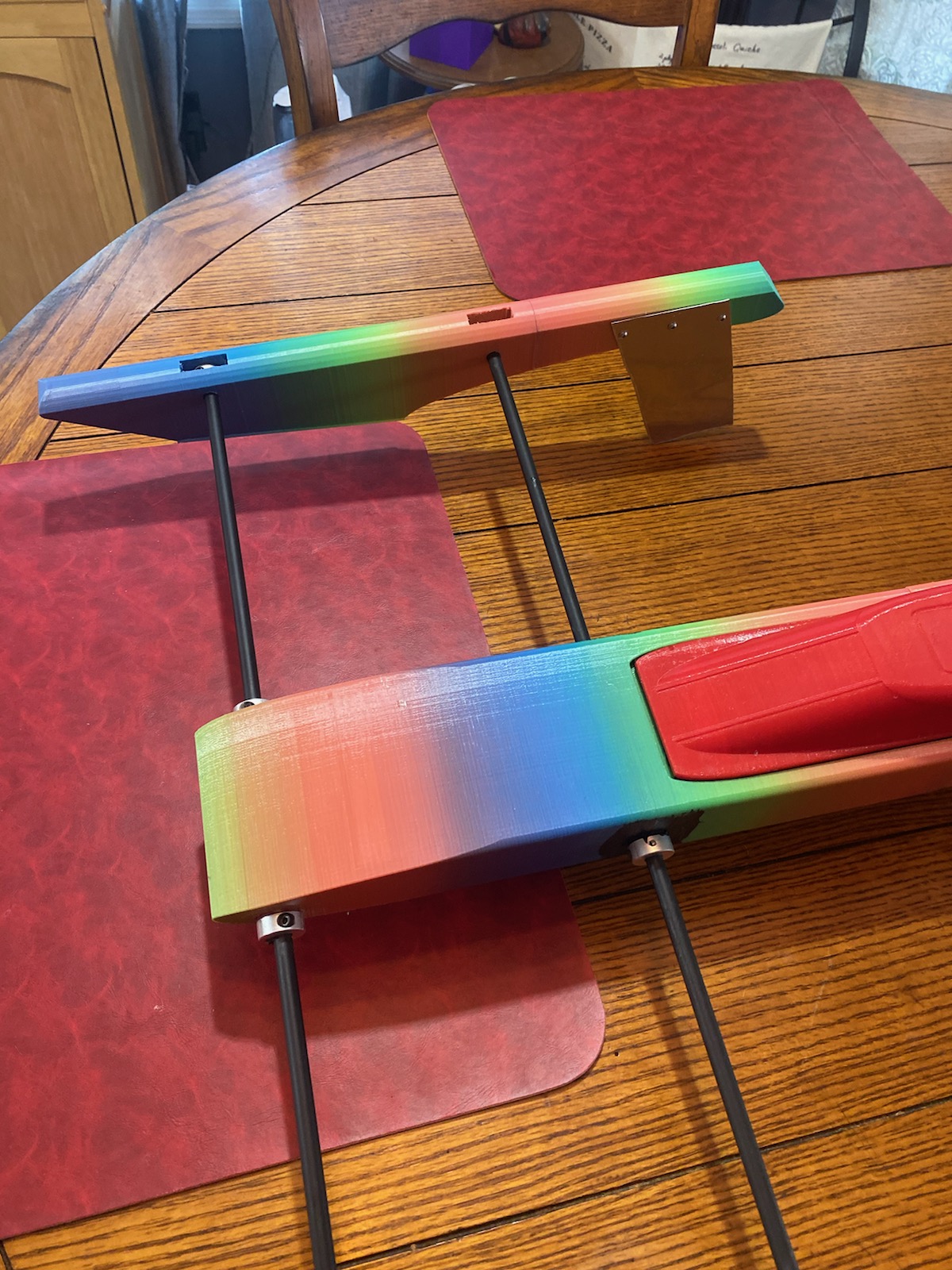

- The 3-piece outrigger is designed to use 100mm x 5mm carbon fiber rods for strength.
- The boat is designed to take 7.8mm arrows cut down to 533mm (21").
Author's Reported Materials:
- Filament: Ender PLA Pro, Creality PLA+, and PETG.
- The author lists black PLA as the filament used (implied by 'Ender PLA Pro' and 'Creality PLA+').
Print Settings:
- Printer: Sovol SV07 Plus
- Rafts: No
- Supports: Yes
- Resolution: 1.2mm
- Infill: 20% for main body and outriggers.
Original text by the author on Printables
<p>THIS BOAT HAS A COMPART UP FRONT TO KEEP AIR IN AND WATER OUT. This has been tested with a 4-Cell 4000Ma battery and boat does not sink. FYI: Removed rear hatch and ran boat into lake until it filled up with water. The outrigger and 6 inches of the nose stayed out of the water.</p><p>MAXIMUM BATTERY 4-CELL unless 6-cell body is printed. 6-Cell body is heavier and takes longer to get on plane. </p><p>6-Cell must be made of PTEG or stringer filament</p><p>Turn fin is critical on this boat. </p><p>Designed to take 7.8MM arrows cut down to 533mm (21”)</p><p>Assemble the boat with medium or thick CA glue. </p><p>Shown is the right turn fin templets for fabricating from .8mm aluminum or metal. </p><p>Body and canopy have 2mm alignment holes to make assembly easier. I use carbon fiber as a dowel but anything from piano wire to wood will work.</p><p>Outriggers have two 5mm alignment holes, 47mm and 200mm in length. The 5mm X 127mm hole is a strengthening hole.</p><p>3-piece outrigger uses 100mm x 5mm carbon fiber rods for strength</p><h4><strong>Print Settings</strong></h4><ul><li>Printer brand:</li></ul><p>Sovol</p><ul><li>Printer:</li></ul><p>SV07 Plus</p><ul><li>Rafts:</li></ul><p>No</p><ul><li>Supports:</li></ul><p>Yes</p><ul><li>Resolution:</li></ul><p>1.2mm</p><ul><li>Infill:</li></ul><p>20% for main body and outriggers.</p><p><strong>Filament brand:</strong></p><p>Ender and Creality</p><p>PLA+ and PTEG</p><p>Creality PETG 3D Printer Filament:<br>• P9 Rigger Aft Floor<br>• P9_Front_Hatch_Holdown<br>• P9_Insert_Body_078cm_Id<br>• P9_Insert_Rigger_078cm_Id<br>• P9_Rear_Hatch_Holdown<br>• P9_Rigger_Right_Turn_Fin<br>• P9_Rigger_Motor_Mount</p><p>Ender PLA Pro Filament, Creality PLA+:<br>Remaining Files</p><p> </p><p>Assembled with items purchased from Amazon.</p><p>Arrow Shaft: -- Carbon Arrow Hunting Arrows with 100 Grain Tip and Removable Tips for Archery Compound & Recurve & Traditional Bow Practice Shooting Targeting.https://www.amazon.com/dp/B08SVN669S/?coliid=I1N3ZPFM4WJX57&colid=DJP3R8RK3JL0&ref_=list_c_wl_lv_ov_lig_dp_it&th=1</p><p>ESC: -- FLYCOLOR 150A ESC 2-6S Waterproof Brushless Electronic Speed Controller with 5.5V/5A BEC and XT90 6.0mm Banana Head Connector for Model Ship RC Boat. </p><p> https://www.Amazon.com:FLYCOLOR 150A ESC 2-6S Waterproof Brushless Electronic Speed Controller with 5.5V/5A BEC and XT90 6.0mm Banana Head Connector for Model Ship RC Boat : Toys & Games</p><p> </p><p>ESC Programmer:-- Goolsky Flycolor Programing Card for RC Boats ESC Electronic Speed Controller. </p><p> https://www.Amazon.com:Goolsky Flycolor Programing Card for RC Boats ESC Electronic Speed Controller : Toys & Games</p><p> </p><p>Fitting: -- RC Boat Water Nipple Water Outlet Nozzle M6 for Motor Cooling </p><p> https://www.Amazon.com:2pcs RC Boat Water Nipple Water Outlet Nozzle M6 for Motor Cooling : Toys & Games</p><p> </p><p>Motor Coupling: -- 2Pack Vgoohobby CNC Stainless Steel RC Flex Collet Coupler Flexible Coupling Motor Shaft Locker for DIY RC Boat Submarine (5mm to 4mm) </p><p> https://www.Amazon.com: 2Pack Vgoohobby CNC Stainless Steel RC Flex Collet Coupler Flexible Coupling Motor Shaft Locker for DIY RC Boat Submarine (5mm to 4mm) : Toys & Games</p><p>Prop Mount: Hobbypark Adjustable Flexible RC Boat Shaft Axle Strut Mount Bracket Kit Holder,Fit 4mm Shaft Amazon.com: Hobbypark Adjustable Flexible RC Boat Shaft Axle Strut Mount Bracket Kit Holder,Fit 4mm Shaft : Toys & Games</p><p> </p><p>Rudder: -- Vgoohobby Aluminum Alloy RC Boat Rudder with Water Pickup Suction Absorbing Steering Compatible with Electric Gas Power Remote Control RC Model Boat (95mm) </p><p> https://www.Amazon.com: Vgoohobby Aluminum Alloy RC Boat Rudder with Water Pickup Suction Absorbing Steering Compatible with Electric Gas Power Remote Control RC Model Boat (95mm) : Toys & Games</p><p> </p><p>Drive Shaft: -- Neroyaner Drive Shaft Flex Cable Propeller Copper Tube Dog Prop Nut Drill Shaft Cable 350mm Flexible Shaft for Rc Boat Parts Rotary Tool Flexi Attachment 4mm </p><p> https://www.Amazon.com: Neroyaner Drive Shaft Flex Cable Propeller Copper Tube Dog Prop Nut Drill Shaft Cable 350mm Flexible Shaft for Rc Boat Parts Rotary Tool Flexi Attachment 4mm : Toys & Games</p><p> </p><p>Propeller: -- Mxfans Dia 4mm Shaft Center Hole RC Boat Propeller 2 Leaves Brass Boat Parts Dia 37mm P1.4. </p><p> https://www.Amazon.com: Mxfans Dia 4mm Shaft Center Hole RC Boat Propeller 2 Leaves Brass Boat Parts Dia 37mm P1.4 : Toys & Games</p><p> </p><p>Motor: -- KingVal Replacement 4074 2250KV Brushless Motor with Water Cooling Jacket Unit Compatible with RC Boat. </p><p> https://www.Amazon.com: KingVal Replacement 4074 2250KV Brushless Motor with Water Cooling Jacket Unit Compatible with RC Boat : Toys & Games</p><p> </p><p>Motor Mount Opt 1: -- Simhoa Metal Motor Mount Holder Seat Spare Parts,RC Boats Fixed Bracket, Base Mounting for 28mm/29mm/36mm Brushless Motor DIY Accessories. </p><p> https://www.Amazon.com: Simhoa Metal Motor Mount Holder Seat Spare Parts,RC Boats Fixed Bracket, Base Mounting for 28mm/29mm/36mm Brushless Motor DIY Accessories : Toys & Games</p><p> </p><p>Motor Mount Opt 2: -- 4074 3674 3660 36mm 40mm Brushless Motor Mount Seat Base Bracket Metal for RC Boat CAT Catamaran Yacht. </p><p> https://www.Amazon.com: 4074 3674 3660 36mm 40mm Brushless Motor Mount Seat Base Bracket Metal for RC Boat CAT Catamaran Yacht : Toys & Games</p><p> </p><p>Pushrod Seal (Servo): -- Ruiwaer 2Sets 37mm Waterproof Push Rod Rubber Seal Bellow Waterproof Push Rod Rubber Seals for RC Boat, Black.</p><p> https://www.Amazon.com: Ruiwaer 2Sets 37mm Waterproof Push Rod Rubber Seal Bellow Waterproof Push Rod Rubber Seals for RC Boat, Black : Toys & Games.</p><p> </p><p>Steering Servo: -- Jrelecs 2Pack 17g Metal Gear 1.8KG Digital Servo for RC Airplane Robot 1/18 1/16 Truck Car Boat Duct Plane. </p><p> https://www.Amazon.com: Jrelecs 2Pack 17g Metal Gear 1.8KG Digital Servo for RC Airplane Robot 1/18 1/16 Truck Car Boat Duct Plane : Toys & Games</p><p> </p><p>Radio & Reciever: -- Radiolink RC4GS V3 5 Channels RC Transmitter and R6FG Gyro Receiver, 2.4GHz Surface Remote Controller 30 Models Storage for RC Crawler, Drifting, Bash, Buggy Cars and Boats. </p><p> https://www.Amazon.com: Radiolink RC4GS V3 5 Channels RC Transmitter and R6FG Gyro Receiver, 2.4GHz Surface Remote Controller 30 Models Storage for RC Crawler, Drifting, Bash, Buggy Cars and Boats : Toys & Games</p><p> </p><p>Hardware: -- XINGYHENG 480Pcs 12 Values M2 M3 M4 Metric Hex Socket Cap Head Self Tapping Screw with Flat Gasket Washers Assortment Kit. XINGYHENG 480Pcs 12 Values M2 M3 M4 Metric Hex Socket Cap Head Self Tapping Screw with Flat Gasket Washers Assortment Kit:</p><p> <a href="https://www.amazon.com/gp/product/B07C4BL3SF/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1">https://www.amazon.com/gp/product/B07C4BL3SF/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1</a></p><p> </p><p>Locking collars - Double Split Shaft Collar Clamping Style with M4 Set Screw, 8mm Bore Size, 25mm OD, 8mm Thickness (Pack of 4)</p><p>https://www.amazon.com/gp/product/B09QW2ZM5Y/ref=ox_sc_act_title_1?smid=A1VPVXQTMU6PNM&th=1</p><p>Carbon Fiber Tube- uxcell Carbon Fiber Round Tube 5mm x 3mm x 400mm Carbon Fiber Wing Pultrusion Tubing for RC Airplane Quadcopter 2 Pcs</p><p><a href="https://www.amazon.com/uxcell-Carbon-Pultrusion-Airplane-Quadcopter/dp/B07R7TN4L7/ref=sr_1_11?crid=1FGCQOTHTJ5A9&dib=eyJ2IjoiMSJ9.t97OcTrr8_EsxyLzH9HRTZWcuRx4_a2tRjv0d7zjKV7IPAWU9sO7LkpV3_CdhTaAiMdAuOiwsaHeCyq3nFjwQNfnmRcbVDatXOdIajnZduncdm0mchsyaukLGl6myB9JdntFTlc73IfrpUXnwL4q4oiAZcrhtAZkpch2HNj62h_VhUghsrL48DpicKOZAEDUjkl29GTrfEyZ13v8f4Qr9MJNSFlzEg83kLCiWqFba_c.BEUk9K-65h684Z2y3sSAZsFlbwWv1w7TZKC62nxNWX0&dib_tag=se&keywords=Carbon+Fiber+5mm+X+3mm&qid=1708864918&sprefix=carbon+fiber+5mm+x+3mm%2Caps%2C130&sr=8-11">Amazon.com: uxcell Carbon Fiber Round Tube 5mm x 3mm x 400mm Carbon Fiber Wing Pultrusion Tubing for RC Airplane Quadcopter 2 Pcs : Industrial & Scientific</a></p><p> </p><p>Carbon Fiber Rod - MECCANIXITY Carbon Fiber Rod, 2mm x 100mm for RC Plane DIY Tool Wing Tube Quadcopter Arm, Pack of 6</p><p><a href="https://www.amazon.com/MECCANIXITY-Carbon-Fiber-100mm-Quadcopter/dp/B0B6BX77KP/ref=sr_1_5?crid=14GJYME4BARGC&dib=eyJ2IjoiMSJ9.krJTJolImbKAUtqPYWZinSzOJvg47SstGuBBxkZN9veD9JIyLta7MrFdW6q3wzN0vIYAUIPtd8-DHu9uhuFMwoWBEsi4YMHZr3VCbxSqdG3LqLRC13zbfjyTHnCCtDhj_JwpBBErT0fnsjm7HPhYQWgJugpU980Z2_1zAYVDyF1kDe24RedQs07qk1xFoeqDs5OF6y2e3buqFoW3f_JIOhNgGzYUtUfxnO0OHW7OXHA.XetEBfczFDagGT3Q2YCz8zDSdcsCEM2N3lSKLbZRkqI&dib_tag=se&keywords=Carbon+Fiber+rod+2mm&qid=1708865297&sprefix=carbon+fiber+rod+2mm%2Caps%2C160&sr=8-5">Amazon.com: MECCANIXITY Carbon Fiber Rod, 2mm x 100mm for RC Plane DIY Tool Wing Tube Quadcopter Arm, Pack of 6 : Industrial & Scientific</a></p><p>Turn Fin - 6061 T651 Aluminum Sheet Metal 12 x 12 x 1/32(0.8mm) Inch Flat Plain Aluminum Plate Covered with Protective Film, Heat Treatable Rectangle Aluminum Metal Plate for Crafting, Finely Polished & Deburred</p><p><a href="https://www.amazon.com/gp/product/B098SWTDTR/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1">Amazon.com: 6061 T651 Aluminum Sheet Metal 12 x 12 x 1/32(0.8mm) Inch Flat Plain Aluminum Plate Covered with Protective Film, Heat Treatable Rectangle Aluminum Metal Plate for Crafting, Finely Polished & Deburred : Industrial & Scientific</a></p>
