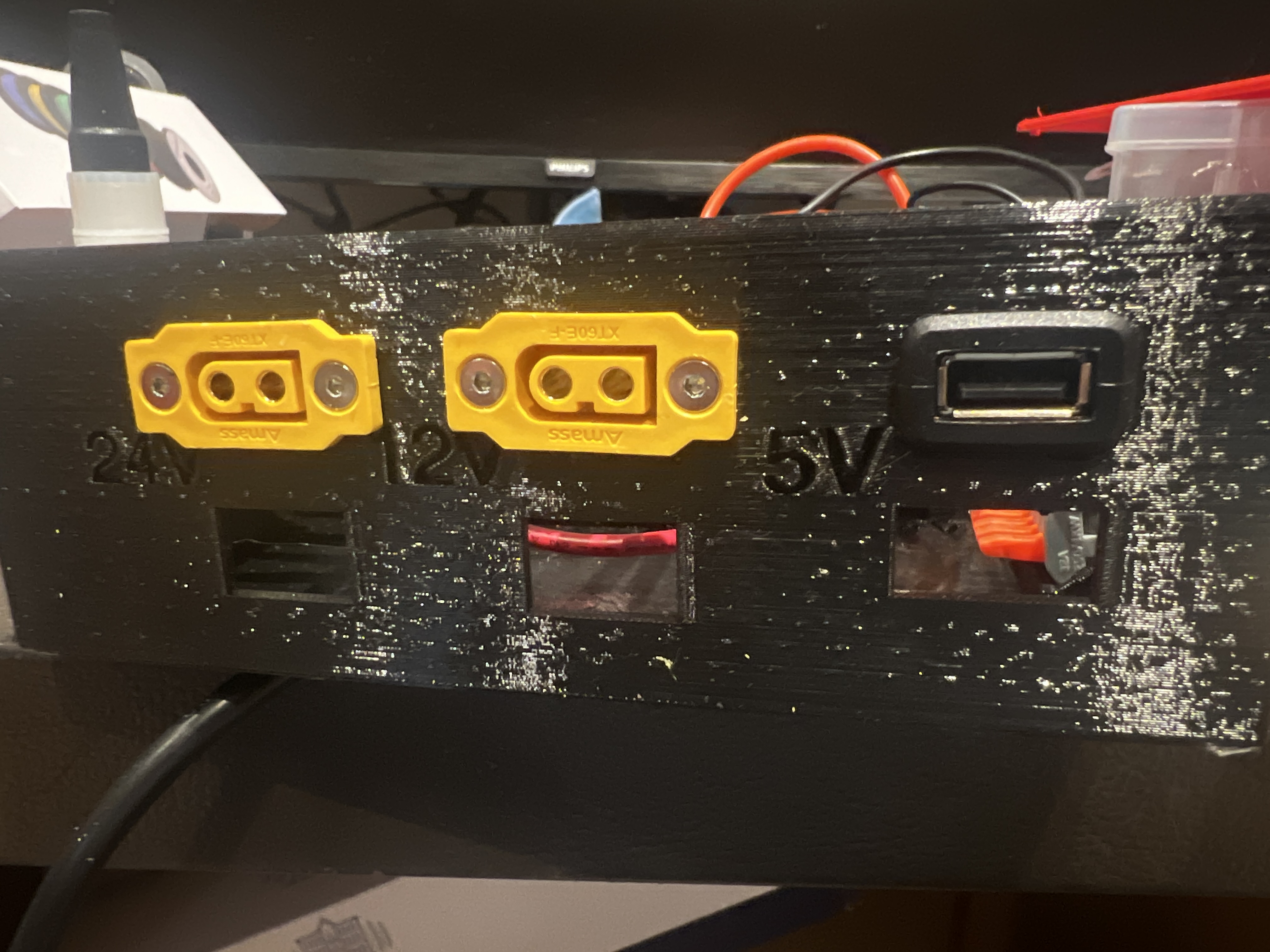

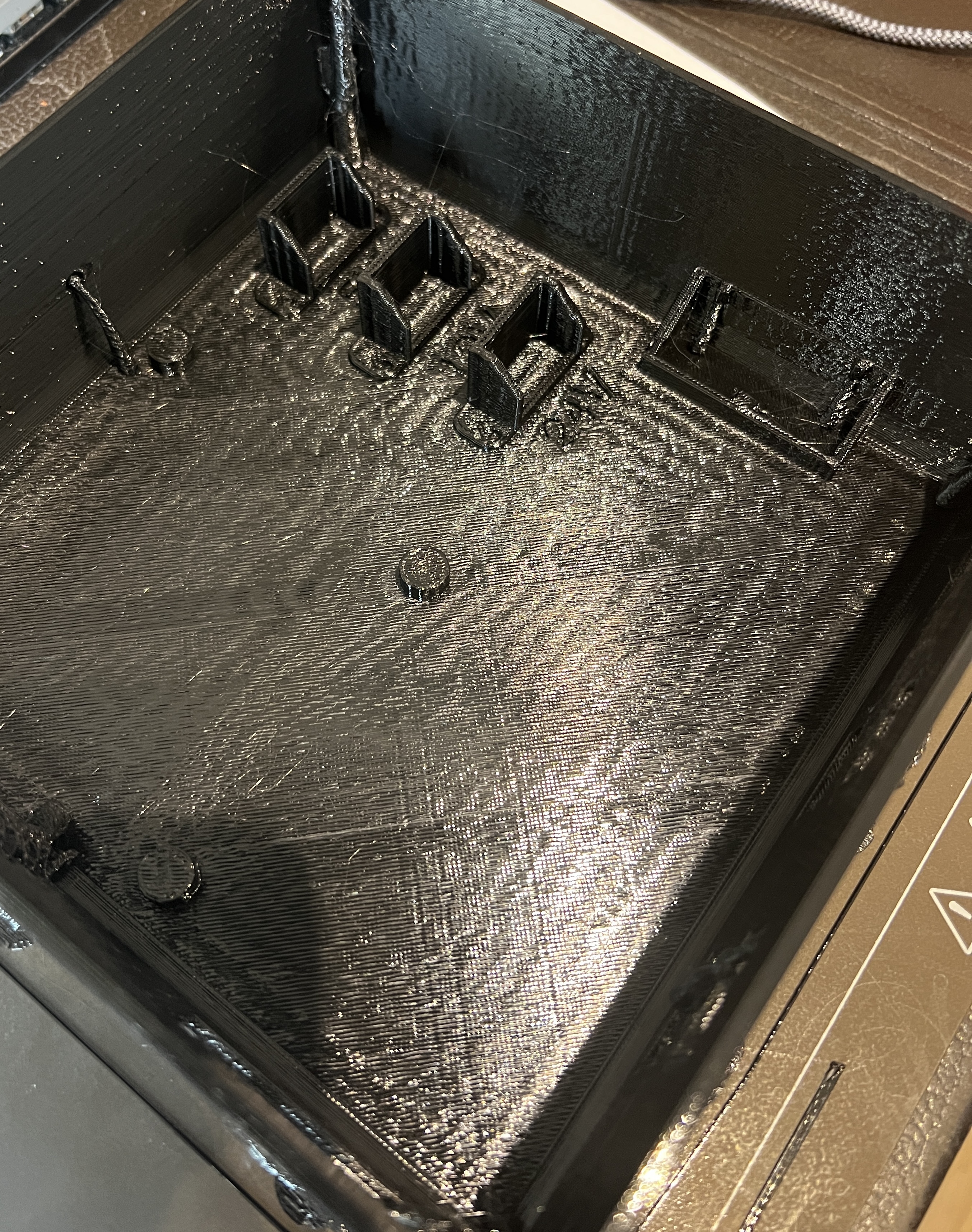

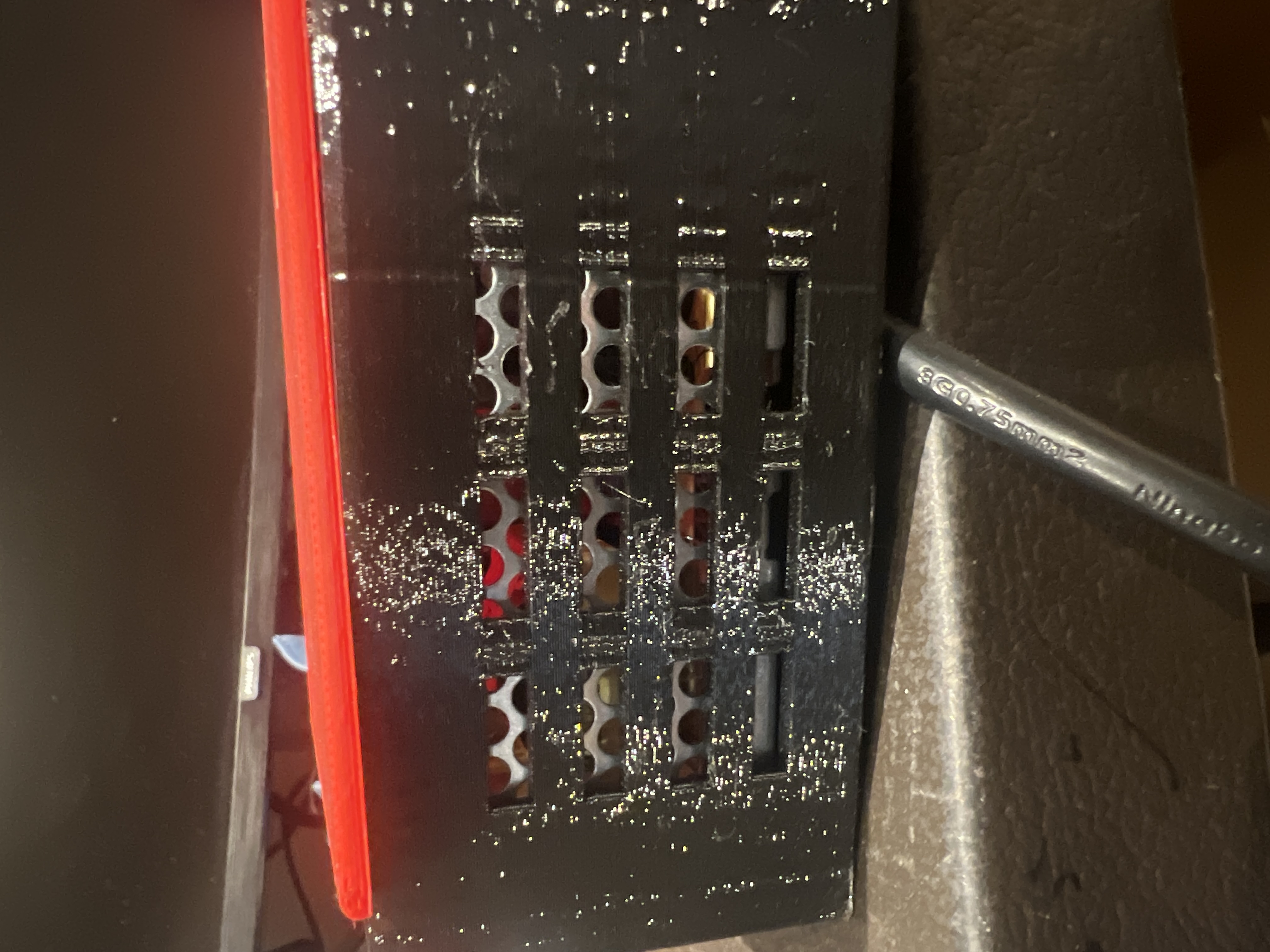

An enclosure created in Blender for a Meanwell PSU RT-50D, which provides three DC output channels (24V, 12V, and 5V) from 220V. The author notes this is a first attempt at modeling from scratch. The design incorporates 24V and 12V outputs using XT60 connectors and a 5V output using USB A.
Parts listed by the author:

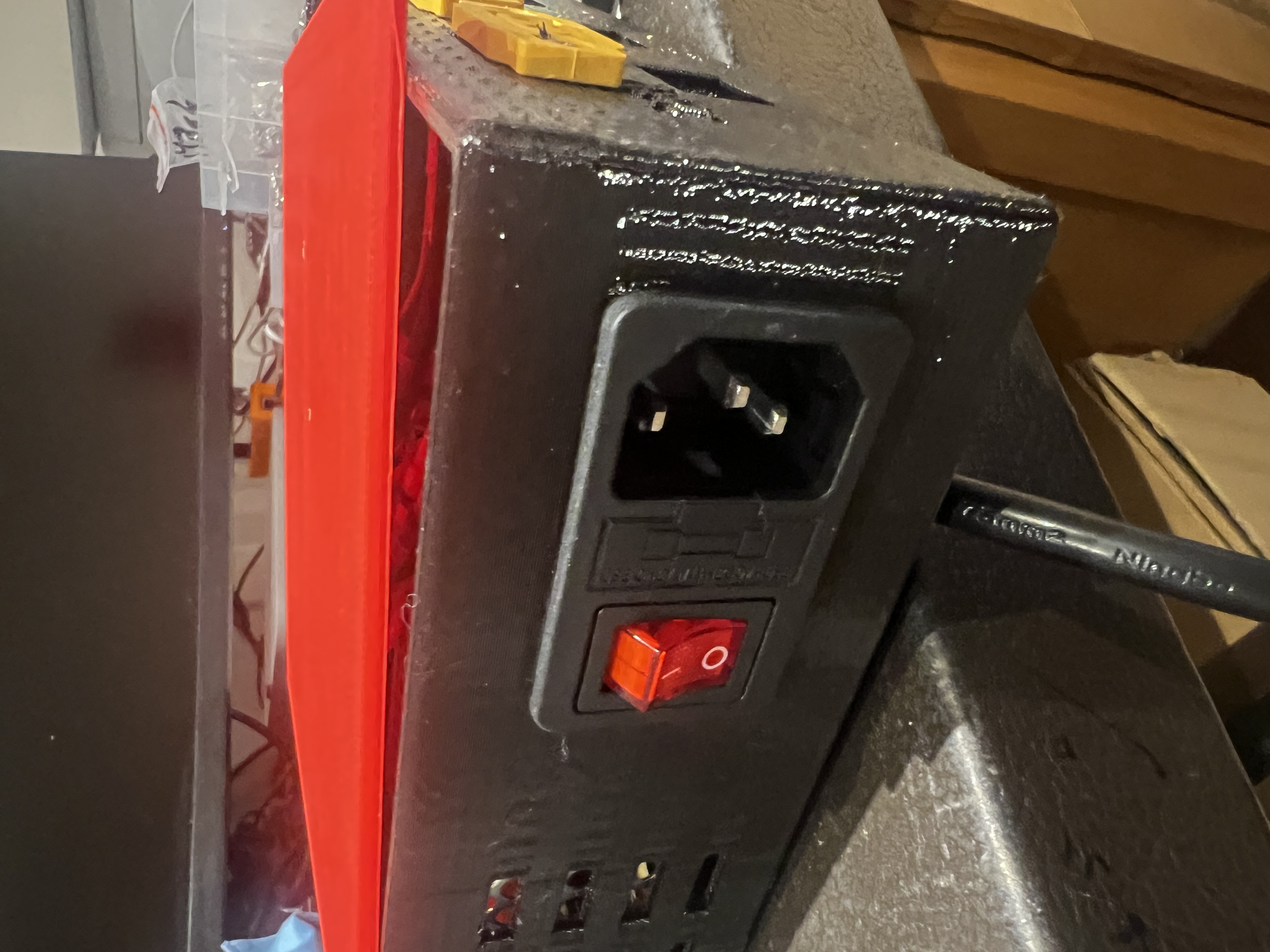

- 1 x IEC C14 connector for 220V to the PSU
- 3 x WAGO 221-413 connectors for 24V, 12V, and 5V
- 1 x WAGO 222-813 for GND/COM wires

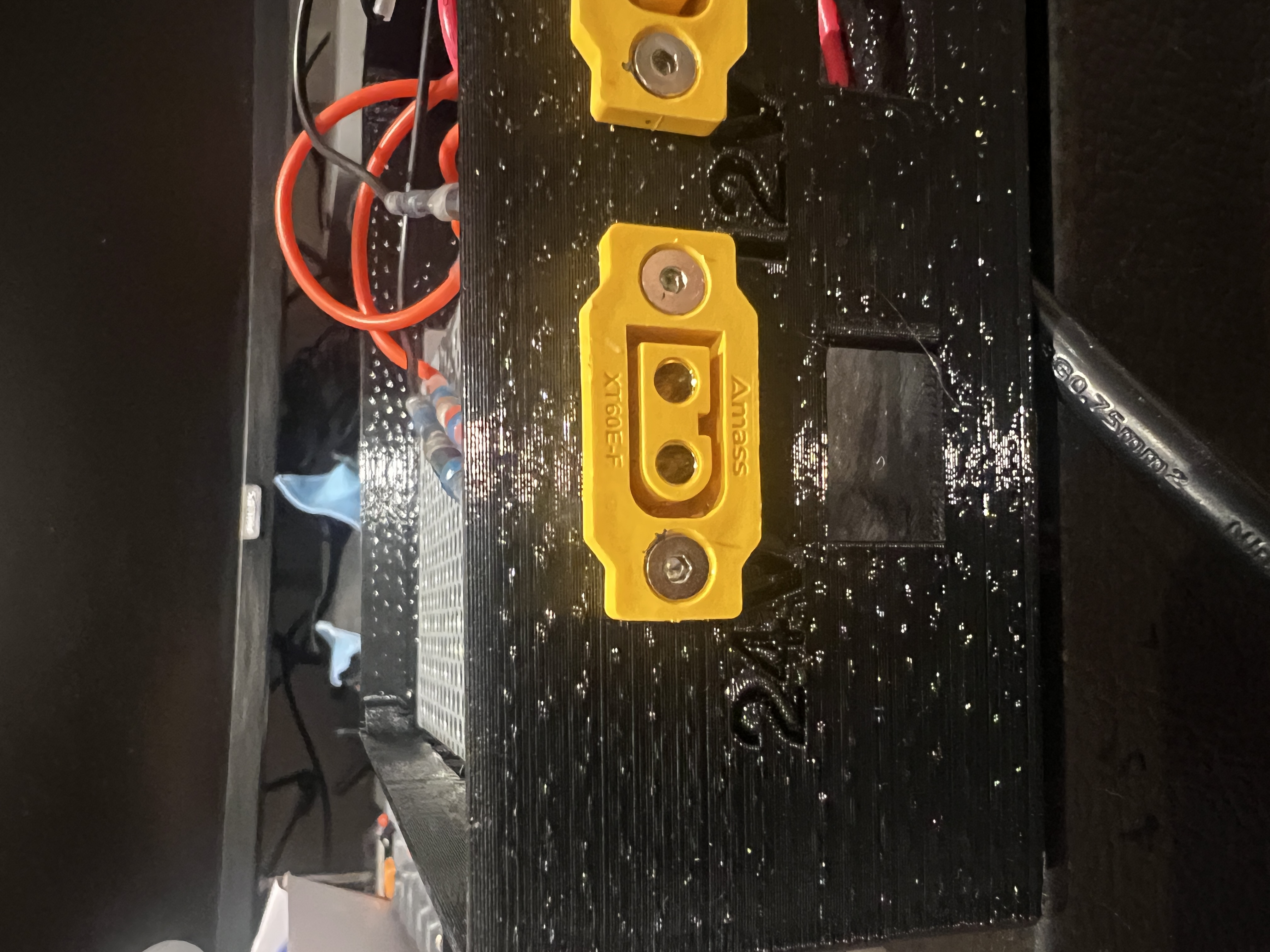

- 2 x XTC60E-F connectors for 24V and 12V outputs
- 1 x USB A for 5V output
- Screws, inserts, wires, lugs, etc.
The author imported 222-418 from @iop22 and 221-413 from @Otann mounts and merged them with the enclosure.
Printing details reported by the author:
- Material: Sunlu PETG Black
- Layer height: 0.30mm
- Draft temperature: 1 layer 240/85 then 240/90
Original text by the author on Printables
