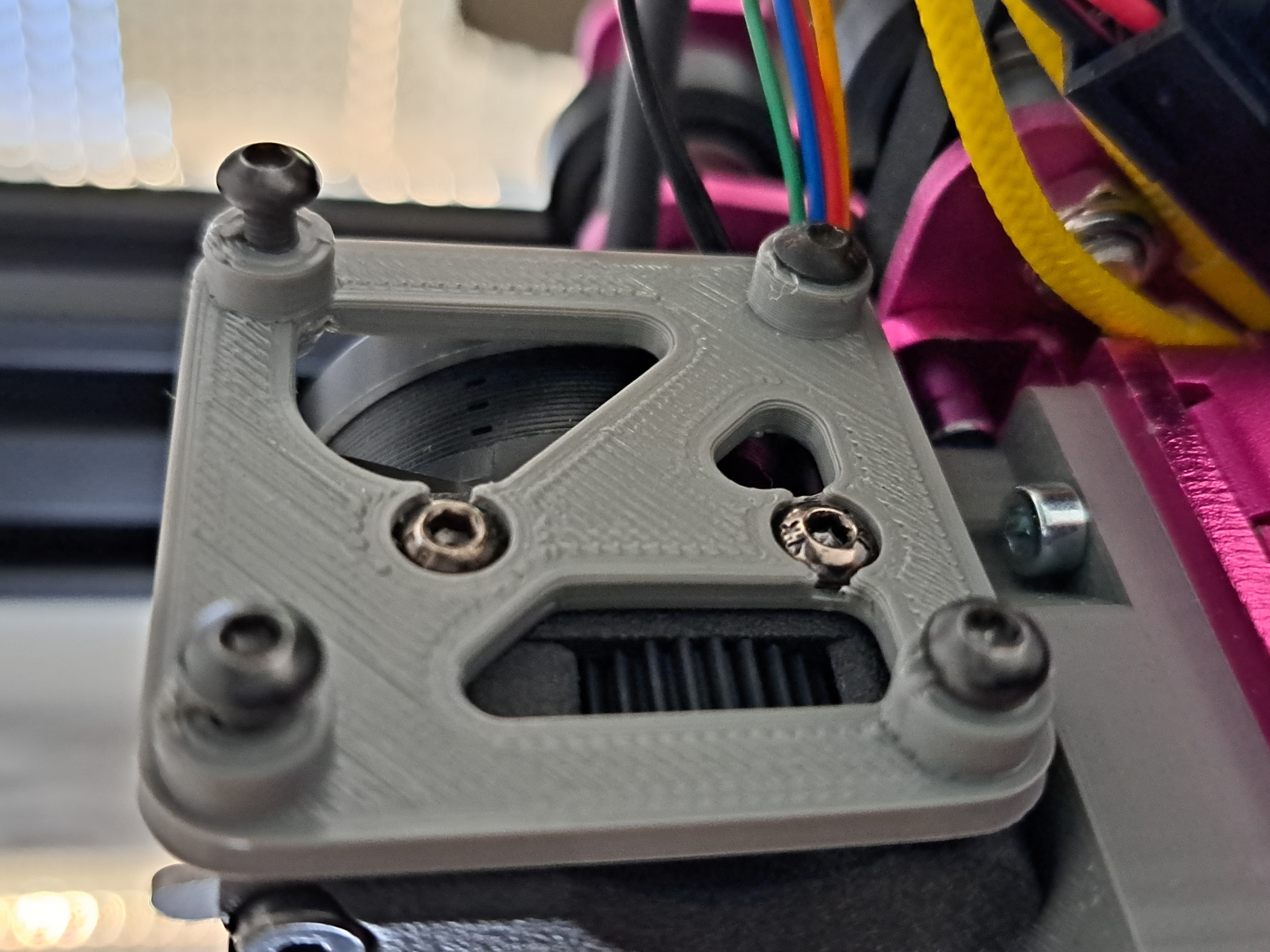

A side mount for CAN toolhead boards with NEMA 17 sizes, such as Huvud, EBB36, and FLY-SHT42. The author states that two M3 square nuts, which should come with the LGX Lite, are required to be placed into the side holes for mounting.
BOM:
- 4x M3 Square Nuts (Included with LGX Lite)
- 4x M3 Nuts
- 2x M3x6 BHCS to mount through to LGX Lite holes
- 4x M3x6 SHCS for board mounting (or whatever is suitable for your board)
