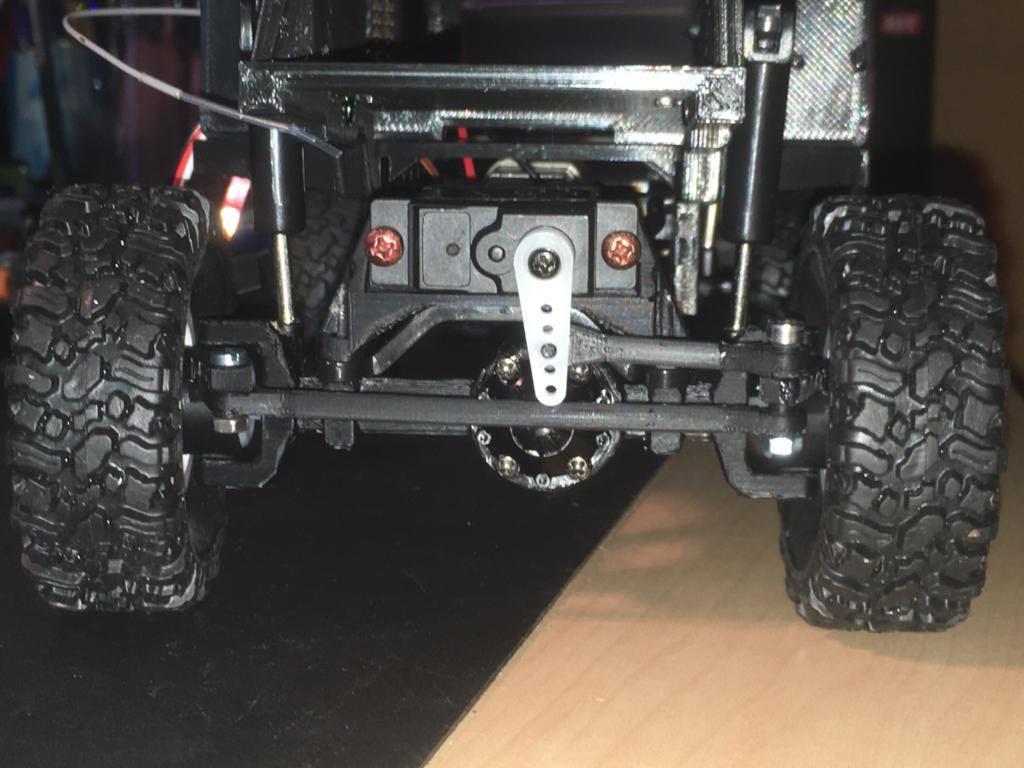

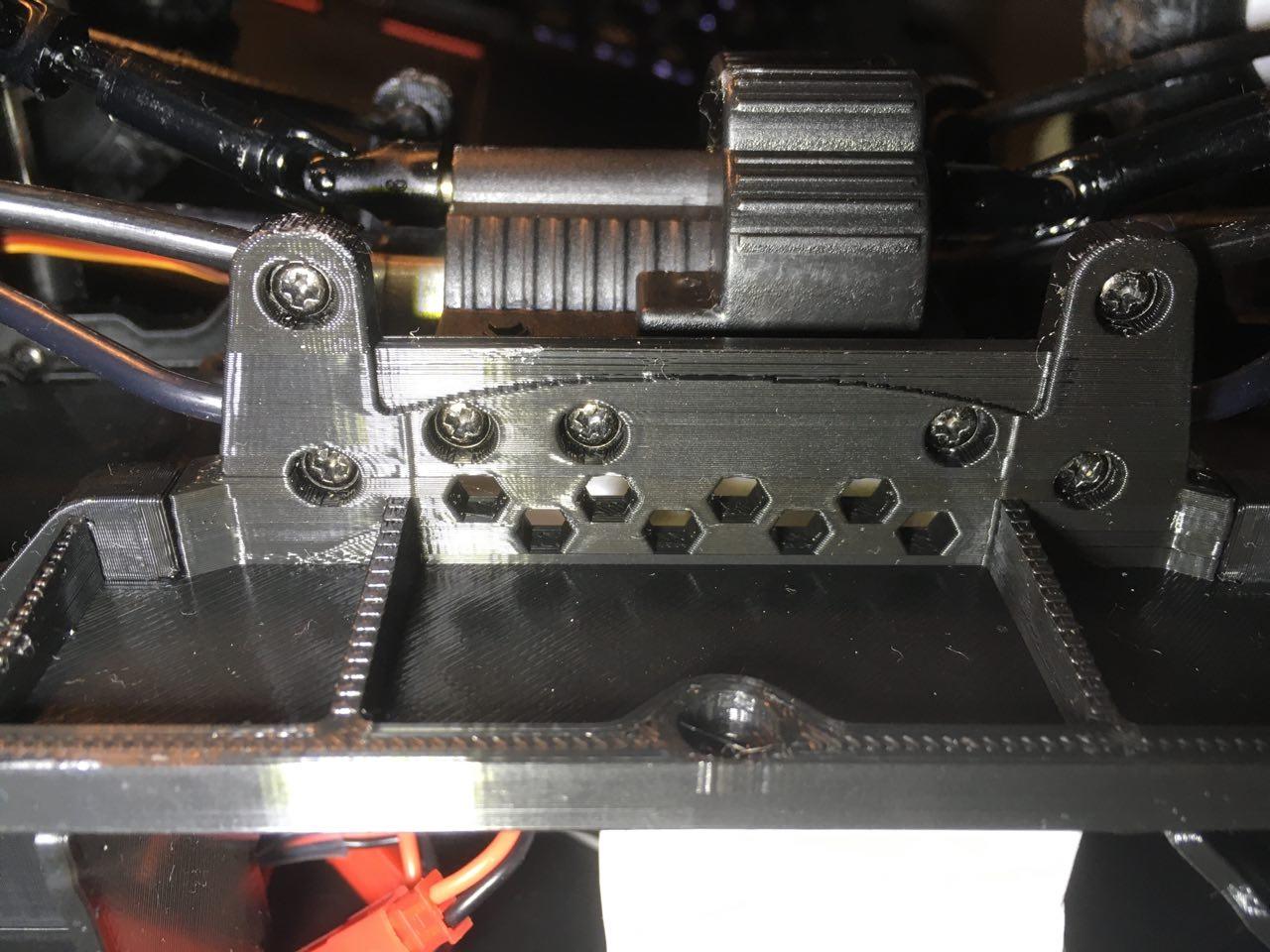

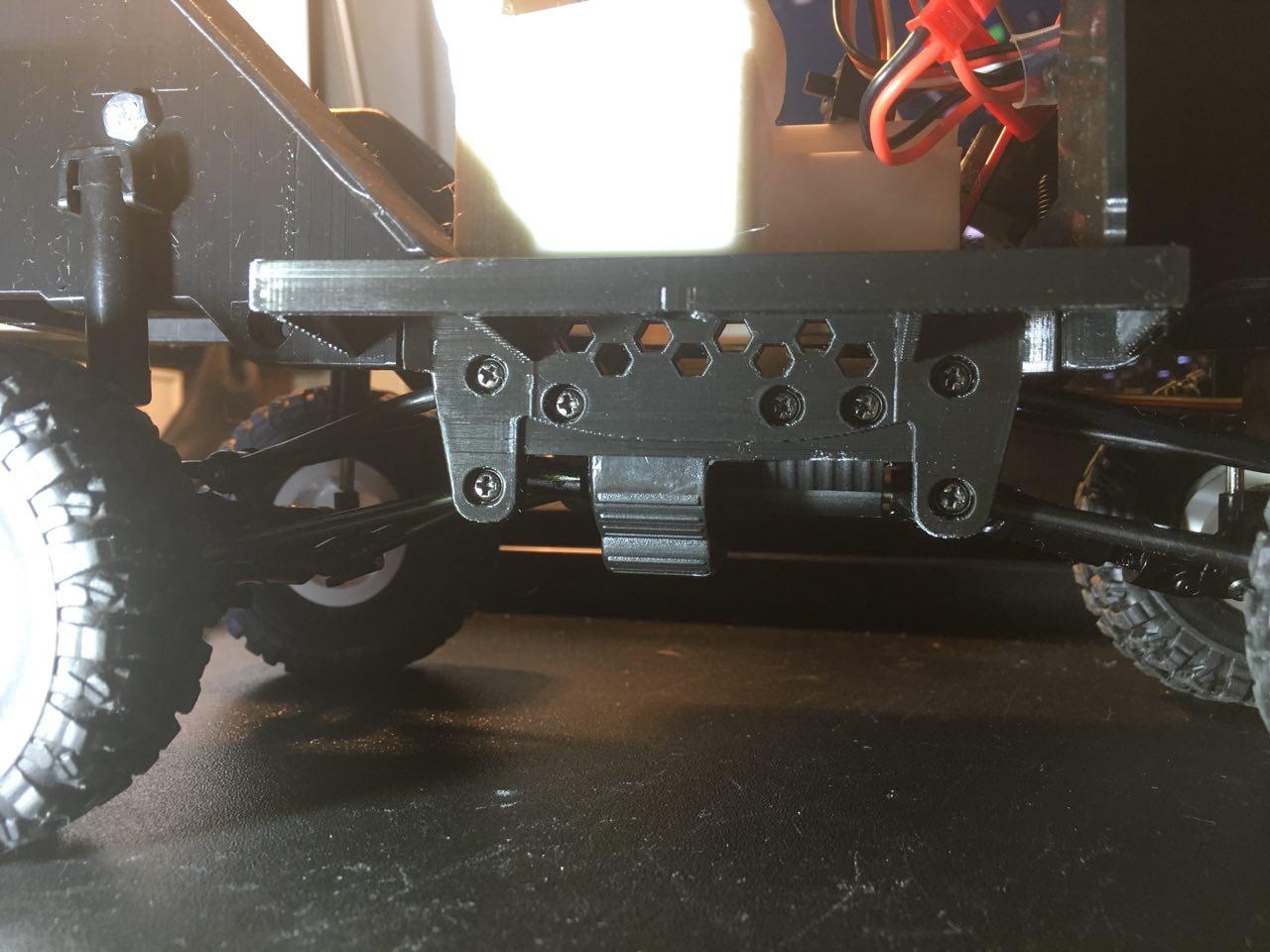

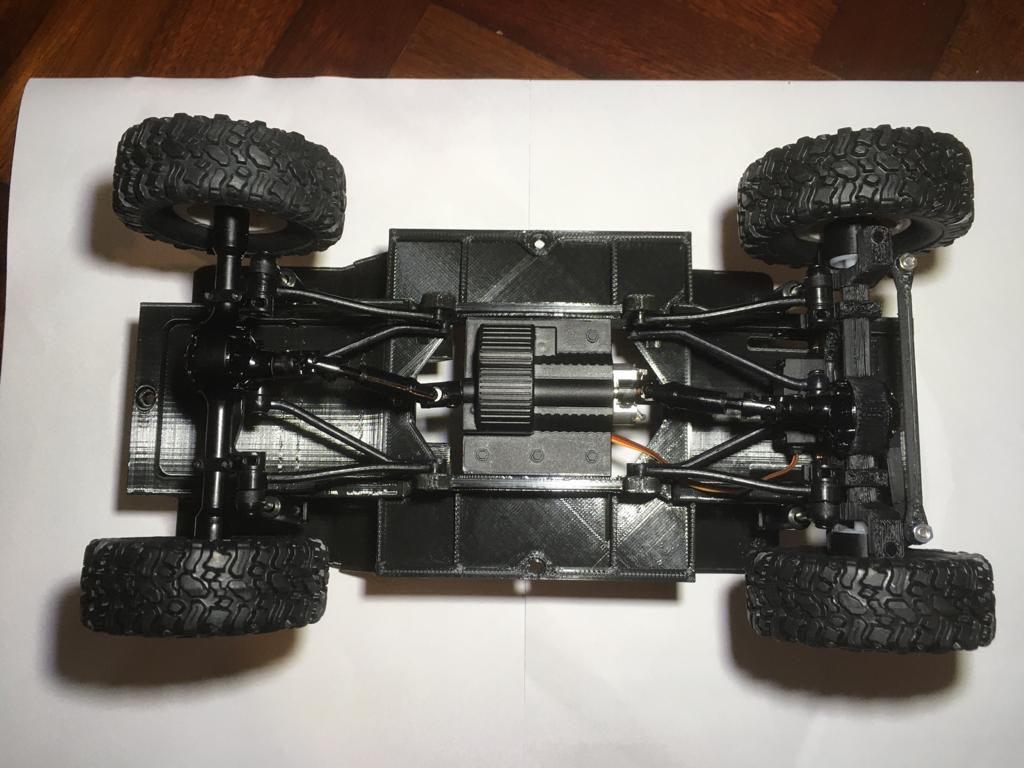

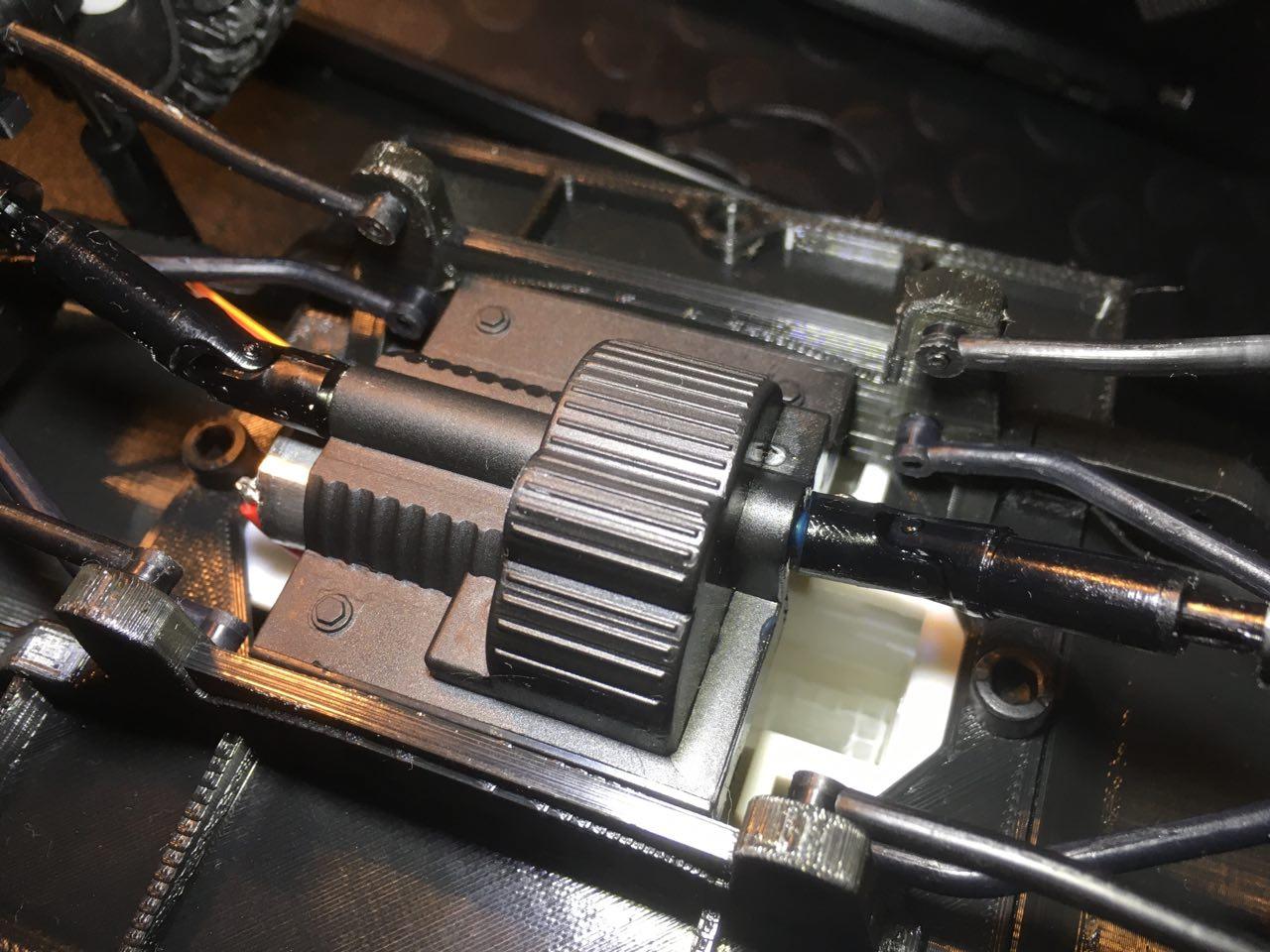

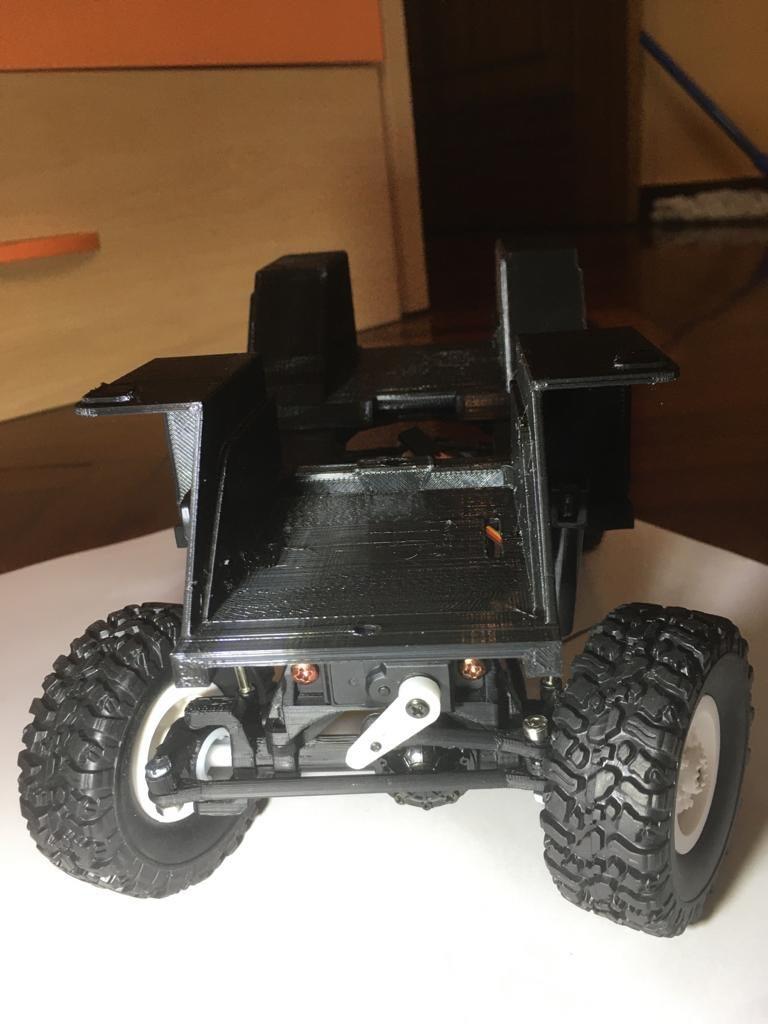

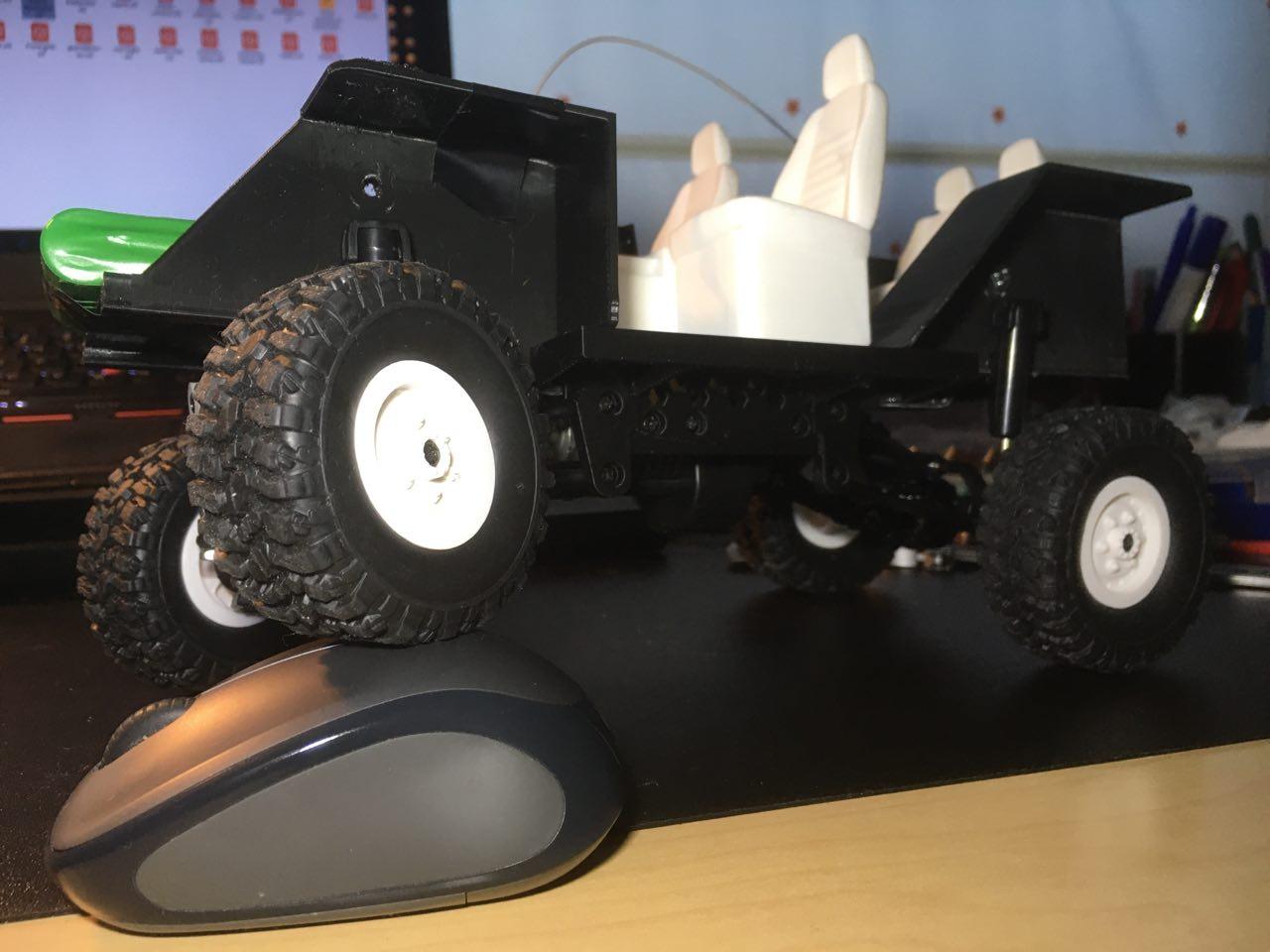

A 3D printed Landy Mini scaled at 125% with a modified chassis to adapt the mechanics of a WPL-C24 and its available metal upgrades. The author reports that all holes are compatible with the assembly kit screws. The motor compartment can accommodate two 18650 batteries in a 2s1p configuration. The seats are hollow to allow electronics to be placed inside. The author notes this is an evolving project.
Print instructions: Material: PLA. Chassis and interiors: 0.20 mm layer height. Body: 0.16 mm layer height, no supports; simply place the STL files as with the Landy Mini printing.
Original text by the author on Printables
<p>Landy Mini impreso en 3d al 125% con chasis modificado para poder adaptar toda la mecánica de un WPL-C24 y todas las actualizaciones a metal que hay para el, yo compré un c24 en kit, que no traía electrónica salvo servo y motor, todos los agujeros son compatibles con los tornillos del kit de montaje. En el hueco del motor se pueden poner dos 18650 en configuración 2s1p para alimentarlo, los asientos son huecos para poder meter toda la electronica dentro de estos, es un proyecto en evolución, espero ir mejorandolo poco a poco.</p> <h3>Print instructions</h3><p>Material de impresión: PLA<br/> chasis e interiores laminados en 0.20 mm<br/> carrocería laminada en 0.16 mm<br/> sin soportes, solo colocar los stl como la impresión del Landy Mini.</p>
AI-assisted English description reviewed against the CC0 source. Original content and author attribution retained; photographs from the author's Printables model gallery.
The publishing account has not yet confirmed any print settings. Material, supports, difficulty, temperatures and times remain as "Not verified" until verifiable data is available.
