Descripción
FPV Upgrade for ZOHD Altus – Magnetic Nose for Walksnail Moonlight
Purpose

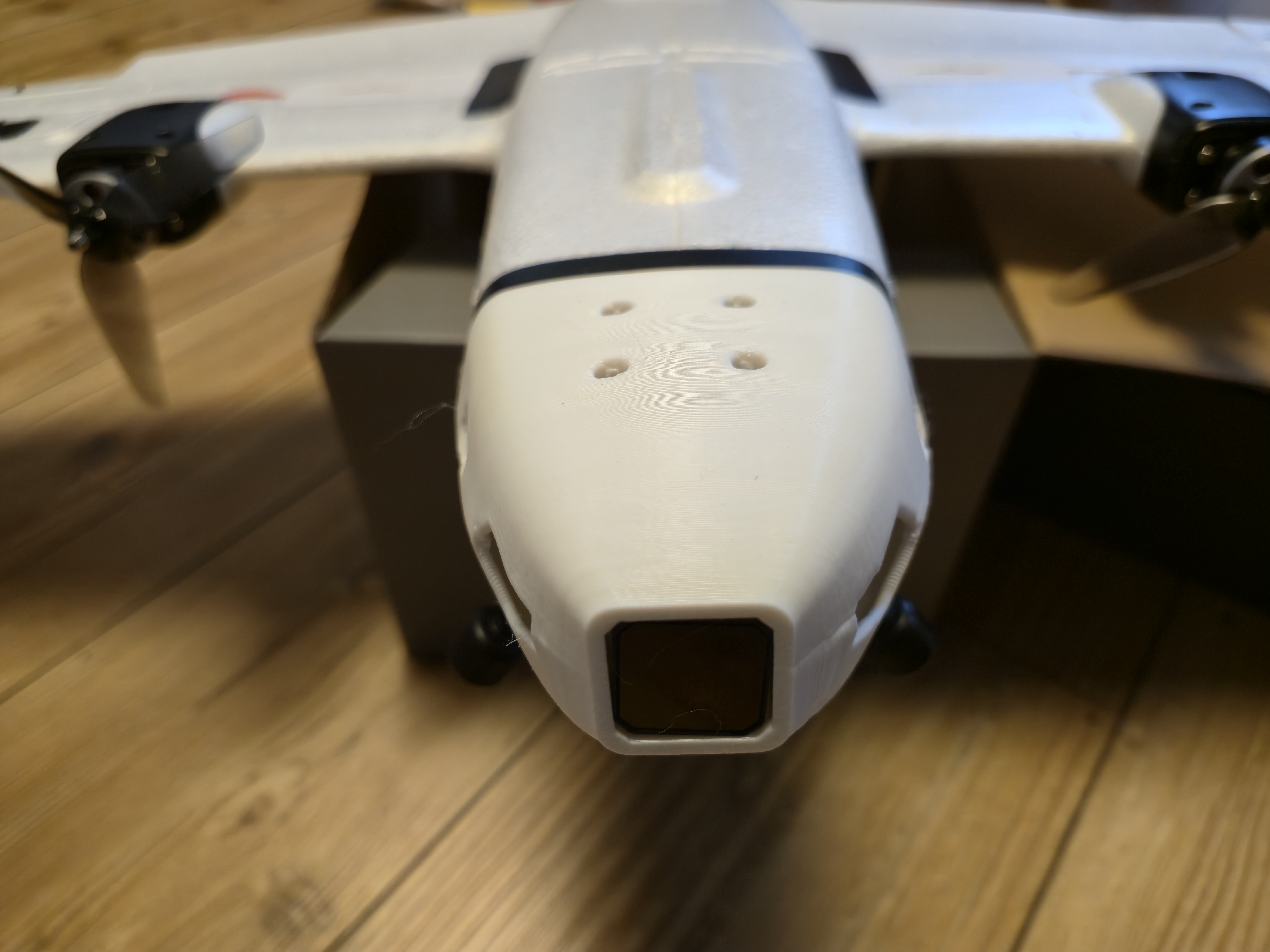

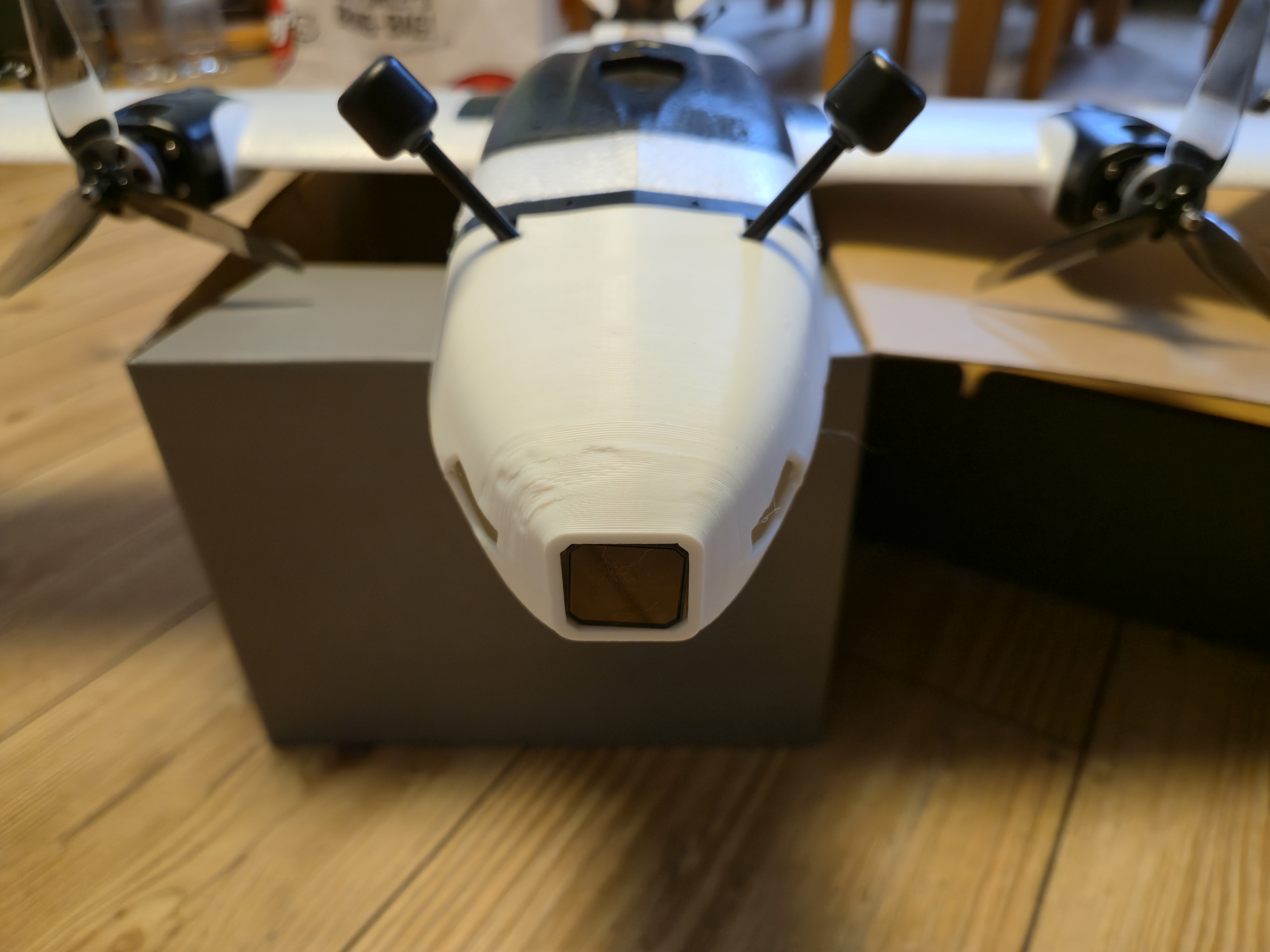

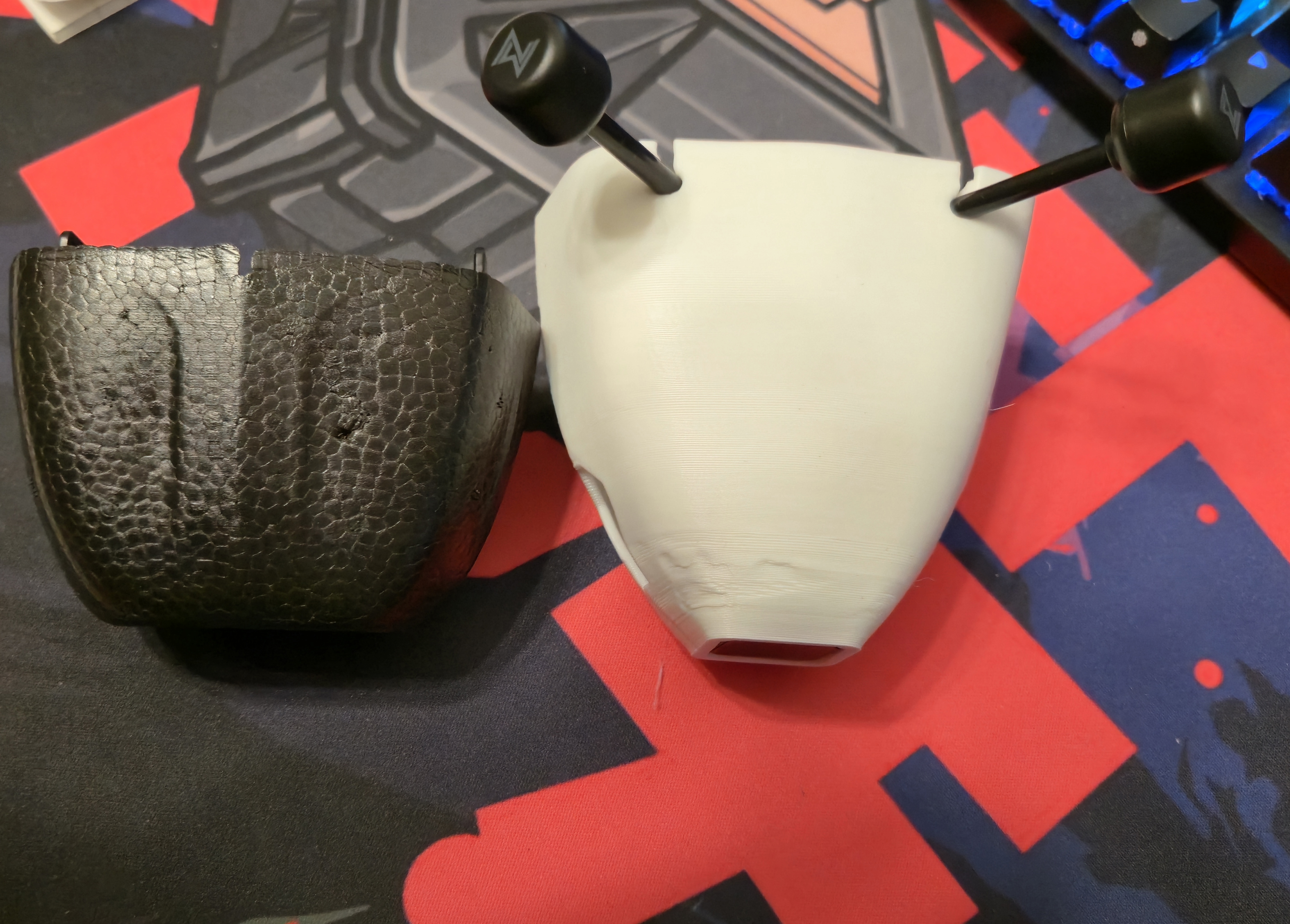

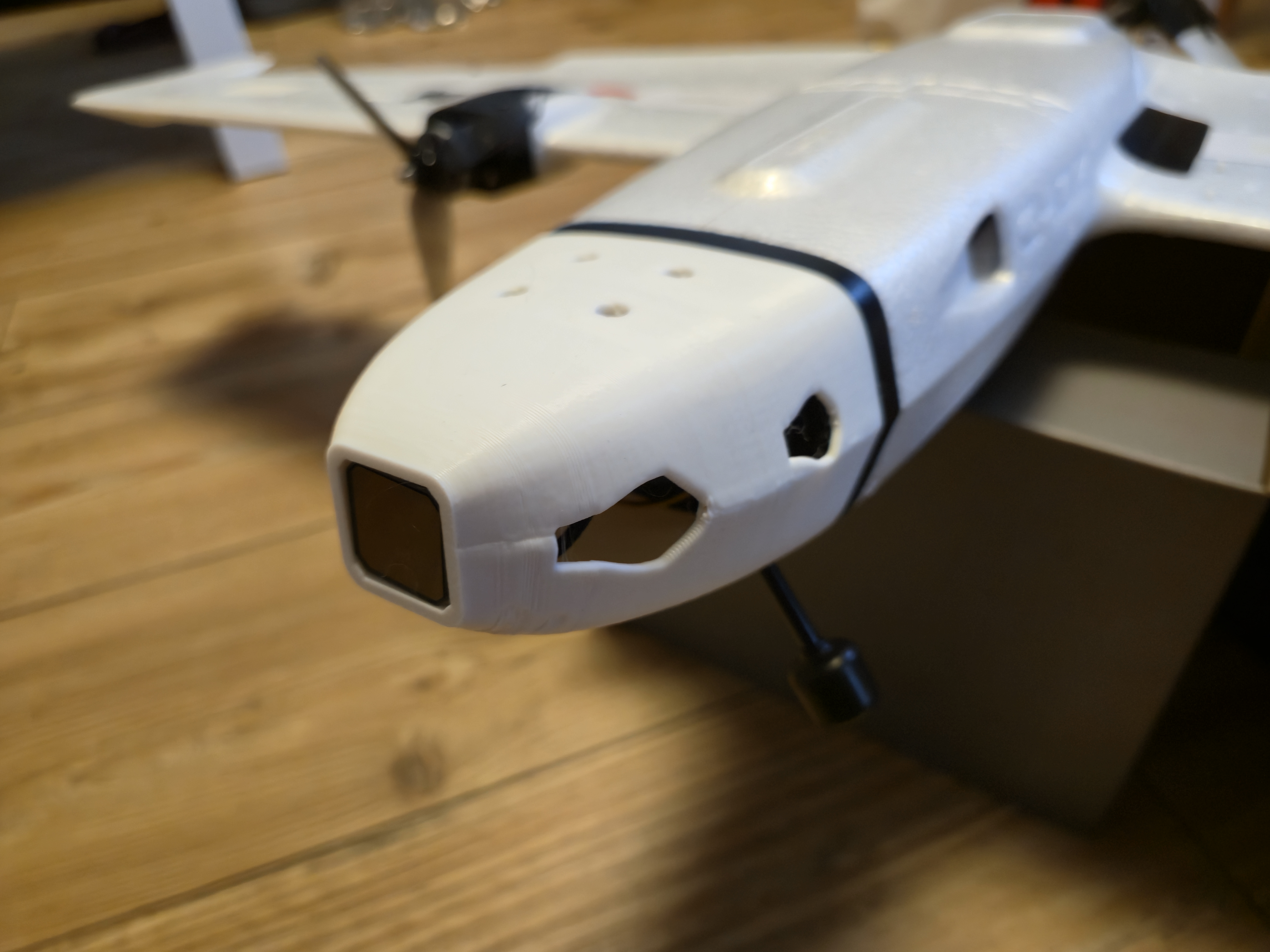

This 3D-printed nose is designed specifically for the ZOHD Altus FPV aircraft. It serves as a dedicated mount for the Walksnail Moonlight unit (camera and VTX) and attaches to the fuselage using magnets, eliminating the need for screws or glue.
Practical Uses

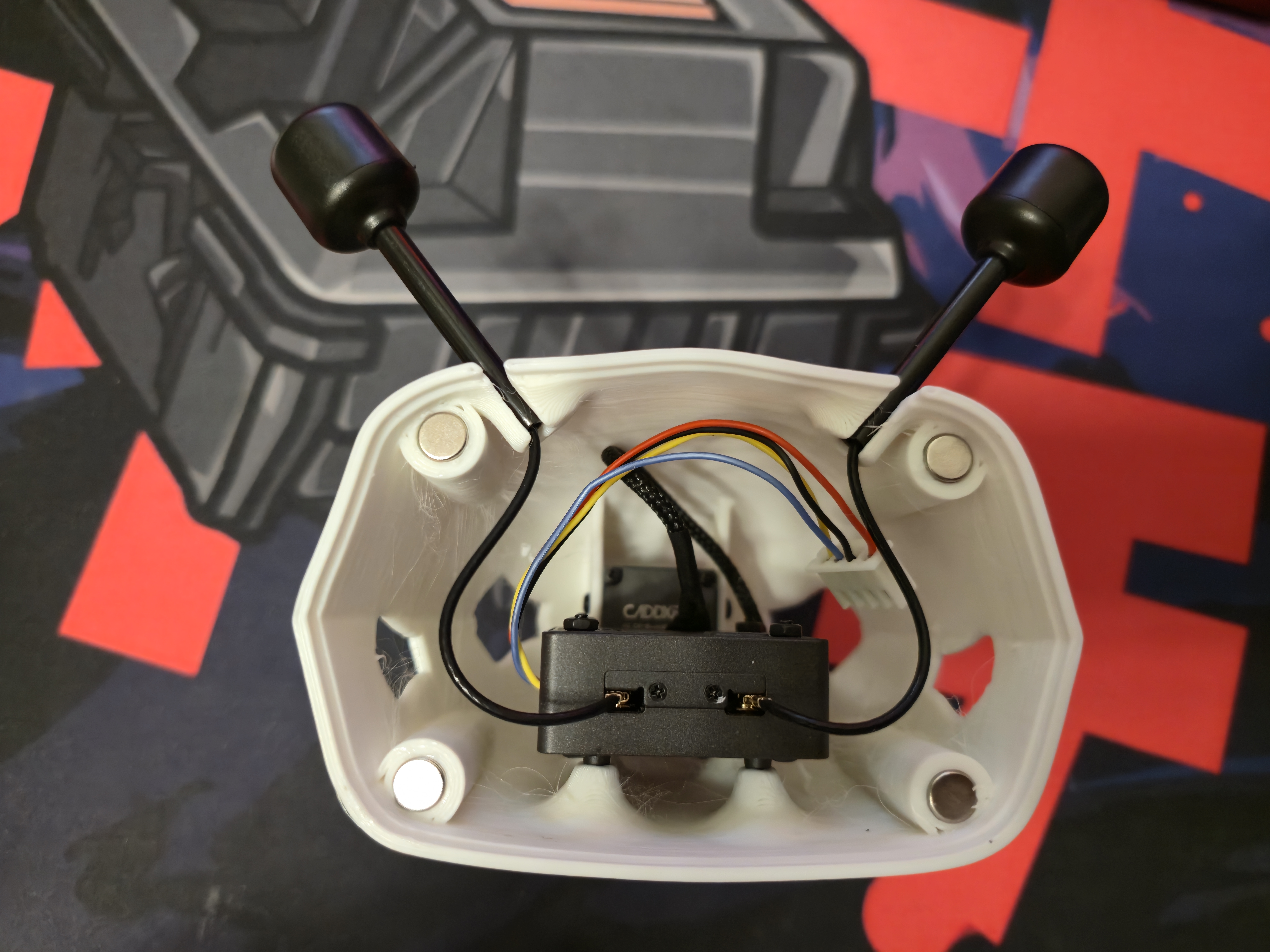

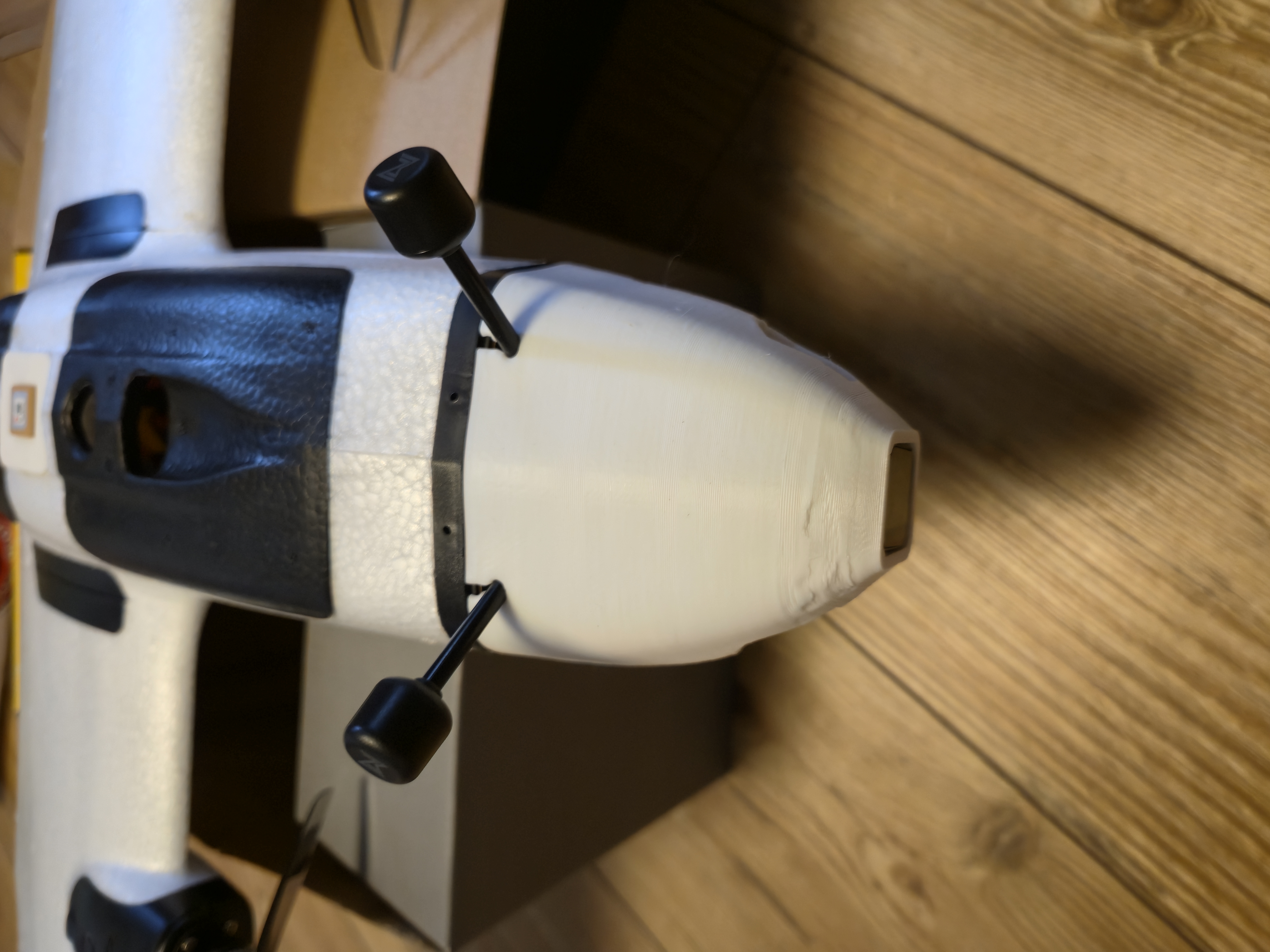

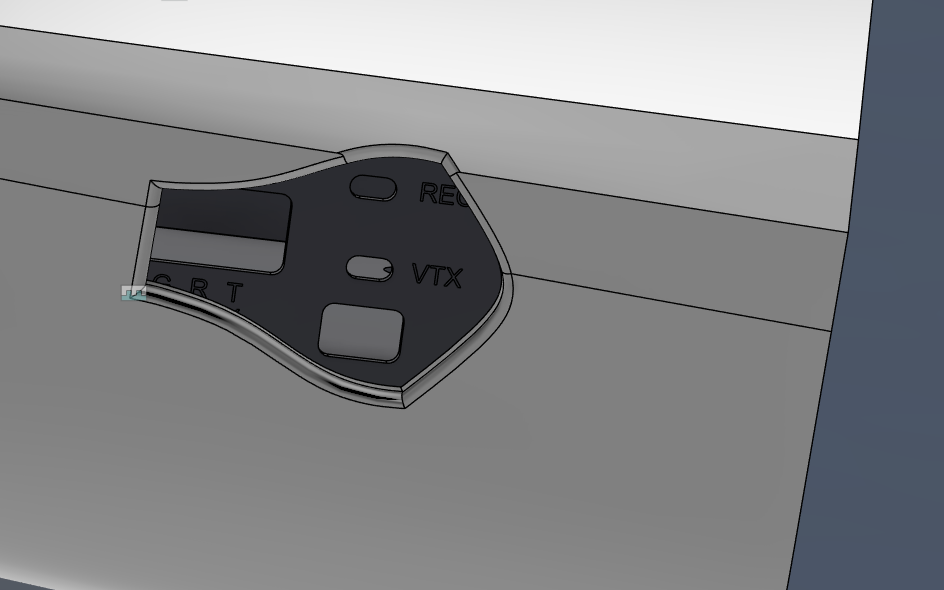

Providing an aerodynamic and closed front to protect electronics, the design includes built-in ventilation and antenna holes suitable for dual antenna setups. It is engineered to allow easy access to the SD-Card and the bind button.
Included Parts
- 3D model: Zohd Altus Nose Walksnail.obj
Printing and Assembly Guidance

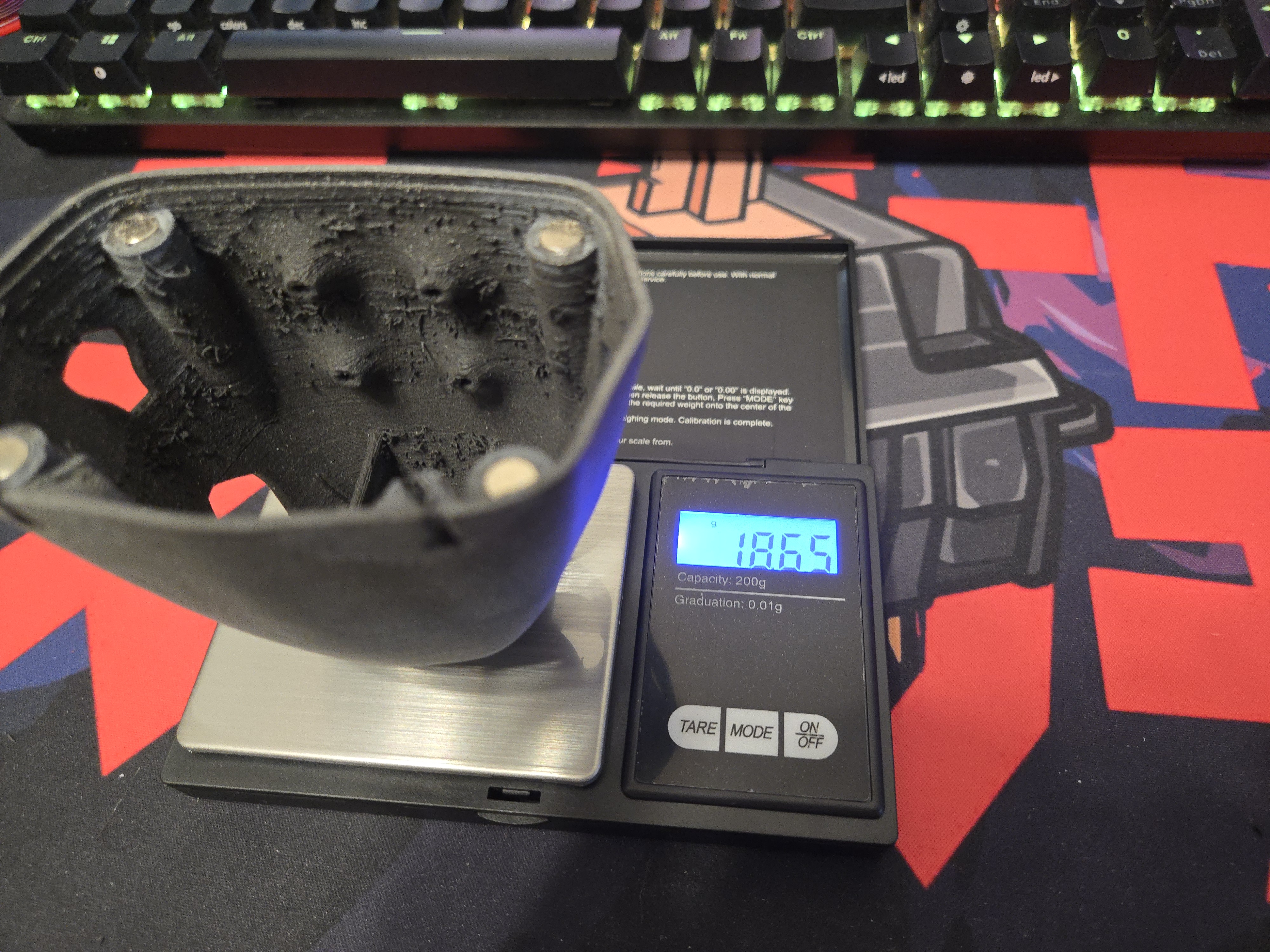

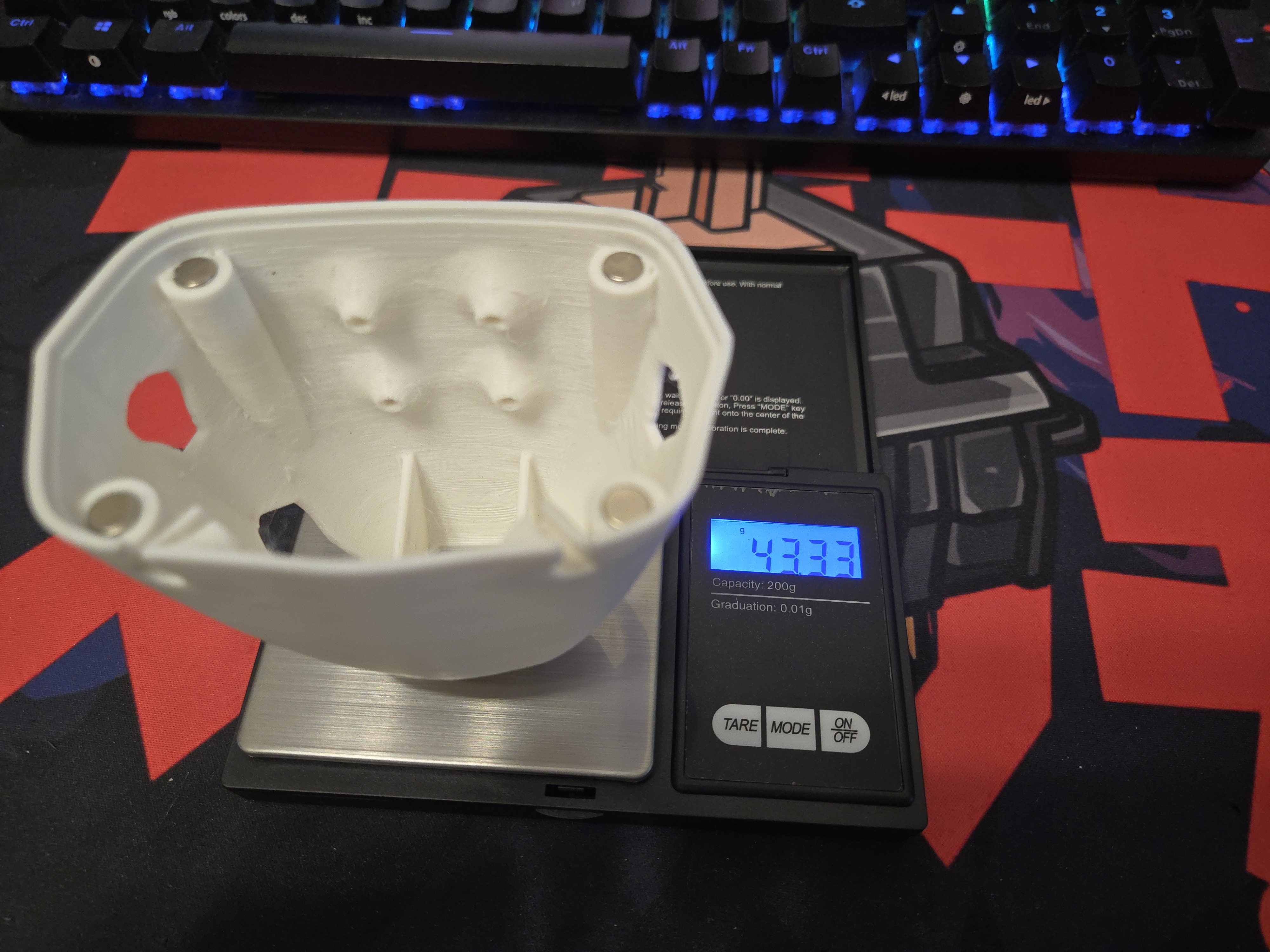

For printing, the author suggests using any material and any layer height. Supports are not required. The recommended print orientation is with the nose facing down. The author reports a weight of 43 grams when printed in solid PLA and 18 grams in LW-PLA.

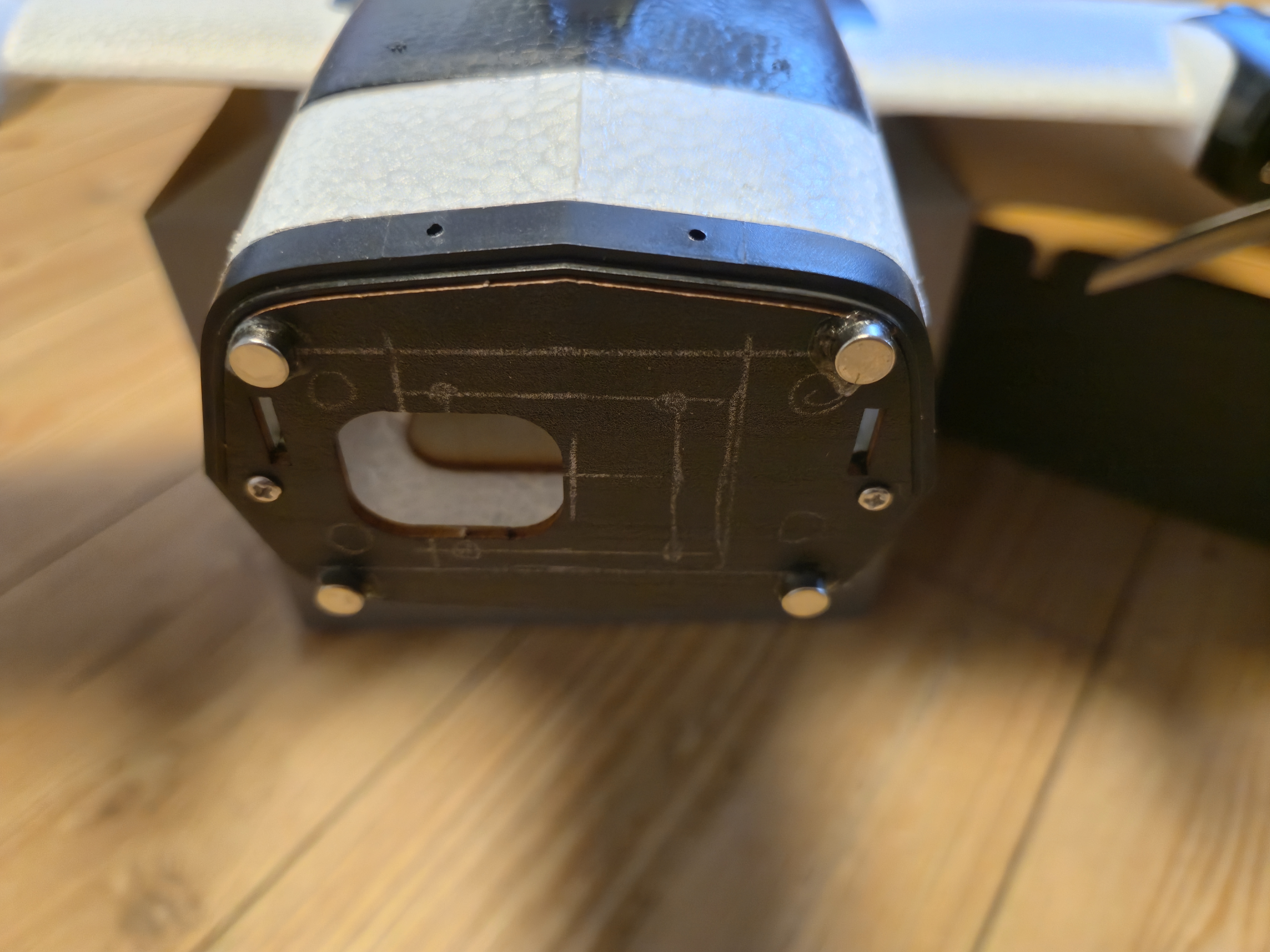

Assembly requires neodymium magnets. While the parts list specifies 8× Ø6 × 3 mm magnets, the author recommends using 4× Ø6 mm × 3 mm magnets for attachment to the fuselage.
Texto original del autor en Printables
<p>ZOHD Altus – Magnetic Nose for Walksnail Moonlight</p><p>This 3D-printed nose is designed specifically for the <strong>ZOHD Altus</strong> FPV aircraft.<br>It provides a <strong>dedicated mount for the Walksnail Moonlight unit</strong> (camera + VTX) and attaches <strong>magnetically</strong> to the fuselage – no screws or glue required.</p><h3>🧩 Features:</h3><p><strong>Fits ZOHD Altus</strong></p><p><strong>Integrated mount</strong> for Walksnail Moonlight (camera and VTX)</p><p><strong>Magnetic attachment</strong> (recommended: 4× magnets Ø6 mm × 3 mm)</p><p><strong>Built-in </strong>ventilation, access to SD-Card and bind button</p><p><strong>Easy access</strong> to camera and SD-Card</p><p><strong>Protects electronics</strong> with a closed and aerodynamic front</p><p>Antenna holes for <strong>dual antenna setups</strong></p><p><strong>Solid PLA 43 gramm</strong></p><p><strong>LW-PLA 18 gramm</strong></p><h3>🖨 Print recommendations:</h3><p>Material: what you want</p><p>Layer height: what you want</p><p>Supports: not needed</p><p>Print orientation: Nose facing down</p><h3>⚙ Required components:</h3><p>8× Neodymium magnets Ø6 × 3 mm</p><p> </p>
