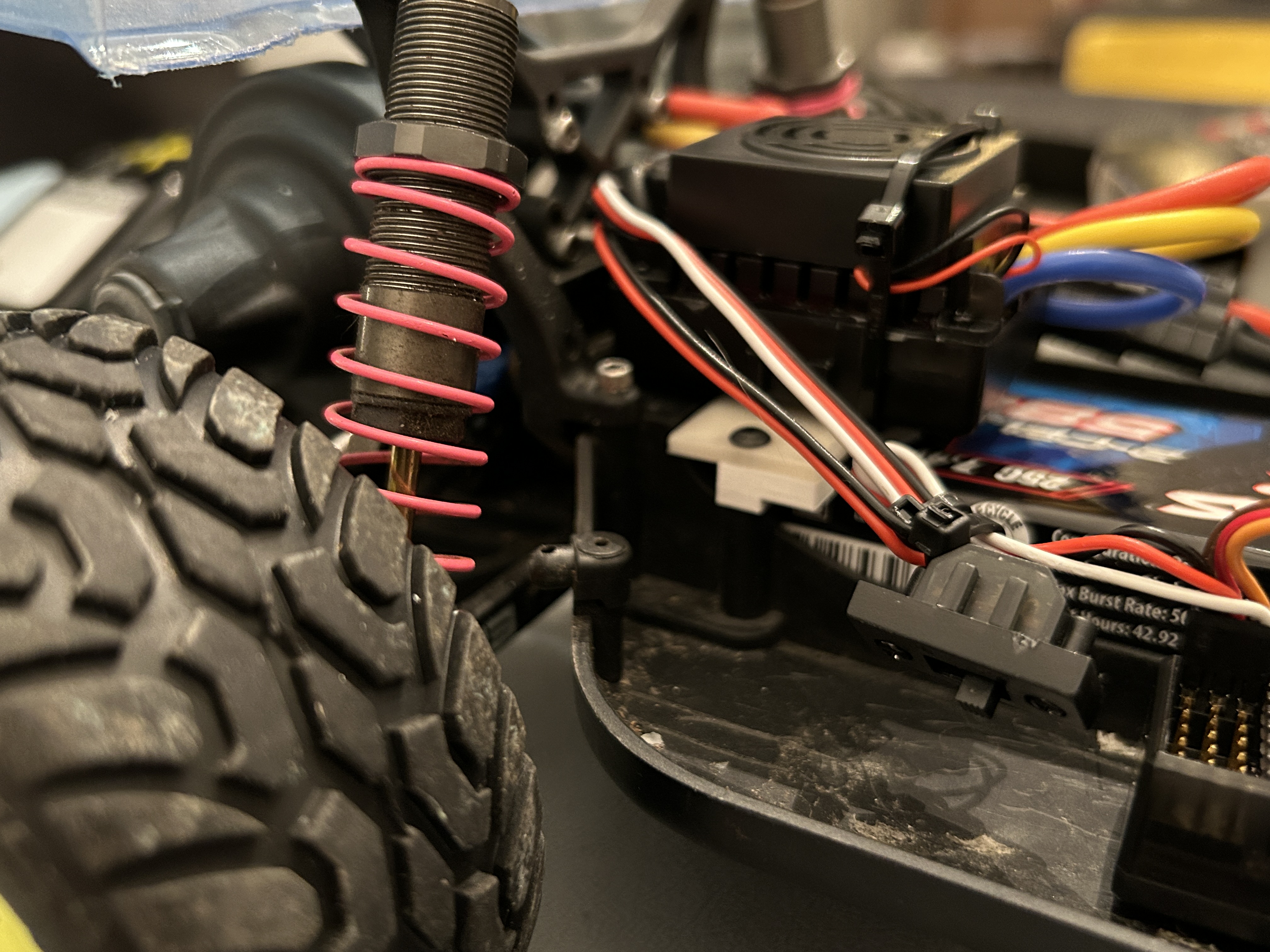

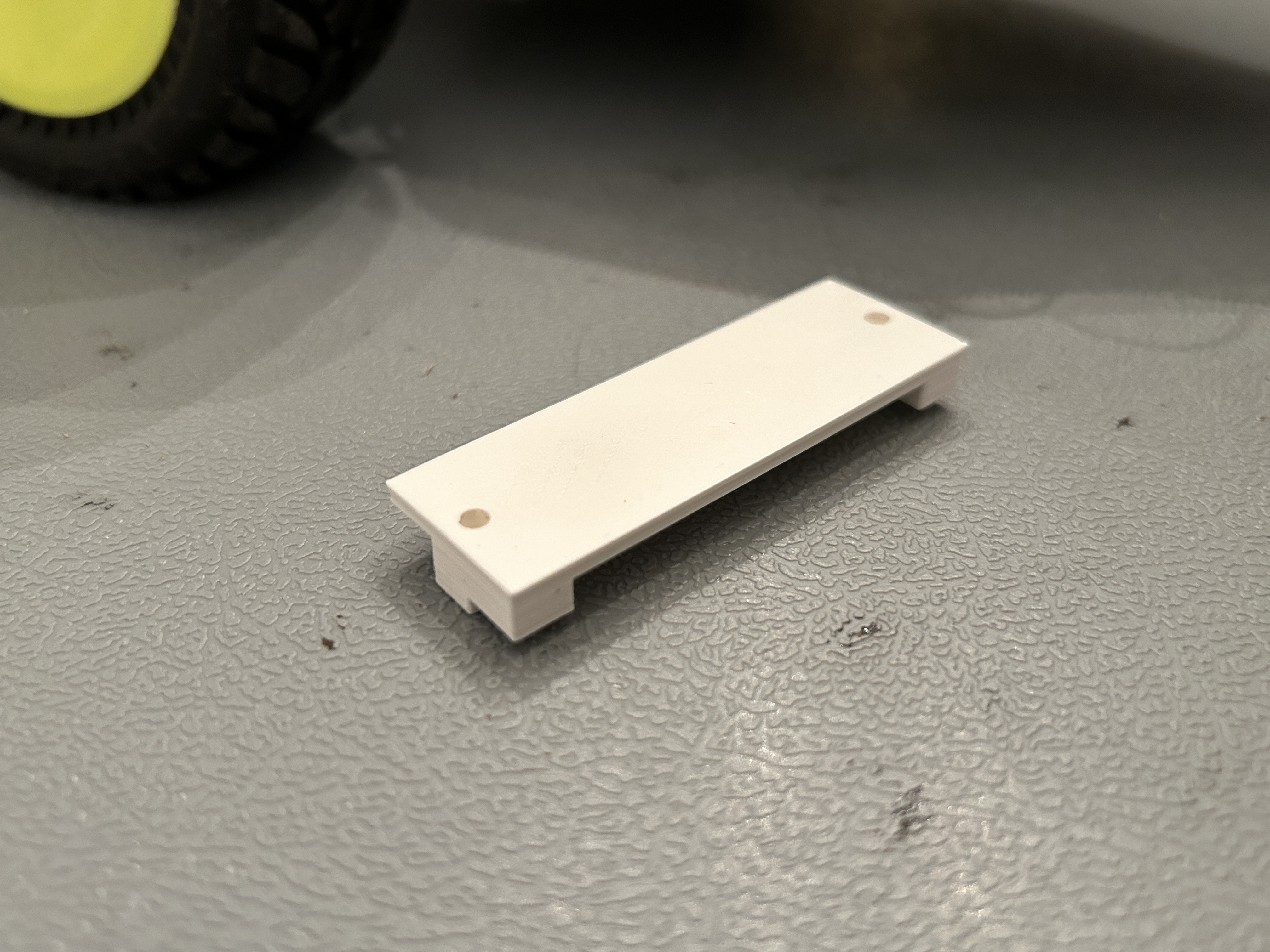

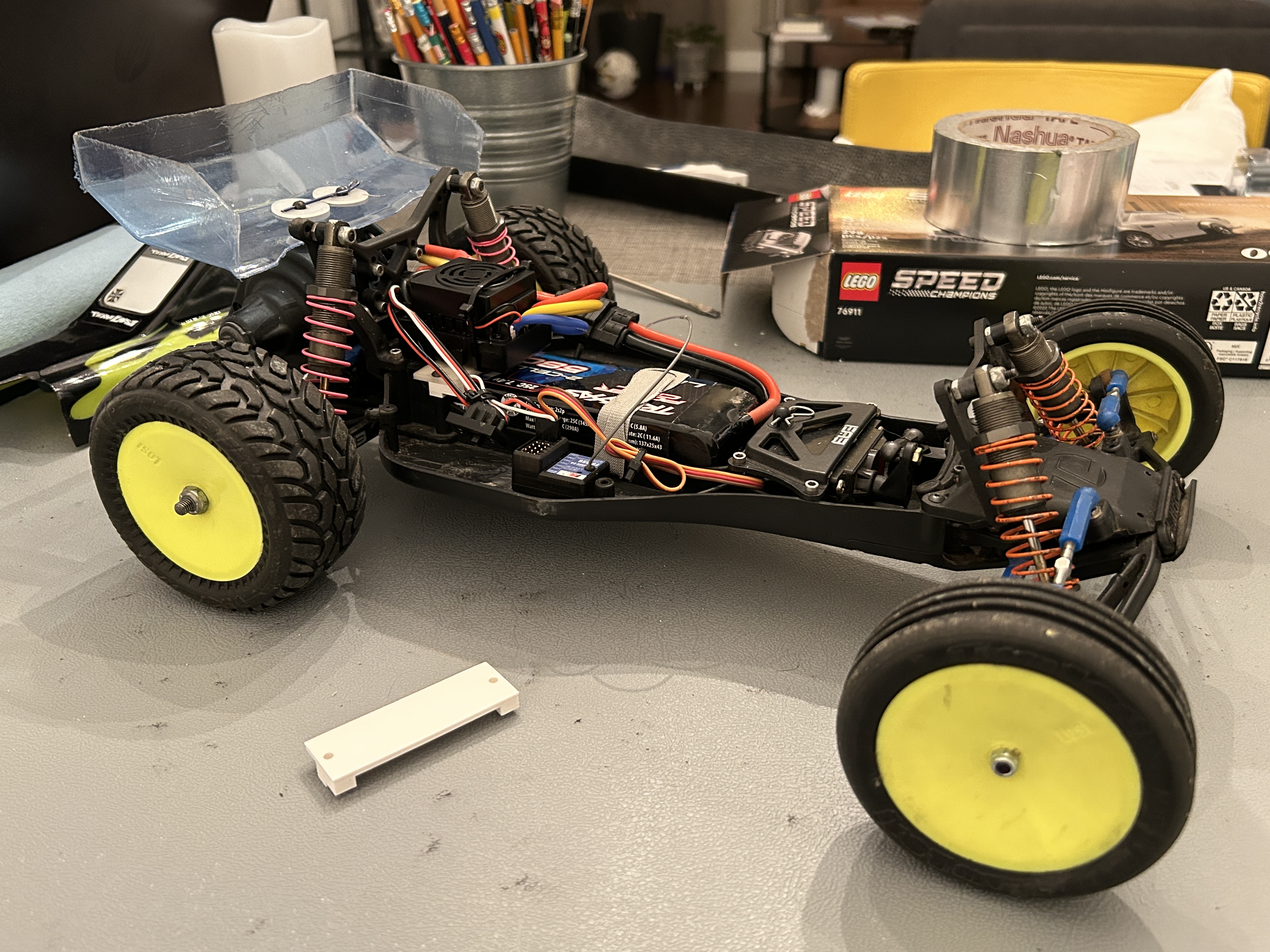

A small mount for a brushless ESC on the Losi XXX-CR. The author states this mounts using the existing unused holes on each side of the battery bay. The holes in the chassis need to be tapped using a #4-40 hand tap and the bracket attached with suitable #4-40 screws. The author notes that M3 tap and fasteners would probably work too. Once attached to the chassis, the ESC is mounted with double sided tape. The author reports there is very little room under the XXX-CR body and this manages to just fit everything in there.
Original text by the author on Printables
<p>This mounts using the existing unused holes on each side of the battery bay. The holes in the chassis need to be tapped using a #4-40 hand tap and the bracket attached with suitable #4-40 screws. M3 tap and fasteners would probably work too. Once attached to the chassis, the ESC is mounted with double sided tape. There is very little room under the XXX-CR body and this manages to just fit everything in there.</p>
AI-assisted English description reviewed against the CC0 source. Original content and author attribution retained; photographs from the author's Printables model gallery.
The publishing account has not yet confirmed any print settings. Material, supports, difficulty, temperatures and times remain as "Not verified" until verifiable data is available.
