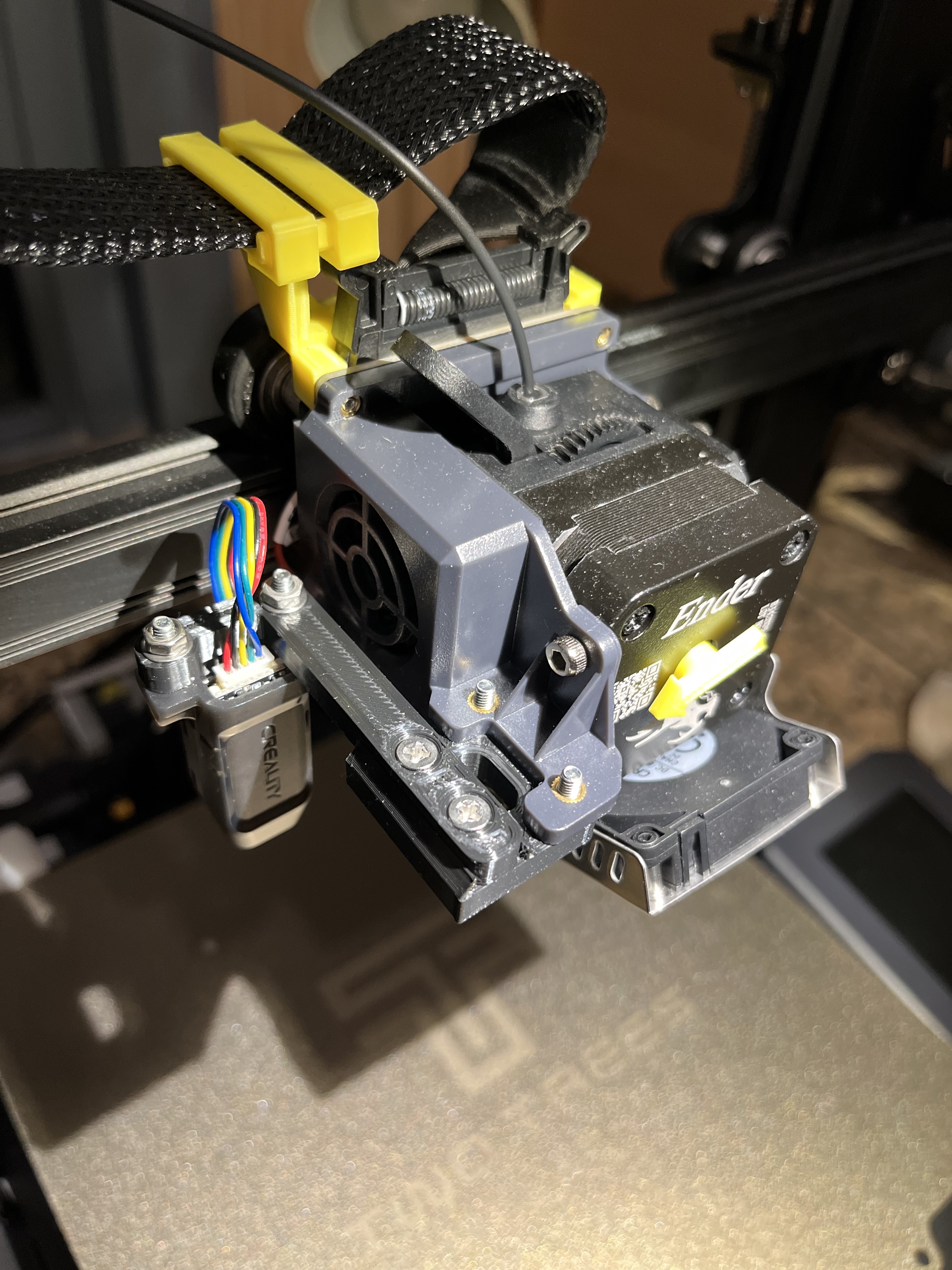

An adjustable mount for the CR Touch designed to achieve a zero offset. The author notes that previous zero-offset mounts were inaccurate due to printer inaccuracy. This design is intended to avoid the need to continually remove the extruder from the carriage.
Assembly requires four M3 screws and four M3 hex nuts, in addition to the two original screws. The author recommends using two washers under the adjustable section of the arm to ensure it holds more evenly.
As a guide for lining up the CR Touch, the author suggests printing a small circle in the center of the bed (which can be created in Cura by importing and resizing a cylinder).
