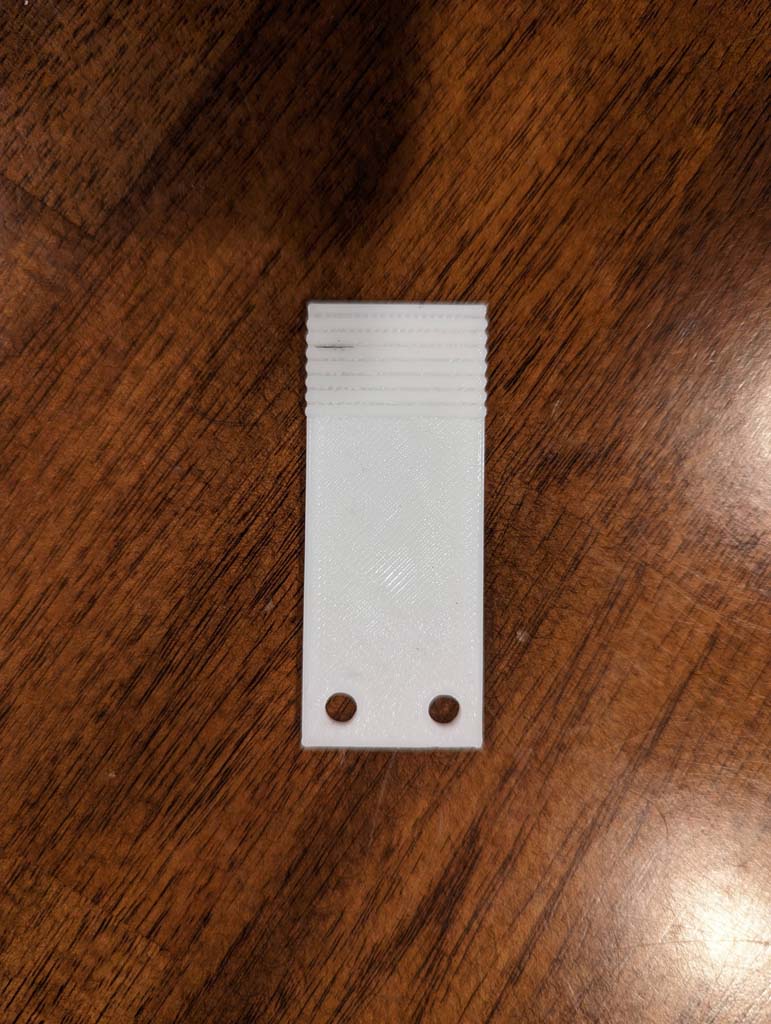

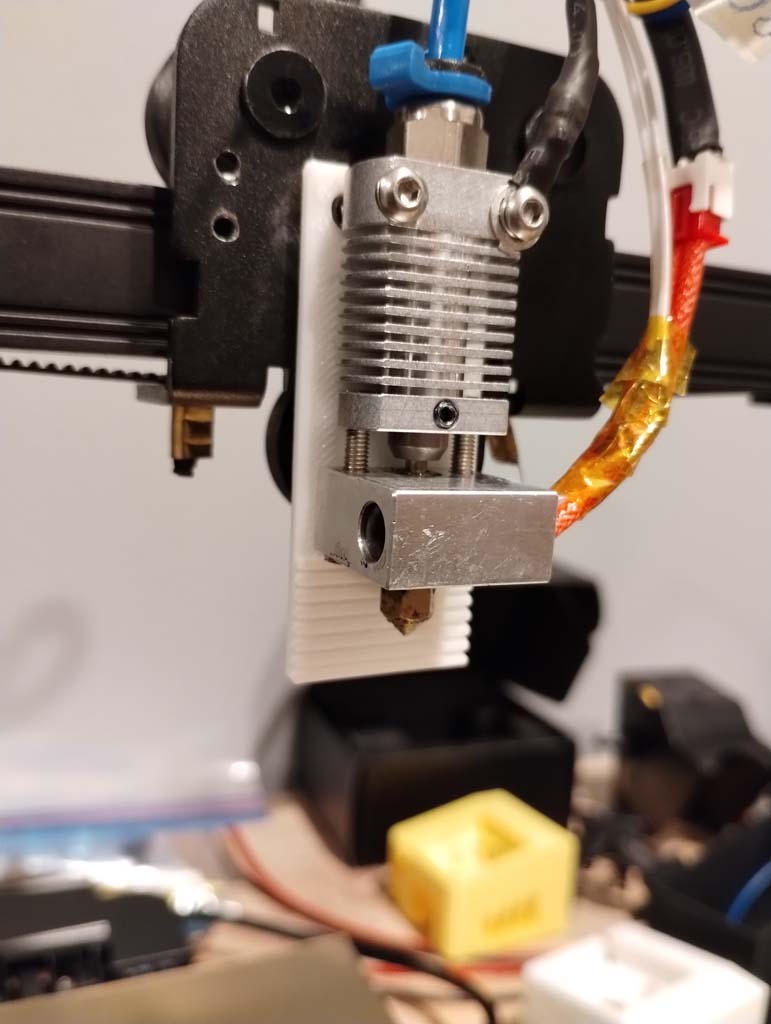

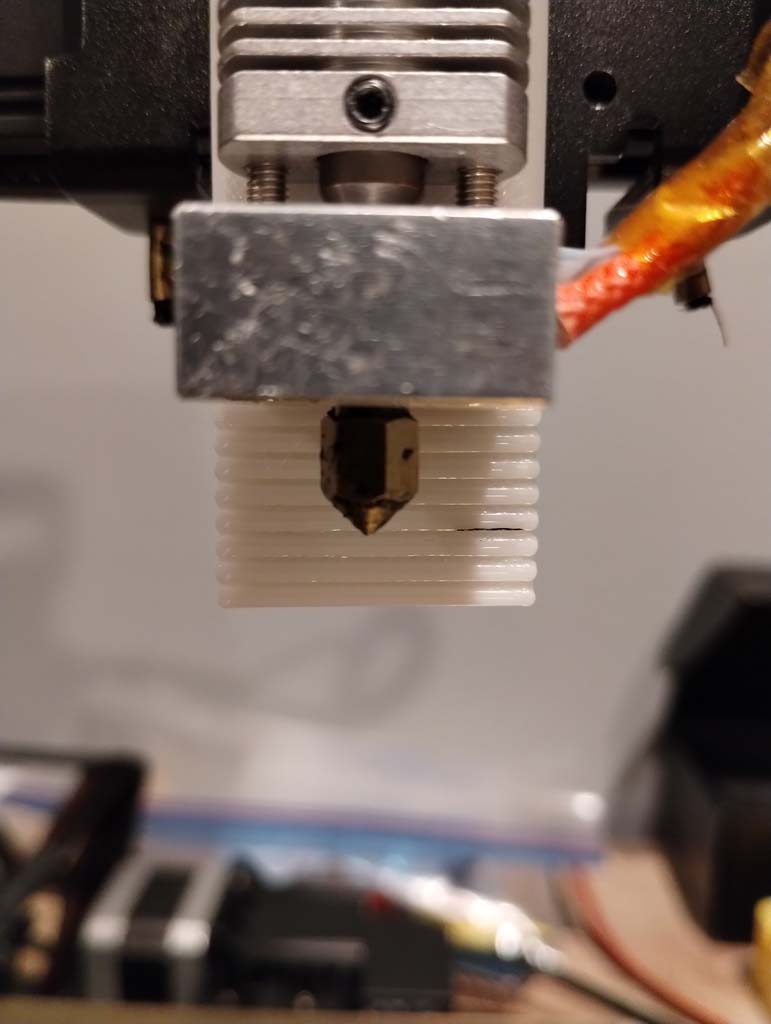

A tool to help measure the distance of the nozzle from the screws used to hold the Ender-3 stock heatsink. The author states it helps mainly for designing new mounts for custom setups. The distance from the center of the screws to the bottom is 55mm. Each line should effectively be 1mm.
Original text by the author on Printables
<p>This is a tool to help measure the distance of the nozzle from the screws to hold the Ender-3 stock heatsink. It helps to mainly for designing new mounts for custom setups.</p><p>Distance from the center of the screws to the bottom is 55mm. Each line should effectively be 1mm.</p>
AI-assisted English description reviewed against the CC0 source. Original content and author attribution retained; photographs from the author's Printables model gallery.
The publishing account has not yet confirmed any print settings. Material, supports, difficulty, temperatures and times remain as "Not verified" until verifiable data is available.
