Model information
Description

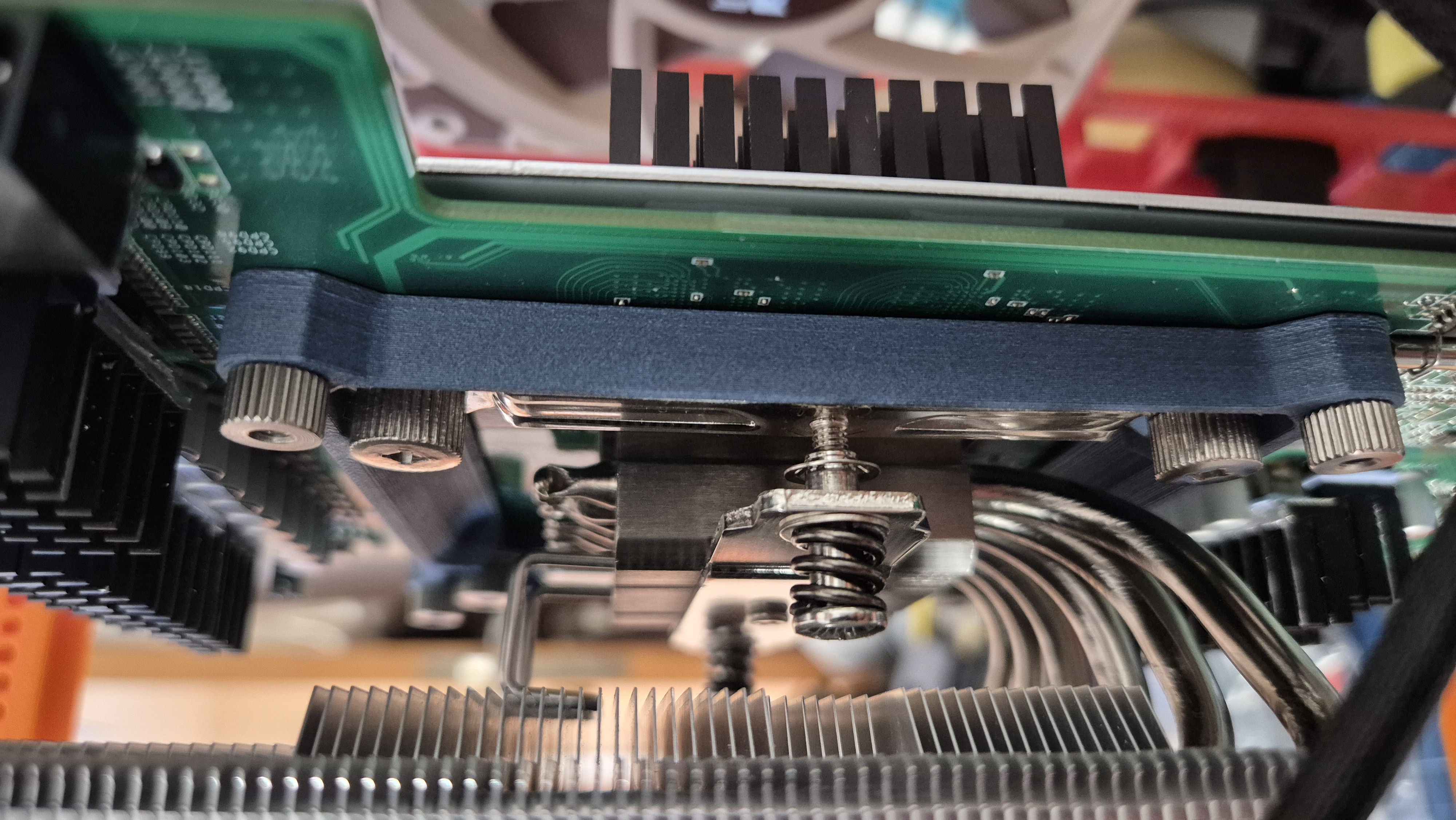

3D model: Custom mounting adapter to fit a DeepCool AN600 low-profile cooler onto the AMD BC-250 motherboard.
Installation Hardware:
- Bracket Requirement: This adapter is designed to be used specifically with the Intel mounting brackets included with the DeepCool AN600 kit.
- 4x M3 x 12mm bolts
- 4x M3 x 20mm bolts
- 8x M3 nuts
Recommended Materials: The author recommends using high-temperature, stiff filaments to prevent warping or sagging under thermal load, listing ASA, ABS, or Carbon Fiber/Glass Fiber reinforced PETG (CF-PETG / GF-PETG) as best options.
Suggested Print Settings:
- Walls: 4
- Top/Bottom Layers: 6
- Infill: 30% Cubic
Note: The author states that high wall counts and the cubic infill pattern ensure the structural rigidity needed for consistent mounting pressure.
Original text by the author on Printables
<h3>3D Model: DeepCool AN600 Adapter for AMD BC-250</h3><p>This 3D-printable mounting solution allows the installation of a DeepCool AN600 cooler onto the AMD BC-250 motherboard.</p><p><strong>Installation Hardware:</strong></p><ul><li><p><strong>Bracket Requirement:</strong> This adapter is designed to be used specifically with the <strong>Intel mounting brackets</strong> included with the DeepCool AN600 kit.</p></li><li><p><strong>4x</strong> M3 x 12mm bolts</p></li><li><p><strong>4x</strong> M3 x 20mm bolts</p></li><li><p><strong>8x</strong> M3 nuts</p></li></ul><p><strong>Recommended Materials:</strong></p><ul><li><p>Use high-temperature, stiff filaments to prevent warping or sagging under thermal load.</p></li><li><p><strong>Best options:</strong> ASA, ABS, or Carbon Fiber/Glass Fiber reinforced PETG (CF-PETG / GF-PETG).</p></li></ul><p><strong>Suggested Print Settings:</strong></p><ul><li><p><strong>Walls:</strong> 4</p></li><li><p><strong>Top/Bottom Layers:</strong> 6</p></li><li><p><strong>Infill:</strong> 30% Cubic</p></li><li><p><strong>Note:</strong> High wall counts and the cubic infill pattern ensure the structural rigidity needed for consistent mounting pressure.</p></li></ul><p></p>
