Model information
Description

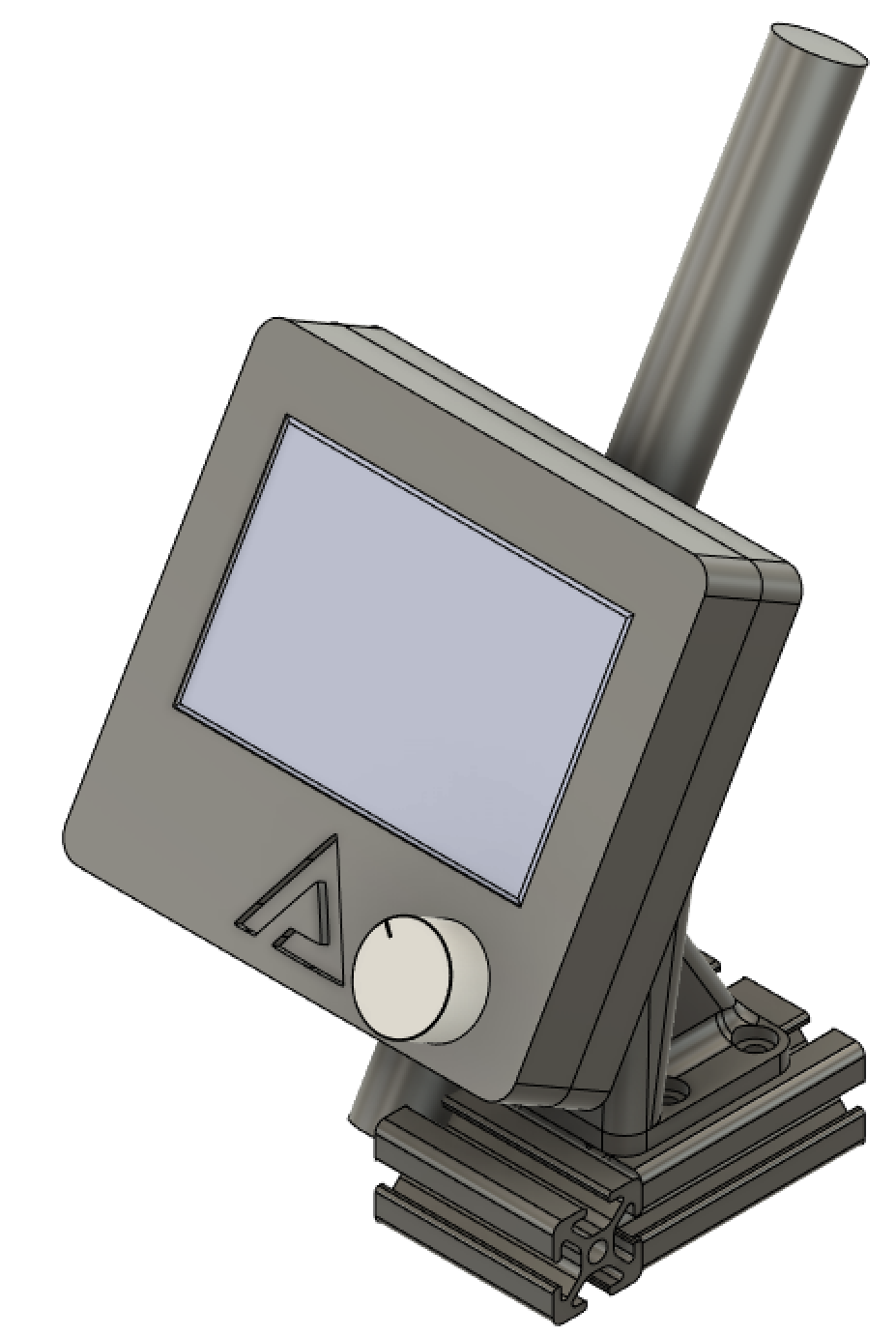

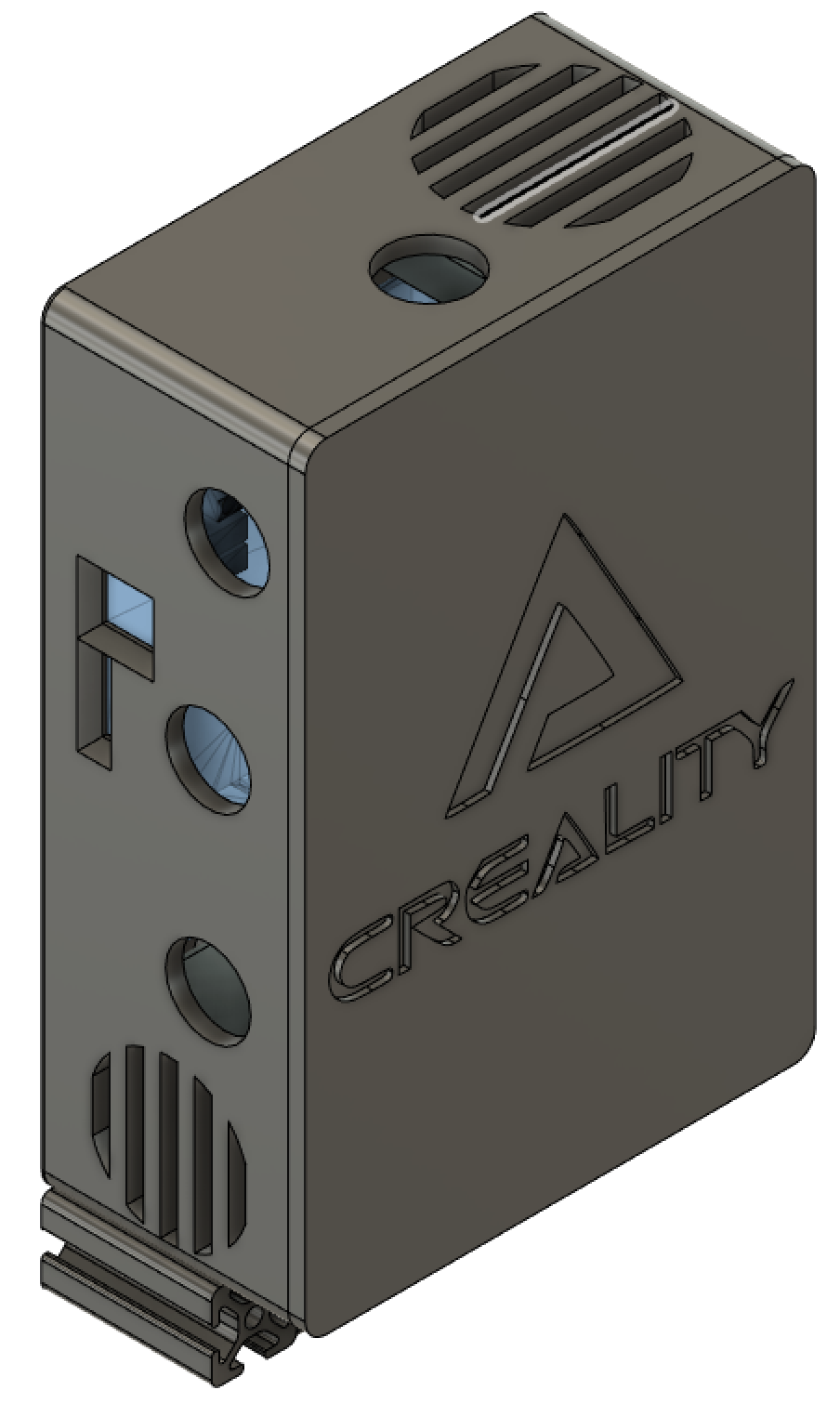

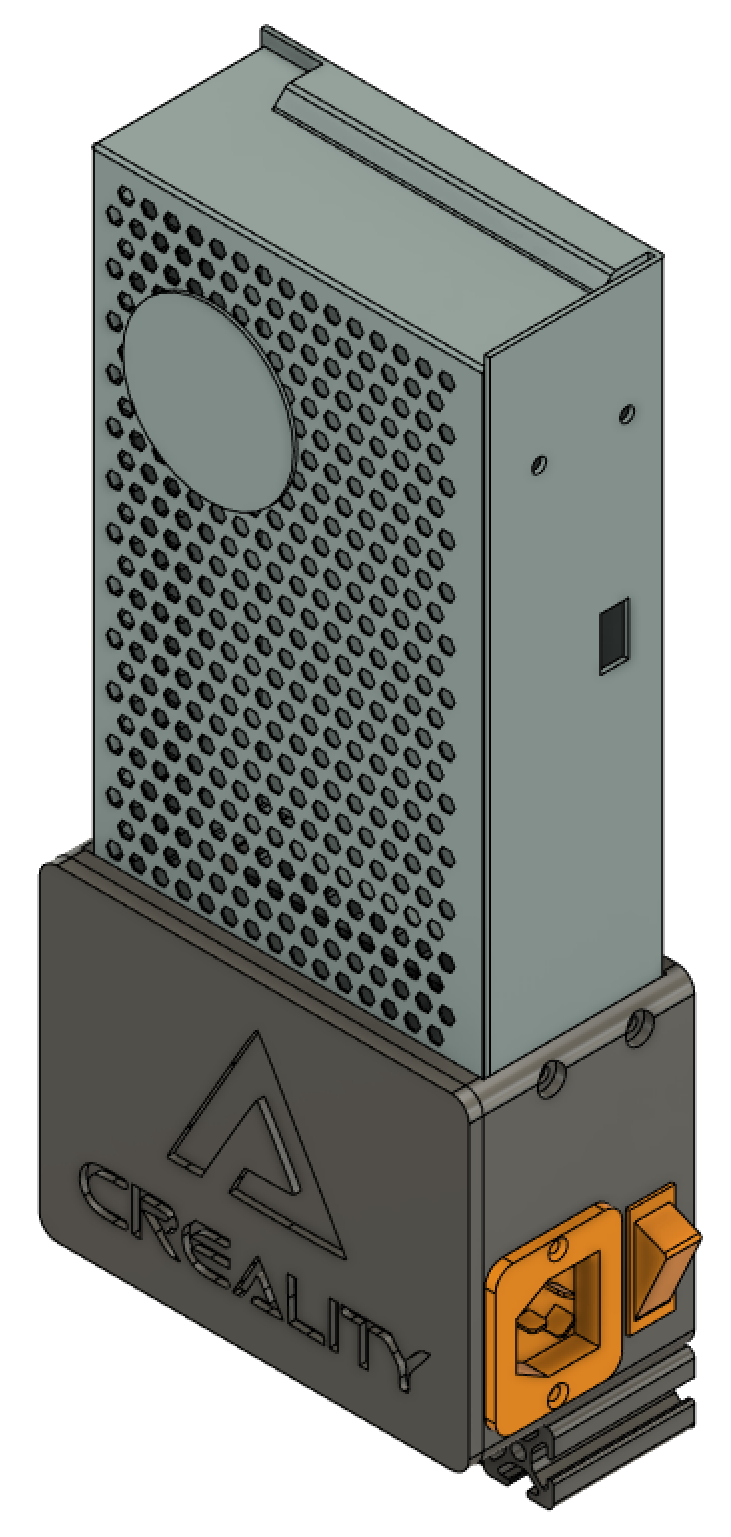

A work in progress project intended to mount the LCD at the front and house the control board, mosfet, fans, and power supply in the rear. The author reports that panels are accessed via magnets. The author notes that some heat-set inserts were difficult to install and that the power supply holes for the power plug and power switch may need to be enlarged by approximately 2mm, as the author trimmed them manually. Step files are included for alterations. The author states this is not for beginners and will require additional wiring, crimps, connectors, superglue, and fasteners. The author lists the following components used: magnets, LCD cable, heat-set inserts, and wire loom.
Original text by the author on Printables

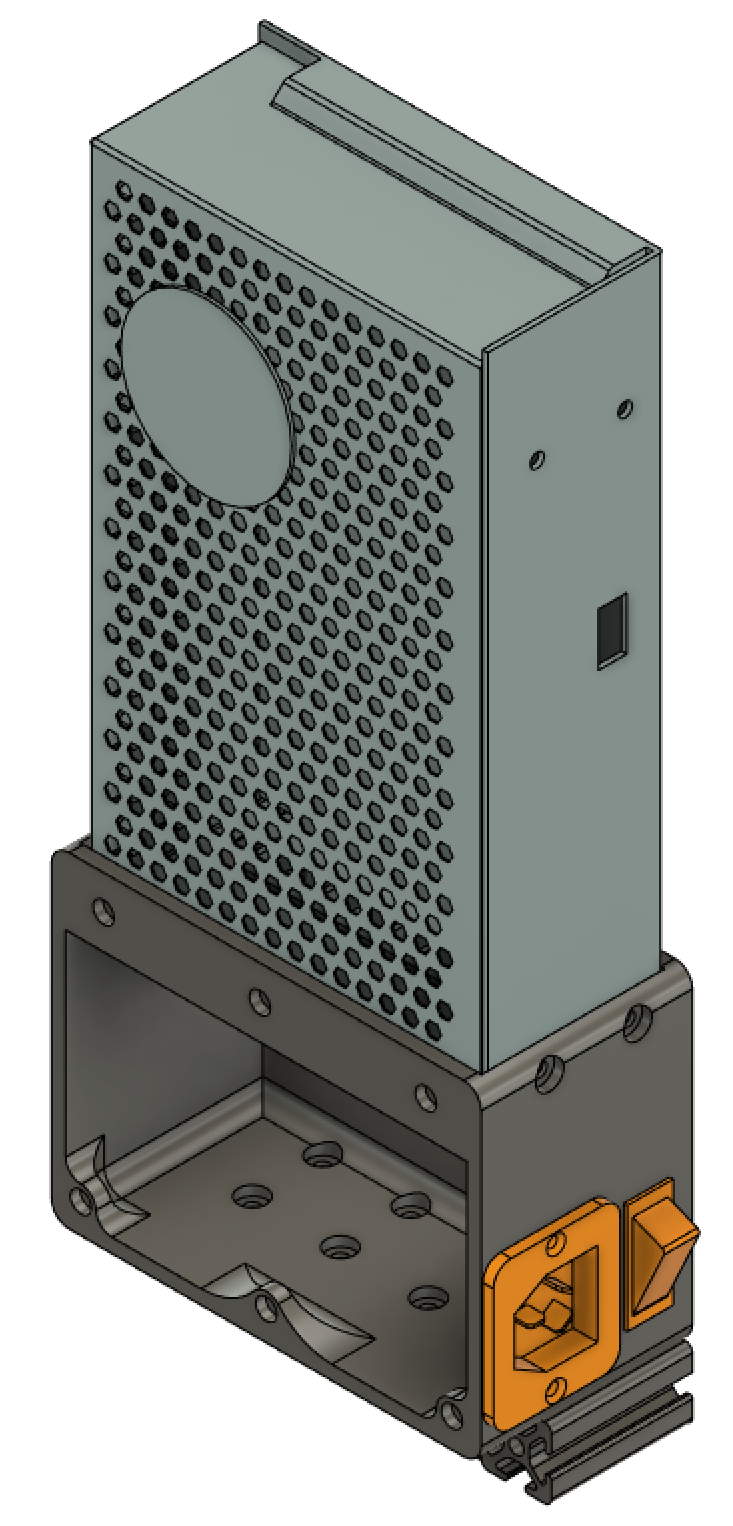

<h3>WORK IN PROGRESS (but may work for you, it did for me)</h3><h5>The objective is to </h5><ul><li>mount the LCD up front but not in the way.</li><li>house the control board, mosfet and fans in the rear</li><li>attach the power supply in the rear</li><li>easy access to panels via magnets</li></ul><p>Magnets (To glue on the lids and cases)<br> <a href="https://www.amazon.com/gp/product/B07QG8FR8R/">https://www.amazon.com/gp/product/B07QG8FR8R/</a></p><p>LCD cable</p><p><a href="https://www.amazon.com/gp/product/B00XP58LLC/">https://www.amazon.com/gp/product/B00XP58LLC/</a></p><p>Heat-set inserts (most places where there are holes)<br> <a href="https://www.amazon.com/gp/product/B07LBQRYR3/">https://www.amazon.com/gp/product/B07LBQRYR3/</a></p><p>Wire loom (route all the wires)<br> <a href="https://www.amazon.com/gp/product/B07FW3GTXB/">https://www.amazon.com/gp/product/B07FW3GTXB/</a></p><p>Will need additional wiring, crimps, connectors, superglue, and fasteners.</p><p>Not for beginners.</p><h5>Additional notes:</h5><ul><li>Some of the heat-set inserts were difficult to install.</li><li>The power supply holes for the power plug and power switch need to be larger by about 2mm, I just trimmed them manually. Step files are included so alterations can be made.</li><li>There are plans to add a cable chain for hotend wires but it is not in the works currently</li></ul><h4>CAD Videos</h4><figure class="media"><oembed url="https://www.youtube.com/watch?v=xCEilybsyYA"></oembed></figure><figure class="media"><oembed url="https://www.youtube.com/watch?v=MgOM0fRROrM"></oembed></figure><figure class="media"><oembed url="https://www.youtube.com/watch?v=TaywUjJS7tA"></oembed></figure><h4>Partially Assembled</h4><figure class="media"><oembed url="https://www.youtube.com/watch?v=sAYJeKHzdFQ"></oembed></figure><h4>Completely Assembled</h4><figure class="media"><oembed url="https://www.youtube.com/watch?v=dFog-StvjjA"></oembed></figure><figure class="media"><oembed url="https://www.youtube.com/watch?v=uZG94d65jnc"></oembed></figure><p> </p>
