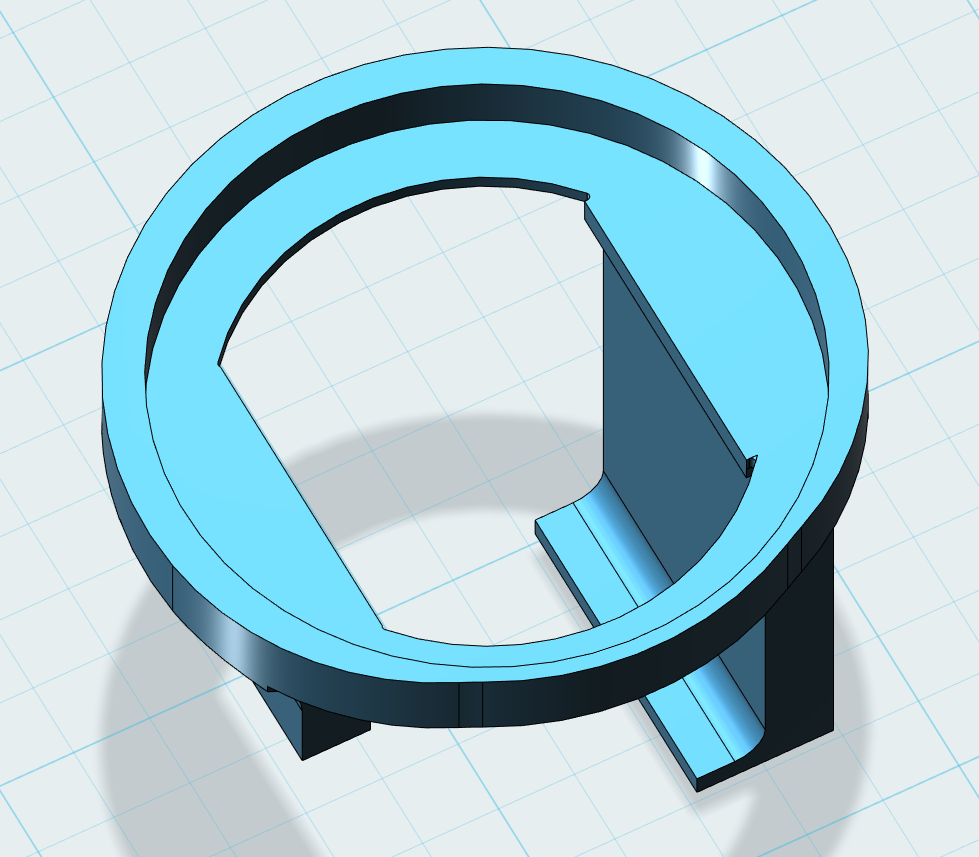

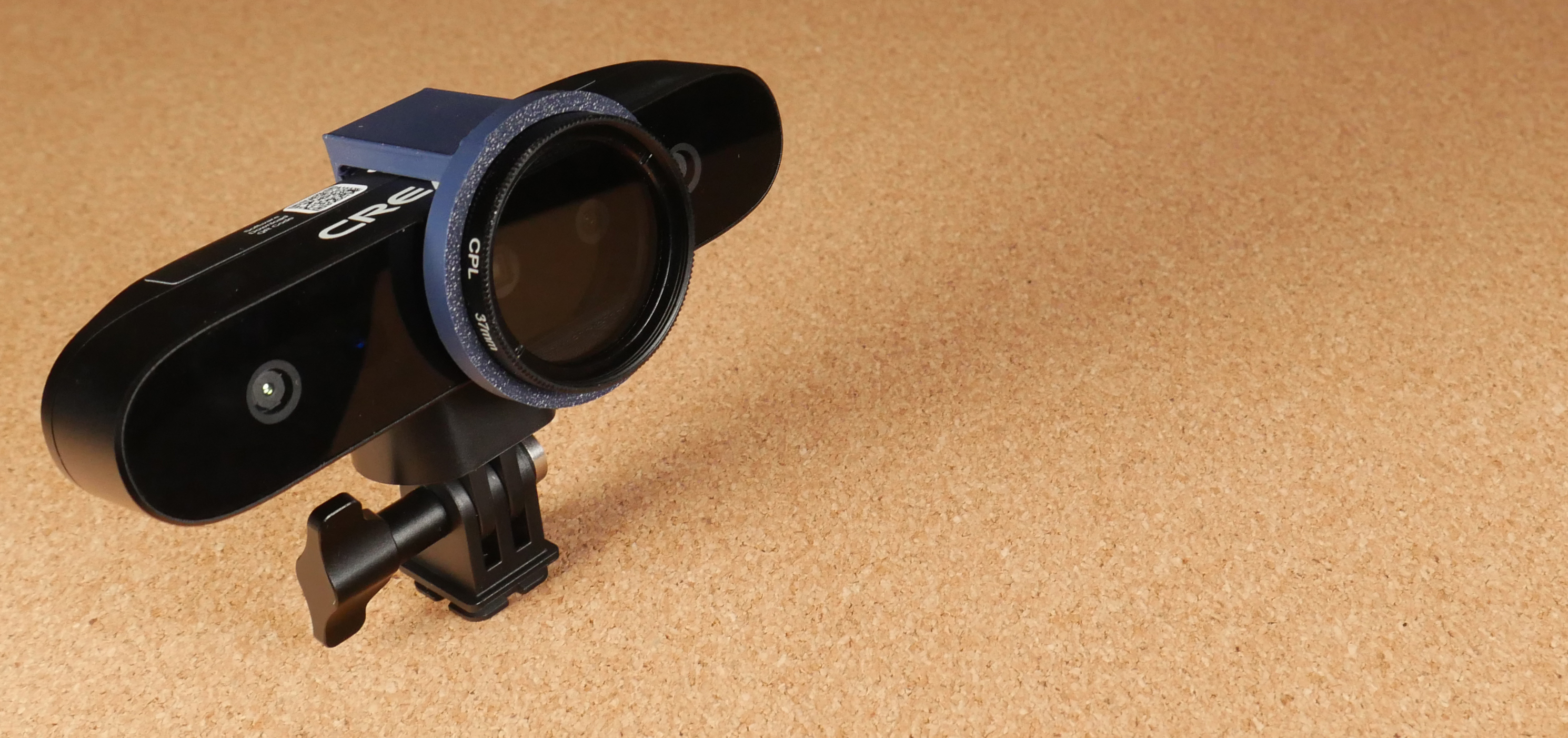

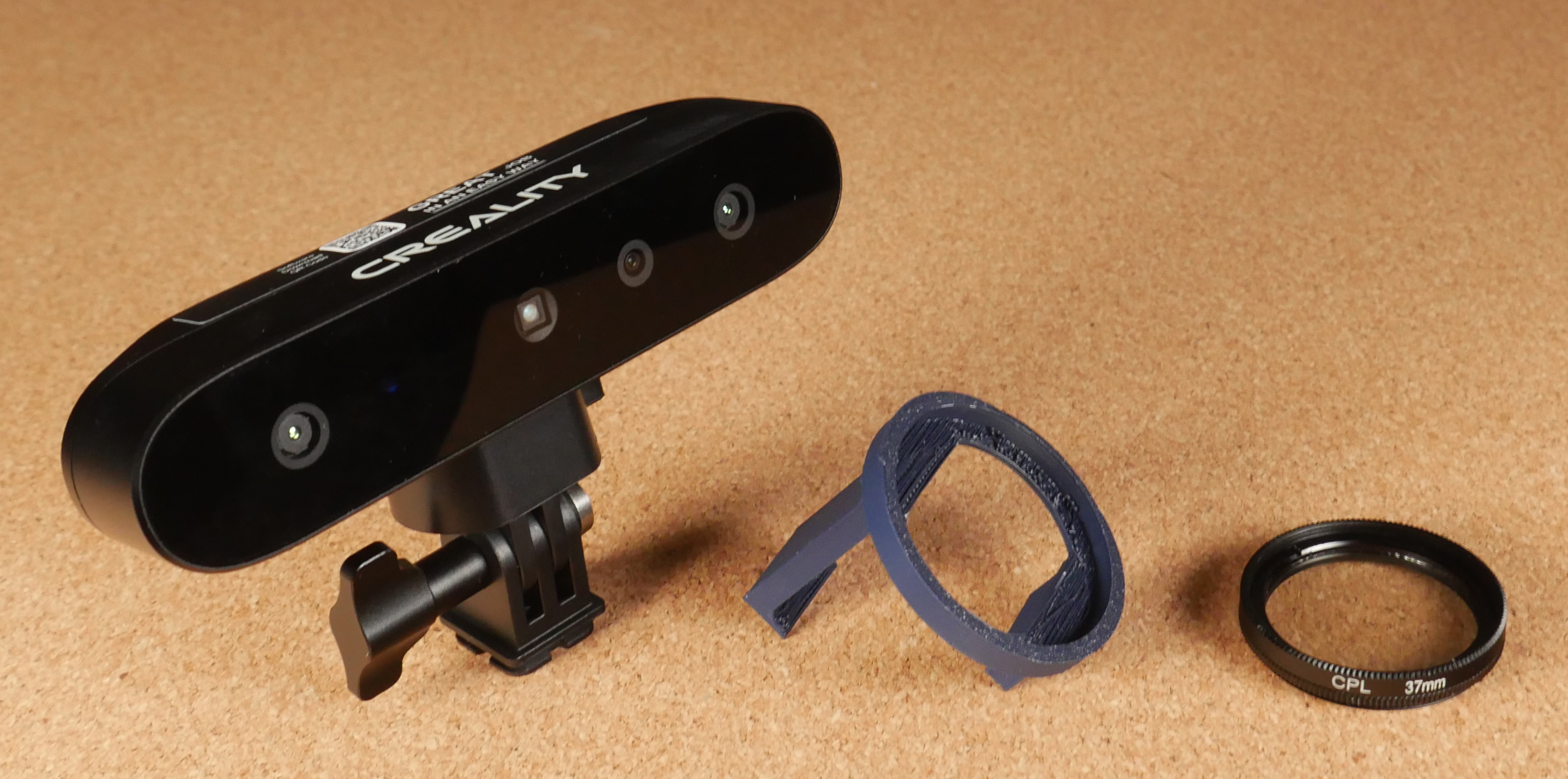

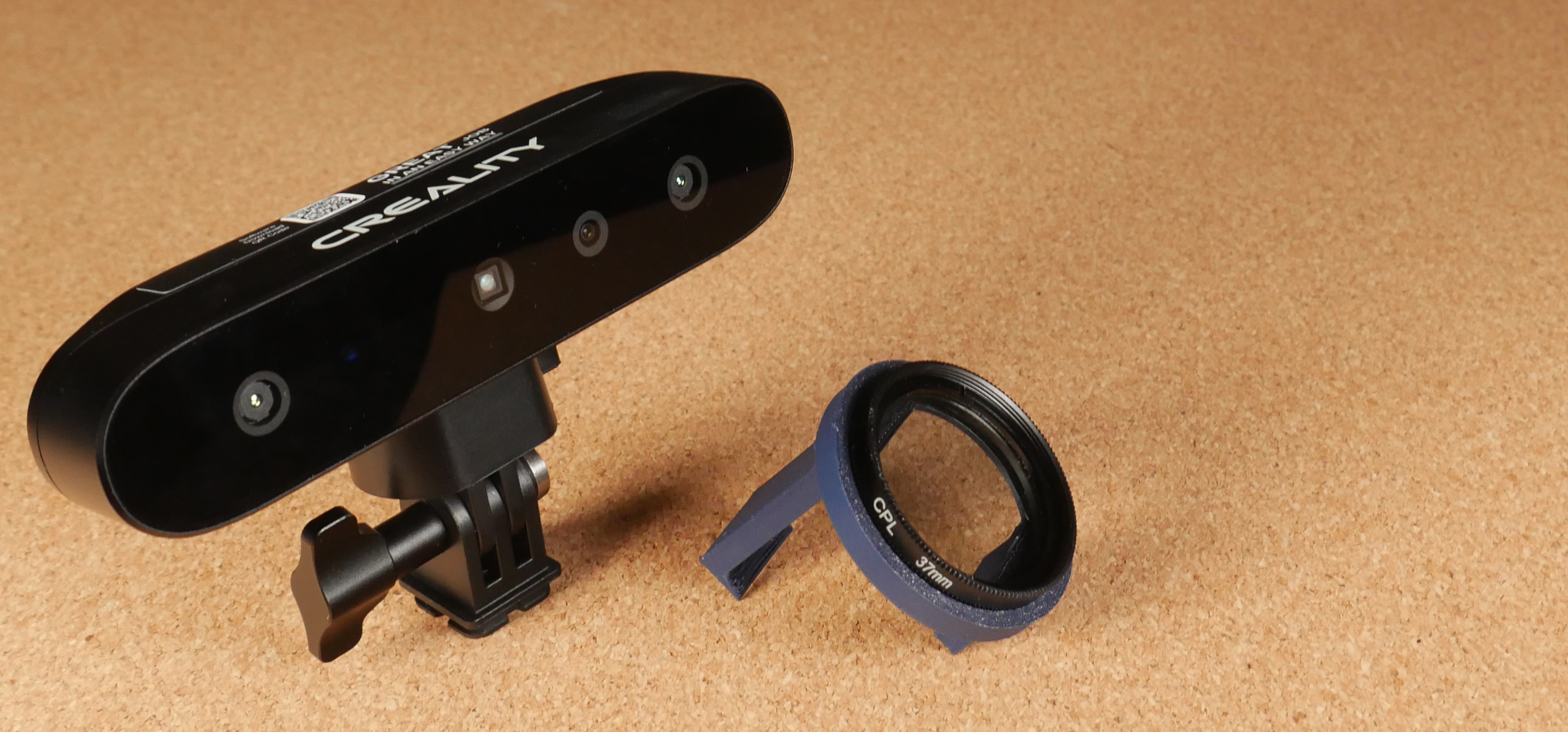

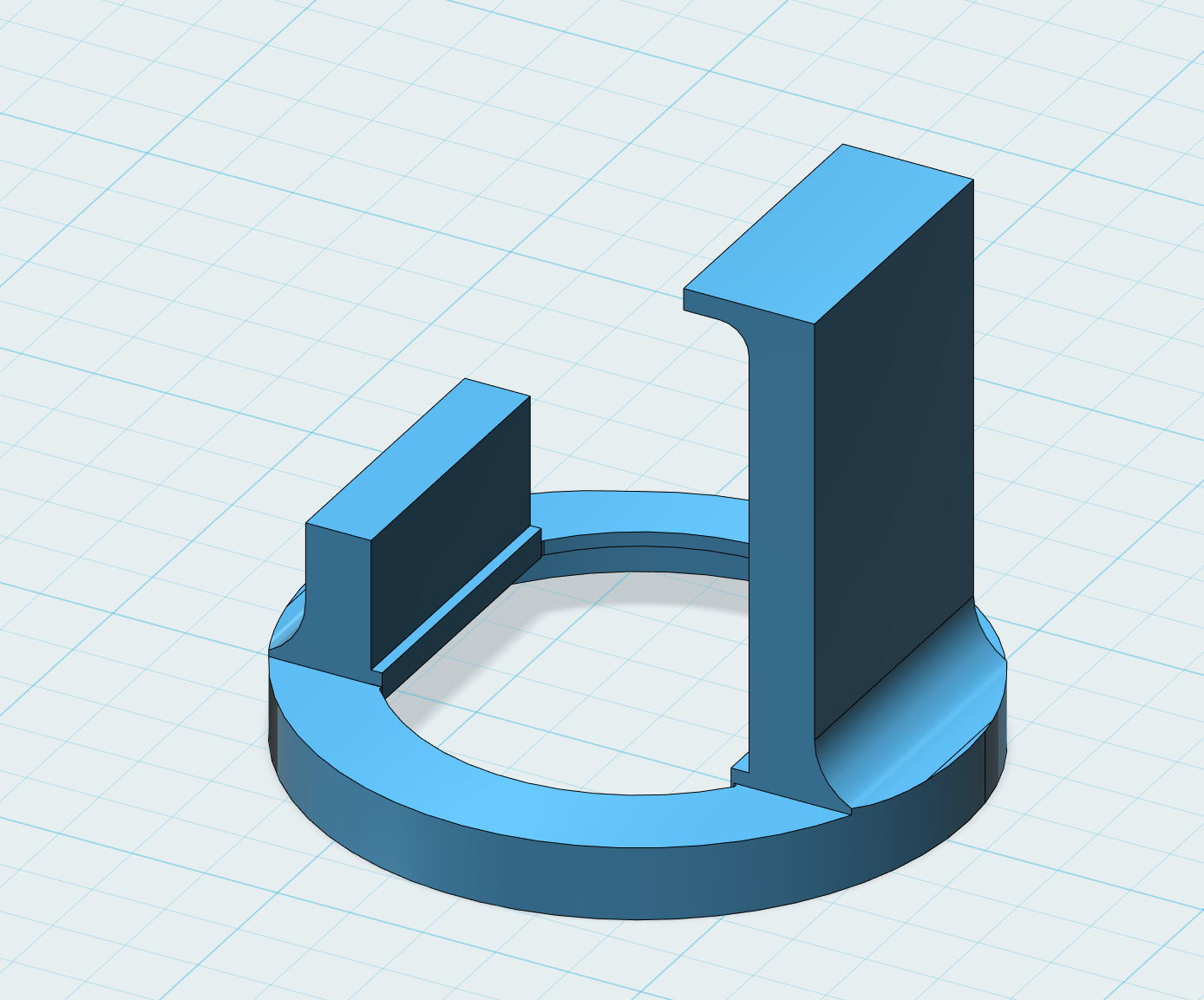

A mount for a 37mm filter used to utilize cross polarization and eliminate glare from 3D objects captured with the Ferret scanner. The model is set up to allow a gap between the print surface and the scanner to avoid scratching. The author states that a 37mm filter should sit in securely, but notes that sticky tack or other means may be needed if it falls out easily. The author used supports for the overhang where the filter insets. Step files are included for adjustments.
Original text by the author on Printables
<p>I created this to utilize cross polarization and eliminate glare from the 3D objects I am capturing with the Ferret scanner. </p><p>The model is set up to allow a gap in between the print surface and the scanner to avoid scratching. 37mm filter should sit in securely but you may need to use some sticky tack or other means if it falls out easily.</p><p>I used supports for the over hand where the filter insets. Included step files if you need to make adjustments.</p><p>Here is a link to my Youtube video showing my cross polarization setup for 3D scanning assets:</p><p><a href="https://youtu.be/rztR3ur1EX0">https://youtu.be/rztR3ur1EX0</a></p>
