Description

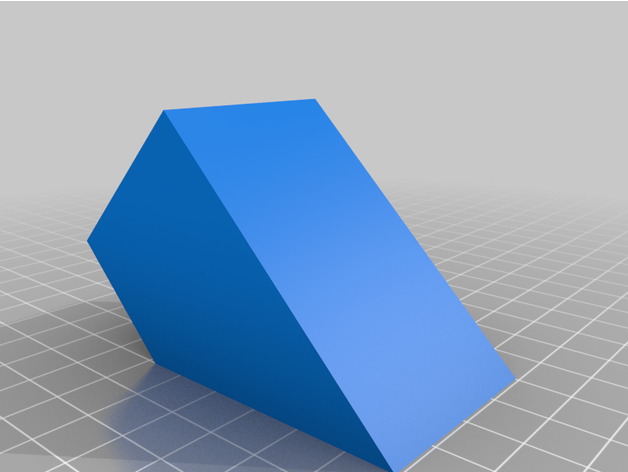

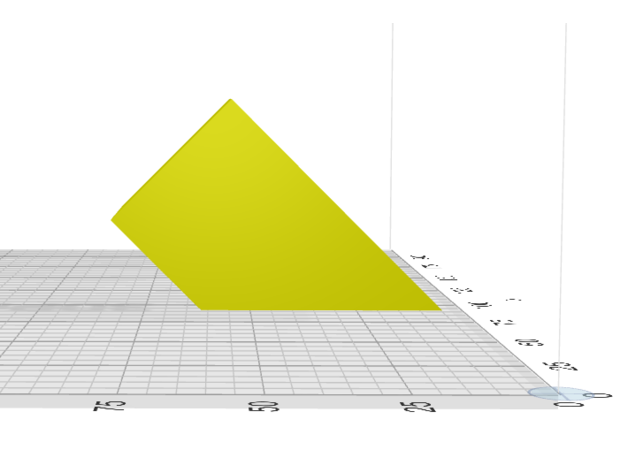

A single wall box test cube used to calibrate flow rate for the CR-30 print mill or other print mills.

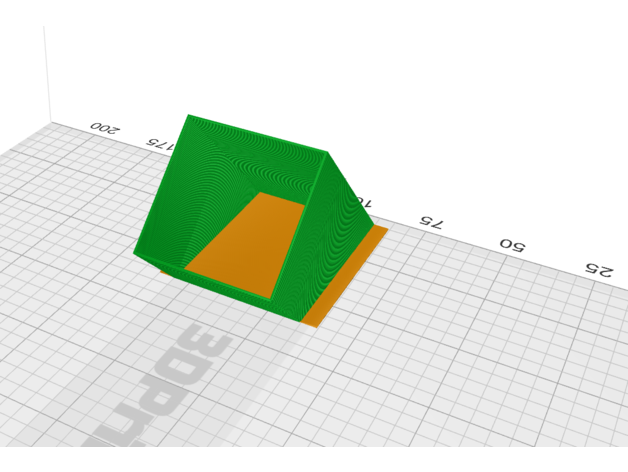

Printing instructions:
Layer height: whatever you are targeting
Shell count: 1
Top layers: 0
Infill: 0
These settings print the cube with a single outer layer which is then measured for thickness using calipers. To calculate the ideal flow rate: divide the nozzle width by the measured thickness and multiply that by the current flow rate.
Example provided by the author:
Nozzle: 0.4mm
Single wall width: 0.38 (average of the four sides measured with caliper)
Current flow rate: 1.05
1.05 * (0.4 / 0.38) = 110.5% <-- new flow rate
Original text by the author on Printables
<p>Single wall box test cube to be used to calibrate flow rate for CR-30 print mill or other print mills.</p><p>Printing:</p><p>Layer height: whatever you are targeting<br>Shell count: 1<br>Top layers: 0<br>Infill: 0</p><p>These settings will print it with a single outer layer which you will them measure the thickness of with a set of calipers. Divide the nozzle width by the measurement and multiply that by your current flow rate to get your ideal flow rate for your subsequent prints with that filament and printer.</p><p>Example:<br>Nozzle: 0.4mm<br>Single wall width: 0.38 average of the four sides measured with caliper<br>Current flow rate: 1.05%</p><p>1.05 * (0.4 / 0.38) = 110.5% <-- new flow rate</p>
