Model information
Description

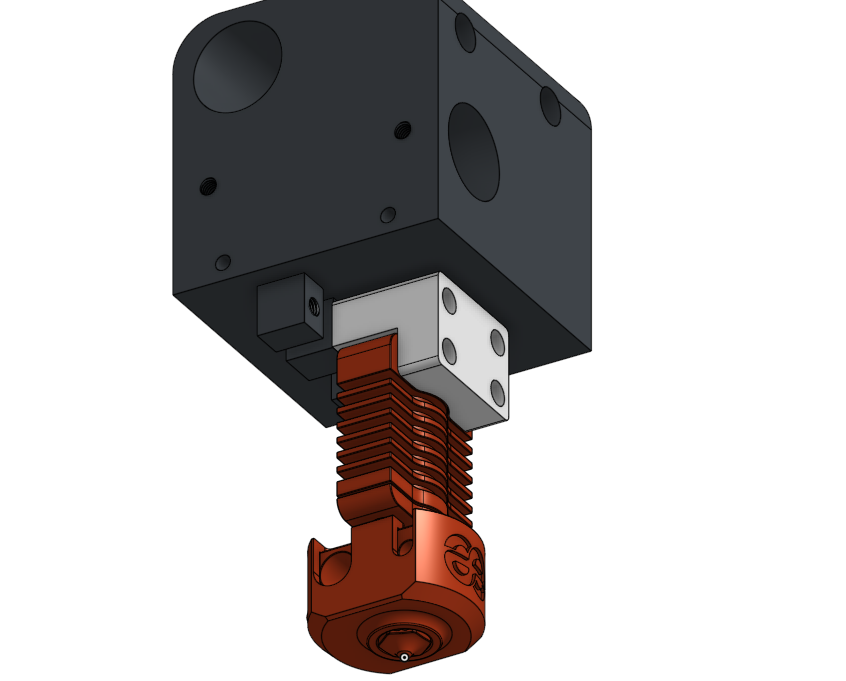

This adapter makes the hotend lower to become compatible with default part cooling. The author states that the hotend fan now blows air directly to the radiator and not to the heatblock.
Hardware needed:
- Stock CR-200B hotend screws to attach adapter to toolhead
- Stock Dragonfly BMS screws to attach hotend to adapter
- 2pcs M3x5x4 heat inserts (voron-like)
Print instructions:
- Reorient model in slicer bigger side with 4 holes to be bottom
- Material: ABS/ASA or other high-temp. The author notes: "NOT PLA, better not PETG"
- Layer height: 0.2mm
- Extrusion width: 0.4mm
- Infill percentage: 20% or more
- Infill type: any
- Wall count: 4
- Solid top/bottom layers: 5
- Supports/Raft: no
Included files: Dragonfly adapter.stl, Dragonfly adapter.step
Original text by the author on Printables
<p>This adapter makes hotend lower so it became compatible with default part cooling. Also hotend fan now blows air directly to radiator and not to heatblock. </p><h5>Hardware needed</h5><ul><li>Stock CR-200B hotend screws to attach adapter to toolhead</li><li>Stock Drafonfly BMS screws to attach hotend to adapter</li><li>2pcs M3x5x4 heat inserts (voron-like)</li></ul><h5>Print instructions</h5><p>Reorient model in slicer bigger side with 4 holes to be bottom</p><ul><li>Material: ABS/ASA or other high-temp. <strong>NOT PLA</strong>, better not PETG</li><li>Layer height: 0.2mm</li><li>Extrusion width: 0.4mm</li><li>Infill percentage: 20% or more</li><li>Infill type: any</li><li>Wall count: 4 </li><li>Solid top/bottom layers: 5</li><li>Supports/Raft: no</li></ul><p>Added .STEP of adapter for you to change however you want</p>
