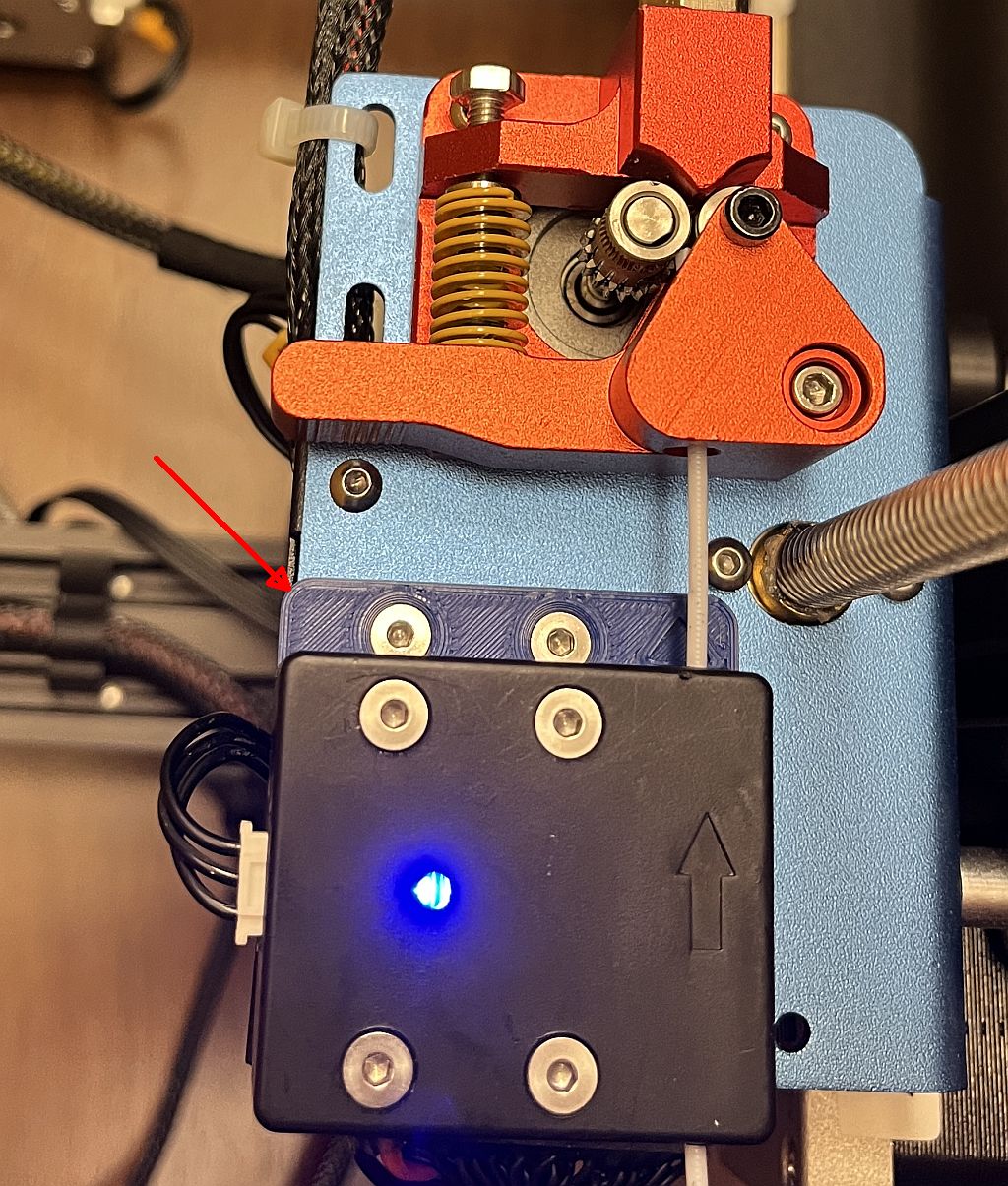

An adapter plate to align the CR-10 V2 runout sensor to a metal frame dual gear extruder. The author notes that common metal frame dual gear extruders have a filament input hole that is higher and slightly off center compared to a standard Creality extruder. The author is using a Redrex brand extruder.
There are two versions of the model:

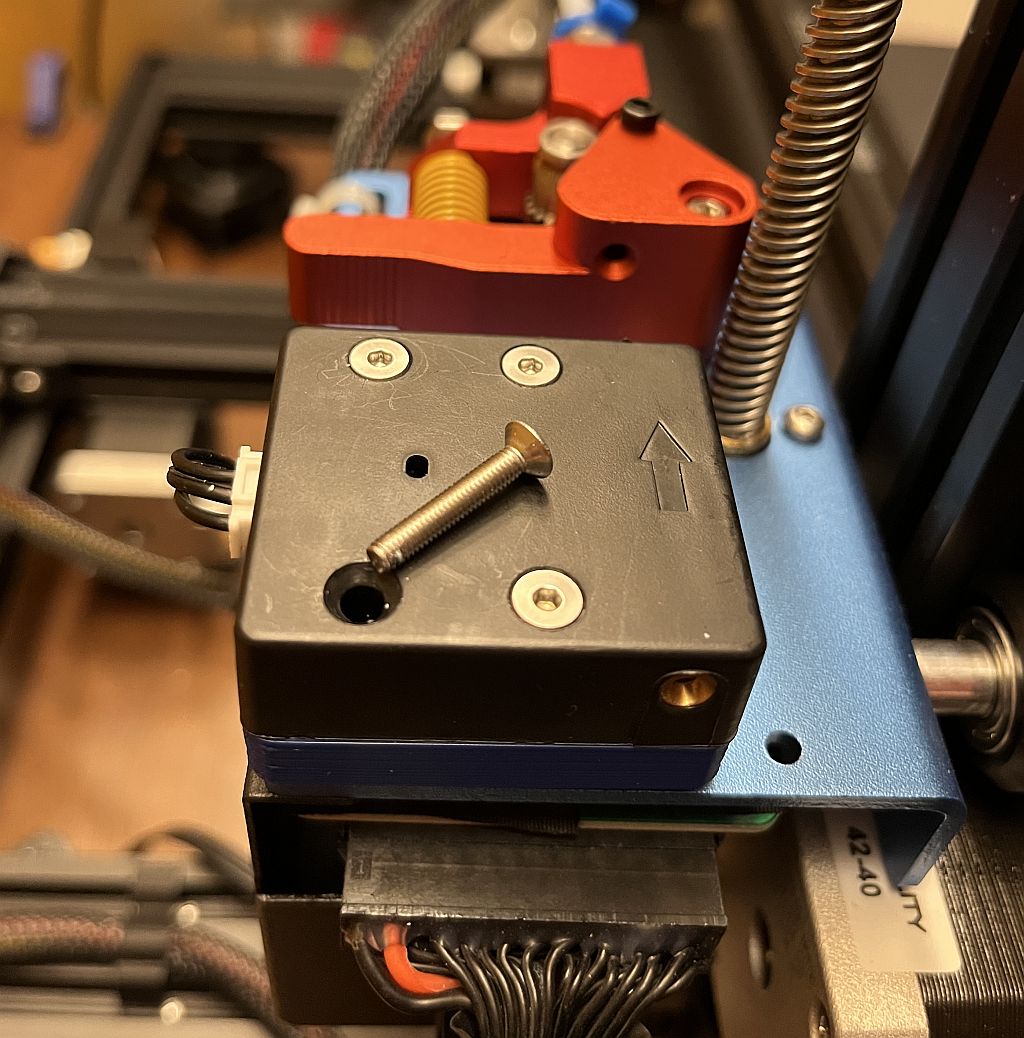

One version has countersunk holes and mounts to the CR-10 using 4 M3x12 flat head screws.
The other version has counterbore holes and mounts using 4 M3x8 button head or cap screws.
The sensor mounts to the plate using the stock screws, which thread into the plate.
Original text by the author on Printables
