Model information
Description

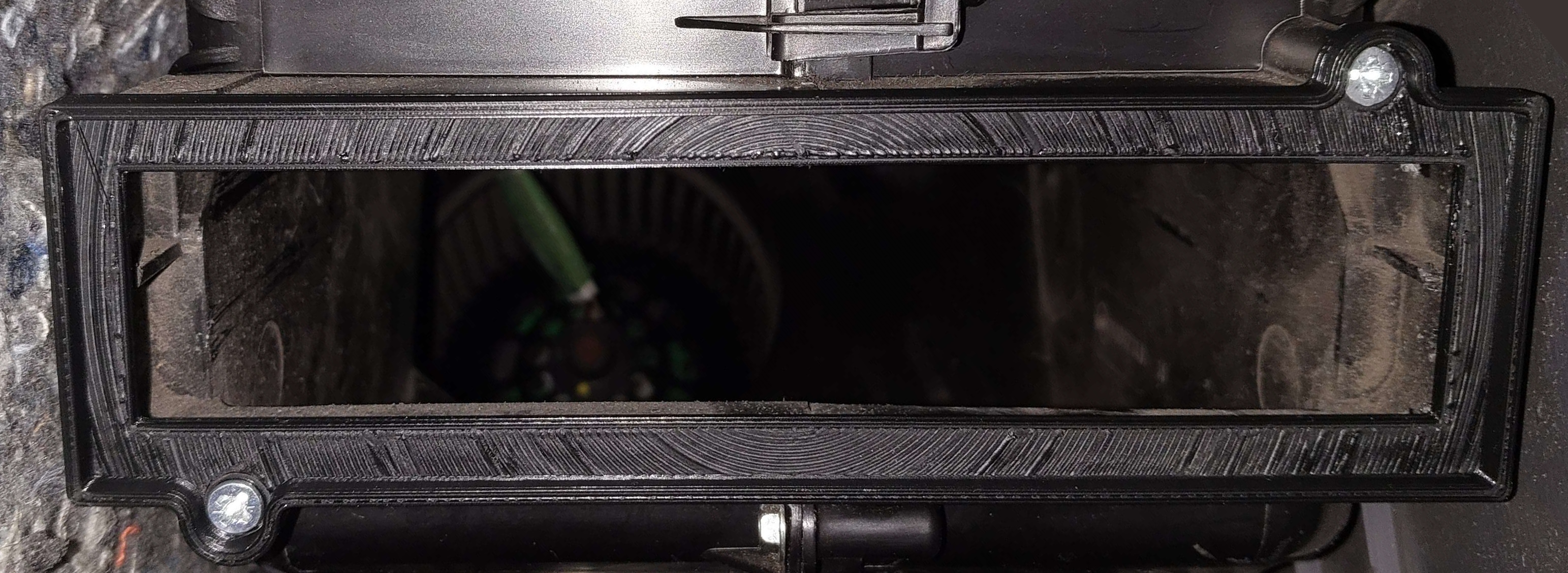

A mounting plate designed to install a cabin air filter in Citybugs (Toyota Aygo, Citroen C1, Peugeot 107) models that were not originally equipped with AC. This plate is intended to avoid the difficulty of cutting an accurate hole in the air duct by using the two screw ports and fitting the filter's clips.
Installation notes: The author used two 'number 6' x 3/4" countersunk self-tapping screws. Screw holes are 4.6mm in diameter. For an airtight seal, the author suggests applying silicone sealant to the back before installation.
Author's Report: The author recommends printing in PETG or another filament unlikely to warp in summer heat.
Original text by the author on Printables
<p>Many people know that you can install a cabin air filter in citybugs that didn't come with AC by cutting a hole in the air duct where it would be. But I tried this and found it very challenging to accurately cut the hole to fit the filter in the awkward space under the dash, so instead I cut it a little oversize and modeled this plate to use the two screw ports and accurately fit the filter's clips.</p><p>I screwed this in with two ‘number 6’ x ¾" countersunk self tapping screws. Similar sized screws will probably work. Screw holes are 4.6mm diameter. Print in PETG or another filament that's unlikely to warp in summer heat. If you want an airtight seal, maybe put some silicone sealant on the back of it before installing.</p>
