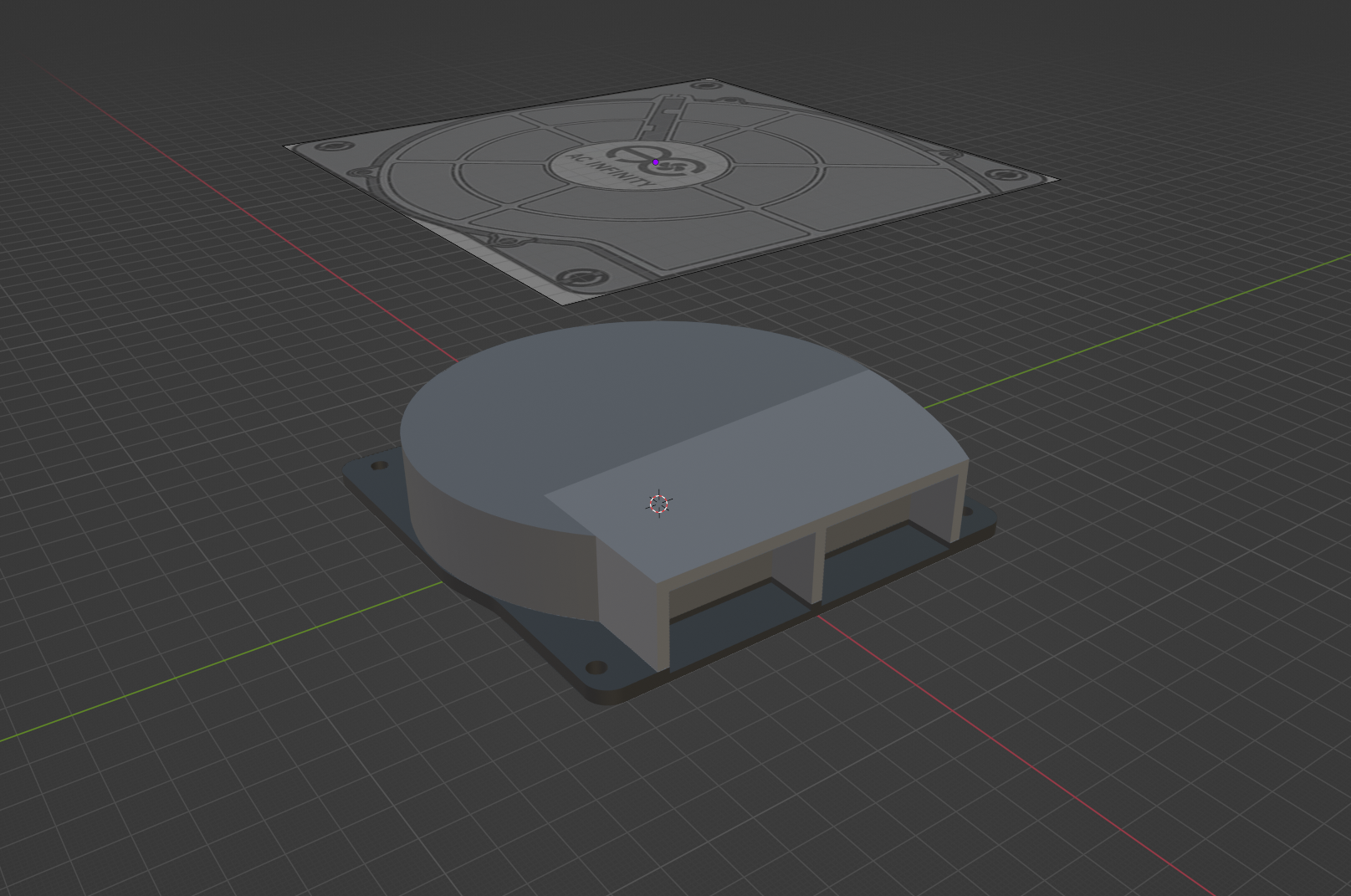

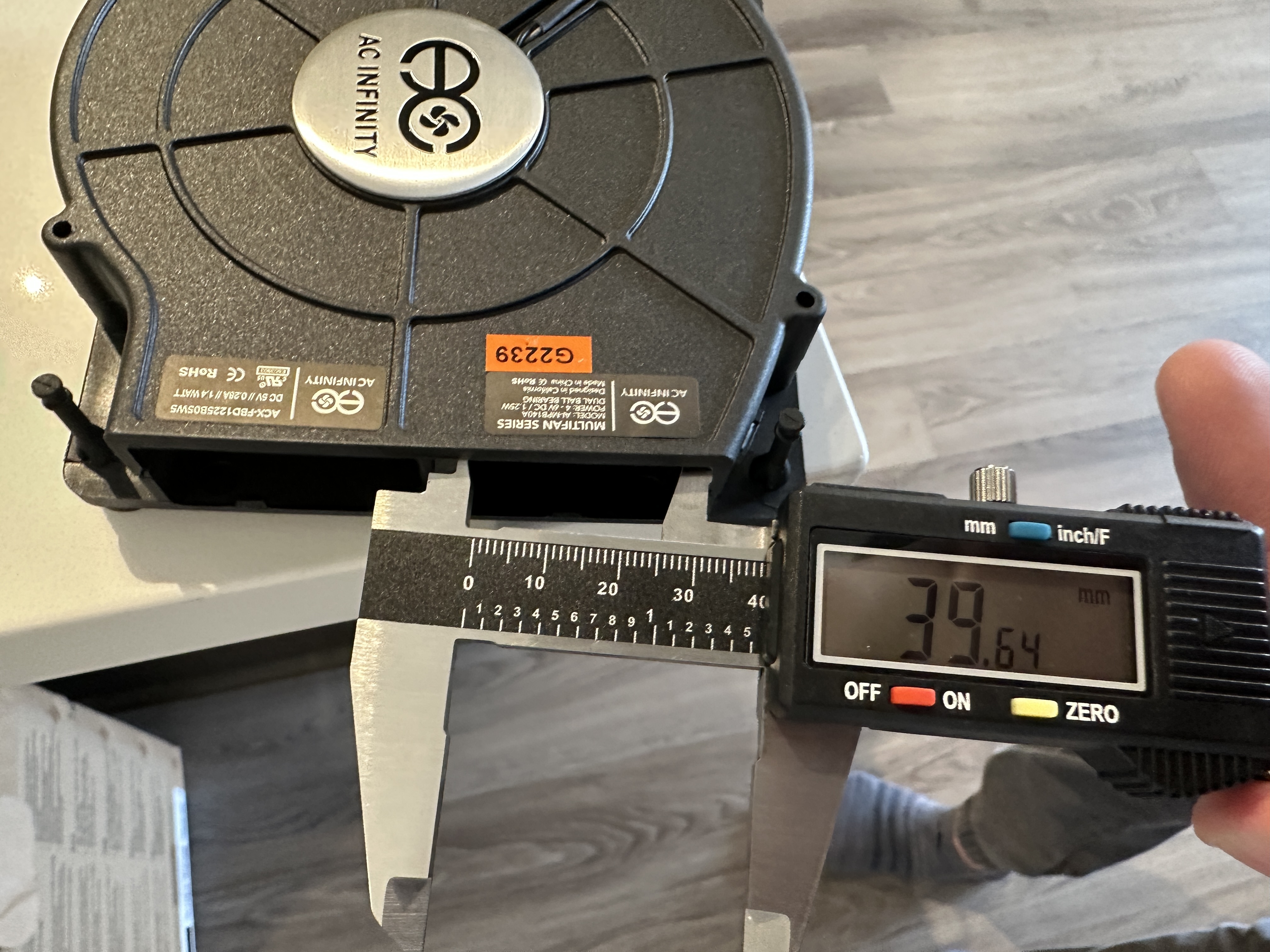

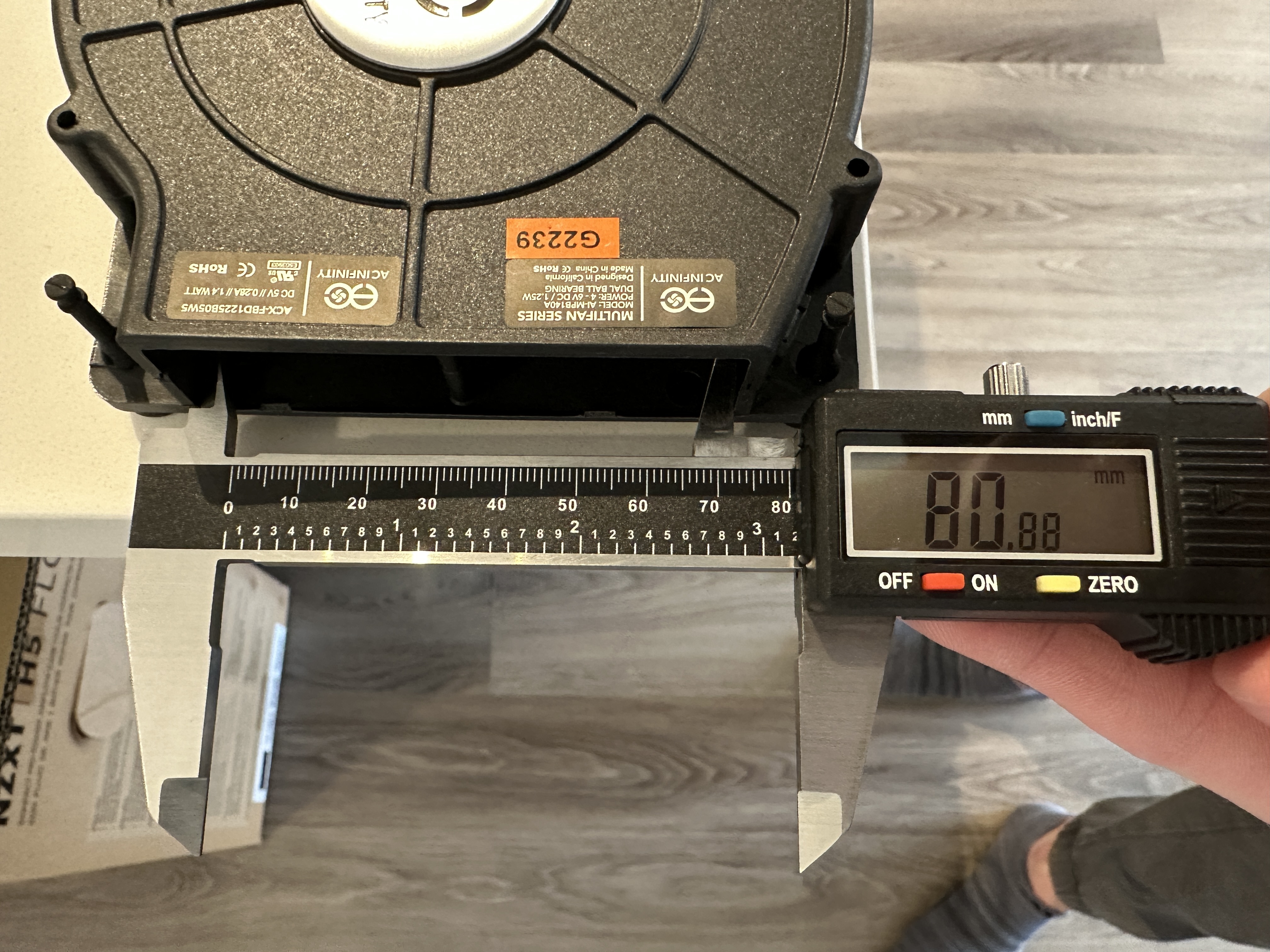

A reference model for the AC Infinity 120mm "Multifan S2" blower fan. The author created this to use while modeling or printing mounts and adaptors for a custom print enclosure. According to the author, sizing is accurate to approximately 0.5mm based on the device received in March 2023. Reference images and schematics are included in the .blend file. This model is for personal reference only; the author advises using it to size custom parts after purchasing the fan. No input was provided by the manufacturer. The author notes 'YYMV'.
Files included:
- AC Infinity 120mm Blower Model Final - Pre-Boolean 8-27-2023.blend
- AC Infinity 120mm Blower Model Final - Post-Boolean 8-27-2023.blend
- AC Infinity 120mm Blower Model Final 8-27-2023.stl
