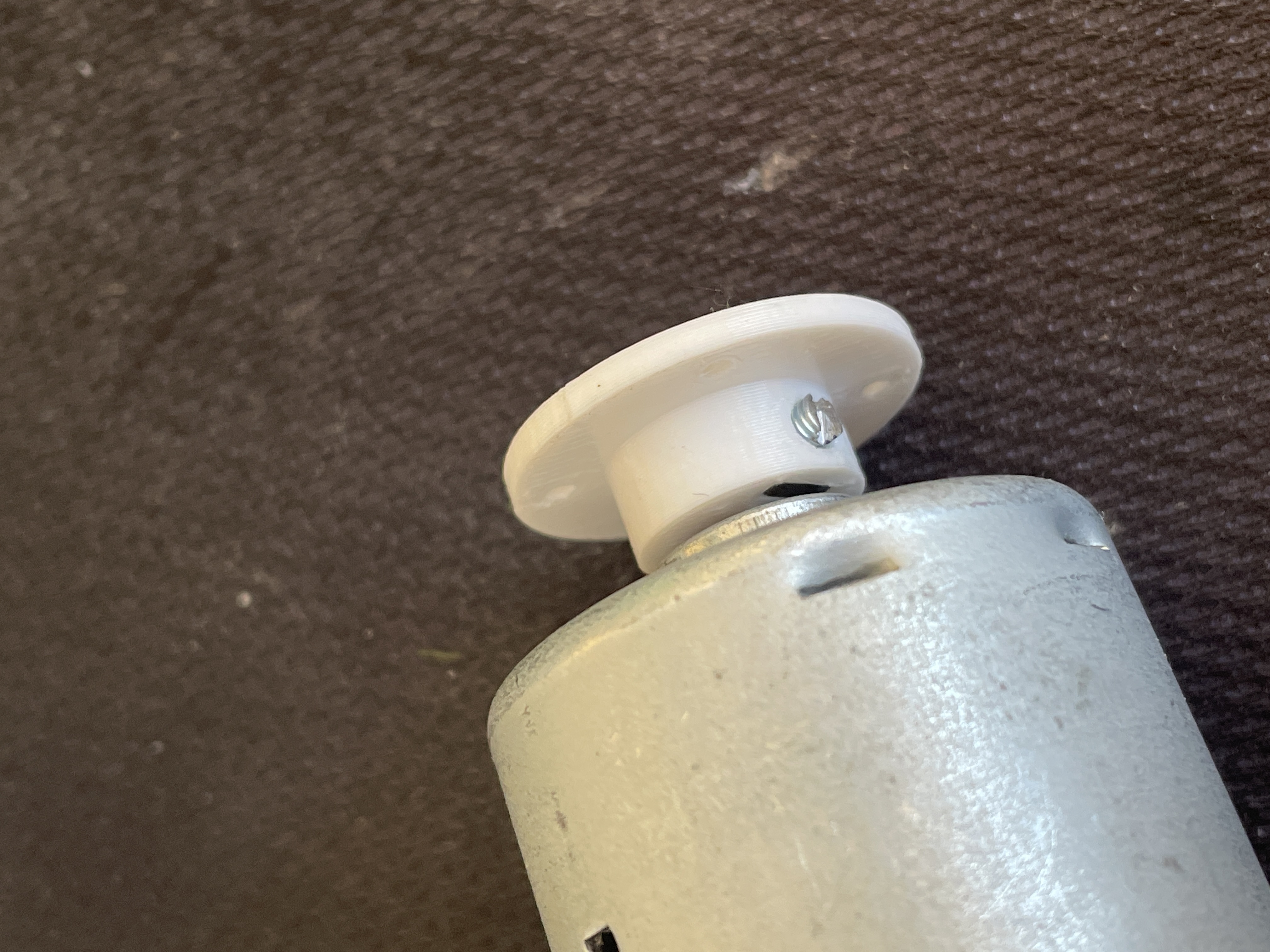

This parametric shaft hub allows for the attachment of other parts to a DC motor. The included model and gcode file are for a 3.17mm shaft and an M3 square nut. The mounting holes are designed for M2.3 self-tapping screws. The author has provided a FreeCAD file to allow for dimension adjustments.
Original text by the author on Printables
<p>This shaft hub allows for easy attachment of other parts to a DC motor.</p><p>The included model and gcode file is for a 3.17mm shaft and an M3 square nut and the mounting holes are designed for M2.3 self-tapping screws.</p><p>I've attached the FreeCAD file too, so you can tweak the dimensions for your own needs.</p>
AI-assisted English description reviewed against the CC0 source. Original content and author attribution retained; photographs from the author's Printables model gallery.
The publishing account has not yet confirmed any print settings. Material, supports, difficulty, temperatures and times remain as "Not verified" until verifiable data is available.
