Model information
Description

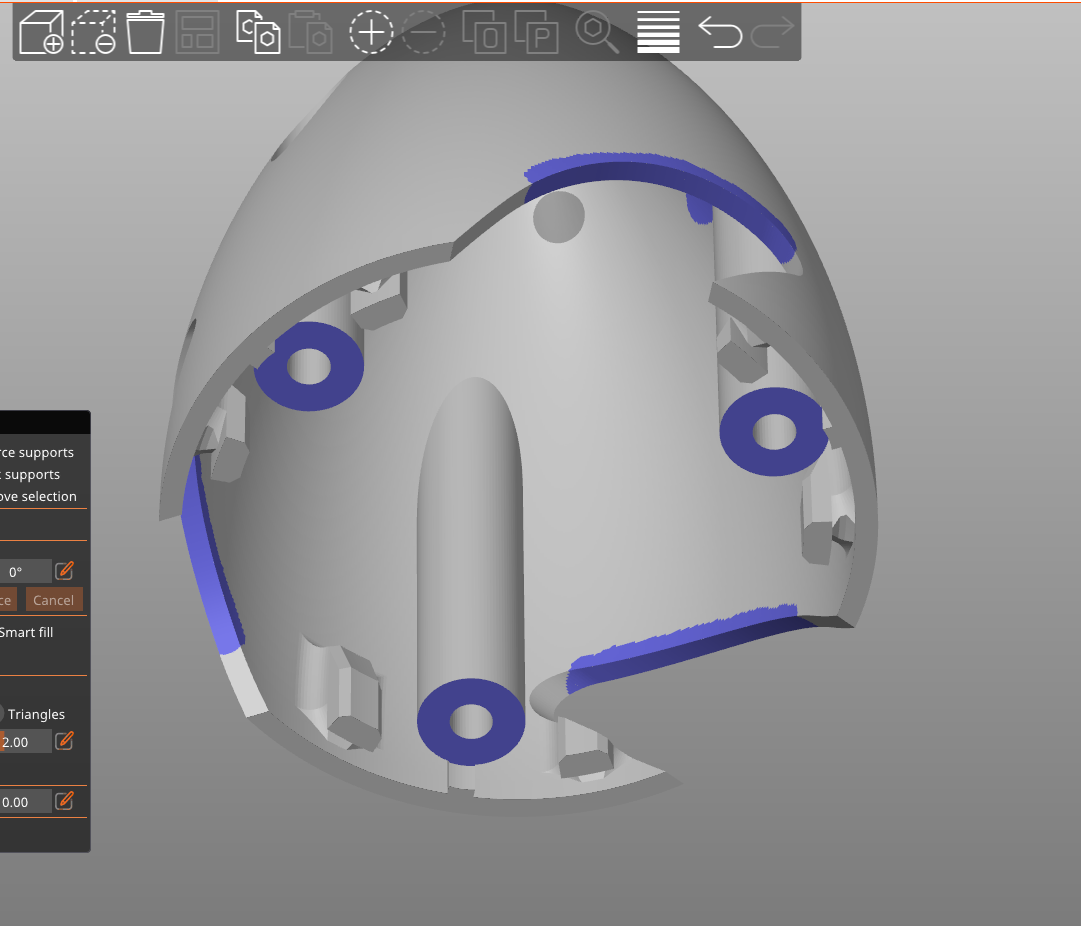

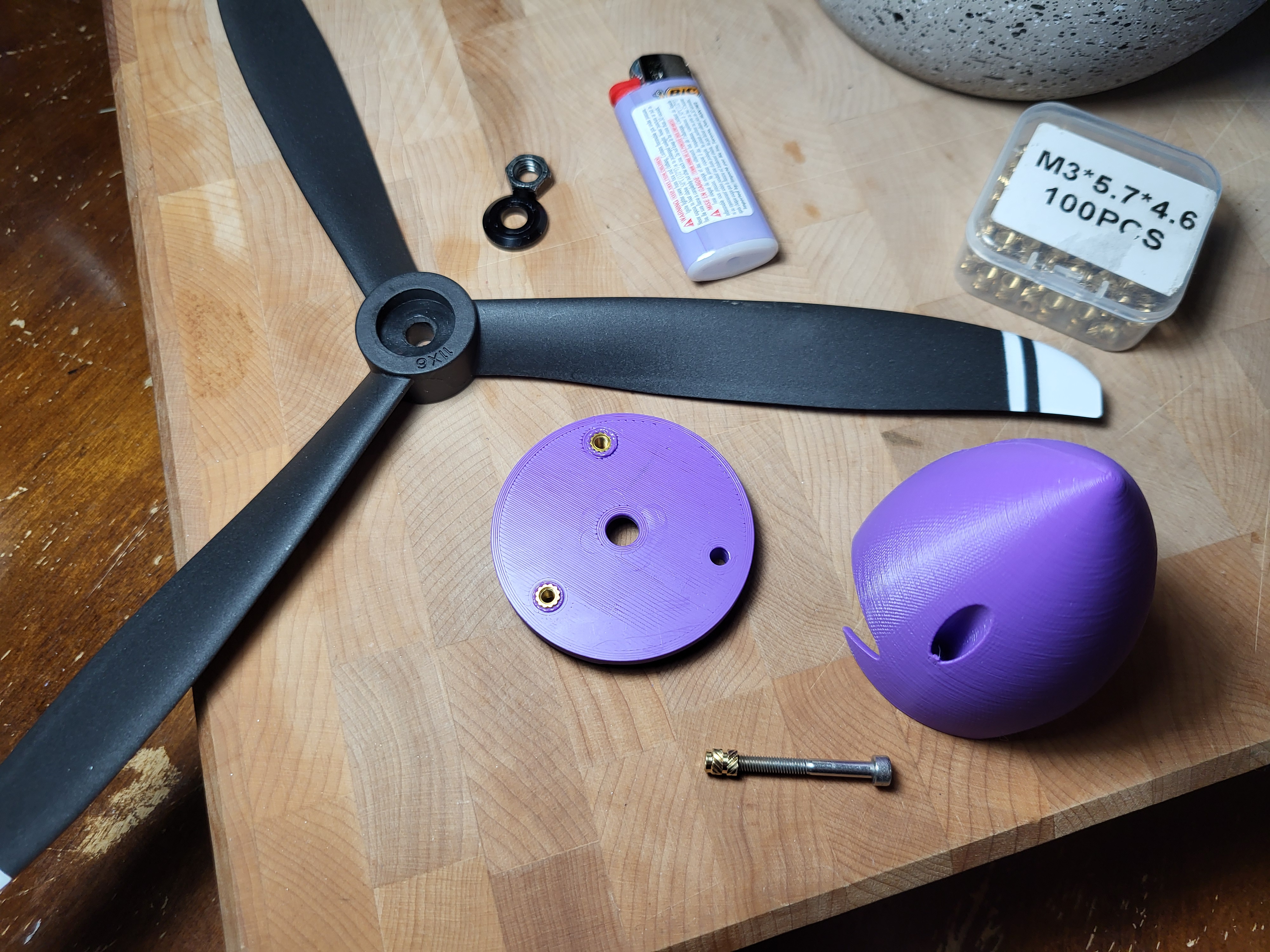

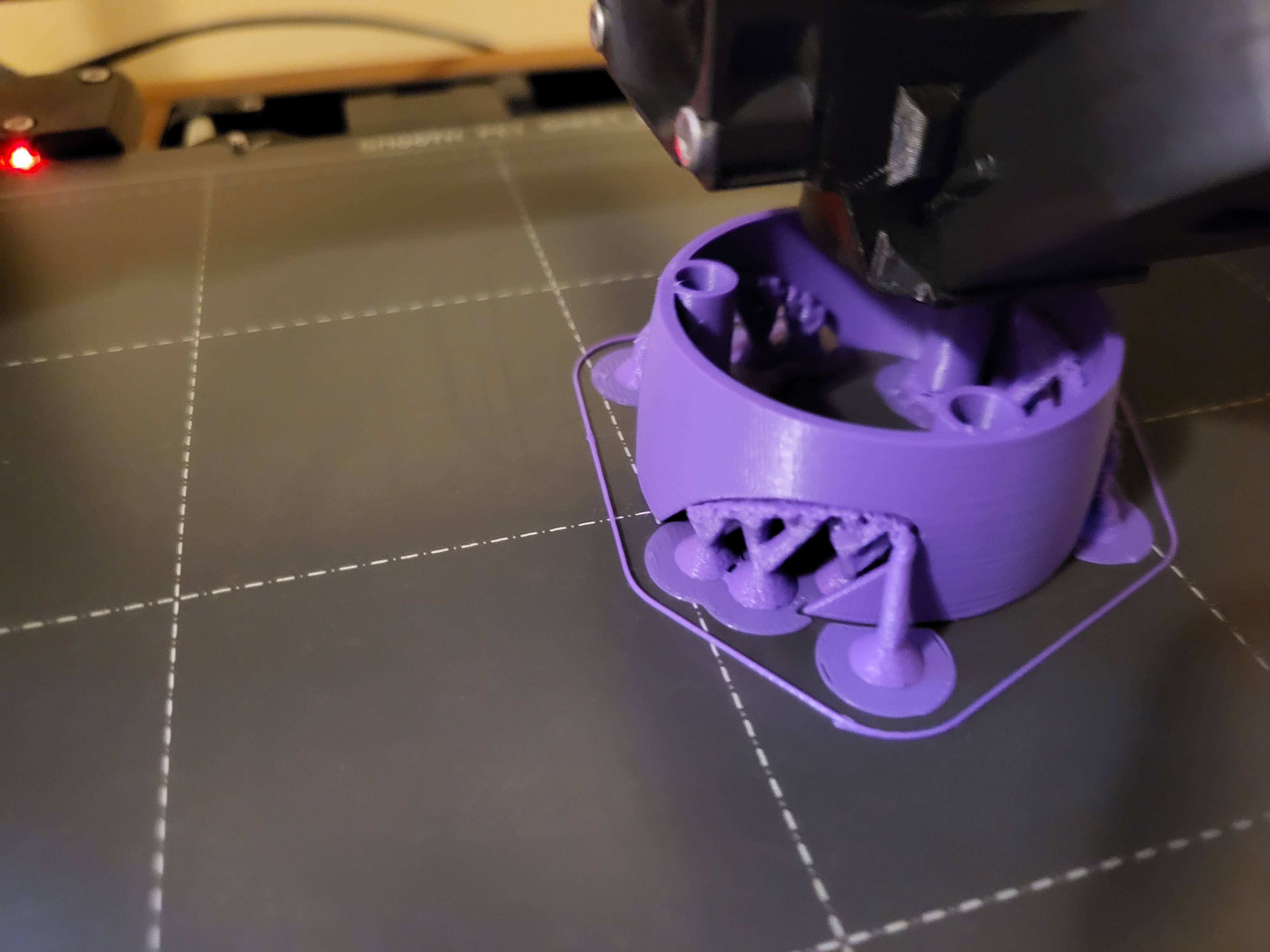

A 2" (51mm) 3-blade spinner for the 3dLabPrint 48" Edge 540. This model features propeller access when mounted and a snug, centering hub fit for the Eflite EFL01893 3 Blade 11x6 Propeller. It uses M3 heatset inserts with M3x20mm screws. The tip keys into the base, and there are tabs on the inside lip to prevent spreading when tightened or during high RPM. The author reports making this from Polymaker PLA Pro with a 0.16mm layer height and 100% infill. The author states it is very balanced right off the printer, turns very true, and survived a wreck. Requires Organic supports (See Image). Files: Spinner_Base.stl, Spinner_Tip.stl.
Original text by the author on Printables
<p>Needed a better more true spinning spinner for my 3dLabPrint 48" Edge 540.</p><p>This one has prop access when mounted. </p><p>Snug, centering hub fit for Eflite EFL01893 3 Blade 11x6 Propeller.</p><p>Uses M3 Heatset inserts with M3x20mm screws.</p><p>The tip keys into the base and there are tabs on the inside lip to keep it from spreading when tightened and during high RPM.</p><p>Made this from Polymaker PLA Pro</p><p>0.16mm Layer Height</p><p>100% Infill</p><p>It is very balanced right off the printer. Turns very true, and survived a NASTY wreck lol!</p><p>Requires Organic supports (See Image).</p><p> </p><p>Hope this helps someone out of a jam! </p><p> </p><p> </p><p> </p><p> </p>
