Supported RC Jump Ramp - Original STEP and Derived STL

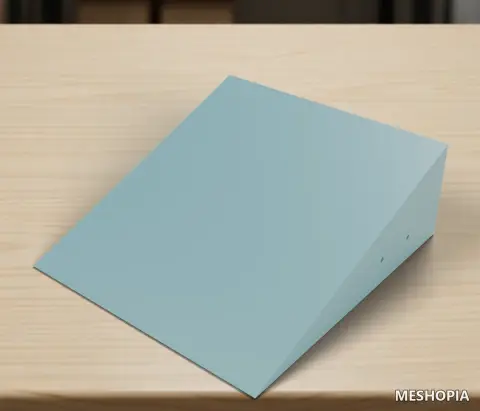

Prepare an RC jumping obstacle from this supported ramp design. Inspection of the supplied CAD conversion shows a broad rising deck, three support plates beneath it and small circular openings in the supports. The source collection identifies Arrma Grom or larger vehicles; physical suitability and load capacity for any particular vehicle have not been independently verified. The original editable CAD file is preserved as 01-supported-rc-jump-ramp.step. A matching mesh conversion is included as 02-supported-rc-jump-ramp.stl for slicing and preview. The STL was derived in FreeCAD with linear deflection 0.05 source units and angular deflection 0.15 radians; the original STEP remains available for comparison. The vehicle in the supplied installation photograph is not included. No tested print profile or verified scale was supplied. Inspect the CAD dimensions, deck orientation, support geometry and fastening openings before printing. Establish a stable installation appropriate for your intended vehicle. MESHOPIA has not tested jumping performance, assembly or strength. The new cover uses teal and copper presentation finishes on a pale wooden workshop surface. Its background was generated locally in ComfyUI; the product was rendered from the supplied geometry in Blender and composited without changing its shape.
- Technology
- Sin probar
- material
- —
- Difficulty
- Sin especificar
