2 modelos etiquetados

#STL drivetrain

Descubre modelos 3D etiquetados como STL drivetrain y revisa sus datos de impresión, archivos y condiciones de uso antes de descargarlos.Open all filters →
Vista de Mini RC Crawler Mechanical Parts and Tire Alternatives - Thirty-Three STL Files

Mini RC Crawler Mechanical Parts and Tire Alternatives - Thirty-Three STL Files

A thirty-three-file miniature RC crawler mechanical collection. All source meshes were rendered and visually inspected in Blender. Five files are grouped layouts containing multiple axle components, gearbox/frame pieces, gears, joints/links and four rims. Three tire files provide source-named Maxy Paddle, Maxy Pin and Classic tread alternatives; each tire mesh depicts one tire even though its source filename states x4. The remaining files contain individual axle brackets and caps, front and rear axle bodies and end components, internal shaft parts, a steering rod, a gearbox cover and two gearbox sections, a motor bracket, bevel and spur gear shapes, a drive cup, a main shaft and long/short joint links. The gear filenames label a 70-tooth gear component and a 10-tooth pinion; tooth counts and mating performance are not independently measured. All thirty-three original STL files remain unchanged and are renamed in English. Grouped layout files overlap with individual component files, so do not assume every file is a separate required part. Source x1/x2/x4 print-quantity labels and 2026 revision labels describe the supplied filenames, not a tested bill of materials. The filename reference to TPU tires and best PETG for the pinion is an unverified source suggestion, not a MESHOPIA print recommendation. The purchased folder states 1:24; actual scale, assembled dimensions, motor fit, servo fit, bearings, fasteners and suspension travel have not been independently verified. No real motor, servo, electronics, wiring, battery, springs or metal hardware is supplied. The source photo shows an assembled example with such external equipment. No print settings, material performance, tested assembly instructions or driving results have been verified. Inspect gear interfaces, shaft fits, rim/tire clearances and grouped-file overlap before preparing prints. MESHOPIA has not physically printed, assembled or driven this collection. The new cover is an illustrative assembled appearance generated locally in ComfyUI from the source photograph, with teal and gray finishes, bronze rims and a different workshop view. Electronics and loose tire stacks were removed. Exact geometry, mechanical fit and assembly quantities are not certified by this image.

Technology
Sin probar
material
—
Difficulty
Sin especificar

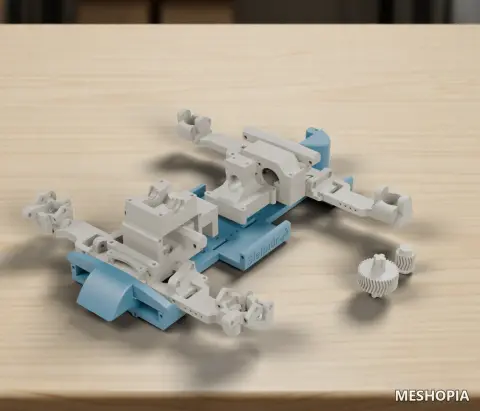

Vista de Sleipnir RC Chassis Suspension and Drivetrain Geometry - Thirty-Eight STL Files

Sleipnir RC Chassis Suspension and Drivetrain Geometry - Thirty-Eight STL Files

A thirty-eight-file Sleipnir RC chassis, suspension and drivetrain geometry collection. Every original STL was visually inspected. The structural group contains a middle chassis bed, a front/rear chassis-bed section, four control-arm mounting variants, front and rear shock towers, front and rear bumper geometry, an ESC mount base and lid, a servo mount, motor adapter, battery-cover strip, and gearbox and differential-gearbox bases with separate lids. The suspension and steering group includes left/right front and rear control arms, a knuckle and its mount, a rear bearing hub, left/right steering arms and a steering link. The drivetrain group includes source-labeled 39-tooth main and 19-tooth pinion gear shapes, a differential pinion adapter, center and wheel torque-damper forms, wheel and differential CV housings, a CV inner-race shape and a separate cage. Gear tooth counts, torque damping and constant-velocity performance have not been independently measured or tested. All thirty-eight original STL files are preserved unchanged and renamed in English. Required copies, mirrored placement, pin and bearing sizes, gear clearances and CV-joint fit are not a verified bill of materials. No wheel or tire mesh was found in the reviewed set, even though the supplied CAD-style photograph depicts wheels. The files also do not include an exterior vehicle shell, real shocks/springs, motors, servos, ESC, batteries, wiring, ball bearings or metal hardware. The new cover renders selected original meshes in Blender as an inferred static chassis arrangement with empty wheel positions and two original gear meshes placed beside it. No wheels, tires, electrical equipment, real shocks or metal hardware are added. Blue and ivory presentation finishes are composited over a locally generated ComfyUI workshop background. Repeated chassis-bed and carrier placements, component orientations and overlaps are illustrative assumptions, not verified mechanical joints, assembly instructions or driving performance. Actual scale, wheelbase, motor compatibility, suspension travel, material requirements, print settings and tested assembly instructions have not been independently verified. MESHOPIA has not physically printed, assembled or driven this collection.

Technology
Sin probar
material
—
Difficulty
Sin especificar
