3 modelos etiquetados

#steering rack

Descubre modelos 3D etiquetados como steering rack y revisa sus datos de impresión, archivos y condiciones de uso antes de descargarlos.Open all filters →
Vista de Small Cyberbrick RC Chassis with Steering Parts and Top Cover - Three 3MF Files

Small Cyberbrick RC Chassis with Steering Parts and Top Cover - Three 3MF Files

Build around a compact RC chassis with two original source layouts and a separate angular top cover. The inspected geometry includes an open channel chassis with raised electronics mounting bosses, front wheel carriers, a steering rack and pinion, and four wheel instances. The files contain a Cyberbrick car layout labeled Bambu, another chassis layout labeled N20, and a top cover labeled V2. The N20 layout has different motor-area geometry; treat the two chassis layouts as alternatives rather than combining all parts into one vehicle. Three unchanged 3MF files are included and renamed in English. The cover illustrates the first chassis layout with its four supplied wheel instances positioned on both sides; duplicate wheel instances overlap in the source component coordinates, so this presentation repositions them for an illustrative assembly. The separate sand-colored top cover is shown beside the chassis. This visualization does not establish axle fit, fastener sizes or an installation sequence. Motors, radio equipment, Cyberbrick electronics, batteries, wiring, axle hardware and fasteners are not supplied. Check motor pockets, mounting bosses, steering travel, wheel spacing and cover clearances against your chosen hardware before printing. No verified vehicle scale, bill of materials or tested printing profile was supplied. MESHOPIA has not tested driving, steering, assembly or strength. The cover renders the supplied geometry and shadows in Blender, then composites them over a workshop background generated locally in ComfyUI.

Technology
Sin probar
material
—
Difficulty
Sin especificar

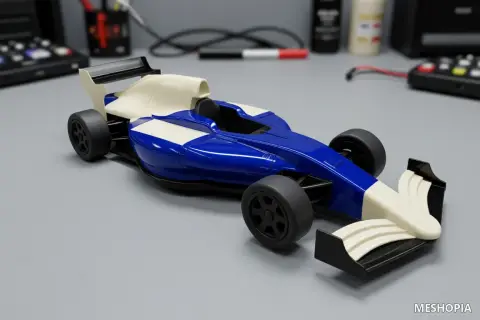

Vista de Cyber Brick-Style Open-Wheel RC Drift Model Geometry - Twenty STL Files

Cyber Brick-Style Open-Wheel RC Drift Model Geometry - Twenty STL Files

A twenty-file Cyber Brick-style RC drift-model geometry collection with a low open-wheel racing appearance. All original STL meshes were visually reviewed using software-rendered orthographic previews. The set contains lower chassis/nose geometry, tapered and curved exterior panels, a broad upper body panel, an open curved frame, wing-shaped details, a chassis housing with a circular bore, mounting and pivot brackets, a forked guide plate, a ribbed column with base, a toothed linkage rack, two round hex-bore sleeves and four separate wheel reference meshes. All twenty original STL files are preserved unchanged and renamed in English. The source filenames are mostly numbered identifiers, so English names describe visible geometry rather than certifying undocumented mechanical functions. The four wheel meshes have broad smooth rolling surfaces; the source photograph appears more textured and does not establish included tread geometry. Inspect wheel variants and mating interfaces before planning prints. The source photograph shows an assembled open-wheel example. A new locally generated ComfyUI cover may use that photograph as an illustrative assembly reference with changed colors, viewpoint and workshop background. The image must not be interpreted as an exact CAD reconstruction, verified fit or evidence of tested drift behavior. Real Cyber Brick controller hardware, motor, servo, battery, electronics, wiring, bearings and metal fasteners are not supplied. Model scale, wheelbase, motor/servo compatibility, steering travel, tire material, print settings and required copy counts have not been independently verified. MESHOPIA has not physically printed, assembled or driven this collection. The new cover is a locally generated ComfyUI illustration based on the supplied assembled-model photograph, with cobalt and ivory panels, smooth charcoal wheels and a new workshop viewpoint. It conveys an assembled appearance rather than a certified rendering of every STL. Visible finishing details and inferred placements do not establish component fit or a tested RC build.

Technology
Sin probar
material
—
Difficulty
Sin especificar
Vista de CA132 RC Chassis Variants and Pickup Body Shell - Twenty-Nine Original STL Files

CA132 RC Chassis Variants and Pickup Body Shell - Twenty-Nine Original STL Files

A twenty-nine-file CA132 Cyber Brick-style platform collection with a separate pickup body shell and two chassis variants. Every original STL mesh was visually reviewed. The first file is a detailed pickup exterior shell with cab, windows, rear bed, wheel arches and panel relief, despite its source Chassi filename. It is not a mechanical chassis. Each fourteen-file chassis group supplies left/right steering knuckles, a chassis variant, front/rear light-mount brackets, a component cover plate, separate front/rear rims and smooth tire rings, a source-labeled servo pinion gear, a toothed steering rack, tie rod and a grouped shaft/sleeve layout. The light parts are mounting geometry; no LEDs or transparent lenses are included. The transmission-labeled file contains shaft and sleeve forms, not a complete gearbox. All twenty-nine original STL files remain unchanged and are renamed in English. Thirteen files are byte-identical pairs across the two source groups, confirmed by SHA-256; the two chassis files differ. Together with the pickup shell there are sixteen distinct file contents, not twenty-nine unique required components. Choose a chassis variant and avoid printing duplicate source-group copies. Display and print quantities require independent checks. The folders identify one group for a Carrera axle and another as completely printed, but tested Carrera Digital 132 or Cyber Brick electronics compatibility, actual scale and axle fit have not been established. Real motor, servo, battery, controller, wiring, bearings and fasteners are not supplied. The source photograph depicts a pickup on a four-wheel platform. MESHOPIA has not physically printed, assembled or driven this collection; no tested print settings or material requirements are claimed. The new cover is a locally generated ComfyUI illustration based on the source pickup photograph, with petrol-blue and ivory finishes and a new workshop angle. It is an appearance reference rather than an exact CAD rendering. Interior seating, surface finishes and visible tire texture in the illustration do not establish that those details are provided as separate meshes; the supplied tire rings are smooth. Body/chassis alignment and operating performance are unverified.

Technology
Sin probar
material
—
Difficulty
Sin especificar
