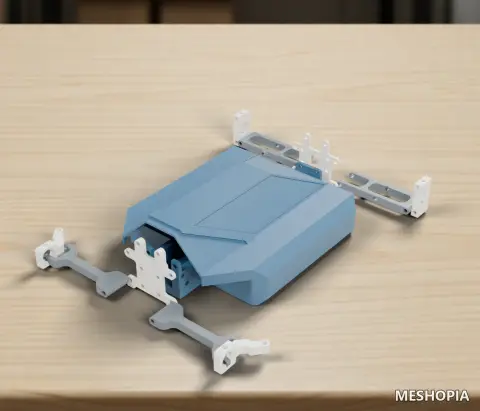

Neutron-Style RC Base and Suspension Geometry - Two 3MF One STEP and Derived STL
A Neutron-style miniature base, suspension and steering geometry collection comprising two original 3MF projects, one original STEP CAD assembly and one clearly identified derived STL preview of that STEP. The original Front Assembly 3MF contains thirty-one raw mesh resources and Rear Assembly contains thirty-three. All sixty-four raw resource meshes and the derived base STL were visually reviewed. Resources include suspension-arm shapes, front and rear mounting plates, hub and bearing-carrier-like forms, links, joint blocks, round spacers, ball-like joint forms, modeled screw/pin shapes and a broad rear crossbar. Resource counts are not counts of unique printable parts or a validated bill of materials. The STEP base shows a shallow angular rectangular tray/deck with raised sidewalls and mounting features. The additional STL was created from this exact STEP with FreeCAD using linear deflection 0.05 source units and angular deflection 0.15 radians. It is a derived tessellation supplied for convenient preview, not an original fourth source file or independently designed component. All three purchased originals remain unchanged. Source 3MF transforms and project settings are preserved but have not been certified as a working mechanical assembly or print profile. The supplied photograph shows a completed car with wheels, treaded tires, coil shocks, electrical equipment and a large labeled rear wing. Those appearances do not establish that all photographed parts are supplied here. No wheel-rim, tire or coil-spring mesh was found in the reviewed raw resources; only the reviewed base and mechanical forms are included. Modeled screw/pin and ball forms are plastic geometry, not real metal screws, bearings or proven functioning joints. The original files and derived STL are renamed in English with a source-name map. Actual scale, CyberBrick compatibility, mounting fit, joint clearances, wheel interfaces, suspension travel, printed quantities and assembly sequence remain unverified. No real motor, servo, electronics board, receiver, battery, wiring, wheels, tires, shock hardware, bearings or metal fasteners are supplied. MESHOPIA has not physically printed, assembled or driven this collection. No verified RC operation or tested print settings are claimed. The new cover renders the STEP-derived base and selected original suspension resource meshes in Blender, with blue and ivory presentation finishes over a locally generated ComfyUI workshop background. Wheel positions remain empty. No tires, rims, coil shocks, electronics or real metal hardware are added. Selected parts, orientations and static placements are inferred for presentation and do not certify mechanical fit, functioning joints or RC operation.
- Technology
- Sin probar
- material
- —
- Difficulty
- Sin especificar
