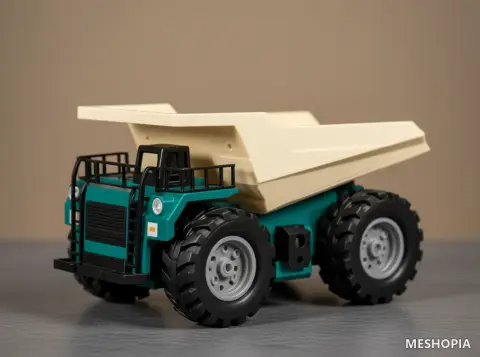

Mini Dump-Style Truck Body Chassis and Tipping Geometry - Seventy STL and STEP Files
A seventy-file Mini Dump-style miniature truck geometry collection containing thirty-eight original STL files and thirty-two original STEP CAD files. All STL files were reviewed in four contact sheets; every STEP was opened with FreeCAD and its tessellated geometry reviewed in three additional contact sheets. Six STL files are grouped printing layouts for main-color parts, secondary-color parts, dump-bed geometry and source-labeled TPU parts or tires. These layouts overlap individual components and are not extra distinct truck assemblies. The thirty-two individual STL forms and thirty-two corresponding source CAD forms include a chassis, pinion gear, rear axle and cover, front and rear wheel hubs, front and rear treaded tires, tire variants with source-labeled O-ring slots, steering links, wheel supports, dump-bed pivot mount, bed pushrod, bed and pivot, hood, grouped guardrails and cab, grille, high-clearance bumper, D-ring form, hood straps, motor holder and lock, storage box, trailer rod, hitch holder, hitch and dust cover. Corresponding names do not certify exact STL/CAD dimensional equivalence. N20, TPU and O-ring labels identify original source context rather than tested motor fit, flexible material settings, elastic behavior or supplied rubber rings. The file source-labeled front hub with N20 motor contains hub geometry; no real motor is supplied. The grouped tire layout contains four modeled tires, but quantities, alternate choices and total required prints remain unverified. Seventy files is not a validated bill of materials. All seventy original STL and STEP files remain unchanged and are renamed in English with a source-name map. Actual scale, wheelbase, hub fit, axle tolerances, gearing, dump-bed movement, towing fit, material choices and assembly sequence are unverified. No real motors, servos, controller, receiver, battery, wires, O-rings, bearings, metal fasteners or functioning lights are supplied. MESHOPIA has not physically printed, assembled or driven this model. No hauling capacity, lifting performance or tested print settings are claimed. The new local ComfyUI cover illustrates one Mini Dump-style truck from the original assembled reference with teal and ivory finishes and a new workshop background. The extra white truck in the source photograph is excluded. Window reflections, painted lamp appearances, wheel surface finishes and component placements are illustrative; they do not certify exact mesh detail, mechanical assembly, functioning lights or operation.
- Technology
- Sin probar
- material
- —
- Difficulty
- Sin especificar
