RC Setup Wheels, Knurled Knobs and Camber Gauge Meshes - Fifteen STL Files

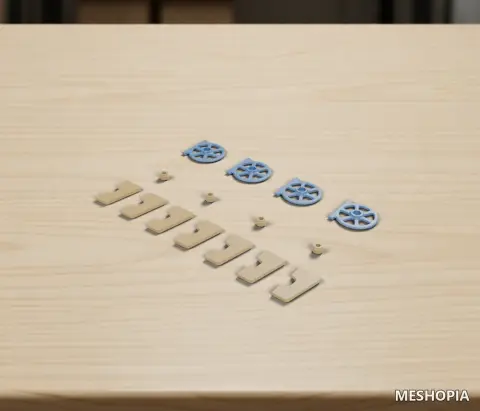

Printable RC setup-tool meshes from an AMS-labeled source project. The files contain four six-spoke disc-like wheels with hexagonal center recesses and broad straight extensions, four cylindrical knurled knobs with hexagonal recesses, and seven flat notched camber-gauge meshes. The gauge filenames carry source values of 0, 0.5, 1, 1.5, 2, 2.5 and 3 degrees. These values are source labels; measuring accuracy has not been independently verified. Fifteen unchanged original STL files are included with descriptive English filenames. The repeated wheel and knob files are retained as supplied rather than removed on the basis of similar appearance. Hexagonal interfaces are visible, but a verified interface size, vehicle scale and tested hardware fit are not supplied. AMS identifies the source naming and does not establish a required multicolor printing process. The new cover arranges all fifteen actual meshes separately: blue setup wheels, sand-colored knobs and the seven gauge pieces. A changed angle and workshop background distinguish it from the supplied image. It illustrates the downloadable pieces rather than a calibrated instrument or tested assembly; the original geometry is unchanged. Check center recesses, axle fasteners, wheel contact surfaces and gauge profiles against the intended chassis. Any metal nuts, screws, axles, measurement references and RC vehicles are not included as physical supplies. Verify each gauge against a trusted angular reference before using it for suspension adjustment. Tested printing settings, measurement tolerances and a validated assembly guide are not supplied. MESHOPIA has not tested printing, fit or measurement performance. The cover renders the actual meshes and shadows in Blender over a workshop background generated locally in ComfyUI.
- Technology
- Sin probar
- material
- —
- Difficulty
- Sin especificar
